Светодиодный драйвер с регулируемой яркостью 250 мА 350 500 600 700 10 Вт 20

Label

Description

Output constant current Input range : 100-265VAC Built-in PFC function Efficiency > 84% / PF>0.9 Protections:Short circuit/over Voltage Fully isolated plastic case Easy installation Cooling by free air convection Work with leading edge and trailing edge TRIAC dimmers Strong compatibility, flicker-free dimming Suitable for LED lighting and moving sign applications Compliance to worldwide safety regulations for lighting 5 years warranty

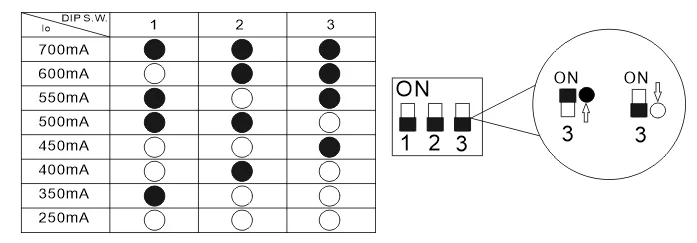

 DIP Switch

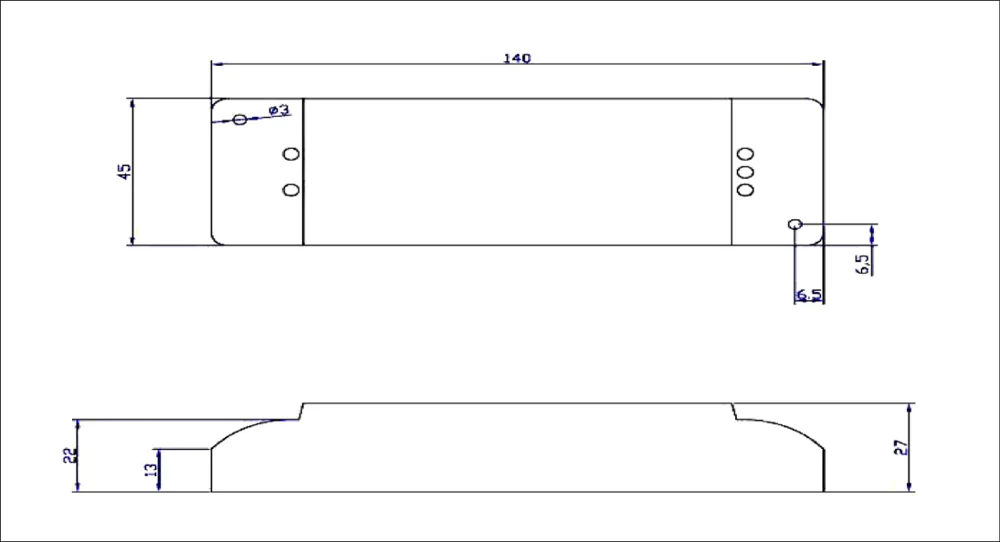

 Dimension

• Input Brown with AC (L),Blue with AC(N)


• Output Red is(DIM+),Black is(DIM-)


• Note: Any other requests we can customized.

 Dimming Operation

• Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.


• Compatible with Leading edge or tailing edge triac dimmers.


• please try to use the small power dimmer, have access to a wider dimming range, high-power dimmer is difficult to achieve the output current to zero

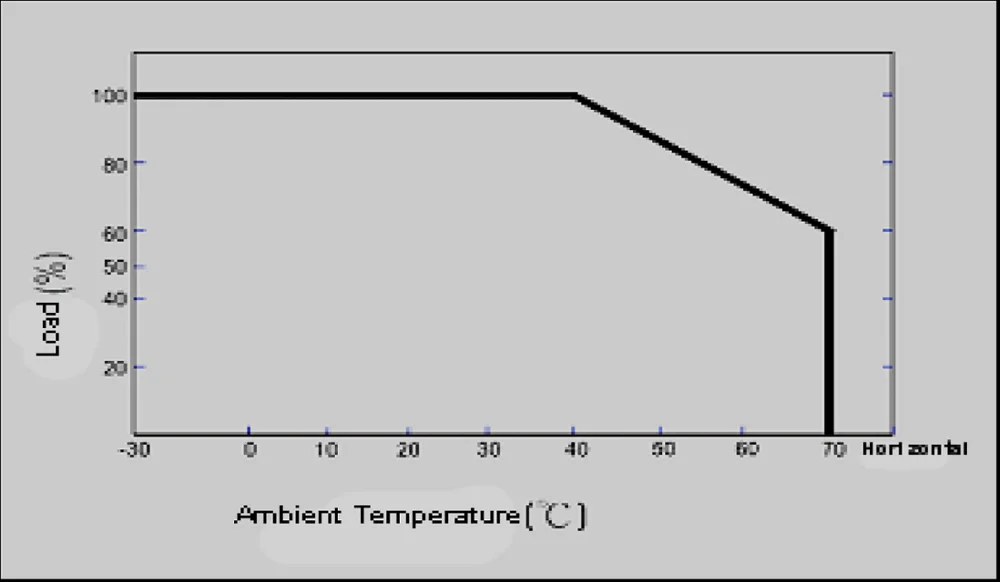

 Derating Curve

Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the service life.

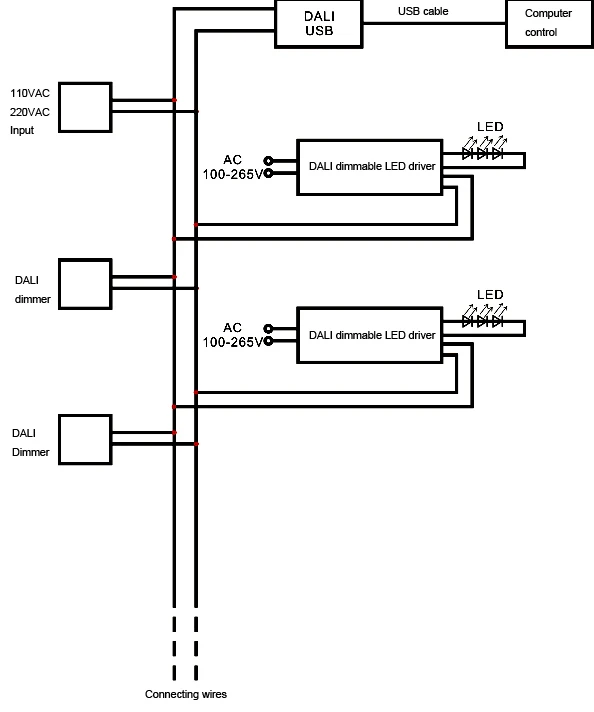

 Connection Diagram
