Китайский производитель горячая распродажа хорошее качество офсетная печатная

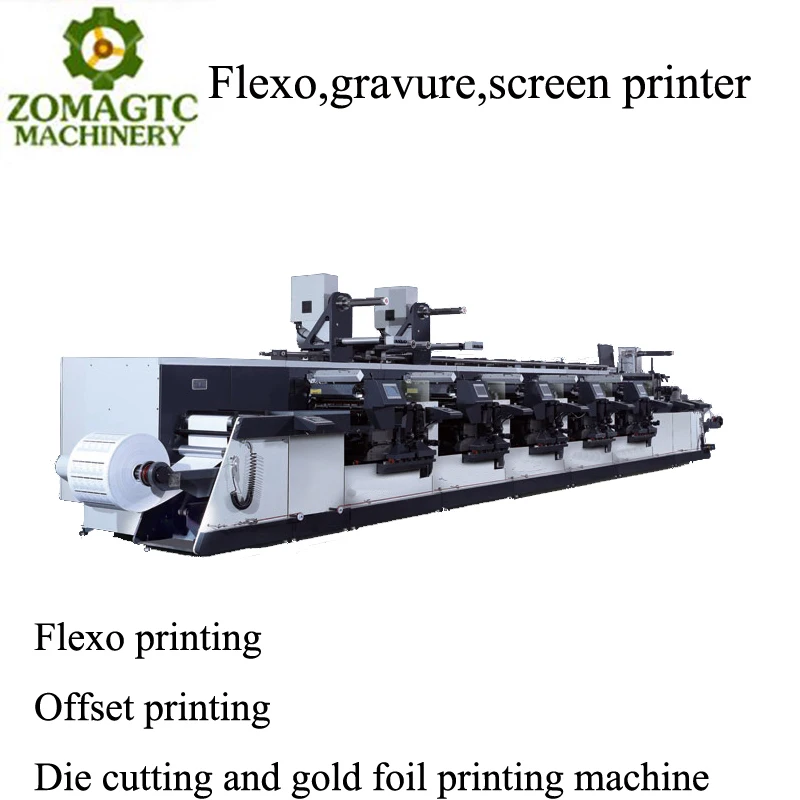

Multi-functional roll printing press is suitable for printing materials such as sticker, coated paper, paperboard, aluminum foil, etc. The machine adopts the modular module combination and can be used for 2-10 color printing. Each color group can be arbitrarily selected in the plastic, soft, silk, cold press a printing method. The whole machine adopts non-shaft transmission, automatic registration system and pre-registration system to ensure accurate overprinting at high speed (150m/min), low scrap rate, optional secondary overprinting function and forward and reverse overprinting function. Use more widely. It is the ideal equipment for printing high-grade all kinds of daily chemical products, wine labels, medicine labels, packaging boxes and self-adhesive labels.

Parameters:

Features:

1.Combined printing, unique shared platform technology, can be combined offset printing, flexo printing, silk screen, cold foil, super glazing, laminating and other printing processes. Various printing processes can be arbitrarily combined according to the requirements of different printing products, suitable for various types of label printing.

2.Large printing area 410*635, the largest printing circumference can reach 635, the maximum speed can reach 150 meters/minute. Whether it is a long list or a large label, you can deal with it calmly.

3.Wide range of printing media, paper, film, metal foil can be printed, a wide range of substrate thickness, 0.04mm (film) ~ 0.35mm (jam).

4.Non-shaft transmission: The entire machine adopts servo transmission technology from unwinding to printing, die cutting and winding. Including servo drives for unwinding and rewinding units, allowing more precise control of printing tension. The printing tension is controlled by a closed-loop tension control system that is independently driven by a servo motor. Offset plate cylinder, blanket cylinder, impression cylinder, ink path and water path are all driven by servo motor, stable operation, high positioning accuracy, no gear, reduce the production of ink bars.

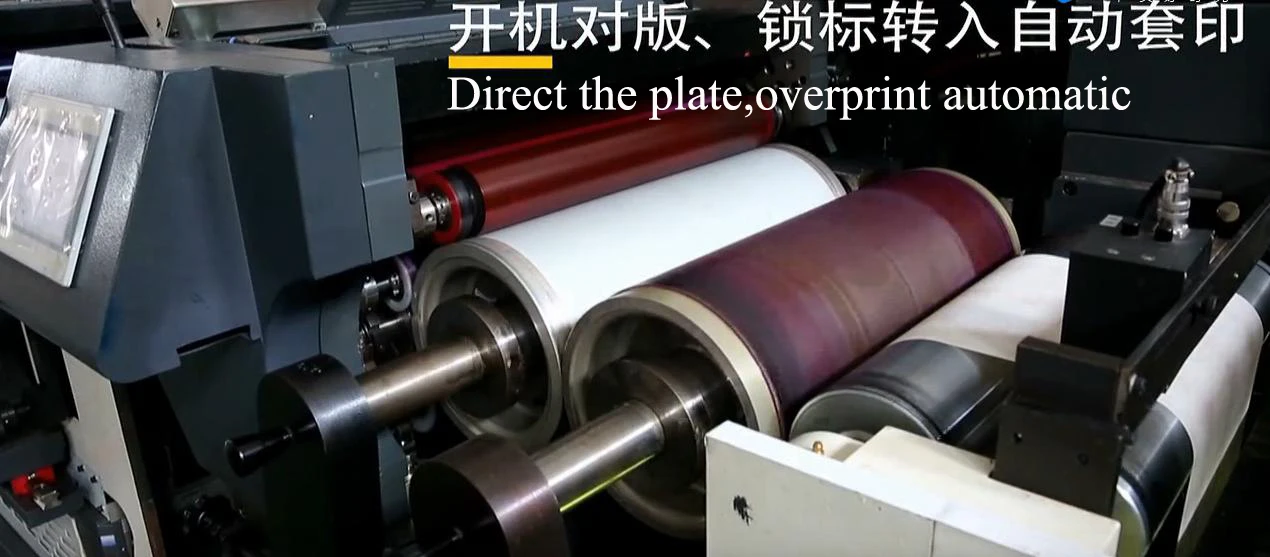

5.Automatic overprint system, especially for more than one unit overprint better than other systems. The overprint adjustment accuracy is accurate to 0.01mm, and it can automatically adjust the axial and radial overprinting at the same time. Overprint in place in two paper paths.

6.Pre-printing function: Before the ready-to-print roll is ready for printing, just press the start button, the roll will automatically find the register zero position, and you can achieve the automatic overprint requirement without manual adjustment. Improve efficiency, save a lot of material and labor costs.

7.Lightweight sleeve technology. The magnesium-aluminum alloy printing plate and the rubber sleeve can be used to change the printing format and change the printing type conveniently. The operation is simple and the maintenance cost is low.

8.The print management center can adjust the machine parameters at any time through the digital handles and store and recall each produced work order. This work order data contains the optimization status of the machine when producing the job. These data will set the device status when the work order is stored and recalled. Can realize all the control of the printing machine, in addition to boot, shutdown, speed, counting and other basic functions, the work can be stored and called, offset printing ink and ink volume control, overprint control and real-time detection

Our Service:

♥Professinoal peson reply your questions

♥One year warranty for you

♥Perfect and careful after-sale service

♥Fast delivery for you

♥24 hours on-line service for you

Q: Why don't person reply to me?

A: Our person is 24 hours on-line.If nobody reply to you,maybe he has other businesses temporarity. So please leave your requirements on e-mail or chat tool,we will reply you as soon as possible.

Q: Can you guarantee your quality?

A: Of course. We are the manufacture factory.More impotant,we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production competely.

Q: How do you make your price?

A: We make the price according to our comprehensive costing. And our price will lower than the trade company because we are manufacture. You will get lower price and better quality,if you choose us.
