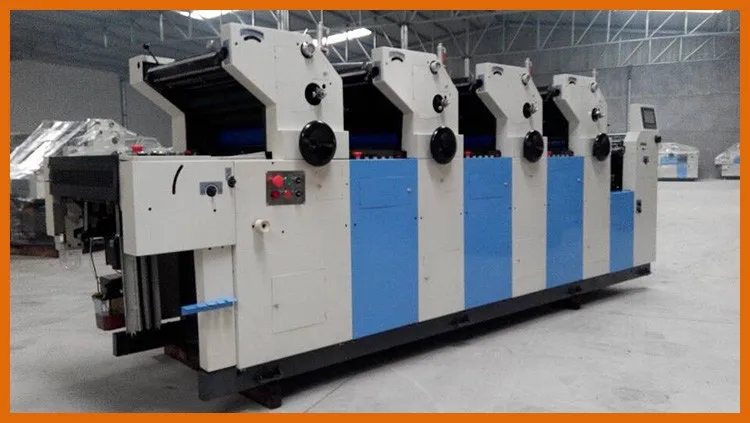

Main Parameters of 4 Colour Offset Printing Machine Price In India
Model | ZM-456 |
Max sheet size | 560*400mm |
Max printing area | 550*375mm |
Paper sheet weight | 28-250gsm |
Printing speed | 7000 sheet/h |
Plate size | 560*420*0.15mm |
Blanket size | 560*460*1.95mm |
Ink roller | 14pcs(3 forme inking rollers) |
Dampening roller | 5 pcs(2 forme dampening rollers) |
Power Single phase | Single-phase: 220V 50HZ |
Main motor | 4KW |
Air pump motor | 1.5KW |
N.W./G.W. | 2000KG |
Dimension | 3930*900*1400mm |
Main Parameters of 4 Colour Offset Printing Machine Price In India

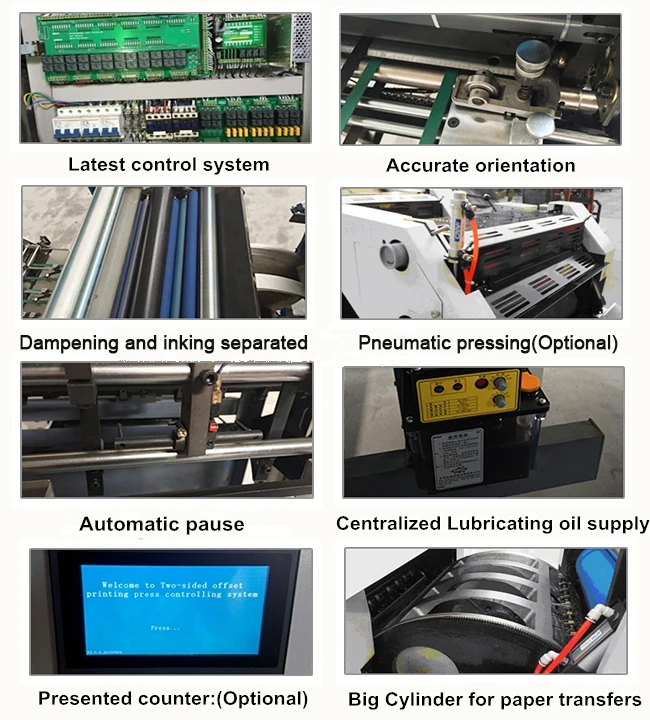

1.The latest control system
Using the most advanced control system of computer program and circuit board,that can improve production efficiency and also reduce the errors of printing. The whole machine is controlled by PLC. There are functions such as auto press, auto stop while paper jam, powder jet, steps running forward and backward.
2.Accurate orientation
Front paper stopper of registration, both side-pulled-paper stopper, paper feeding horizontal registration, paper feeding table slight adjustment, plate cylinder registration of up/down.
3.Dampening and inking separated
Dampening system is separated from inking system, which can adjust dampening and inking flexibly and content the requirement of different printing items for dampening and ink.
4.Pneumatic pressing:(Optional)
Adopt pneumatic pressing cylinder for each unit,making pressing automatically instead of traditional manual handles for water supply, ink supply and plate cylinder pressing.
5.Automatic pause
Machine can be paused automatically when paper order is out of control, then automatic alarm, which can avoid waste paper.
6.Centralized Lubricating oil supply:(Optional)
Use Auto system to control Lubricating oil for the important parts of machine which can improve the efficiency of machine.
7.Presented counter:(Optional)
This machine adopts electromagnetic presented counter. If the quantities printing work finishes, the paper feeding stops automatically.
8.Big Cylinder for paper transfers:(Optional)
A new type for paper transfers between two units, it can achieve the tranfers one time than old type for 2 or 3 times.The advantage:transfers more stable, ink enough time to dry.
Packing Detail | Strong wooden case |
Mode of transportation | By sea,By Air, By Express |
Port of shipment | Main port in China mainland |
*All of our machine have one year warranty,life-long maintance.
*Lowest price,best quality.
*24 hours online answer your questions.
*Delivery it to you as soon as possible.
Zhengzhou Zomagtc Company Ltd. have been designing, developing, manufacturing
and marketing Machinery for more than 10 years. Firstly we mainly sever china mainland
customers. In order to adapt to world market development, now we do the exporting
business directly. After these years of development, we have high quality professional
teams,skillful talents, strong technical force, strong and independent research and
development capabilities, advanced productione quipment and a perfect after-sales
service system.
Q1: How do you control the items quality?
A1: Each machine strictly tested one by one before shipping.
Q2: What is the delivery time?
A2: as normal 3-7 working days after confirm the payment
Q3: when we receive the box, find any items missing or defective, how should we do?
A3: please contact us ASAP, we will check and give you best solution soon.
Q4: What is quality guarantee policy?
A4: 12 months guarantee for all goods from our company, but we do not accept any broken by man.
