4*7*2 5 мм MR74ZZ миниатюрная Рыболовная катушка с

Описание и отзывы

Характеристики

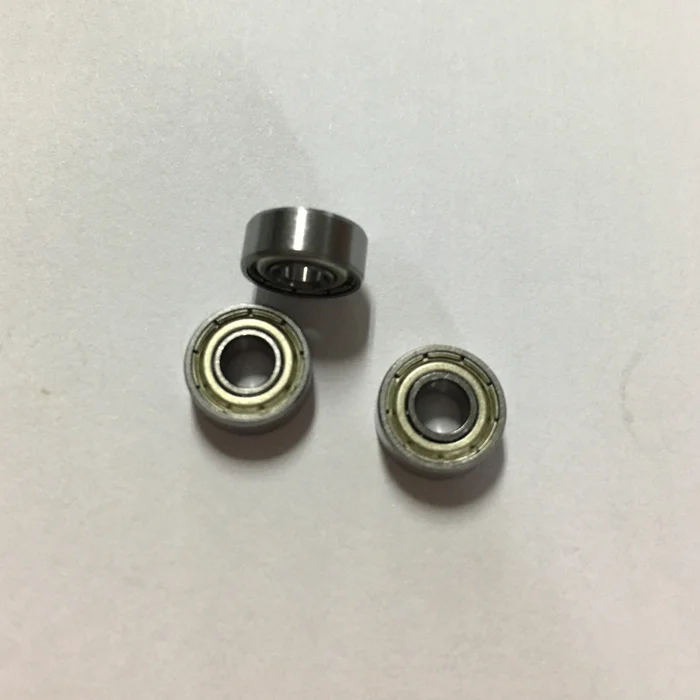

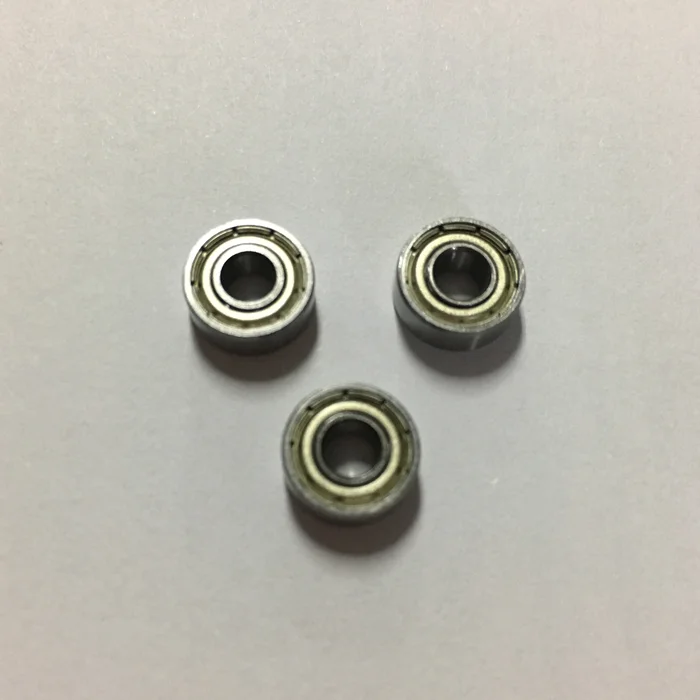

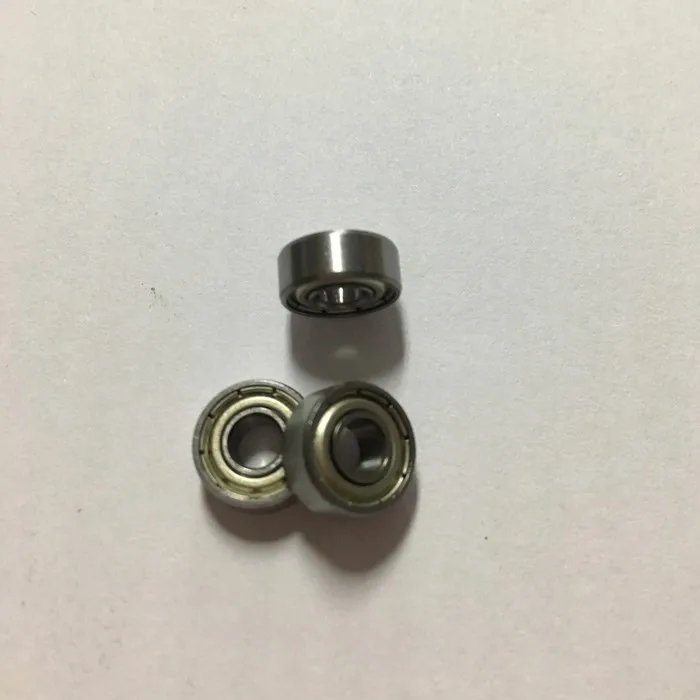

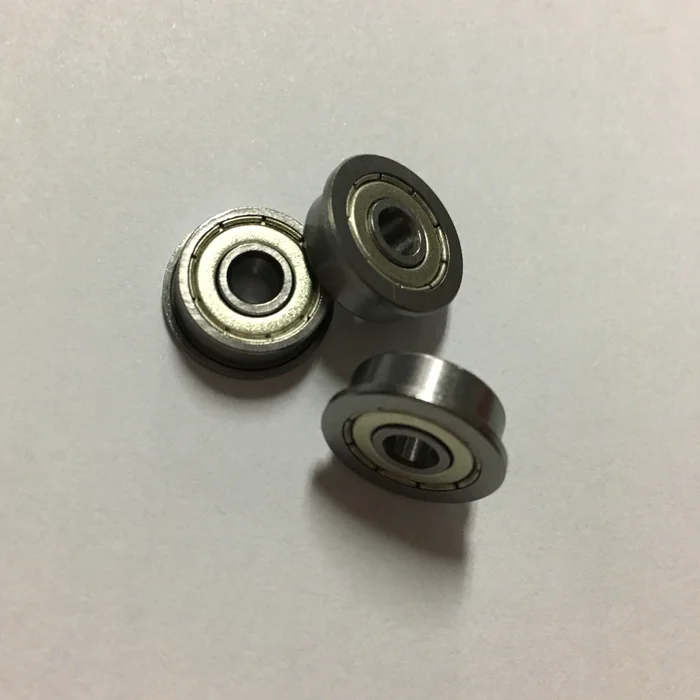

4*7*2.5mm MR74ZZ Miniature Fishing Reel Ball Bearing



 Metric Miniature Bearings Model682 682ZZ MR52 MR52ZZ 692 692ZZ 683 683ZZ MR83 MR83ZZ 693 693ZZ 603 603ZZ 623 623ZZ MR74 MR74ZZ MR84 MR84ZZ 684 684ZZ MR104 MR104ZZ 694 694ZZ 604 604ZZ 624 624ZZ MR85 MR85ZZ MR95 MR95ZZ MR105 MR105ZZ 685 685ZZ MR115ZZ 695ZZ 605ZZ 625ZZ MR106 MR106ZZ MR126 MR126ZZ 686 686ZZ 696ZZ 606ZZ 626ZZ MR117 MR117ZZ MR137 MR137ZZ 687 687ZZ 607ZZ 627ZZ MR128 MR128ZZ MR148 MR148ZZ 688 688ZZ 698ZZ 608ZZ MR149 MR149ZZ 689 689ZZ 609ZZ 629ZZ 639ZZ 6000ZZ 16001ZZ 6200ZZ

Deep groove ball bearings are the most common Rolling bearings. Its structure is simple and easy to use. Used primarily for radial load, but when you increase the radial clearance of bearings, has a certain amount of angular contact ball bearings, can be subjected to combined radial and axial loads. When in high speed and inappropriate use of thrust ball bearings can also be subjected to purely axial loads. Compared with other types of bearing of the same size, the bearings low friction, high speed limit. But not shock resistant and should not be subjected to heavy loads



Types:

– Single row deep groove ball bearings

– Single row deep groove ball bearings with filling slots

– Stainless steel deep groove ball bearings

– Double row deep groove ball bearings

– Hybrid deep groove ball bearings

– Deep groove ball bearings for high temperature applications



Application



Deep groove ball bearings can be used for transmission, instruments, electrical machinery, transport vehicles, agricultural machinery, household appliances, internal combustion engines, construction machinery, engineering machinery.





Part No.	ID(mm)	OD(mm)	Height (mm)		Dynamic load Cr(N)	Static load Cor(N)	Limiting speed(1000r/min)
			Open	ZZ		Grease lubrication		Oil lubrication
MR52zz	2	5	2	2.5	169	50	85	100
MR62zz	2	6	2.5	2.5	330	99	75	90
MR72zz	2	7	2.8	3	386	129	63	75
MR82X	2	8	2.5	-	558	180	60	67
MR63zz	3	6	2	2.5	209	74	71	80
MR83zz	3	8	2.5	3	395	141	60	67
MR93zz	3	9	2.5	4	571	189	56	67
MR74zz	4	7	2	2.5	255	108	60	67
MR84zz	4	8	2	3	395	141	56	67
MR104zz	4	10	3	4	711	272	48	56
MR85zz	5	8	2	2.5	218	90	53	63
MR95zz	5	9	2.5	3	431	169	50	60
MR105zz	5	10	3	4	431	169	50	60
MR115zz	5	11	-	4	716	282	45	53
MR106zz	6	10	2.5	3	496	218	45	53
MR126zz	6	12	3	4	716	295	43	50
MR117zz	7	11	2.5	3	455	202	43	50
MR137zz	7	13	3	4	541	276	40	48
MR128zz	8	12	2.5	3.5	543	274	40	48

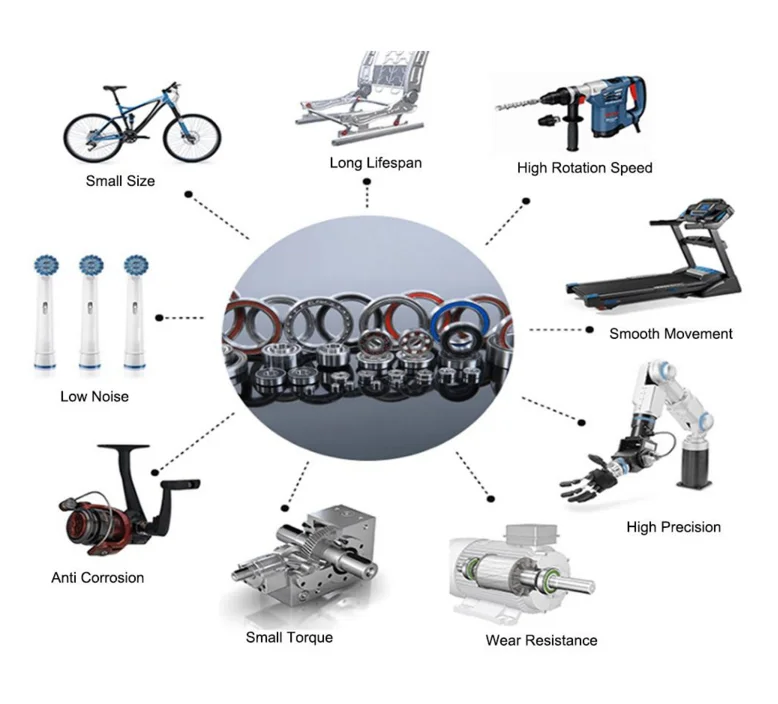

Various application.
