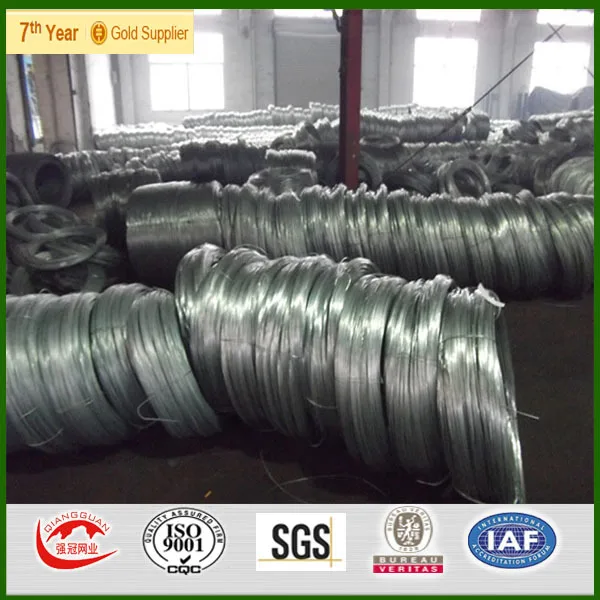

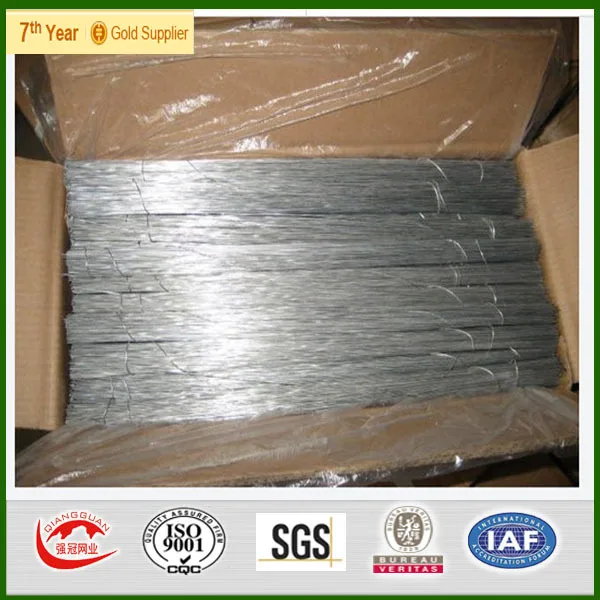

Hot-dipped galvanized iron wire



Hot-dip galvanized iron wire is made with choice low carbon steel wire, through wire drawing, wire annealing,rust removing and acid washing, zinc plating and coiling. It’s mainly used in construction, handicrafts, woven wire mesh, express way fencing mesh, packaging of products and other daily uses.

Size range: BWG 8-BWG 22

• Zinc coat: 40-240g/m2


• Tensile strength: 35-70kg/mm2


• Elongation: 10%-25%

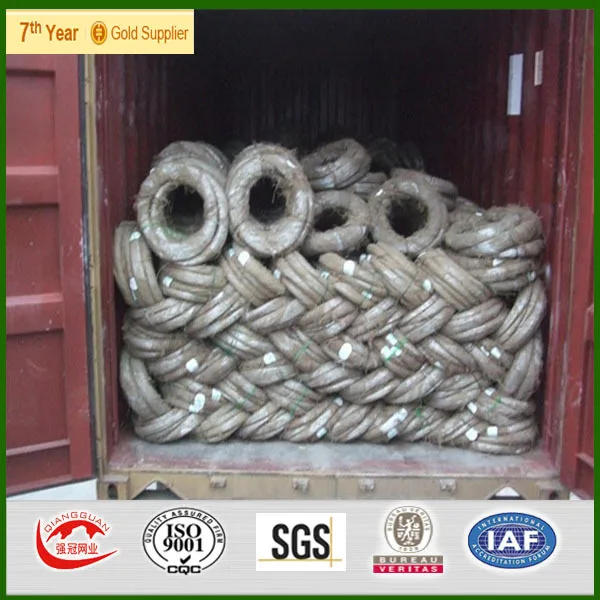

• Packing: 0.1-1000kgs/coil, coil with plastic inside and hessian cloth outside or weave bag outside

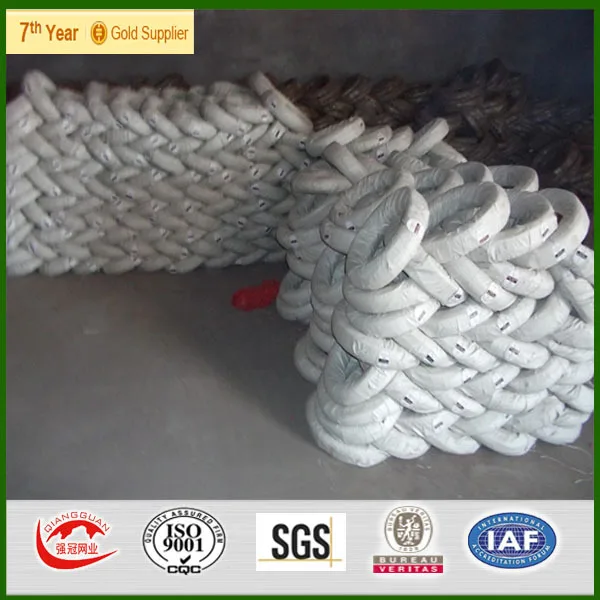

Electro galvanized iron wire



Electro galvanized iron wire is made with choice mild steel, through wire drawing, wire galvanizing and other processes. Electro galvanized iron wire has the characteristics of zinc coating, good corrosion resistance, firm zinc coating, etc. It’s mainly used in construction, express way fencing, binding of flowers and wire mesh weaving.

Size range: BWG 8-BWG 22, we can also offer BWG 8-BWG 28

• Zinc coat: 8-18g/m2


• Tensile strength: 35-70kg/mm2


• Elongation: 10%-25%

Packing: 0.1-1000kgs/coil, coil with plastic film inside and hessian cloth outside or weave bag outside

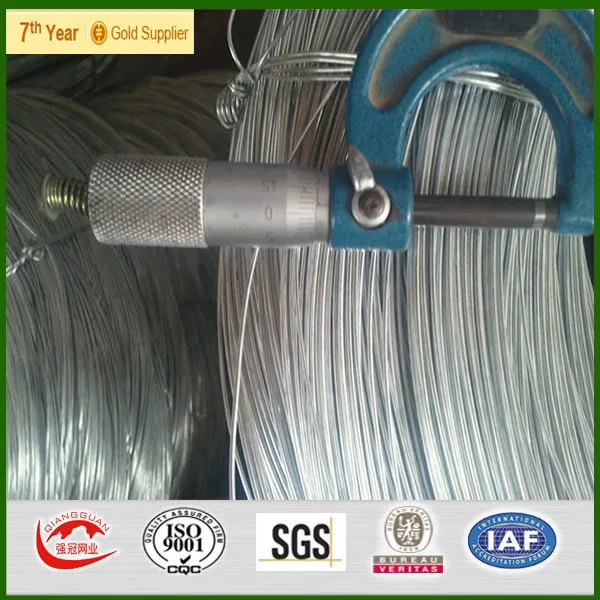

Glavanized iron Wire gauge



Wire Gauge of  binding wire
Wire Gauge	SWG(mm)	BWG(mm)	Metric(mm)
8#	4.06	4.19	4.00
9#	3.66	3.76	-
10#	3.25	3.40	3.50
11#	2.95	3.05	3.00
12#	2.64	2.77	2.80
13#	2.34	2.41	2.50
14#	2.03	2.11	-
15#	1.83	1.83	1.80
16#	1.63	1.65	1.65
17#	1.42	1.47	1.40
18#	1.22	1.25	1.20



19#	1.02	1.07	1.00
20#	0.91	0.89	0.90
21#	0.81	0.813	0.80
22#	0.71	0.711	0.70

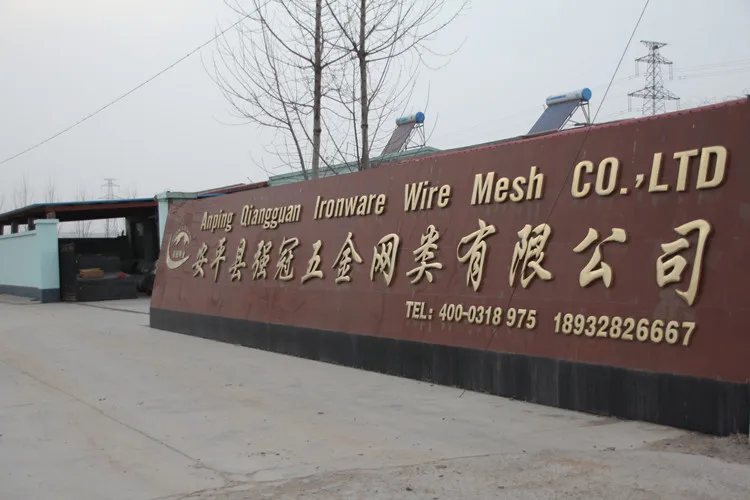

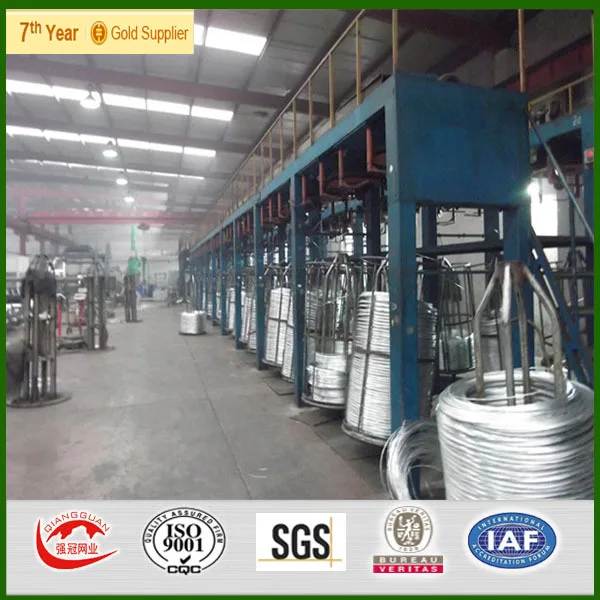

Glavnized wire factory

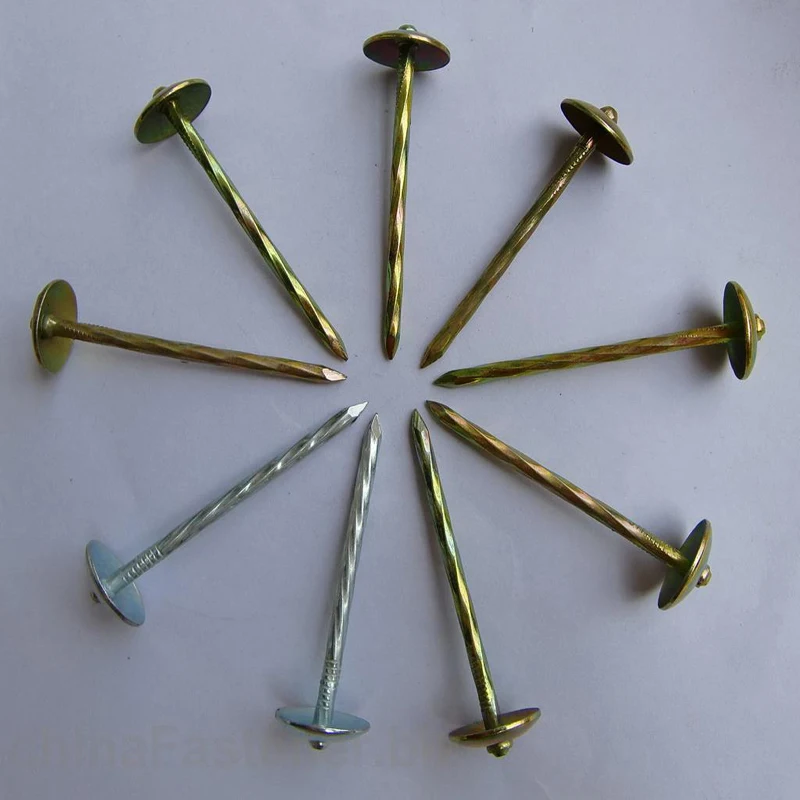

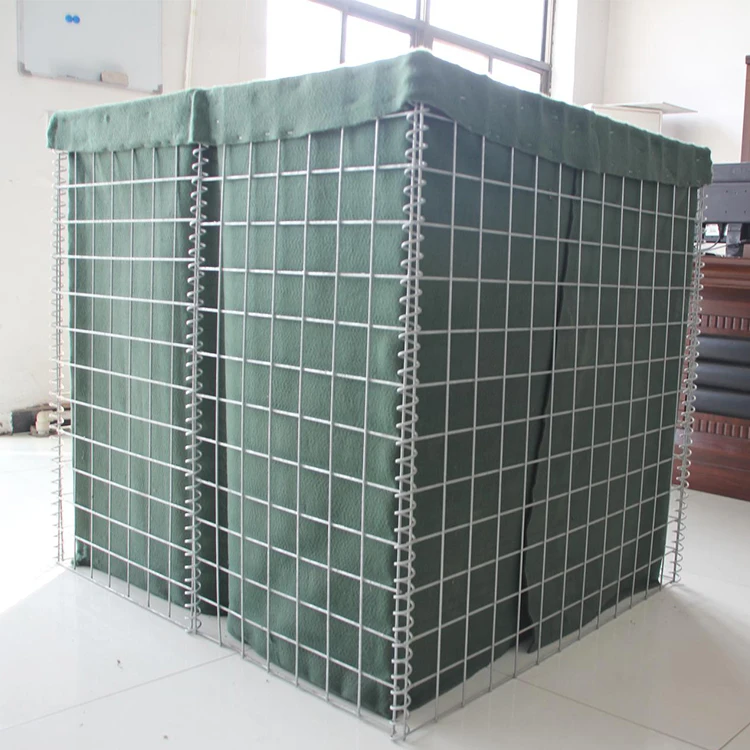

 Other products
