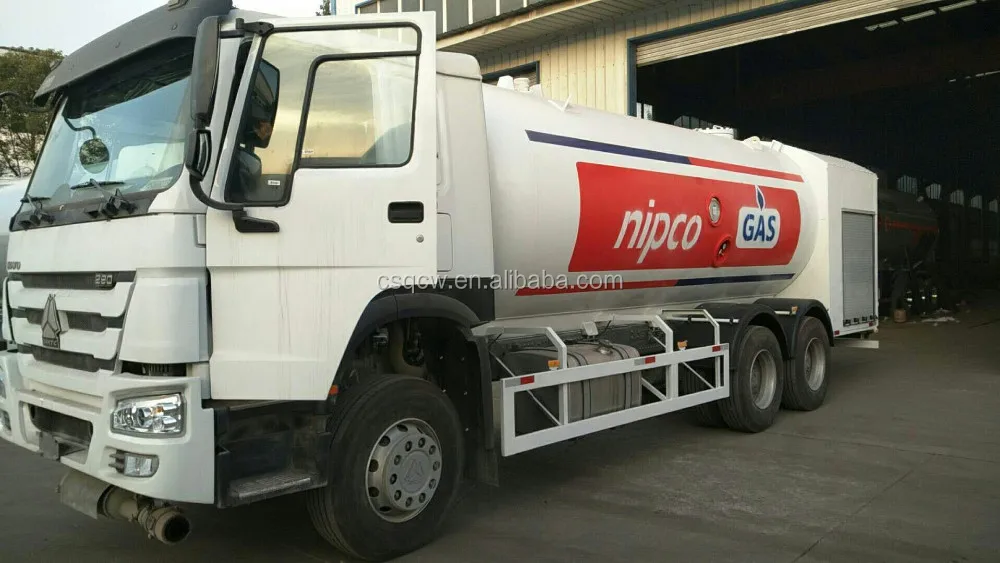

Грузовик-цистерна для транспортировки пропана 20000 литров 10 тонн

20000liters propane gas transport road tanker 10tons lpg dispensing truck for sale

Features
1) Loading capacity: 2tons 5tons 6tons 8tons 10tons
2) Tank Volume: 3m3, 5m3, 8m3, 10m3, 12m3, 15m3, 18m3/ 3000L, 5000L, 8000L, 10000L, 12000L, 15000L, 18000L etc.
3) Truck engine brand: Weichai Yuchai Yunnei for option
4) Main parts installed on lpg bobtail: blackmer/corken pump, cylinder filling gun, dispenser filling weight     scales, flow meter, Pressure Gauge, Level Gauge etc.

Item No.\tParameters
Overall Dimension\t7200*2300*2950 mm
Gross Vehicle Weight\t12500 kg
Curb Weight\t7500 kg
Loading Weight\t5000 Kg
Approach/Departure Angle\t25/18 degree
Engine\tYuchai engine
Engine horsepower\t130 HP Euro II
Displacement\t5.900 L(Diesel)
Max Driving Speed\t90 km/h
Tire\t10R22.5 (7 pieces with one spare tire)
Tank Capacity\t12 CBM
Filling Content\tLiquefied Petroleum Gas (Propane)
Tank Dimension(diameter*thickness*length)\t1700*8*5140 mm
Tank Material\tQ345R high tension steel, 10mm Thick Tank Body.
Tank Specification\tDesigned Pressure: 1.66Mpa Filling Ratio: 0.55 kg/LWorking

Temperature: under 50 centi-degree

Corrosion Allowance: 1mm
Main Accessories\tEmergency Cut-off Valve, Safety Valve, Ball Valve, Liquid level meter,  Pressure gauge, Temperature Gauge, Valve Boxes, lpg dispenser, lpg filling gun.

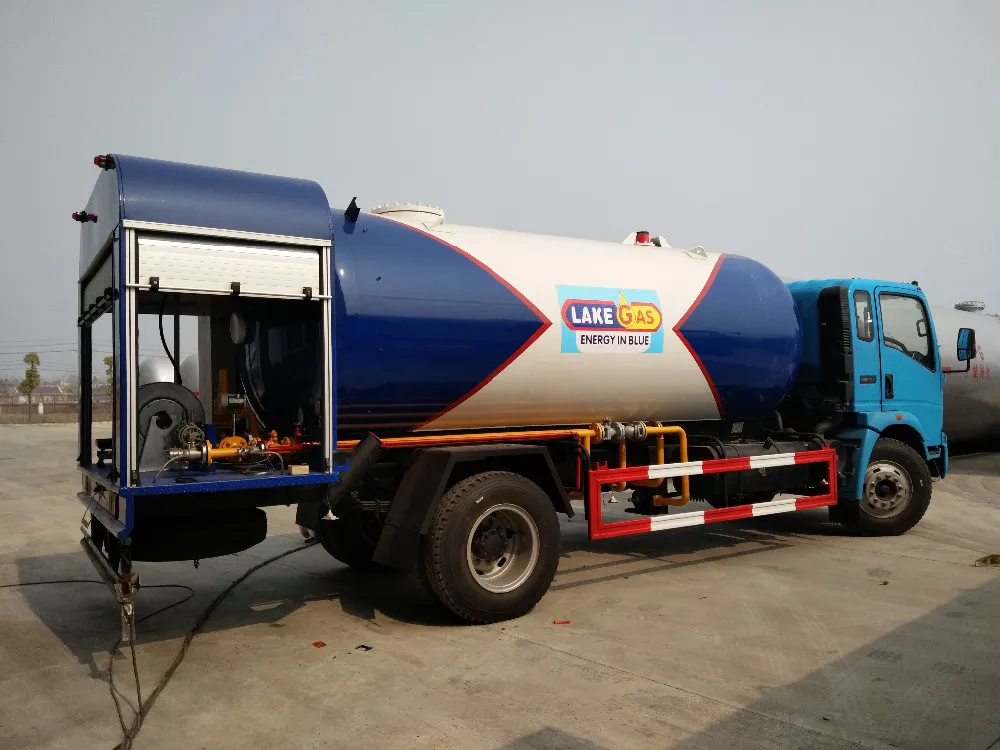

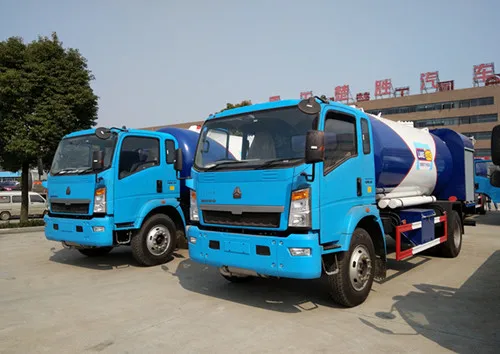

LPG Bobtail refilling truck

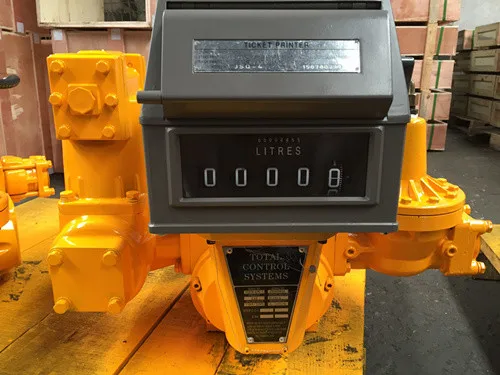

Volumetric flow meter

Flange size NPT 2” (DN50)
Max capacity GPM 100, LPM 380.
Working pressure 350PSI, 24Bar.
Working temperature -40-70 centi degree.
with Mechanical Register, strainer, air eliminator, printer, Diff. Valve and Back Check Valve.

Hydraulic Pump

Flowrate varies from 5cbm per hour to 15cbm per hour

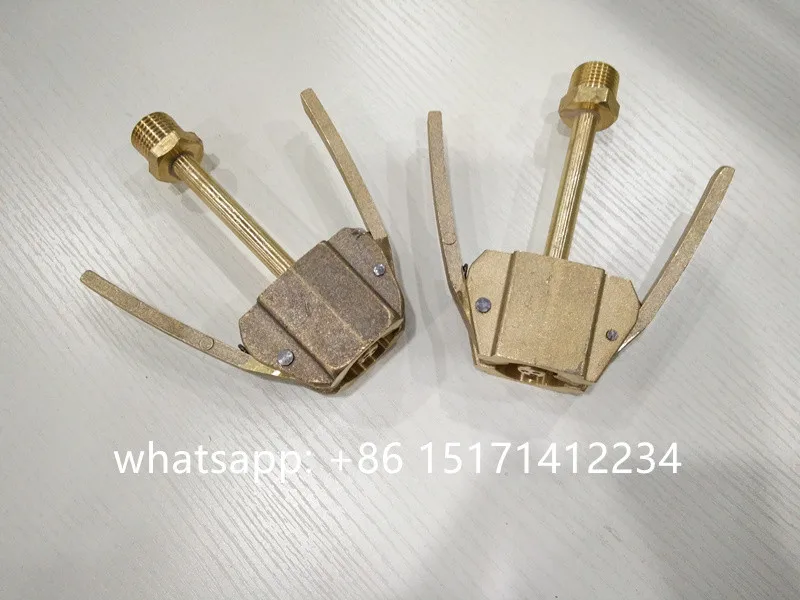

LPG cylinder filling nozzle

Used on 12.5KGS cylinder

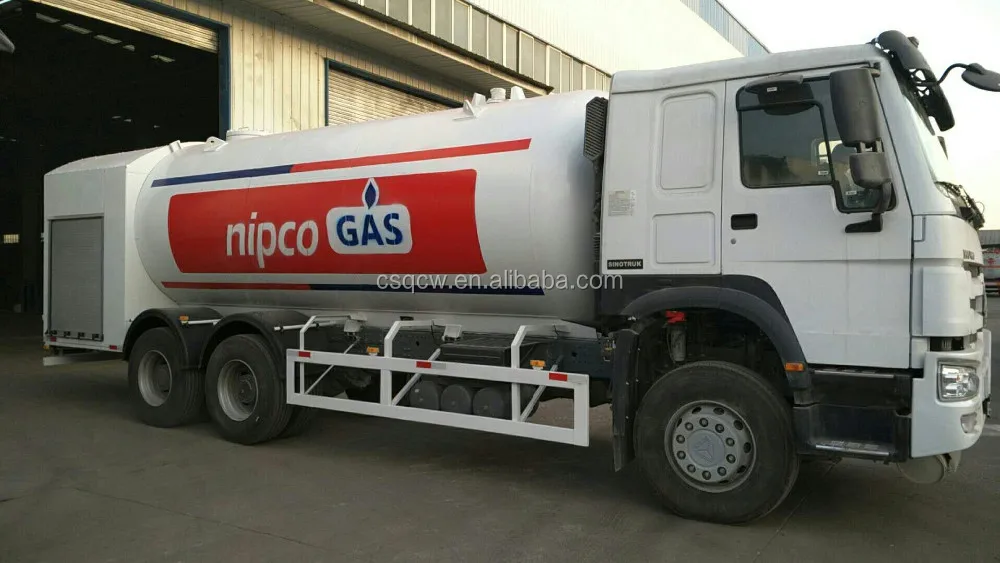

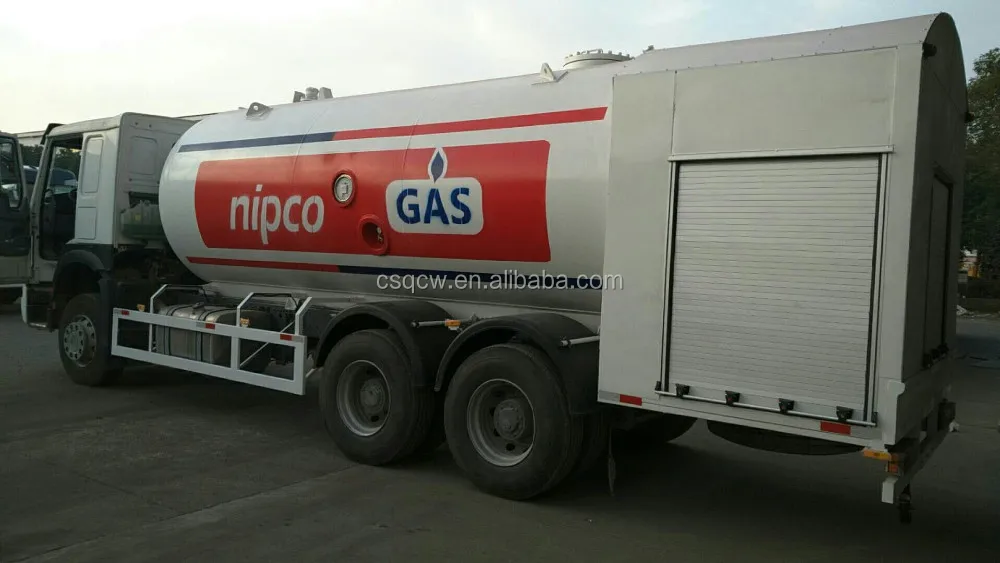

6 units 12cbm lpg bobtail truck exported to Tanzania

50units ASME standard 54CBM lpg tank trailer         exported to Bolivia

16 units lpg tank skids exported to Nigeria

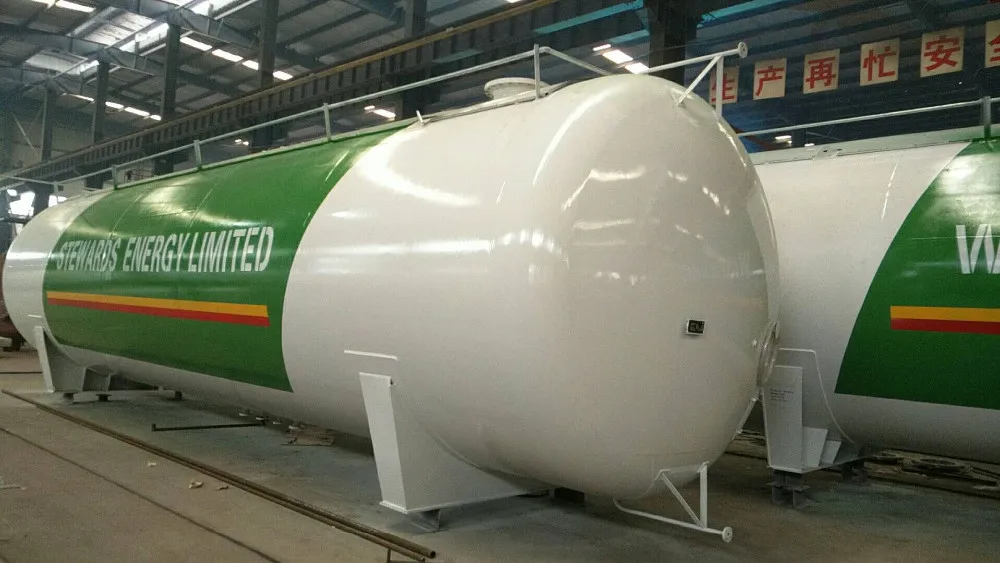

5 units 120cbm lpg storage tanks exported to           Nigeria

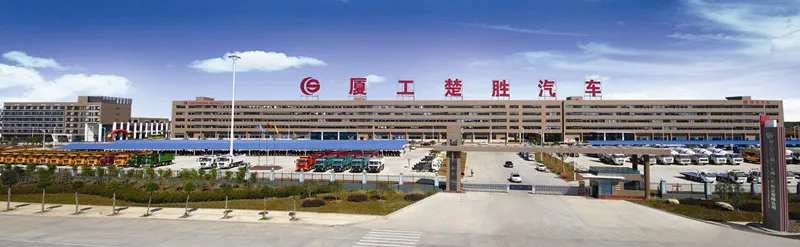

1. Xiagong Chusheng (Hubei) Special-purpose Vehicle Manufacturing Co., Ltd. is a famous and the biggest manufacturer with professional experience in special automobile field for more than 15 years in China. We have more than 3000 workers, 400 technicians, and factory scale is more than 690,000m2.

2. Our most advantage and leading products including LPG tanker series, Water Tank, Fuel tank, Refrigerated Truck, Garbage Truck, Towing/Wrecker truck, Dump Truck, Sewage Suction Truck, Concrete Mixer Truck, Bulk Cement Truck, Van Truck, Sweeper Truck, Truck with Crane, Fire fighting Truck, High-altitude Operation Truck, Chemical Liquid Truck, Milk Transport Truck, LED Display Truck, Various Semi-trailer, Spare parts etc.

3. We have rich export experience to more than 60 countries, such as Ghana, Togo, Sudan, Kuwait, Peru, Nigeria, Benin, Angola, Tajikstan, Azerbaijan, Namibia, Burma, Korea, Iran, Afghanistan, Iraq, Philippines, Vietnam, Saudi Arabia, Mexico, Chile, Bolivia, Tanzania, Zambia, Zimbabwe,         Yemen etc.

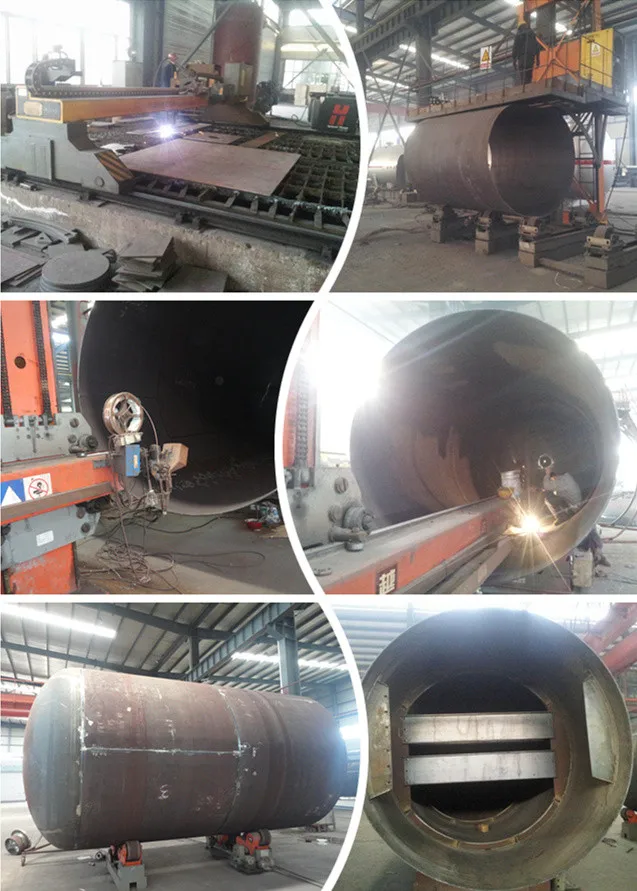

We have strict quality control of raw material, professional management team and technical workers, advanced equipments, strict inspection before delivery, excellent packing and shipping team.
