Item Name | VEE PACKING SETS STANDARD PISTON SEAL | ||||
Material | NBR+Fabric; FKM+Fabric; HNBR+Fabric | ||||
Color | Can be customized | ||||
Usage | sealing rods, pistons, plungers in hydraulic cylinders and hydraulic presses | ||||
Working Medium | hydrauticoil | ||||
Woking Temperature | -30~200° C | ||||
Delivery time | About 10 days after receiving deposit |

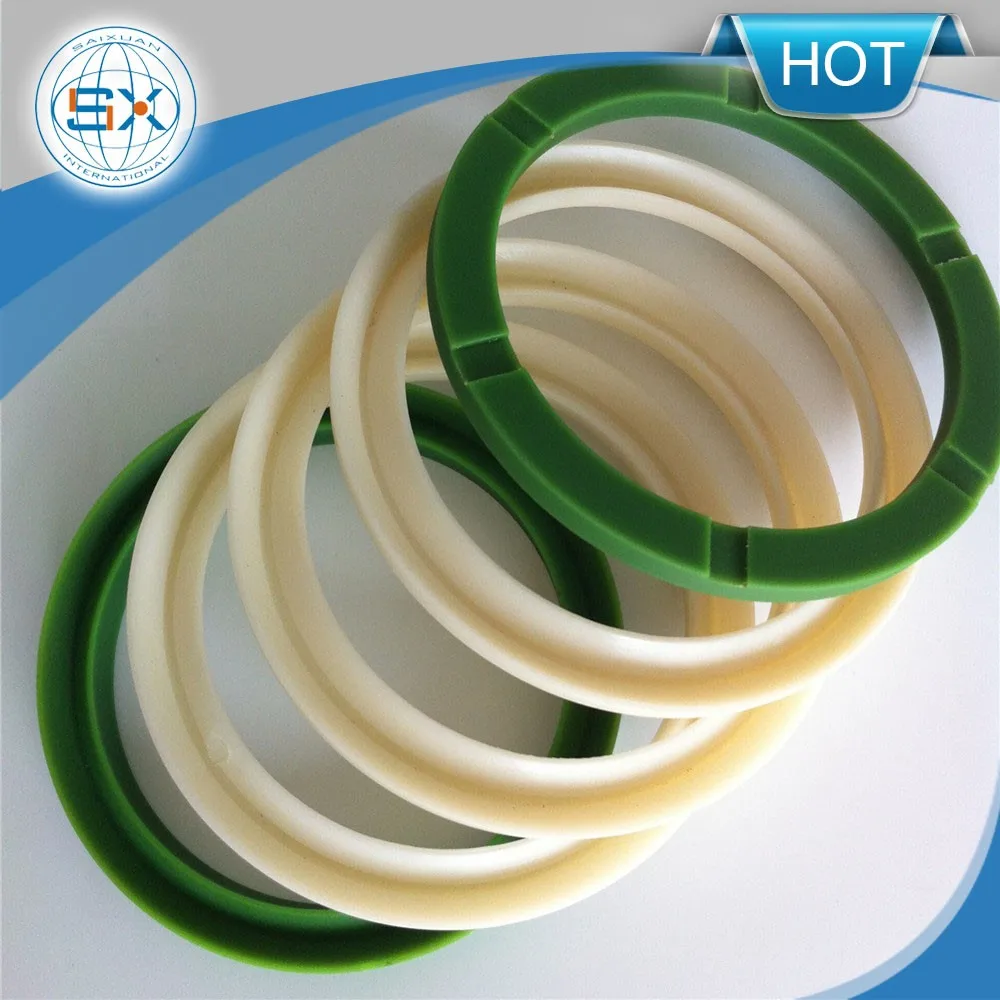

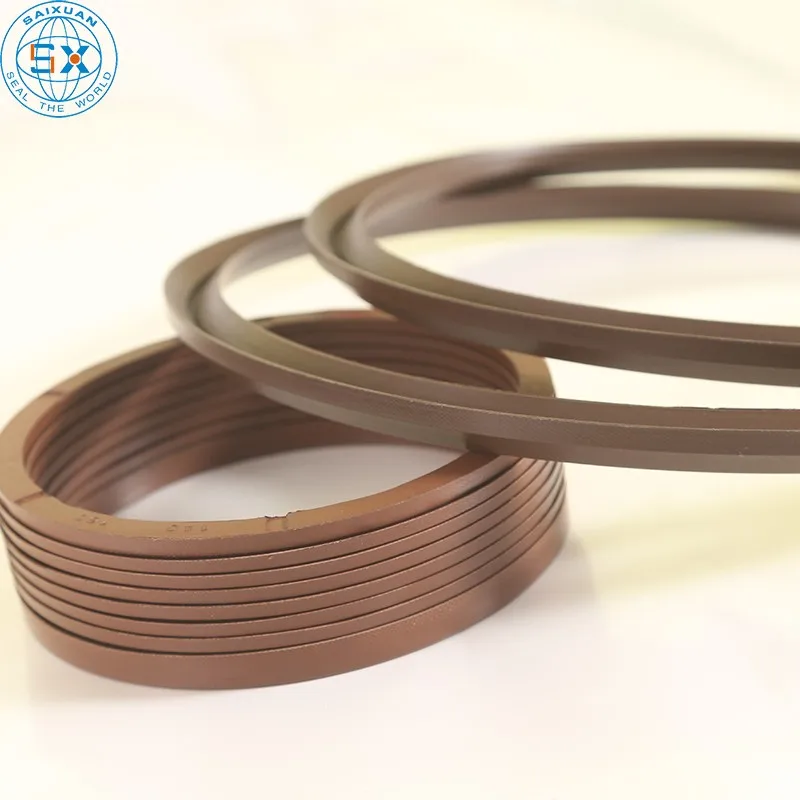

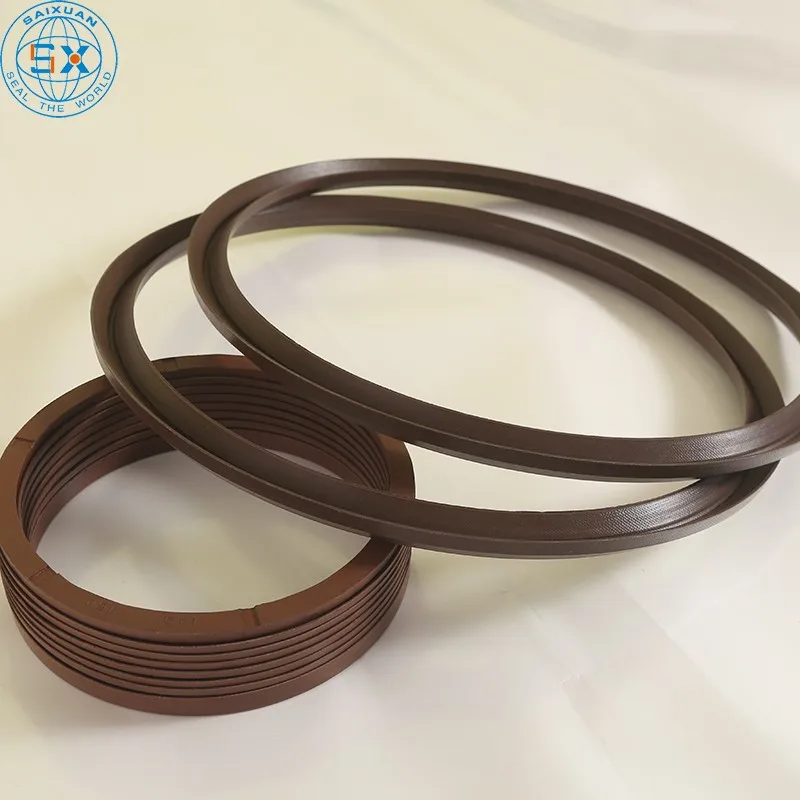

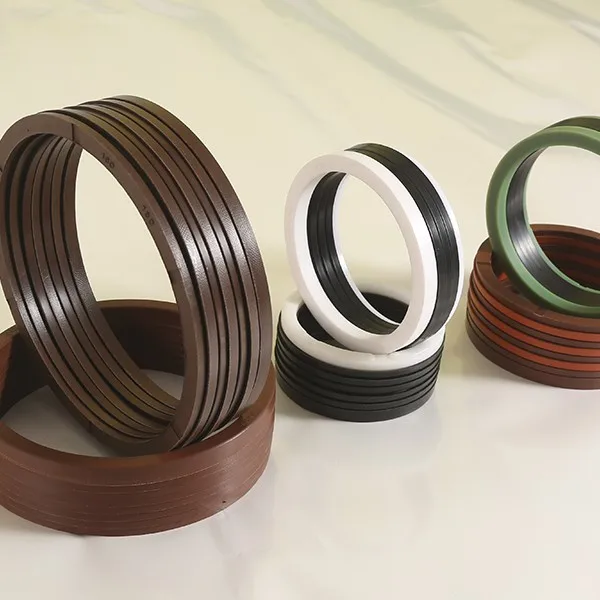

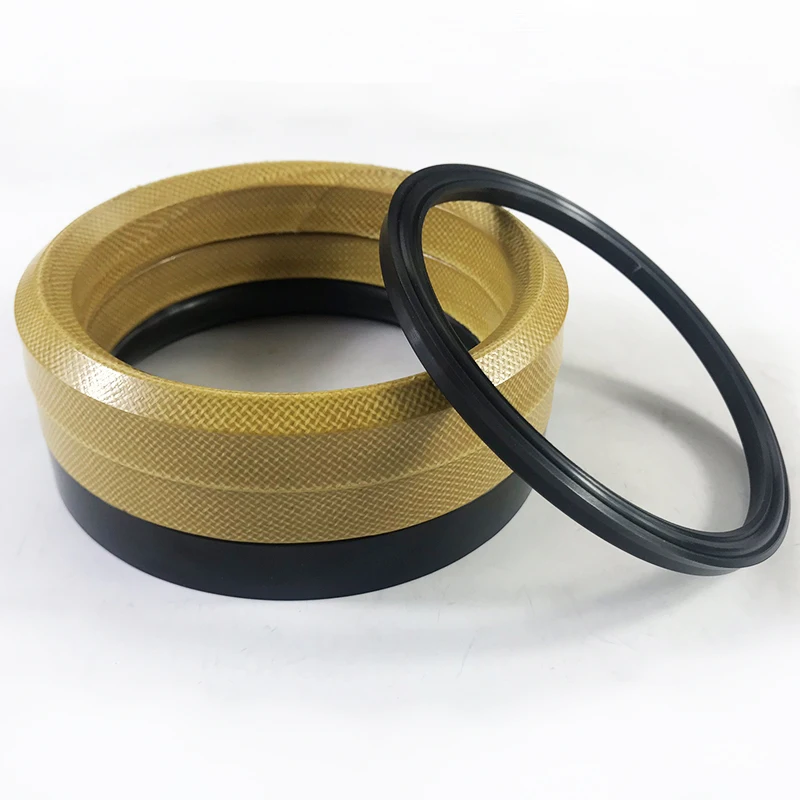

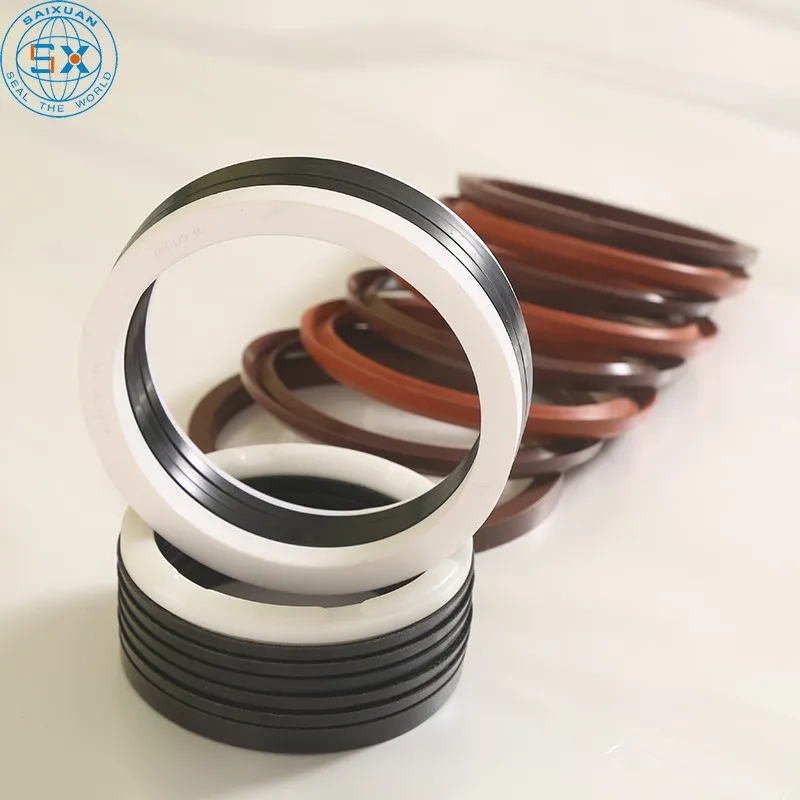

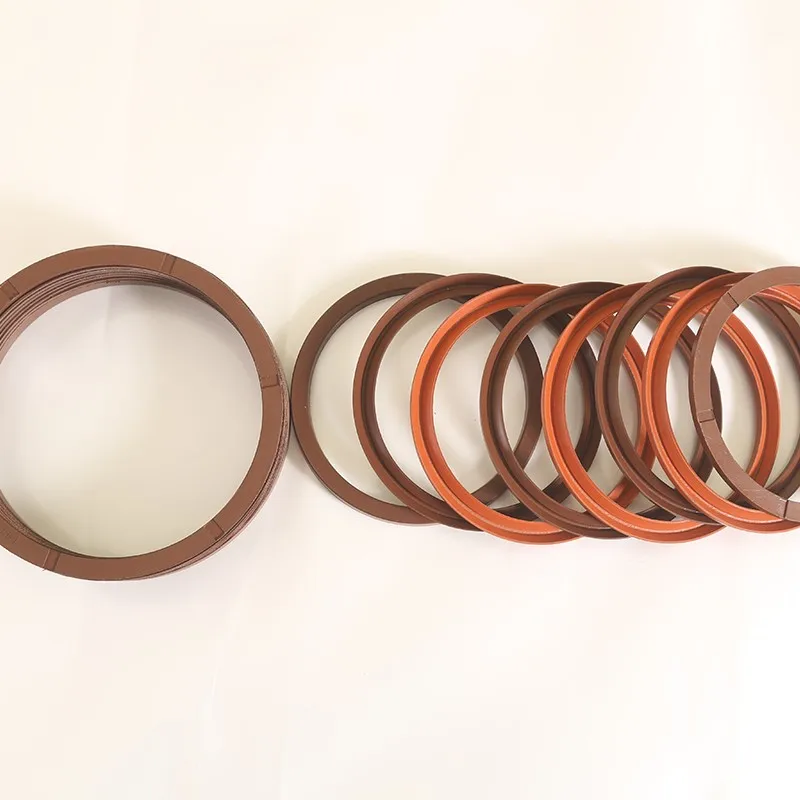

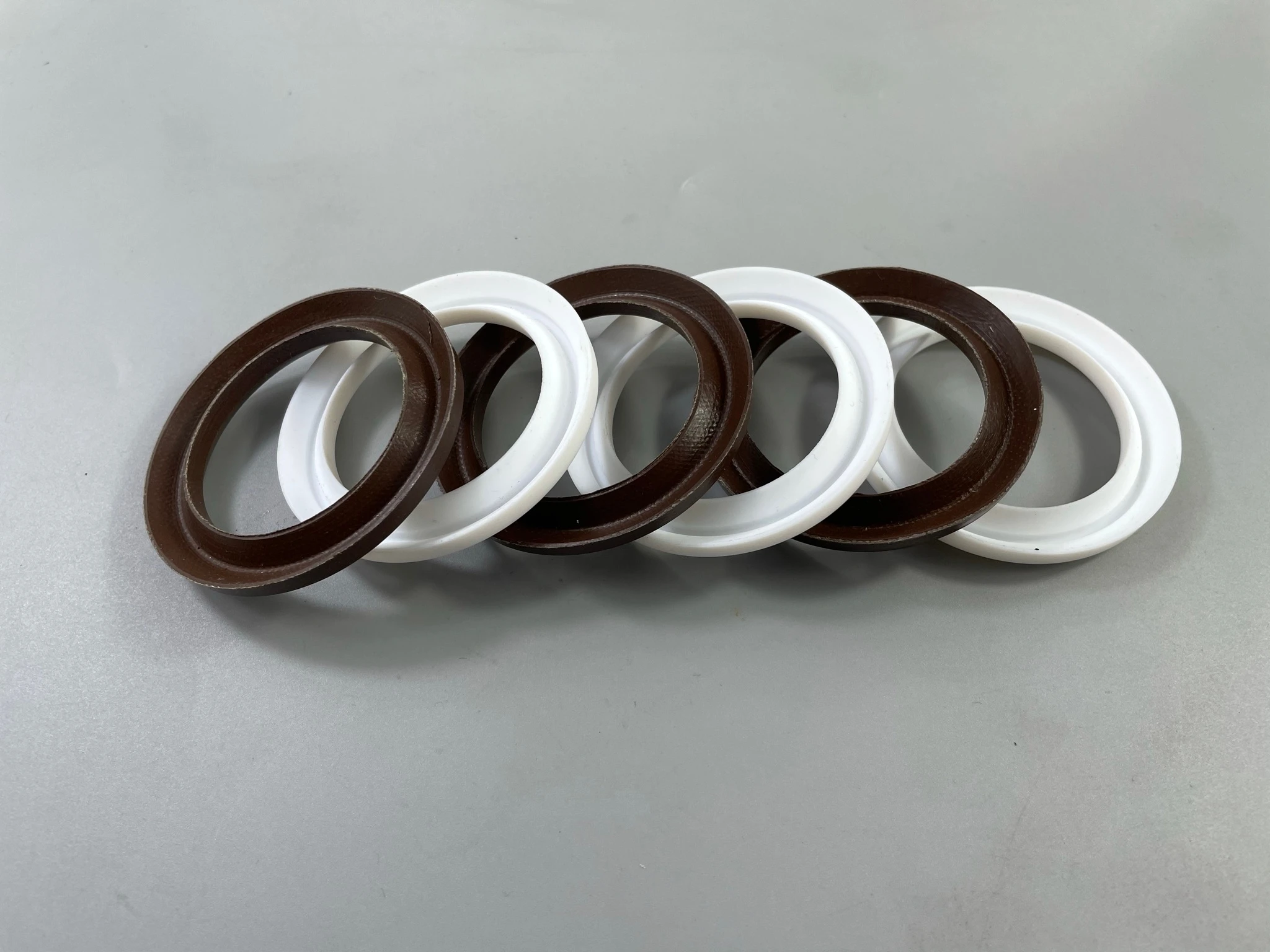

The V-Packing is a combination of Base Seal, the V-Ring at the center and the Pressure ring.The V-Ring is the main seal that can retain high and low pressures while the base seal supports the center ring from getting extruded during high pressure applications. The Pressure Ring helps in retaining the V-Packing profile and distributing pressure equally.
V-Packings that consist of a group of endless rings and are usually used for sealing rods, pistons, plungers in hydraulic cylinders and hydraulic presses. V-Packings are used for low or high pressure applications with Single or Double acting cylinder.
V-Packings are also used in various Oilfield Downhole equipment such as various Valves etc. V-Packings are extremely suitable for usage in medium to heavy duty applications. V-Packings accept low and high pressure while operating in the most extreme conditions and also if there exists any misalignment between the sealing gaps.
Under the weather of below 100 centigrade,V-Ring adopt NBR fabric-reinforced, support ring, pressing ring adopt NBR fabric-reinforced or Nylon; which can be in use 100-200 centigraqde, V-Ring adopt FKM+fabric, pressing ring and support ring adopt FKM+fabric or PTFE.
1)Pressure, 40 MPa;
2)Temperature, -30-200 centigrade;
3)Speed, below 0.5 m/s;
4)Medium, hydraulic oil,emulsion and water
