Vehicle To Home V2H

LEAF to Home power supply system, which aims to use EV technology to help power grids cope with peaks in demand, provide power during natural disasters, and make electricity from renewable sources more viable.

By using the storage capacity of EVs and Vehicle to Home (V2H) systems, consumers can reduce their use of power at peak times without turning off lights and appliances. This is particularly useful in commercial establishments where it is difficult to turn power off to save electricity.

LEAF to Home" power supply system, which can supply electricity from batteries onboard in Nissan LEAF electric vehicles (EV) to homes when used with the "EV Power Station" “ LEAF to Home" is an industry first backup power supply system that can transmit the electricity stored in the large-capacity batteries of Nissan LEAFs to a residential home.

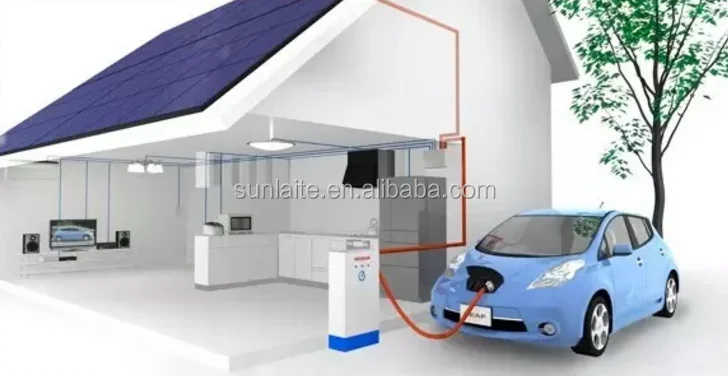

 Leaf to Home can move the electricity from vehicle to home. This power transfer system enables electricity stored in high-capacity lithium-ion batteries onboard a Nissan LEAF to be sent to an ordinary home by connecting the car to the home's electricity distribution panel with a connector linked to the LEAF's quick charging port. The EV Power Station system is similar in size to an external air-conditioning unit, can be installed outdoors, and conforms to the CHAdeMO protocol for EV quick chargers. CHAdeMO is an abbreviation of "Charge de Move" ("charge for moving") and is the trade name for a quick-charging method used to charge the batteries of electric vehicles. The SETEC system's connector complies with the JEVS G 105 standard defined by the Japan Automotive Research Institute (JARI). This system can run on various operating modes and has a timer function which can be controlled with a liquid crystal display (LCD) touch panel. Electricity is stored or supplied automatically in accordance with a household's electricity capacity and consumption.

Product Description

1. CHAdeMO To Home, Output Power: 1-3KW/Single Phase, EVs as power sources for living

2. "Vehicle to Home" is a system that allows you to supply your home with the energy stored in a Nissan LEAF's battery.

3. By charging up a Nissan LEAF at night when there is more capacity for electrical supply and then using that electricity as the daytime power source for a household, the system helps alleviate consumption of power in peak periods when demand is highest.

4. Further, it can also be leveraged as backup power supply for emergencies.

Product Parameters

EV Power Station : Specifications

Input voltage range: Maximum DC 450V

Peak power output: 3-6kWInput current range: DC 0-30A (Common Power 3kw)

Output voltage: AC 100-260V (±6%), 50Hz / 60Hz, Single phase

Conversion efficiency: 92% or more

Output current range: AC 0-30A

Technology Functionality

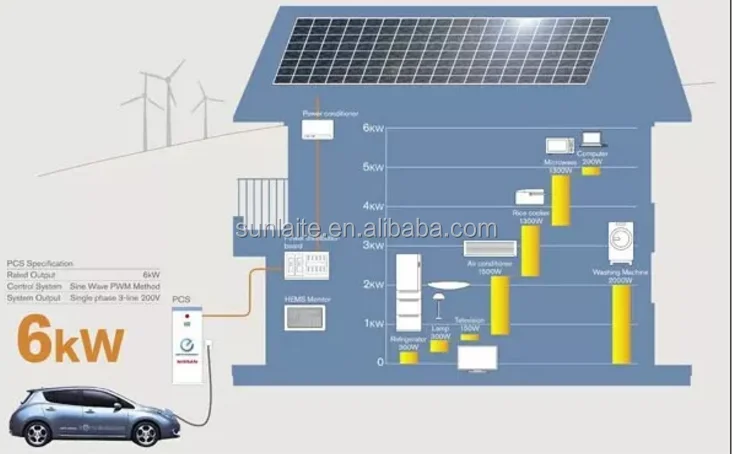

1. Household power can be supplied from a Nissan LEAF lithium-ion battery by installing a PCS (Power Control System) connected to the household's distribution board, while plugged into the Nissan LEAF DC quick charge port.

2. To use the electricity stored in the Nissan LEAF lithium-ion battery as household power it is necessary to convert the DC high-voltage electricity to AC 100-260V. The

3. Nissan LEAF EV lithium-ion battery has large capacity and high reliability, meaning it can provide a stable power supply.
