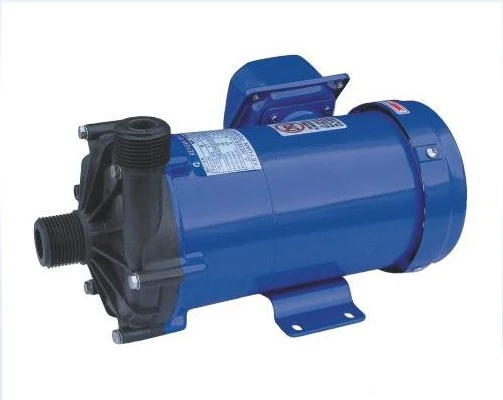

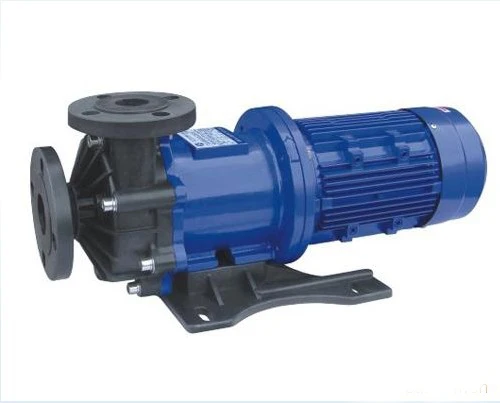

China Supplier MPX Series Magnetic Drive Circulating Pump For Surface Treatment Industry



The MPX series is a professional pump developed by our company specially for surface treatment process. Its design concept is “durable and efficient” that is, it’s invulnerable to failure and damages in abnormal working conditions. Based on the reliable non-contact structure through practical validation, it adopts a brand-new efficient hydraulic mode for its structure, thus its durability can be improved substantially when used in abnormal working conditions like idle running, cavitation and closing of outlet valve. The MPX magnetic pump is a reliable industrial pump. It’s applicable for filtration, spraying, cleaning, etching and other kinds of relevant surface treatment process.



Application:  It’s applicable for filtration, spraying, cleaning, etching and other kinds of relevant surface treatment process.



Features:

Non-contact Structure

Through the precise magnetic drive position, it can exercise magnetic drive position, it can exercise magnetic control over the magnetic capsule’s position effectively, and the bearing’s rear and will not contact the rear thrust ring even in idle running. Such a structure reduces friction effectively and lowers the pump’s failure rate in abnormal working conditions.



Model Explannation

MPX-250-RV-5-C-2

MPX---MPX magnetic drive circulating pump

250-------Product specification

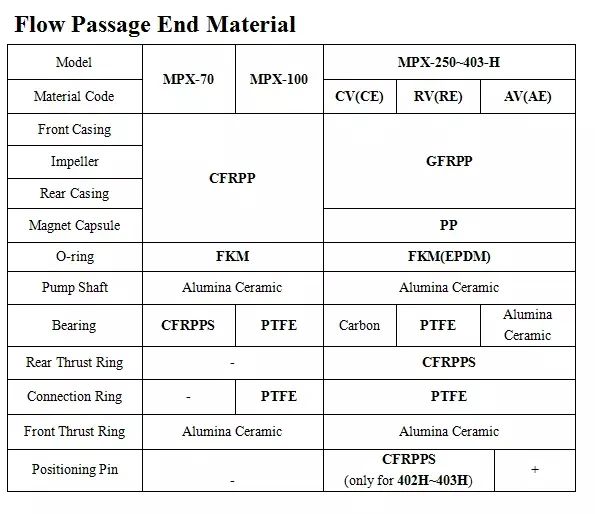

RV------- Material code: CV: Carbon/Alumina Ceramic/FKM(EPDM)

                     RV: PTEF/Alumina Ceramic/FKM(EPDM)

                        AV: Alumina Ceramic/FKM(EPDM)

5-----------Impeller code:5-50HZ,6-60HZ

C----------Motor specification( code N/A: TEFC indoor; C: TEFC outdoor;

                          A: safe explosion-proof)

2-----------Motor Voltage

Note:O-ring can be replaced with EPDM and AFLAS

Note:1. The above specific gravity limit refers to the value on the maximum flow. this value may                          change subject to flow changes,please contact us.

           2.MPX-70/100provide with hose connection (diameter:26mm)

           3. The characteristics of AV(AE) are different from other types, please contact us.

           4.Liquid temperature range:0~80℃(10~80℃ When using AFLAS O-ring)

           5.Ambient temperature range: 0~40℃
