6x6 мгновенный прямоугольный SMT тактовый
- Категории: Переключатели нажимные >>>
- Поставщик: Shenzhen,Gangyuan,Microkey,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Right Angle SMT Tact Switch Momentary Push Button Switch
Product Description
| Product name | SMD Tactile Switch |
| Operation force | 260gf |
| Full travel | 0.2±0.1mm |
| Return force | 0.6N MIN |
| Low temperature resistance | -30±2℃,96h |
| Heat resistance | 80±2℃,96h |
| Sulfuration resistance | 72h,40±2℃ |
| Salt Mist | 8h±1h,35℃±2℃ |
| Operation life | 60,000 to 100,000 cycles |

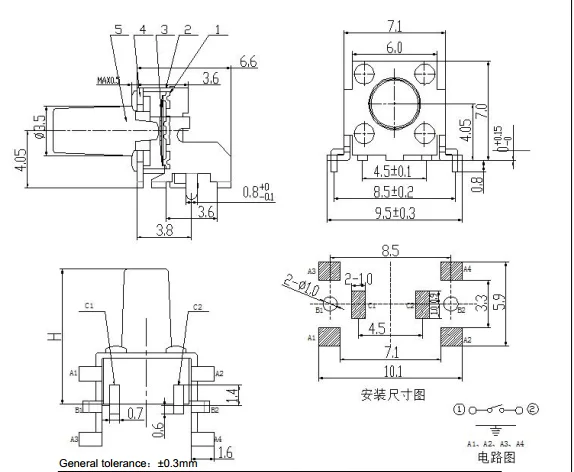

4pin switch
Attention:
1.Please be cautions not to give excessive static load or shock to switches.
2.Please be careful not to pile up P.W.B.after switch were soldered.
3.Preservation under high temperature and high humidity or corrosive gas should be avoided.
Especically,when you need to preserve for a long period,do not open the caerton.
4.Panasert RH ans RH6 Shall be used as the standard insert machine(use N type clinch)
5.Control hazardours substance:The switch should be meet SONY-SS-00259 specification.
1.Please be cautions not to give excessive static load or shock to switches.
2.Please be careful not to pile up P.W.B.after switch were soldered.
3.Preservation under high temperature and high humidity or corrosive gas should be avoided.
Especically,when you need to preserve for a long period,do not open the caerton.
4.Panasert RH ans RH6 Shall be used as the standard insert machine(use N type clinch)
5.Control hazardours substance:The switch should be meet SONY-SS-00259 specification.
