Application:

Semi-auto waste tyre recycling production line is used to make the waste tyres to rubber power/granulate and separate the fiber and steel wire, to achieve the recycling.



Process:

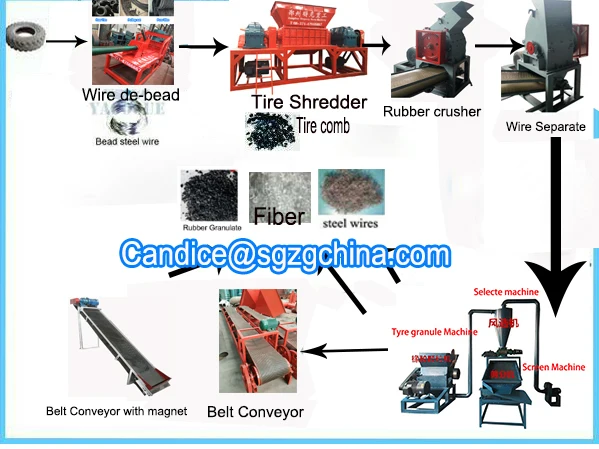

Waste tire - Tire de-beader- tire shredder - tire shredder(optional) - Rubber crusher - Wire separator - Tyre granule machine - Select machine - Screen machine

- Rubber powder





Consist of:

No.	Machine	Model	Quantity	Power
Whole tire cut processing, get <50*50mm rubber crumb
1	Wire de-bead	SX-1200	1	7.5KW
2	Big tire shredder	SG	1	based on model
3	Small tire shredder(optional)	SG	1	based on model
Rubber power processing, get 10-20 mesh rubber power
4	Rubber crusher	PSJ-600	1	30KW
5	Wire separate	PSJ-450	1	22KW
6	Tire granule machine	PSJ-600	1	30KW
7	Selecte machine	SSJ-400	1	3KW
8	Screen machine	SSJ-400	1	1.5KW



You can choose here below attached shredder model based on your detail demands:

SG-600,SG-800,SG-1000,SG-1200,SG-1500,SG-1800,SG-2000 model shredder.



You can choose here below attached two types wire de-bead:

Hydraulic type	Electric Type



Features:



1), iron/steel removing ratio>99.5%, fiber removing ratio>98%



2),adopt automatic control system for whole line, reduce labor cost;



3),no sewage and waste gas discharge, environment protection.



4), available capacity range of our tyre recycling lines at present: 400~3000kg/h



5), available finial rubber powder size: 20~30mesh.



Pictures:

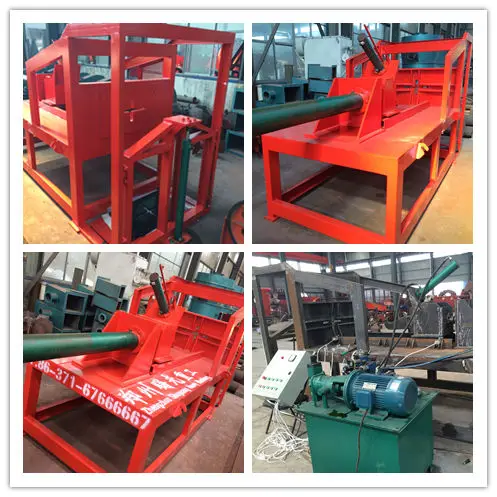

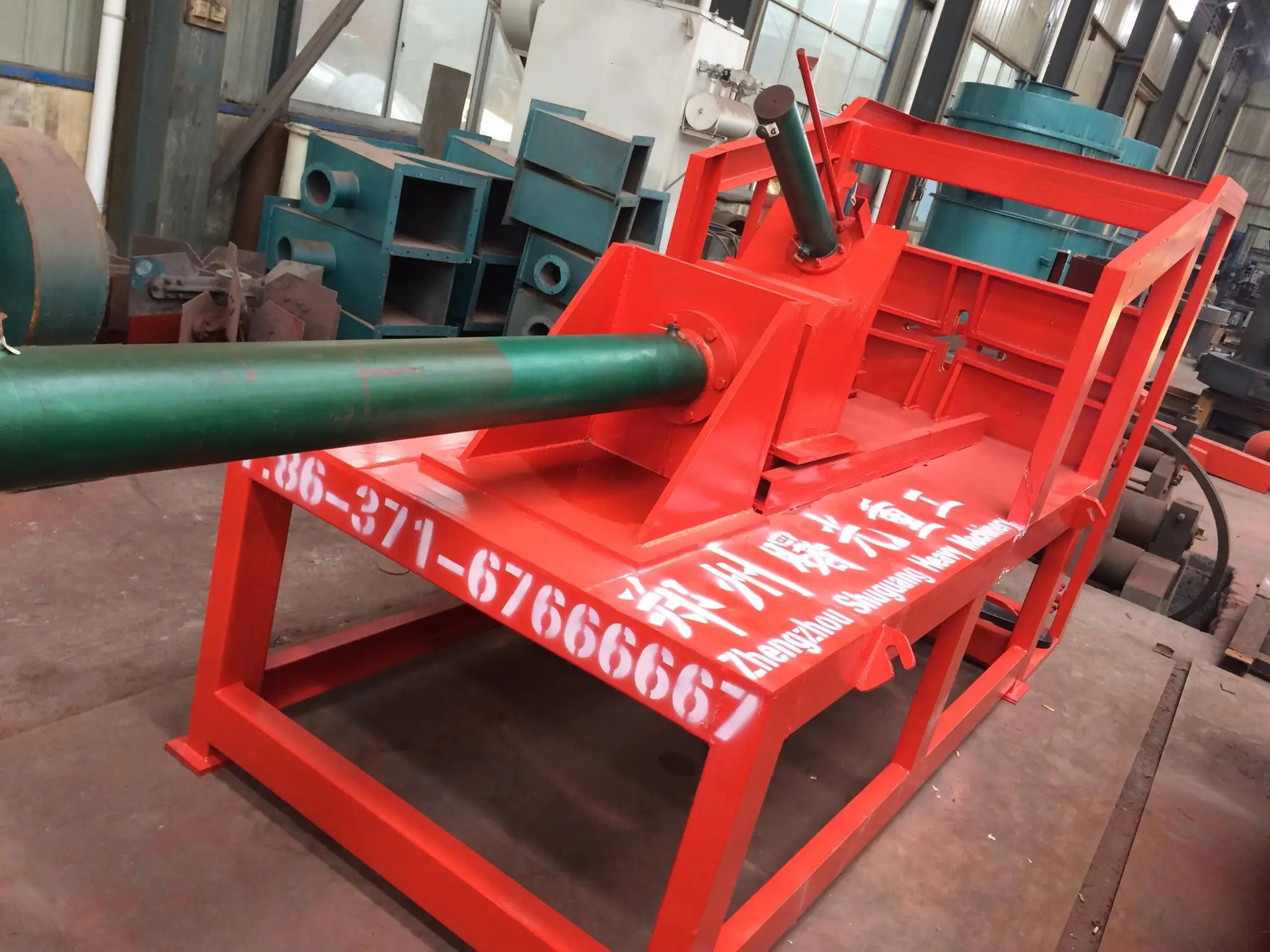

1.Wire de-bead:to pull the wire inside of tires out for further process.



2.Shredder:put whole tyre into shredder to shred it into rubber crumb

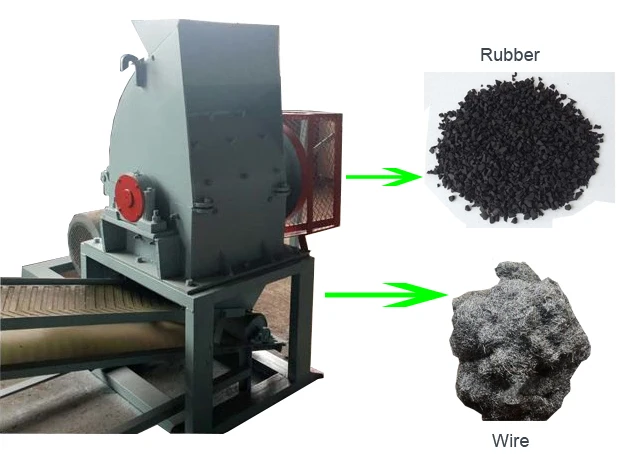

3.Rubber crusher:crush rubber crumb into smaller size



4.Wire separator:separate wire from rubber particles

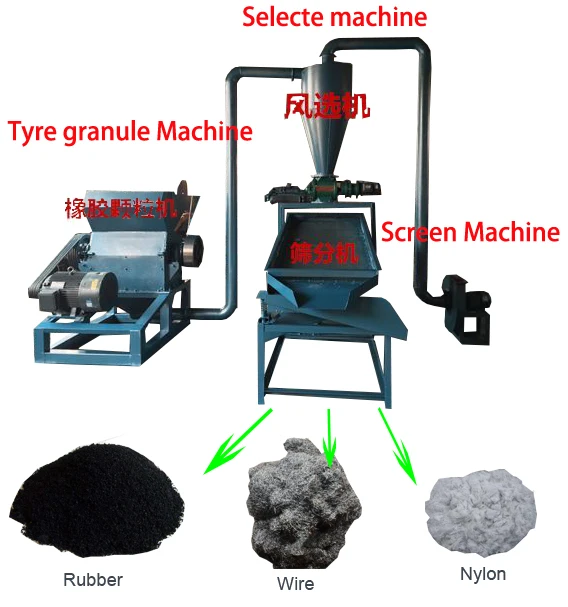

5.Tyre granulate machine,select machine,screen machine:crush and screen rubber particles into more small paticles,and separate nylone
