HQD air cooling woodworking spindle motor all powers





Welcome visit our page .

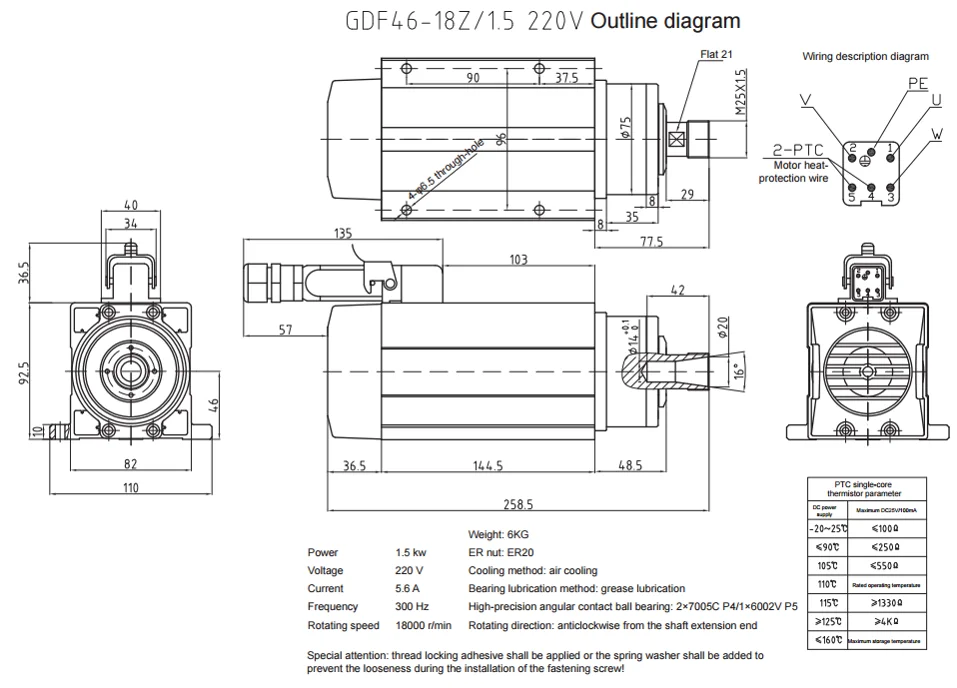

 HQD GDF46-18Z/1.5 Specifications

brand	HQD	modle	GDF46-18Z/1.5
speed	18000rpm	power	1.5kw
voltage	220v/380v	rated current	5.6A/3.0A
torque	0.8nm	frequnecy	300hz
net weight	6kg	air cooling	fan cooling
bearing modle	2*7005C P4 ,1*7002C P4	Lub	grease
joint	ER20φ3.175-φ6.35	warranty	bearing half year , coil one year





 HQD GDF46-18Z/2.2 Specifications

brand	HQD	modle	GDF46-18Z/2.2
speed	18000rpm	power	2.2kw
voltage	220v	rated current	7.8A
torque	1.17nm	frequnecy	300hz
net weight	7kg	air cooling	fan cooling
bearing modle	2*7005C P4 , 2*7002C P4	Lub	grease
joint	ER20φ3.175-φ13	warranty	bearing half year , coil one year

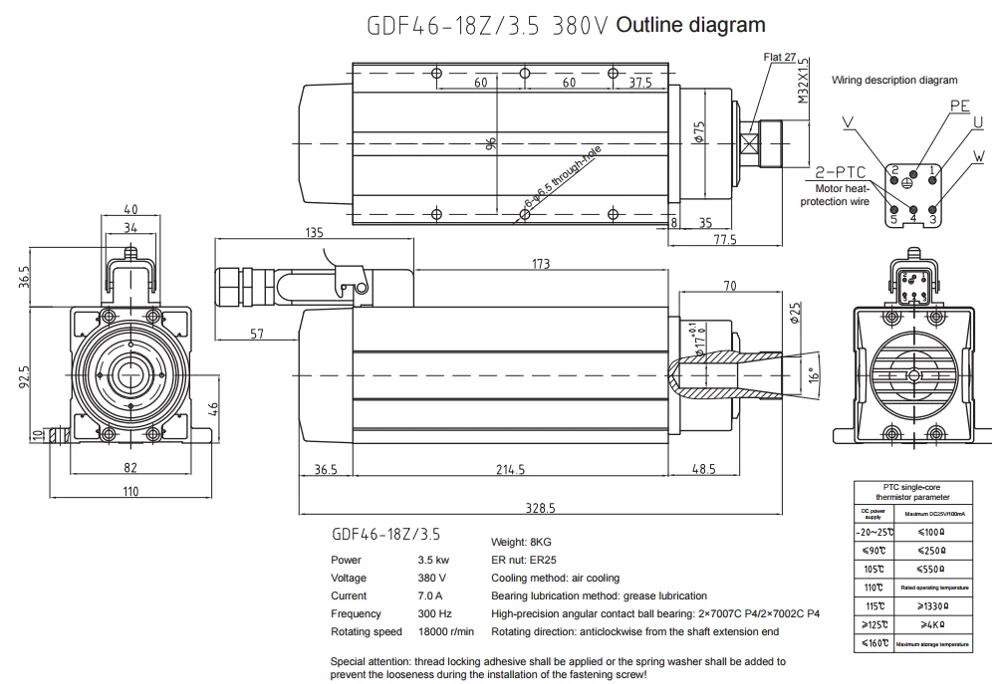

HQD GDF46-18Z/3.5 Specifications



brand	HQD	modle	GDF46-18Z/3.5
speed	18000rpm	power	3.5kw
voltage	220v/380v	rated current	12A/7A
torque	1.59nm	frequnecy	300hz
net weight	8kg	air cooling	fan cooling
bearing modle	2*7007C P4 , 2*7002C P4	Lub	grease
joint	ER25φ3.175-φ16	warranty	bearing half year , coil one year



HQD GDF46-18Z/4.5 Specifications



brand	HQD	modle	GDF46-18Z/4.5
speed	18000rpm	power	4.5kw
voltage	220v	rated current	15A
torque	2.39nm	frequnecy	300hz
net weight	12kg	air cooling	fan cooling
bearing modle	2*7008C P4 , 2*7002C P4	Lub	grease
joint	ER32φ3.175-φ20	warranty	bearing half year , coil one year

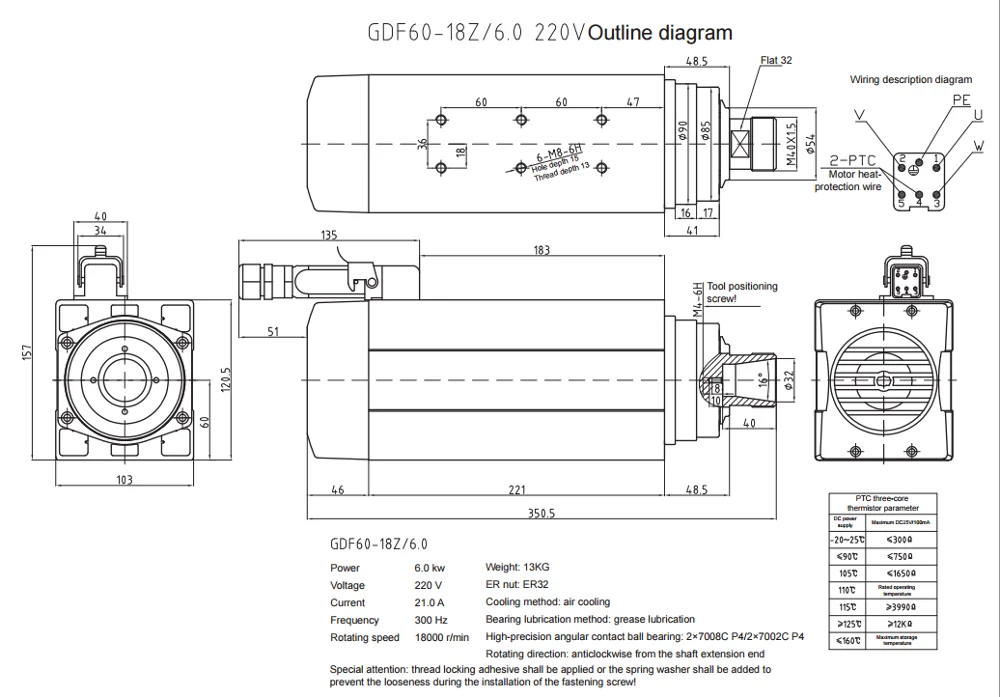

HQD GDF46-18Z/6.0 Specifications



brand	HQD	modle	GDF60-18Z/6.0
speed	18000rpm	power	6.0kw
voltage	220v/380v	rated current	21A/12A
torque	3.18nm	frequnecy	300hz
net weight	13kg	air cooling	fan cooling
bearing modle	2*7008C P4 , 2*7002C P4	Lub	grease
joint	ER32φ3.175-φ20	warranty	bearing half year , coil one year

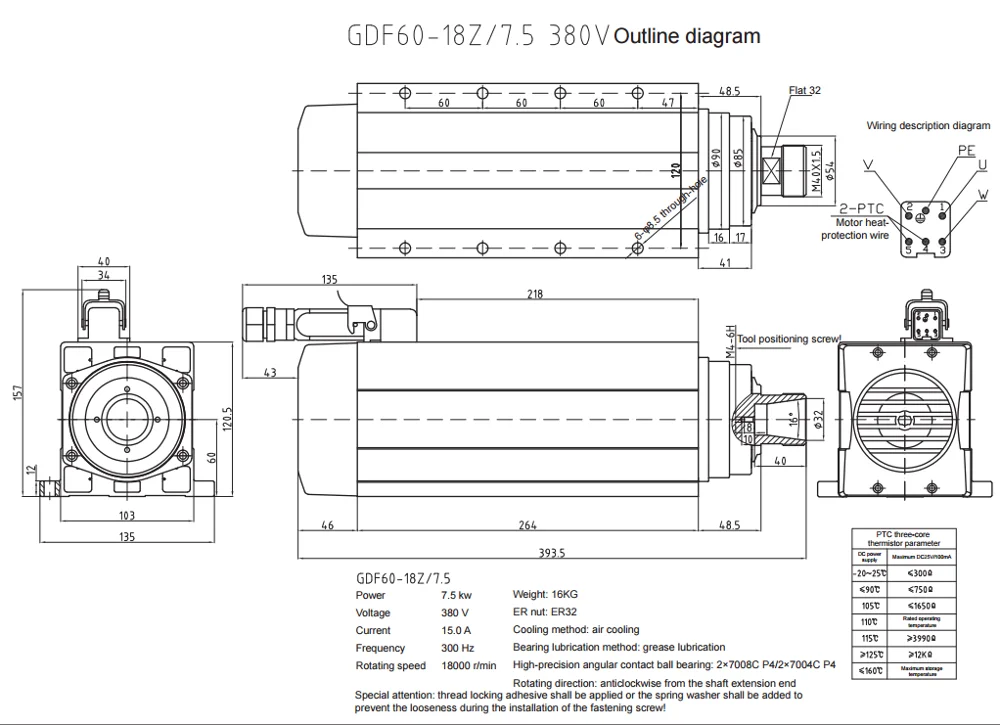

HQD GDF46-18Z/7.5 Specifications



brand	HQD	modle	GDF60-18Z/7.5
speed	18000rpm	power	7.5kw
voltage	380v	rated current	15A
torque	3.98nm	frequnecy	300hz
net weight	16kg	air cooling	fan cooling
bearing modle	2*7008C P4 , 2*7004C P4	Lub	grease
joint	ER32φ3.175-φ20	warranty	bearing half year , coil one year



FAQ.
Q1 : Your spindle motor is original HQD ?

A1 : yes . they are original HQD.
Q2 : if I buy one pcs , what I will get ?

A2 : Spindle motor *1pcs+ ER collect *1pcs +ER nut *1pcs + air plug *1pcs + wrench *1pcs .

Q3 : Delivery time ?

A3 : usually have them in stock , after we get payment we could send them within 24hours ,

and after 2-3days you will get internationl tracking number like Fedex , aramex , dpex , dhl , ect
Q4 : guarantee time ?

A4 : since the day you get the spindle motor package , bearing for one year , coil for half year .

Q5 : when I get the new spindle motor , how to use it ?

A5 : firstly 3000rpm/min , after 30minutes , 6000rpm/min, then 9000rpm/min , like this .

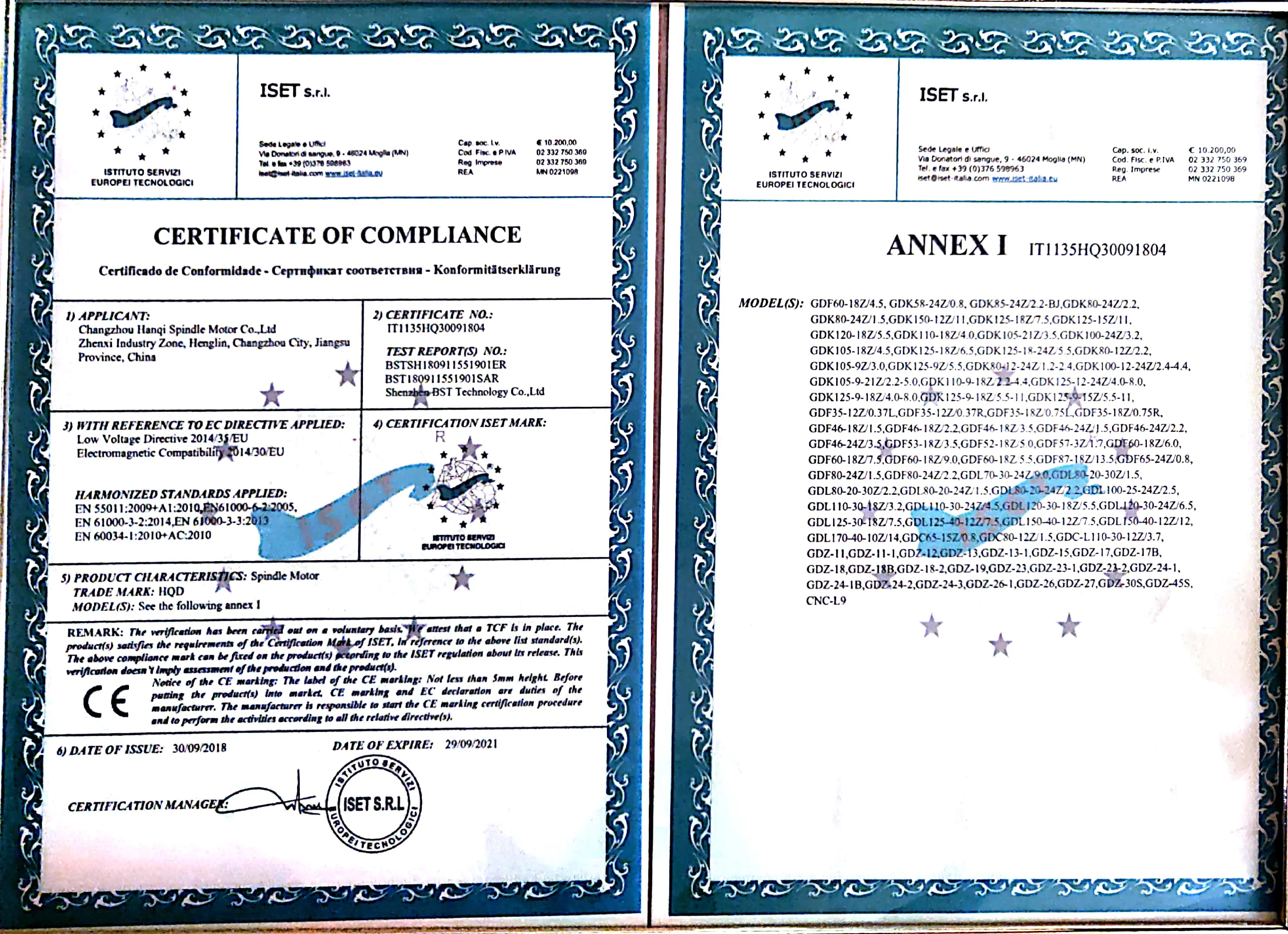

Q6: do you have certificate for HQD spindle motor ?

A6 : yes .

Shipping

small package by express , large order by air , larger order by sea .



Payment









Jinan Hongyang CNC Machinery Co.,Ltd was founded in 2014, dedicated to cnc router parts ,

such as spindle motor , vfd , stepper motor , driver , servo motor , rail , block , ball screw , spindle holder ,

controller for cnc router , water pump, oil pump , dust collector , chian , dust cover , vacuum table and pump , etc.

Own 230m2 office for pre-sales , 1000 m2 warehouse with large stock .

welcome visit our shop .







Contact :

lily

wechat whatsapp mobile phone 8615650000988

E-mail : lily@ hycncparts.com



thanks for your visiting , wish happy shopping journey .
