Product Description
 | This machine has smart structure,practicable and economical.
It’s an advanced type on basic of Hamada machine.
It adopts two form ink rollers and one form dampening roller structure.
It can achieve single-color print, over print for 2 Colors,3 Colors,4 Colors.
It has the plate micro-adjustment function.
It’s easy to operate. (Pneumatic Press,Touching Screen is optional)
It adopts advanced PLC programmable controller |

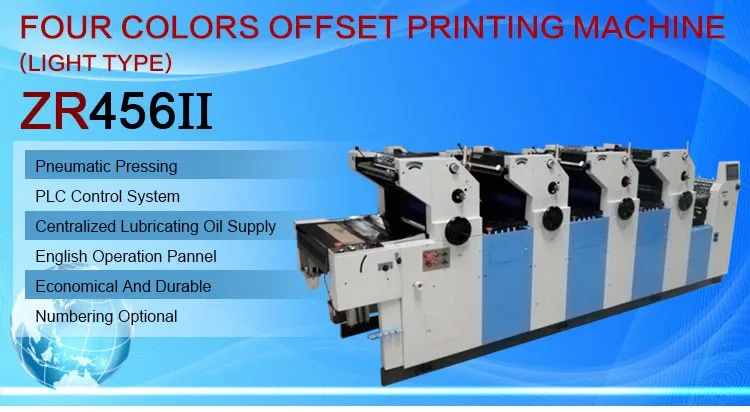

ZR456II | 2020 Machinery Promotion ZR456II 4 color offset printing machine | |
| Model | ZR456II |
| Max. sheet size | 560 x 395mm |
| Min. sheet size | 140 x 90mm |
| Max. print format | 540 x 380mm |
| Plate size | 560 × 420 × 0.15mm |
| Blanket size | 560 × 455 × 1.95mm |
| Paper size | 28-250gsm |
| Max. speed | 7000 sheets/hour |
| Speed adjustment | Frequency converter |
| Gripper margin | 8-10mm |
| Inking rollers | 14pcs per unit(3 form) |
| Dampening | 4pcs per unit(1 form) |
| Power supply | 220v/50Hz |
| Main motor | 4kw |
| Air pump motor | 1.5kw |
| Machine dimension | 3930(L) × 1000(W) × 1400(H)mm |
| Net weight | 2200kg |
| Package dimension | 4050(L) × 1110(W) × 1670(H)mm |
| Gross weight | 2480kg |
Product Advantages

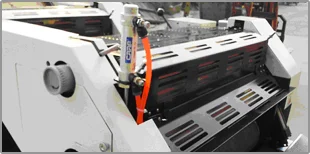

Accurate orientation: Front paper stopper of registration, both side-pulled-paper stopper, paper feeding horizontal registration, paper feeding table slight adjustment, plate cylinder registration of up/down. |  |

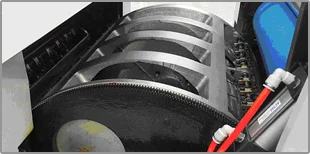

The latest control system: Using the most advanced control system of computer program and circuit board, that can improve production efficiency and also reduce the errors of printing. The whole machine is controlled by PLC. There are functions such as auto press, auto stop while paper jam, powder jet, steps running forward and backward. |  |
Dampening and inking separated: Dampening system is separated from inking system, which can adjust dampening and inking flexibly and content the requirement of different printing items for dampening and ink. |  |
Automatic pause: the machine can be paused automatically when paper order is out of control, then automatic alarm, which can avoid waste paper. |  |
Centralized Lubricating oil supply:(Optional) use Auto system to control Lubricating oil for the important parts of machine which can improve the efficiency of machine. |  |
Presented counter:(Optional) This machine adopts electromagnetic presented counter. If the quantities printing work finishes, the paper feeding stops automatically. |
|
Big Cylinder for paper transfers:(Optional) A new type for paper transfers between two units, it can achieve the tranfers one time than old type for 2 or 3 times. The advantage:transfers more stable, ink enough time to dry.
|  |
Pneumatic pressing:(Optional) Adopt pneumatic pressing cylinder for each unit, making pressing automatically instead of traditional manual handles for water supply, ink supply and plate cylinder pressing. |  |
Company Information
Weifang Zongrui Printing Machinery Co.,Ltd is located in the famous kite capital of the world--Weifang. This factory was established in 2010. It is a comprehensive enterprise which collects scientific development, production management and technical service. It is the largest printing equipment production base of China. The factory covers an area of 20,000 square meters, the fixed asset 2 million dollars.The factory has over 150 staff among them engineering technicians are over 40.It is equipped with four relative independent economic entity, such as the mechanical processing factory, offset press general factory, technical consultation training center, printing machinery fitting supermarket.Sale network is full of Africa, southeast Asia, North America and Australia. The factory has advanced machinery processing equipment, perfect quality management system and quality guarantee system.It was awarded “Shandong Famous Brand Product”by Shandong Province and awarded “Weifang Top Hundred Enterprise” by The People’s Government of Weifang and was awarded the honorary title of "Honoring Contracts and Standing By Reputation Enterprise ” by Agricultural Bank of China Shandong Province branch five consecutive years. It first passed the ISO9001 quality management system certification and ensure that the quality standard products are produced every Offset press,Offset Printing Machine. |  |
Packaging & Shipping
Sample Shows
Contact Information
COMPANY NAME: WEIFANG ZONGRUI PRINTING MACHINERY CO.,LTD PROFESSIONAL OFFSET PRINTING MACHINERY MANUFACTURER ADDRESS: EAST XIAZHUANG IND.ZONE, BEIGUAN STREET OFFICE, WEICHENG DIST, WEIFANG CITY, SHANDONG PROVINCE, CHINA. TEL:86-0536-8953250 FAX:86-0536-8953251 CONTACT PERSON:Alvin Wang TITLE: SALES MANAGER MOBILE:+86-18905361828 WHATSAPP:+86-18905361828 EMAIL:jackwu(at)zongruichina.com |  |
Our Services
A.Warranty:12 months after receiving the machine.During the warranty,once parts are broken.We will send you for free.
B.Beyond of Warranty:Parts in cost prices,Express expenses charged by seller and buyer by 50%.
C.Our machine finishes installation,adjustment,re-checking,re-running before shipment.All the whole machine is
completely installed.You can use the machines immediately once you get it.
D.For your first time using offset printing machine,we have some methods to help you learn the operating.
(1)Operation Manuals in English.
(2)Supply training for your staff coming to our factory for free.You just need take charge of traveling expenses.
(3)If you need we send our technician to train or solve technical problem in your place,you just need to take charge of
the traveling expenses and board and lodging fees for our people.
(4)Technical Support by Internet with a photo,video or cam.
E.After Sales Service:Supplying spare parts and Techinical Supports in long terms.
FAQ
Q: WHAT’S THE PRODUCT RANGE?
A: Printing machine,such as mini offset printing machine, heavy-duty offset printing machine, flexo&plate lable
printing machine,tape printing machine and some small machine like pre-press and post-press.
Q: ARE YOU A MANUFACTURE?
A: Yes, we are located in weifang, shandong province which close to qingdao port.
Q: HOW DOES YOUR FACTORY DO REGARDING QUALITY CONTROL?
A: Most our machine mechanical parts are processed by ourselves.So we can better control our quality from
beginning.Electrical Part we had cooperated with good foreign brand, such as UBC, Yaskawa, Siemens, NSK,
Delta, Panasonic etc.And all our machine will do running test before shipping.
Q: WHAT’S THE PAPER FEED SYSTEM AND DELIVERY SYSTEM?
A: Multi-sucker universal feeder/Chain Delivers with three gripper Bars.
Q: WHAT’S THE REGISTRATION?
A: Wheel-type pull side/front side.
Q: WHAT’S THE DIFFERENT BETWEEN THE OFFSET PRINTING AND FLEXOGRAPHY?
A: Offset printing: Toppan printing (PS plate, resin plate).Flexography: Intaglio printing .
The offset printing is more precision than flexography.
Q: WHAT’S THE THE DIFFERENT BETWEEN SATELLITE MODEL AND 2 COLOR UNIT MODEL ?
Satellite model : one imprint, two ink duct. Suitable for printing normal two-color prints.
2 color unit model : two imprints. Suitable for printing high quality prints.
