Product information:

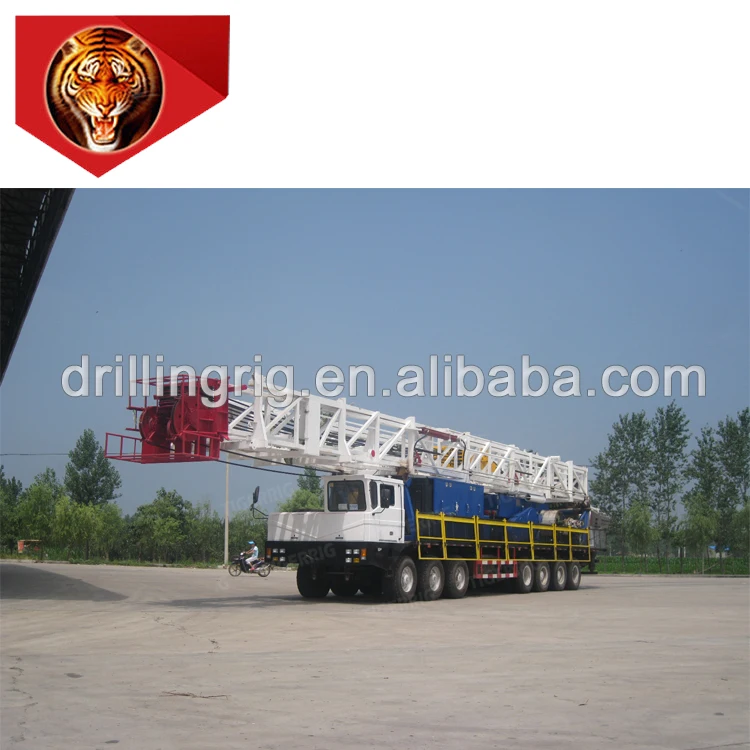

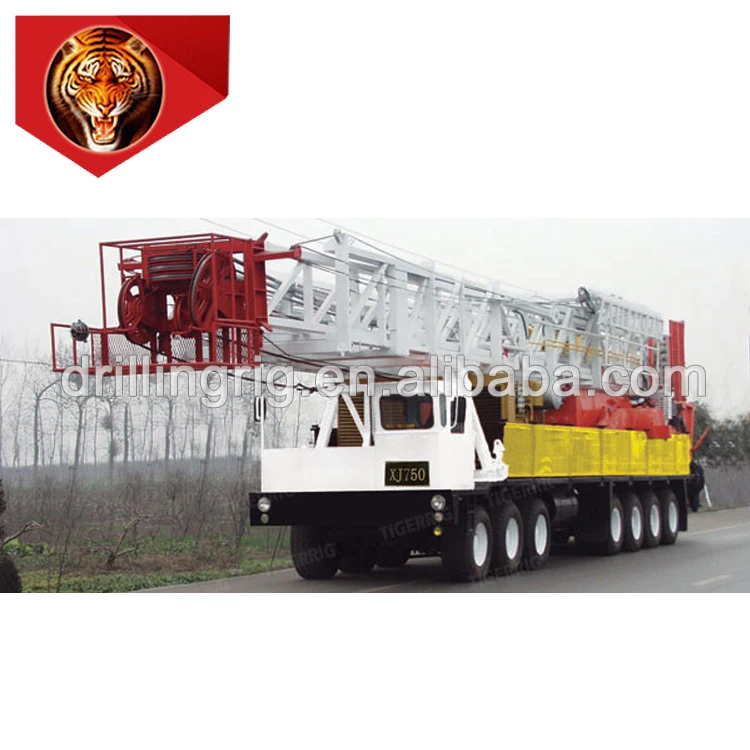

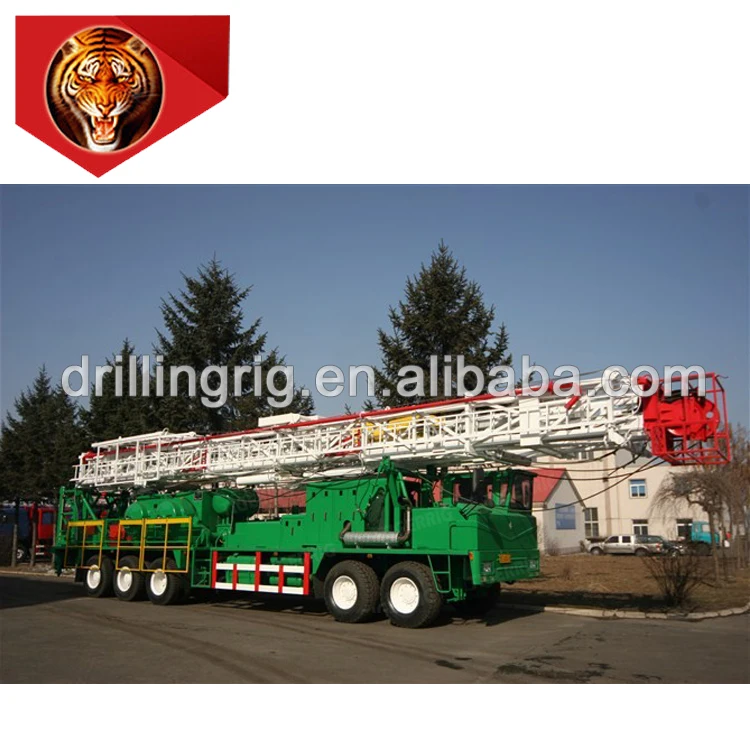

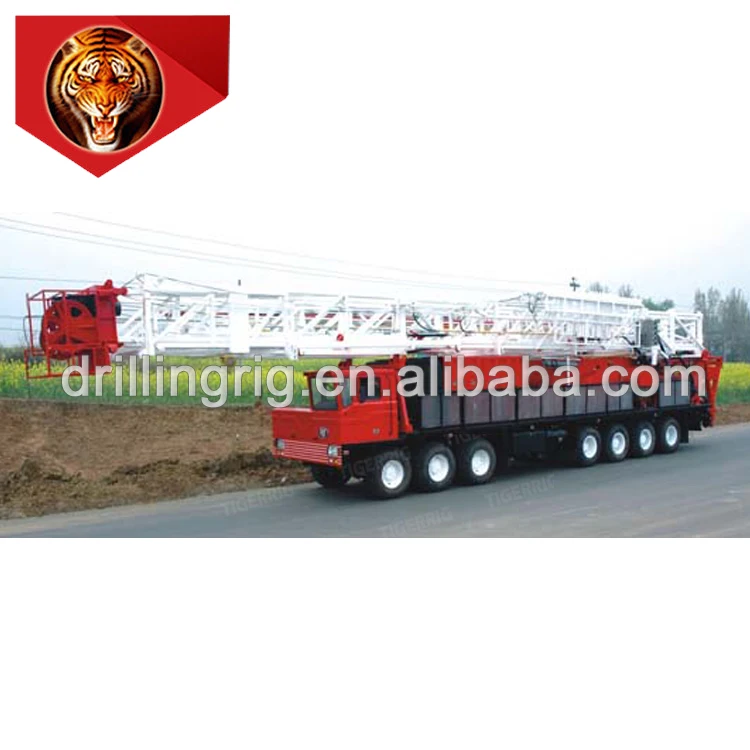

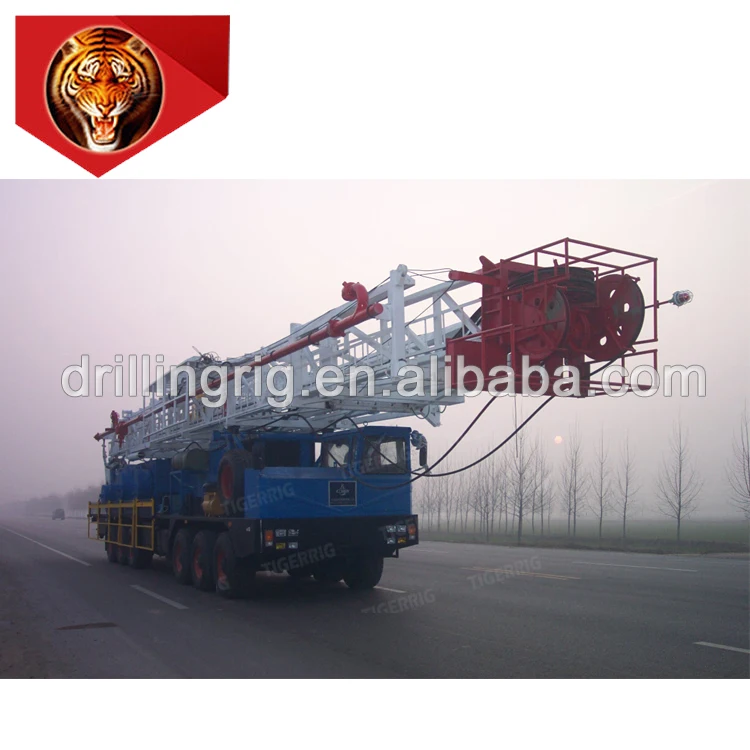

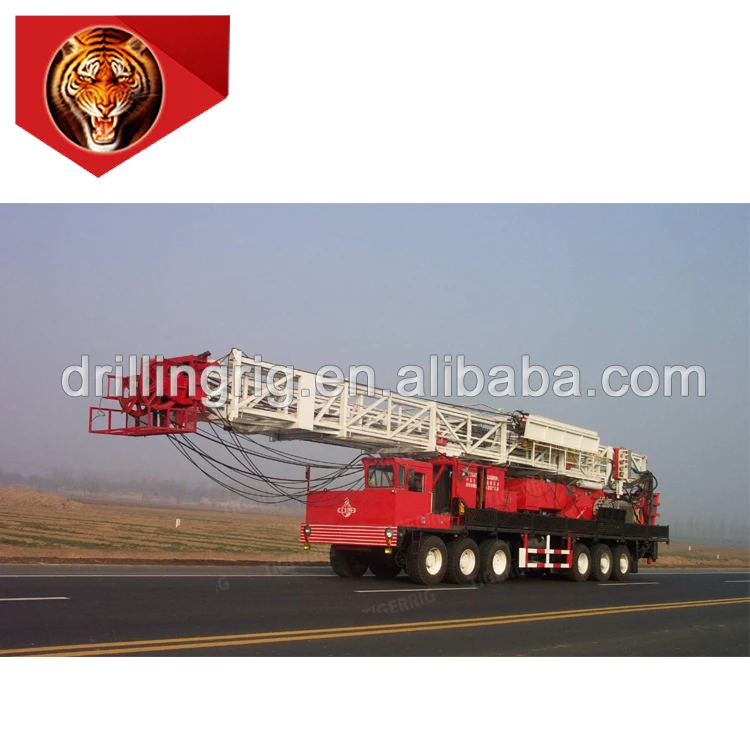

XJ series workover rig includes lifting operation system, rotary operating system and chassis walking system.The product is well equipped with a wide range of adaptation.it is equipped with drilling platform and related parts for overhaul.It has the characteristics of reasonable layout, compact structure, good transport performance, convenient site installation and simple maintenance.
Specifications
MODEL | XJ900(XJ60) |
Nominal service depth(ft)(27/8″EUE tubing) | 13000 |
Nominal workover depth (ft)(27/8″DP) | 10500 |
Max. hook load (lbf) | 202320 |
Rated hook load (lbf) | 134880 |
Engine model | C9 |
Engine power (hp) | 350 |
Transmission type | Hydraulic + mechanical |
Traveling system | 4×3 |
Effective height of mast (ft) | 95,102 |
Drilling line diameter (in) | 1 |
Hook speed (ft/s) | 0.66~5.7 |
Approaching/departure angle | 23°/16° |
Min. ground clearance (in) | 14 |
Max. gradient ability | 30% |
Min. turning diameter (ft) | 92 |
Rotary table model | ZP90 |
Traveling block model | YG90 |
Swivel model | SL110 |
Overall moving dimension (ft) | 54.8×10×13.5 |
Main unit mass (lb) | 93000 |
1.2 General Specification
Service Depth | 13,100' (2-7/8" Tubing) |
Workover Depth | 10,500' (2-7/8" Drill pipe) |
Max. Hook Load | 198,000 lbs |
Rated Hook Load | 132,000 lbs |
Rated Engine Power | 440 HP (CAT C13) |
Mast Height | 105' |
Substructure Height | 12' |
Rotary Table Opening | 10-1/2" |
Racking Board Height | 57' / 66' / 70' |
Line Strung | 3×4 |
Drilling Line OD. | Dia.1" |
Carrier Drive Type | 10×8 |
Max. Road Speed | 63 Km/h |
Weight | 110,000 lbs (50 MT) |
Overall Dimensions | 62' × 10.5' × 14' |
Payment term: T/T 30% advance payment by cash,60%process payment,10% remain after test before delivery in plant.
Trade term: EXW or FOB shanghai, CIF, DDU, CFR
Delivery time: in 3~6months
