Лучшая цена вертикальный VMC станок Maxtors с 5 осями фрезерный обрабатывающий центр ЧПУ модель YMC-850 5-й осью наклон и вращающийся

Описание и отзывы

Характеристики

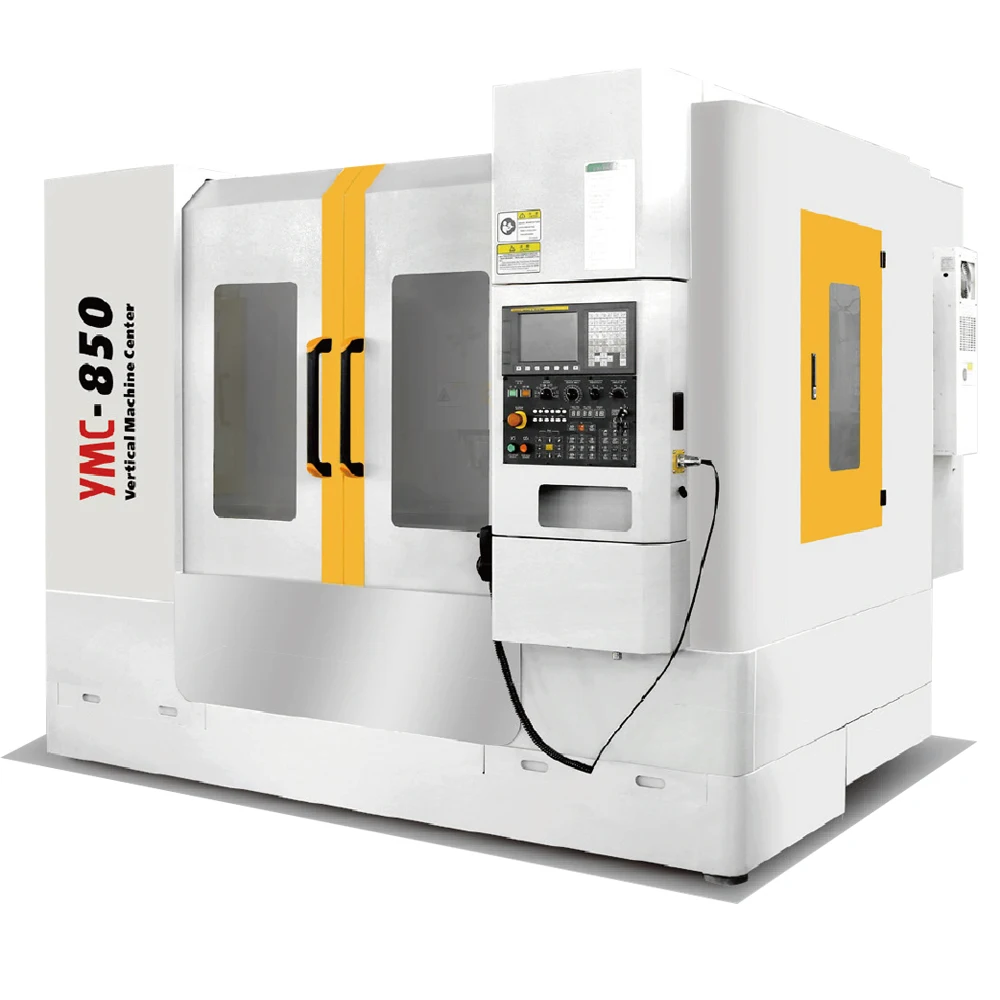

Maxtors Machine best price Vertical VMC 5 axes CNC Milling Machining Center model YMC-850 with 5th axis tilt and rotary table

Welcome Send us Inquiry

Item		Unit	YMC-850
Travel	XYZ Travel	mm	800/500/550
	Distance from Spindle Nose to Table	mm	105~665
Worktable	Table Size	mm	1000×500
	Max.Loading on Table	KG	600
Spindle	Spindle Taper		7/24 Taper No.40
	Spindle Speed	rpm	8000
	Spindle Motor Power	KW	5.5/7.5
Feeding	Rapid Feedrate(X/Y/Z)	m/min	48/48/48
	Cutting Feedrate(X/Y/Z)	m/min	10/10/10
ATC/Tool Magazine	ATC Type		Armless/Arm type
	No.of Tools		12/16/20/24T
	Tools Size(Full Tools)	mm	Φ80/300
	Max.Tool Weight	KG	8
Accuracy	Positioning Accuracy	mm	±0.008/300
	Re-Positioning Accuracy	mm	±0.005/300
Others	Footprint	mm	2700×2200
	Machine Height	mm	2700
	G.W.	KG	5000
CNC Controller			SYNTEC 21MA

CNC Controller: KND/GSK/LNC/SIEMENS/FANUC/Mitsubishi/Heidenhain  (Optional)

>>Send Inquiry Get a Discount

1,Send Inquiry

2,In stock! Send out within 15 Working days, click "Start Order" and pay directly!

(Input quantity, choose your country, then you can see total price)

Please do write your Name, Address, Zip code and Phone number for delivery!

More Related Products

All Size Available (Others Size will customize accordingly)

Item(Model YMC)	650	850	1160	1270	1470	1580	1890	2011	2511
X Travel(mm)	600	800	1100	1200	1400	1500	1800	2000	2500
Y Travel(mm)	400	500	600	700	700	800	900	1100	1100
Z Travel(mm)	480	550	600	650	700	700	850	800	800
Spindle	BT30/BT40/BT50/HSK-E40/HSK-A63/HSK-A100
Spindle Speed(rpm)	8000~30000
CNC Controller	KND/GSK/LNC/SIEMENS/FANUC/Mitsubishi/Heidenhain

I Want The Best Price >> “ Send Inquiry ”

Send Inquiry Here to get a Free ONE STEP Solution for your workpieces machiningWant to Get the Lastest Price



Direct Ask Supplier of One-Step Turning & Milling Solutions



 More Related Machines Recommendation



FAQ

1. What is your minimum order quantity and warranty?
A: MOQ is 1 set, and warranty is one year.

2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, HEIDENHAIN,LNC,SYNETC,GSK,etc. It depends on your choice.

3.When is the delivery time?
A: Regular Machines,We will delivery then within 20 working days after received your deposit,if some special machines will be some longer.we will give you the answer accordingly.

4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films. Others packing methods also available.

5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you ,
or you can choose the exact model by yourself.
You can also send us the products drawing ,we will choose the most suitable machines for you .



6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.



If you still have any more FAQ, Please feel free to contact us directly.
