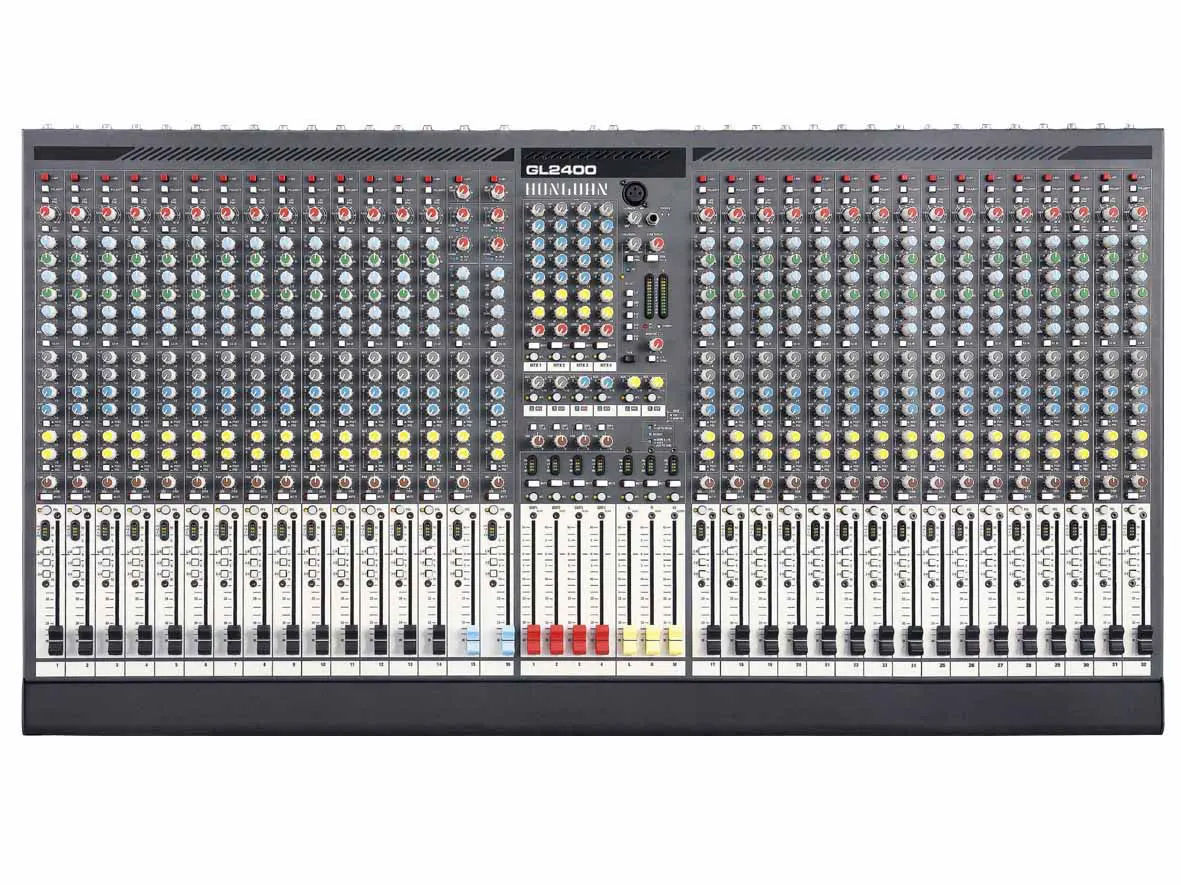

GL2400-432 32 канала питание аудио микшерный

Maximum

Mic

+34dBu(inc pad)

CH Line

+34dBu

Other Line

+24dBu

Maximum output level

XLR

+26dBu

jack

+20dBu

Internal headroom

Channels

+20dBu

Mix

+22dBu

Meters

3 colour LED, quasi peak response

Sensitivity

0VU=+4dBu at XLR output

Master meters

12 segment

-30 to +16dBu

Channel meters

4 segment

-12, 0, +6+16dB(5db before clip)

Frequency response

20Hz to 50kHz

+/-0.5dB

Mic CMRR at 1kHz

> 80dB typical

THD+n at+14dBu 1kHz

Channel to mix out< 0.003%

Crosstalk at 1kHz

Fader shutoff

> 90dB

Mute shutoff

Inter channel

Noise, rms 22Hz to 22Hz

Mic EIN -128dB

Residual output noise

< -96dBu(-100db S/N)

LR mix noise 16 routed

Group mix noise 16 routed

Aux mix noise 16 routed

Mix noise 16 line 0dB gain

< -86dBS/N

Channel HPF

12dB/octave below 100Hz

Mono EQ

HF

Shelving +/-15dB, 12kHz

HM

Peak/dip+/-15dB, 500Hz to 15kHz, Q=1.8

LM

Peak/dip+/-15dB, 35Hz to 1kHz, Q=1.8

LF

Shelving +/-15dB. 80Hz

Stereo EQ

HF

Shelving +/-15dB, 12kHz

HM

Peak/dip+/-15dB2.5kHz, Q=1.8

LM

Peak/dip+/-15dB, 250Hz, Q=1.8

LF

Shelving +/-15dB. 80Hz

Power supply(16-32ch)

Internal switched mode, mode sensing, IEC input

External input for optional MPS 12 backup supply

Power supply(40ch)

External RPS11 linear, IEC input Console input fpr second RPS11 as backup supply

Width

1025mm(40.4" )

Weight

26.5kg(58.3lbs)
