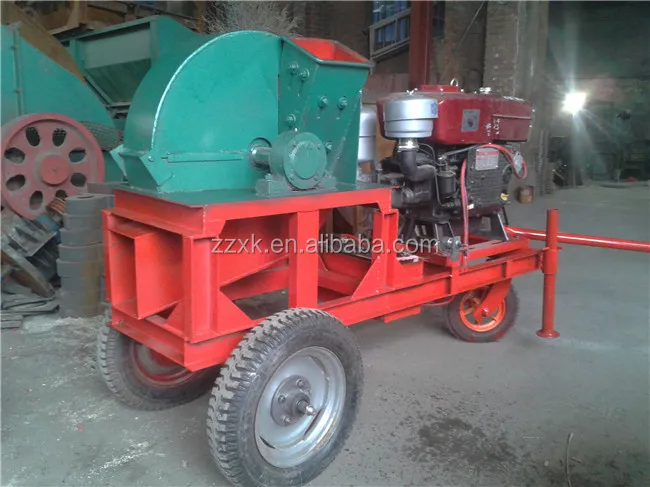

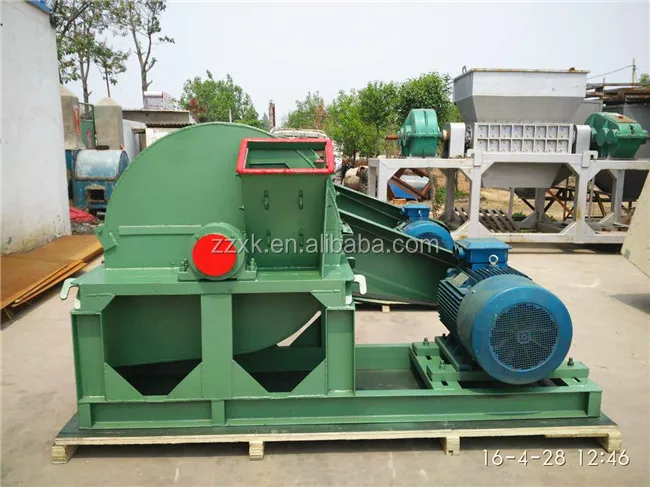

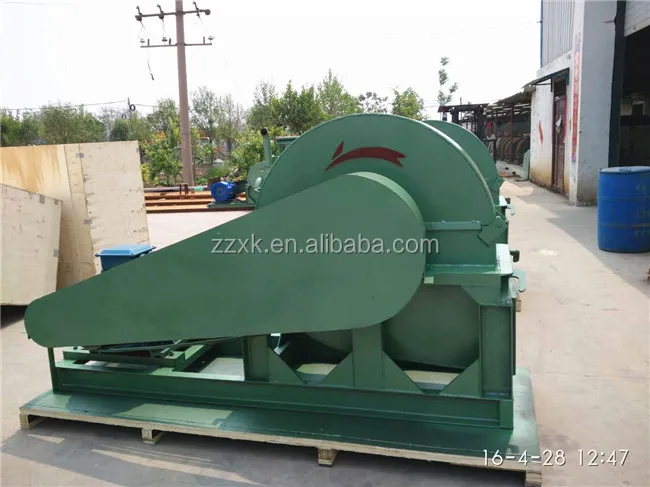

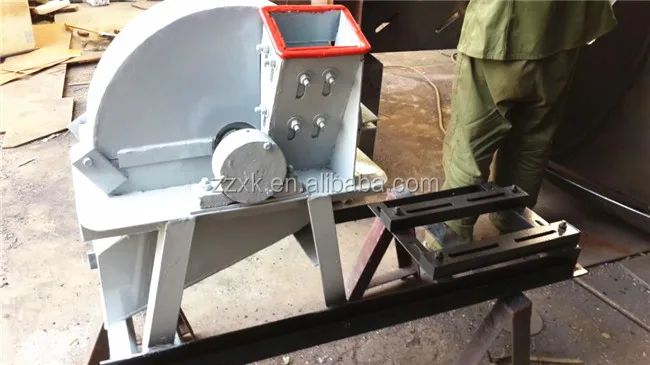

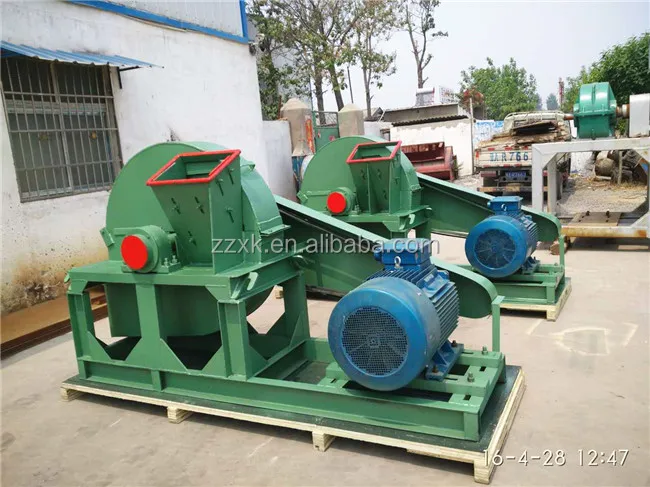

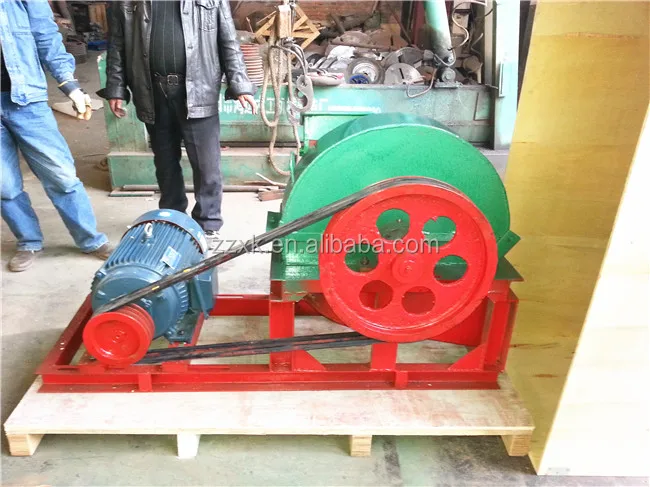

Factory price wood shavings crushing machine/Diesel Pine Wood Shaving Machine
1.Function:Wood shaving machine can be make the logs, tree branch edge processed wood into wood shavings.
2.Work process:Uses automatic feeding equipment, the timber gets into the machine through the feeding port, then inside the machine the timer cut by the knives, then the crushed materials get into screen mesh, finally get the average shavings.
3.Energy:The power supply could be Electrical or Diesel motor
4.Application:USe for produce edible mushrooms,shaving board,sawdust board and dense board,gardening as fertilizer,biological fuel for home using or industrial,animal beds fillings in farm plant or hamter,birds cow,pig,horse,sheep and so on.
Advantages of wood shavings crushing machine
1.All kinds of wood, timber scraps, branches, wood chips, edge material, tree bark, bamboo skin and other raw material into wood shavings once.
2.The prduction size is adjustable as your requirements,The final thickness of shavings is uniform.
3.This machine is easy operated with high efficiency, only one labour force is needed
4. Main parts were made of carbon steel with high strength and have a long service life.
Final product
Technical parameters of wood shavings crushing machine
Model | BY-400 | BY-600 | BY-800 | BY-1200 | BY-1500 |
Cutter head dia. (mm) | 400 | 600 | 800 | 1200 | 1500 |
Knife quantity(pcs) | 4 | 4 | 8 | 9 | 12 |
Knife length( mm) | 90 | 100 | 150 | 210 | 260 |
Inlet size( mm) | 160×180 | 180×200 | 200×230 | 230×260 | 260×290 |
Power( kw) | 7.5 | 18.5 | 30 | 55 | 75 |
Capacity( kg/h ) | 300-500 | 600-1000 | 1000-1500 | 1500-1800 | 1800-2400 |
Welcome to contact us more detail of wood shavings crushing machine
