5 мм * 15 металлическая Грузоподъемная

Цена:1,46 $ - 3,78 $*

Стоимость в USD (на сегодня):Узнать

Количество:

Product Description

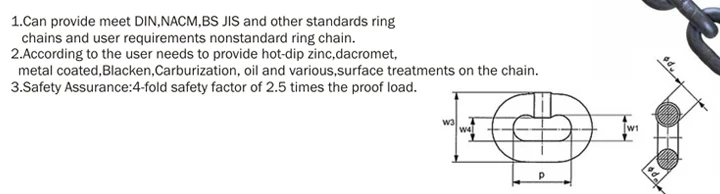

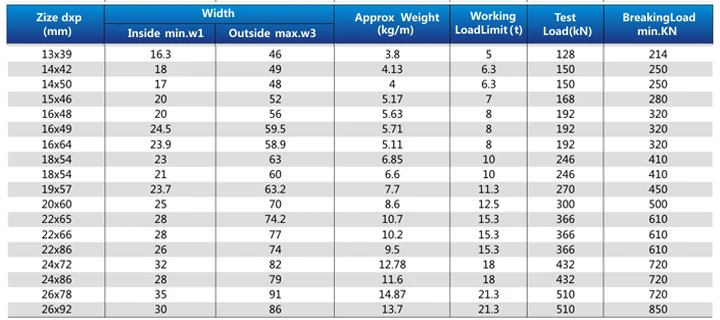

CAlibrated Hoist Chain (GRADE 80) standard EN818-7
zize dxp(mm)	width inside min.w1	width outside max.w3	approx weight(kg/m)	working loadlimit(t)	Test load(KN)	breakingload min.KN
3X9	3.8	10.7	0.21	0.28	7.1	11.3
4X12	5	14.3	0.35	0.5	12.6	20.1
5X15	6.3	17.9	0.54	0.8	19.6	31.4
6X18	7.5	21	0.79	1.1	27	45.2
6.3X19	7.9	22.6	0.86	1.25	31.2	49.9
7X21	9	24.5	1.07	1.5	37	61.6
8X24	10	28	1.38	2	48	80.4
9X27	11.3	32.2	1.76	2.5	63.6	102
10X30	12.5	35	2.2	3.2	76	125
11.2X33.6	14	40.1	2.71	4	98.5	158
11X43	12.6	36.5	2.33	3.8	92	154
12X36	15	42	3.1	4.6	109	181
12.5X38	15.5	42.2	3.3	4.9	117	196

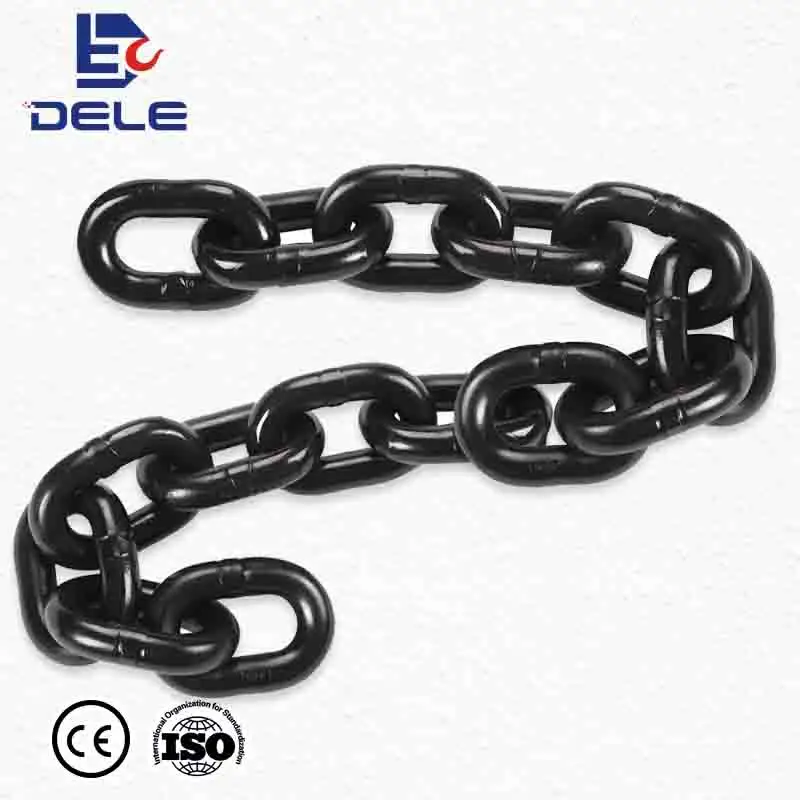

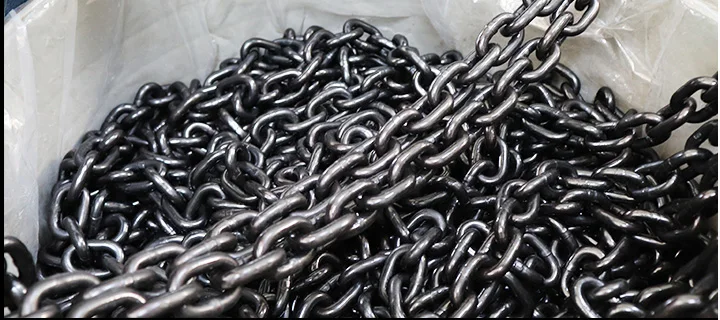

Detailed Images

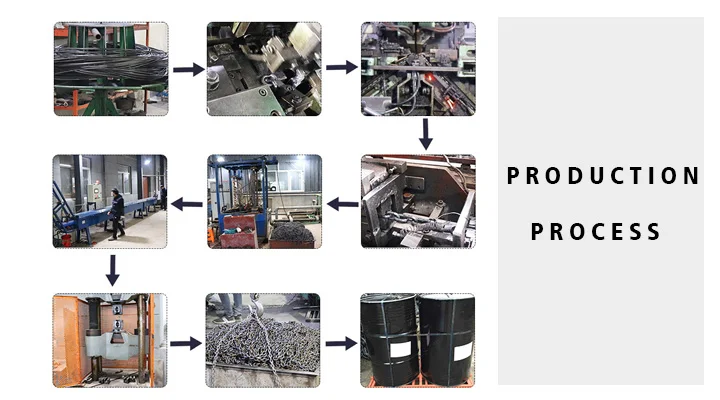

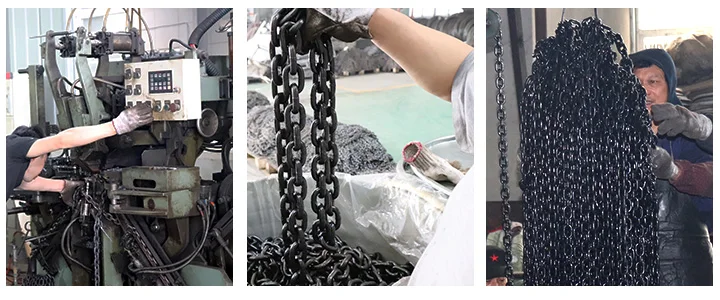

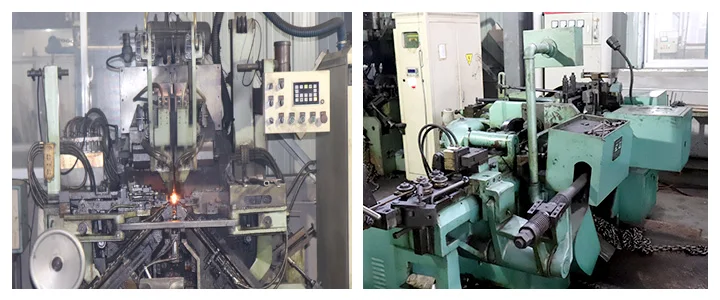

Factory

Certifications

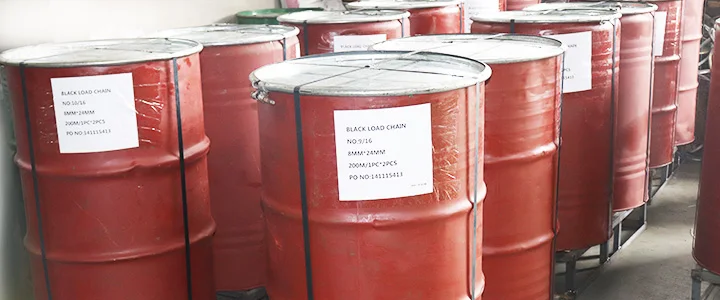

Packing & Delivery

payment

Our Service
