  Automatic Plastic Drinking Straw Extruder Extruding


Making Machine


 Drinking Straw Making Machine.jpg



Product Description


Brief Introduction:


Automatic Plastic Drinking Straw Extruder Extruding Making Machine is a tubing extrusion line.Automatic Plastic Drinking Straw Making Machine is composed of extruder and die, Vacuum calibration and cooling unit, haul-off and rotary cutter or coiler, all the machine's controls base with the control elements ergonomically adapted to permit easy operation. The system is also suitable for extruding drinking straws, lollipop sticks,etc







Characterostics:




It can make Drinking Straws and Lollipop Sticks by changing different moulds.





Main Specification:












































Typical Capacity:







Drinking Straws



    30,000 --- 40,000pcs/hour



Cotton swab sticks



     60,000pcs/hour



Lollipop Sticks



   60,000 pcs/hour



Pen Refills



40,000pcs/hour



Min. Diameter:



  3.0mm



Max.Diameter:



  12.00mm



Min. Length:



90mm



Max.Length:



300mm




Diameter of Extruder Screw:  50mm



Total Power:                 25 KW

Working Power:           10 KW
Material:                        PP
Ends:                             90°/90°,90°/45°,90°/60°,45°/45°,60°/60°
Colors:                          Single,Two or Three, SPIRAL STRIPES,STRAIGHT STRIPES.
Operator:                       One operator is sufficent to run the line

Area Requirement:        Length: around 8 meter.    Width: around 2 meter.



Raw Material:             Polypropylene (P.P )

Grade:                           Extrusion & Drawing

Shape:                          Pellet

Melt Index:                    2.5

Drawing Intensity:         380/ 350

Kneading Modulus:      17000

Rockwell Hardness:     100

Vica Soften Temperature: 160 C





Extruder :


The main extruder's screw designed to suit plastic material specified. Tube die head with die pin/bush assembly manufactured in tool steel. They are controlled by inverter.





Vaccum Calibration and Cooling :


Water bath in stainless steel with full adjustment in three planes for accurate alignment With extrusion die. Fitted with venturi vacuum sizing unit with stainless steel vaccum chamber, reservoir tank and lid, circulating pump, and all necessary pipe work and controls.



Haul-off :
Caterpillar haul-off with linatex covered belt or haul-off with rollers, driven by motor with control for variable linear speed between 10 and 200 metres/minute or to suit customer's requirements. This unit provides two functions for added choice straight or spiral stripes on the tubing surface. Inverter control





Rotary Cutter:
Fitted with either single or double rotary cutter, suitable for light duty applications driven by variable speed gearbox. Inclides cutting and quick bushes with necessary guarding .


Inverter control
Hall-off and Rotary Cutter:
Hall-off be combined with Rotary cutter.

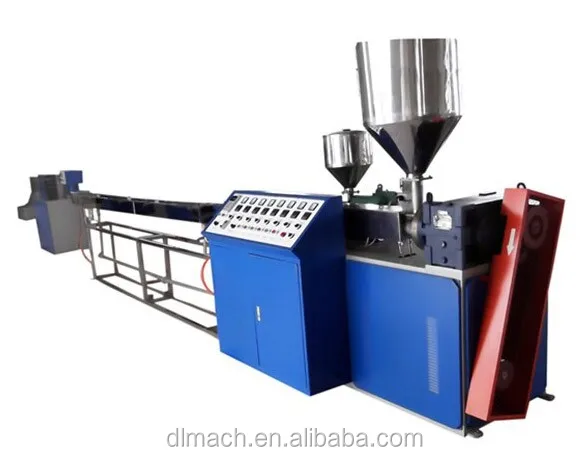

Automatic Plastic Drinking Straw Extruder Extruding Making Machine

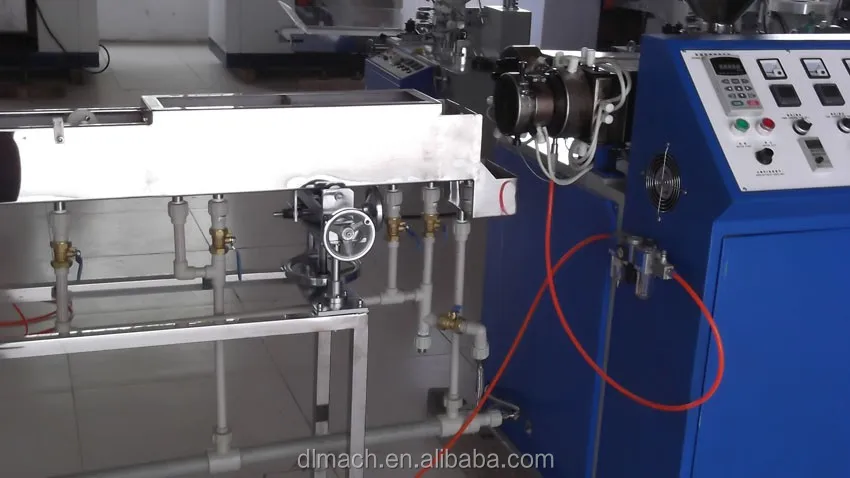

Extruder Machine2.jpg

                                                     Extruder Unit

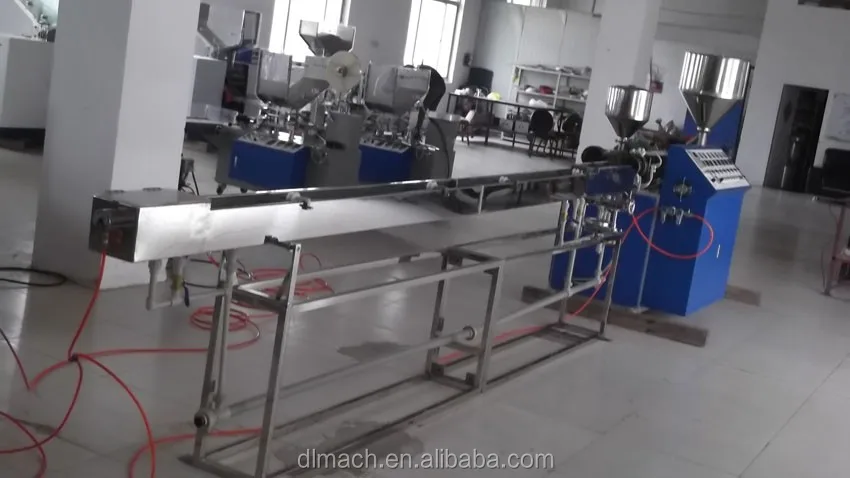

Extruder + Cooling 3.jpg

                                              Extruder and Cooling Unit

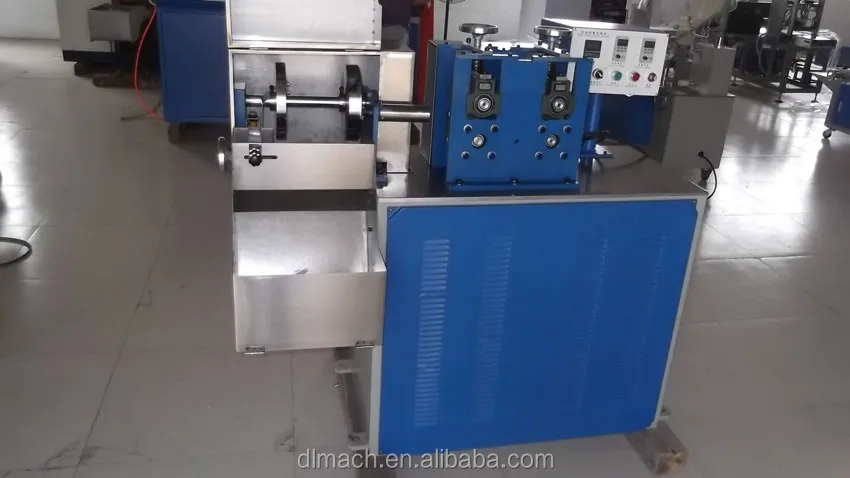

Cutting Machine 4.jpg

Cutting Unit

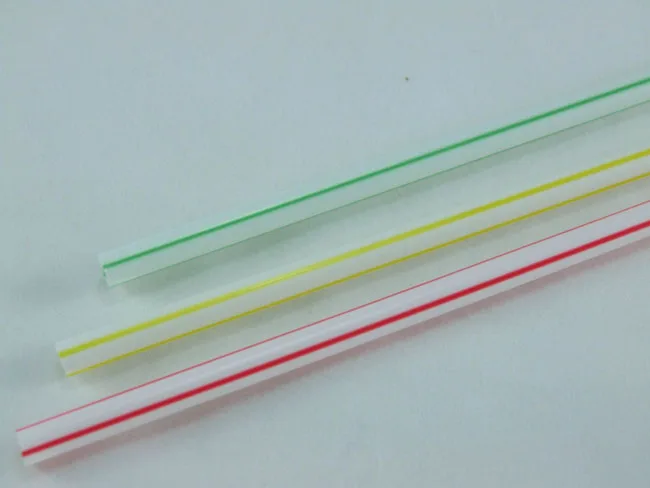

 Two Colors Straw.jpg



Drinking straws manufactured by drinking straw extruding making machine






Packaging & Shipping


Automatic Plastic Drinking Straw Extruder Extruding Making Machine

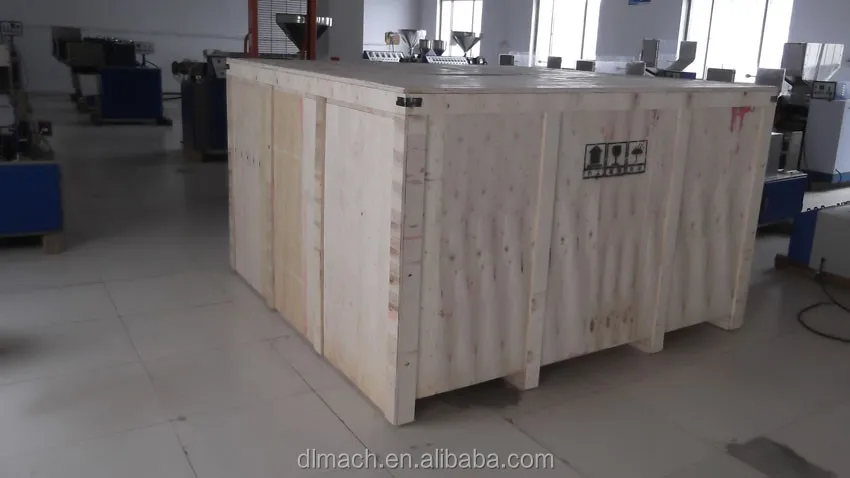

Packing in Exporting Standard Wooden Cases.













Our Services


Quality Warranty:


We supply standard accessories and spare parts accompanied with Plastic Drinking Straw extruding making machine when shipment.  Within one year after receiving our machine, In the right operation, If  there are any damaged parts or accessories, We will replace them by air-mail or express mail immediately FREE OF CHARGE..










Company Information


Export History:


We export Drinking Straw Extruding Making Machine, Automatic Flexible Straw Bending Machine, Individual Straw Automatic Paper Packing Machine,etc to many countries. Such as: Brazil, Mexico, Indonesia, Malaysia, Thailand, South Africa, Nigeria, Ghana,etc. Our plastic drinking straw extruding making machines are very popular with our foreign clients by its high quality and competitive prices .








FAQ


Q: Why choose our Automatic Plastic Drinking Straw Extruding Making Machine ?


A: 1 . High quality with competitive price
     2 . 25 years export experience, Best after-selling service.
     3. 12 months quality warranty
     4 . Oversea engineers available for problem resolving.


          We will give you prompt and professional response after getting any questions.




Q:  How can we learn to operate Plastic Drinking Straw Extruding Making Machine ?
A:  We will provide VIDEO and Operation Manual with our machine when shipment. It will teach you how to operate and maintenance this machine in details.





     We can also send our technician to the end-user company to have installation and test machine. The installation charge will be born by end-user.











Related Products


We also supply ( Automatic Flexible Drinking Straw Bending Machine, Individual Straw Automatic Paper Packing Machine, Automatic Drinking Straws GROUP Packing Machine,etc )





Any interest please click the pictures:
