Машина для строительства инструменты и оборудование TYSIM машина резки сваи
Машина для строительства инструменты и оборудование TYSIM машина резки сваи
Машина для строительства инструменты и оборудование TYSIM машина резки сваи

Машина для строительства инструменты и оборудование TYSIM машина резки сваи


Поделиться:

Цена:55 785,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики


Products Description
Technical Specification
Hydraulic round pile breaker
Technical specification
13 modules combination
18 modules combination
Pile diameter
300~1050 mm
600~1800 mm
Max. rod pressure
280 kN
600 kN
Max. cylinder stroke
135 mm
150 mm
Max. crowd pressure
34.3 MPa
34.3 MPa
Max. single cylinder flow
20 L/min
30 L/min
Quantity/8h
60/8 h
48/8 h
Max. single cutting height
≤300 mm
≤300 mm
Excavator capacity
≥20
≥35
Single module weight
100 kg
230 kg
Single module size
520×444×316 mm
696×566×350 mm
Operating size
Φ2098×4000 mm
Φ3316×4840 mm
Overall weight
1.7 t
4.5 t
Hydraulic square pile breaker
KP400S/KP450S/KP500S Technical specification
Type
KP400S
KP450S
KP500S
Pile length (mm)
250~400
350~450
400~500
Max. rod pressure (kN)
280
280
280
Max. cylinder stroke (mm)
135
135
135
Max. crowd pressure (MPa)
34.3
34.3
34.3
Max. single cylinder flow(L/min)
20
20
20
Quantity/8h
160
180
200
Max. single cutting height(mm)
≤300
≤300
≤300
Excavating capacity (t)
≥7
≥8
≥10
Operating size (mm)
1440×1440×1500
1490×1490×1500
1588×1588×1500
Overall weight (t)
0.55
0.57
0.8

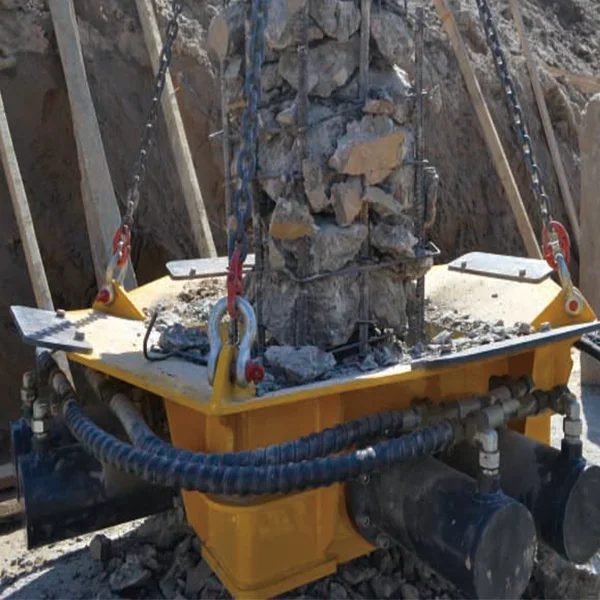

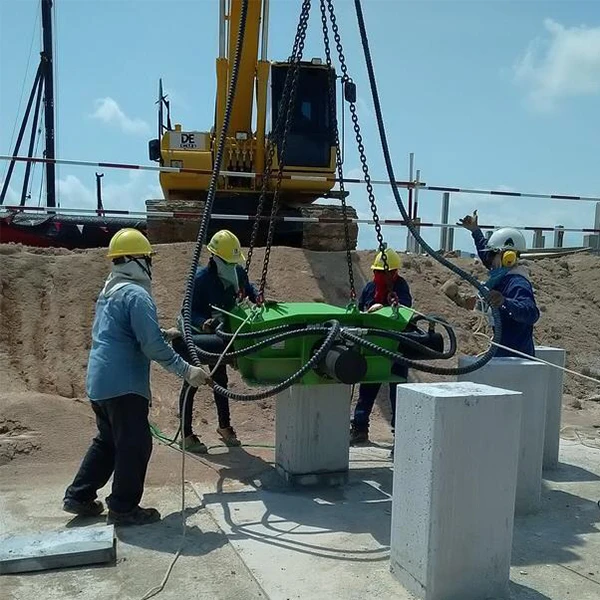

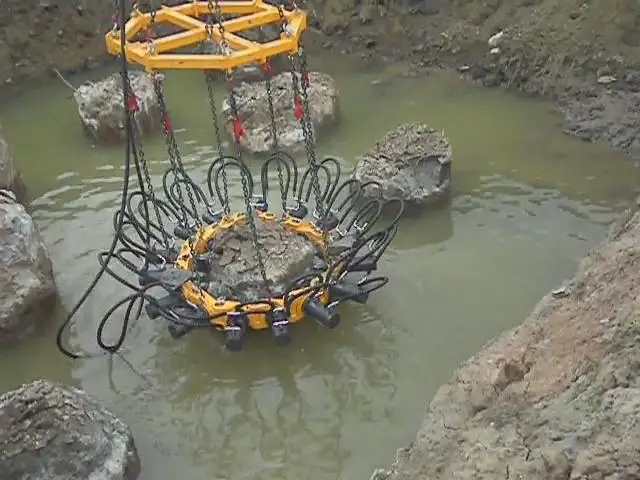

Construction Photos
Our Advantages
Our Advantages
Obtained more than 40 patents and exported to more than 40 countries.
A professional R&D team with 10 years of industry experience.
Passed ISO9001 quality management system certification, obtained CE certification.
Engineer overseas service. Ensure the quality of the machine and good after - sales service.
Manufacturer of the most complete series of small rotary drilling rig in China.
The largest export volume of small rotary drilling rig in China.
The most rotary drilling rigs in Australian market.
First brand of small rotary drilling rig in Thailand market.
Exhibition
Our Services
Why Choose Us?
1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 20 countries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.
FAQ
Q1: What is the Warranty of the Hydraulic Pile Breaker？

The warranty period for new machine is half a year or 1000 working hours, whichever comes first will be applied.

Please contact with us for detailed Warranty Regulation.

Q2: What's your service ?

We can offer professional technical support and good after-sale service to you.

Modification methods will be different according to different models and configurations of your owned excavators.

Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.

Before modifying, you need to confirm technical specification.
