Сенсорный экран OLED i2C с точечной матрицей 0 91 дюйма

Описание и отзывы

Характеристики

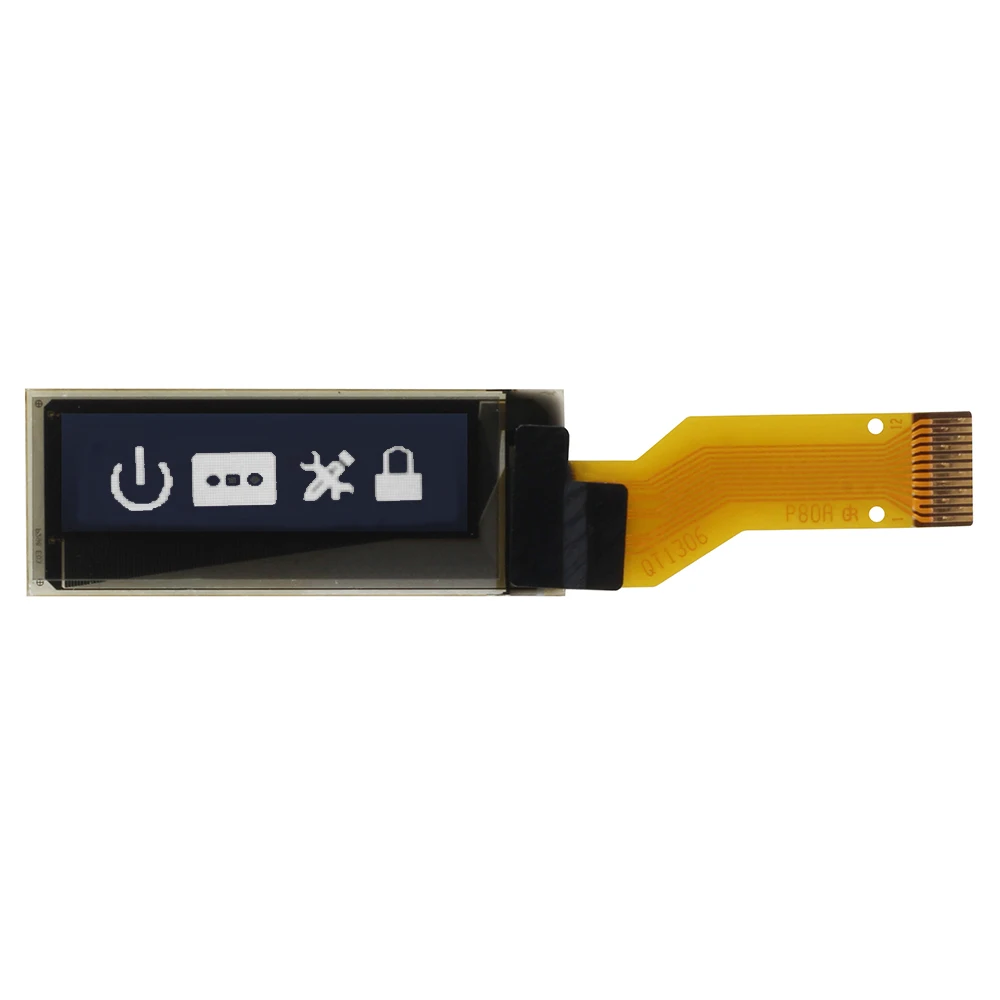

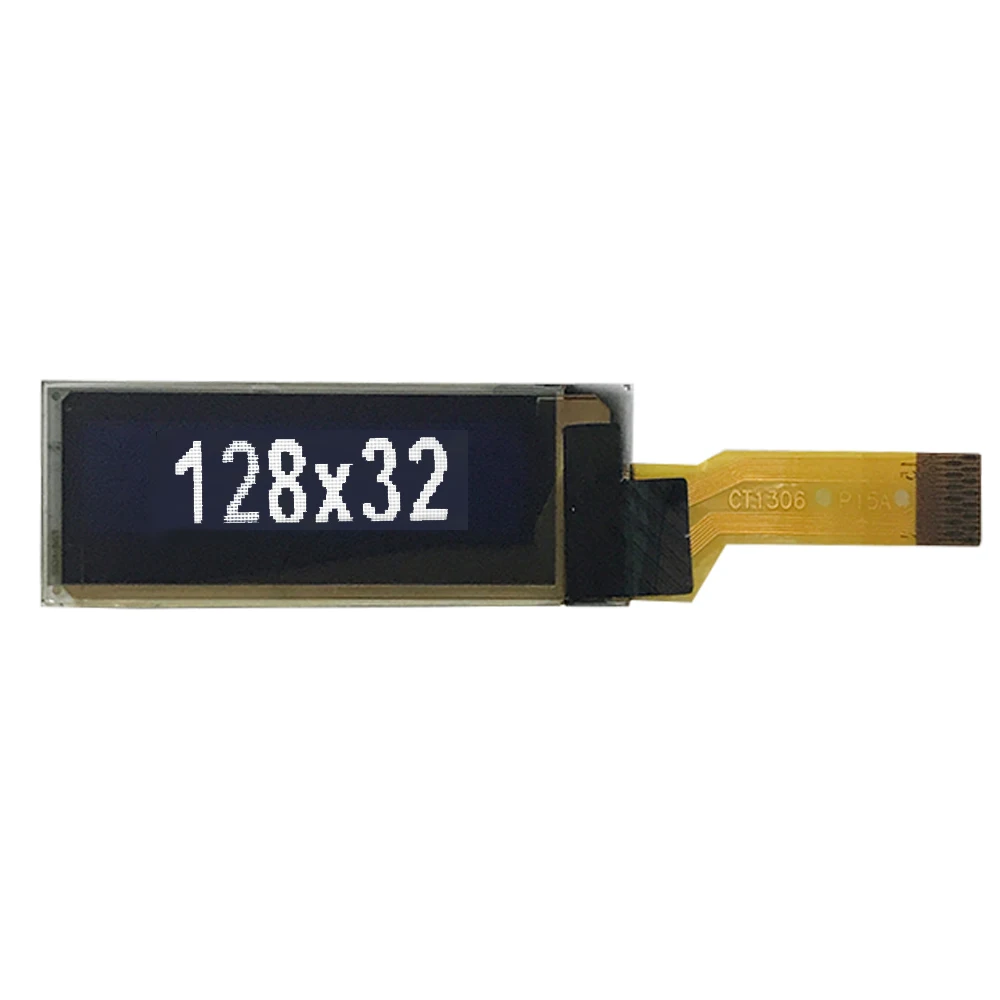

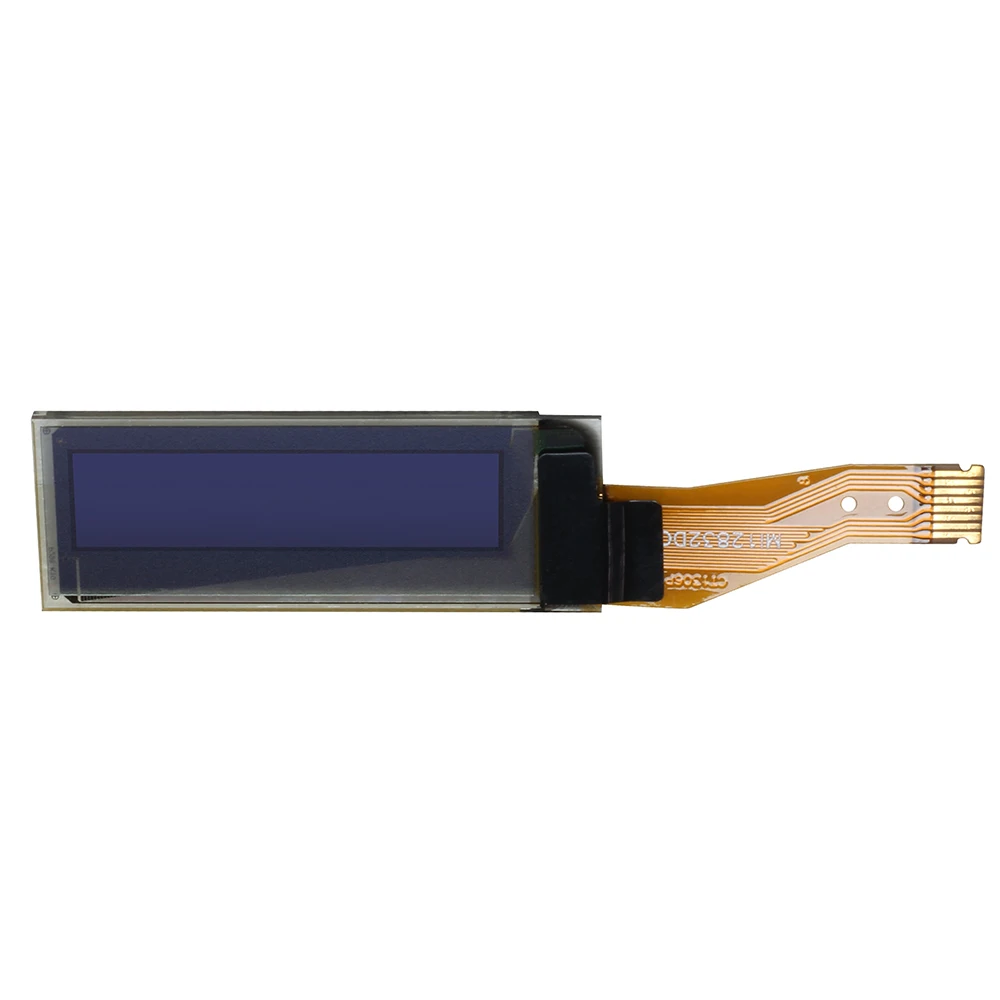

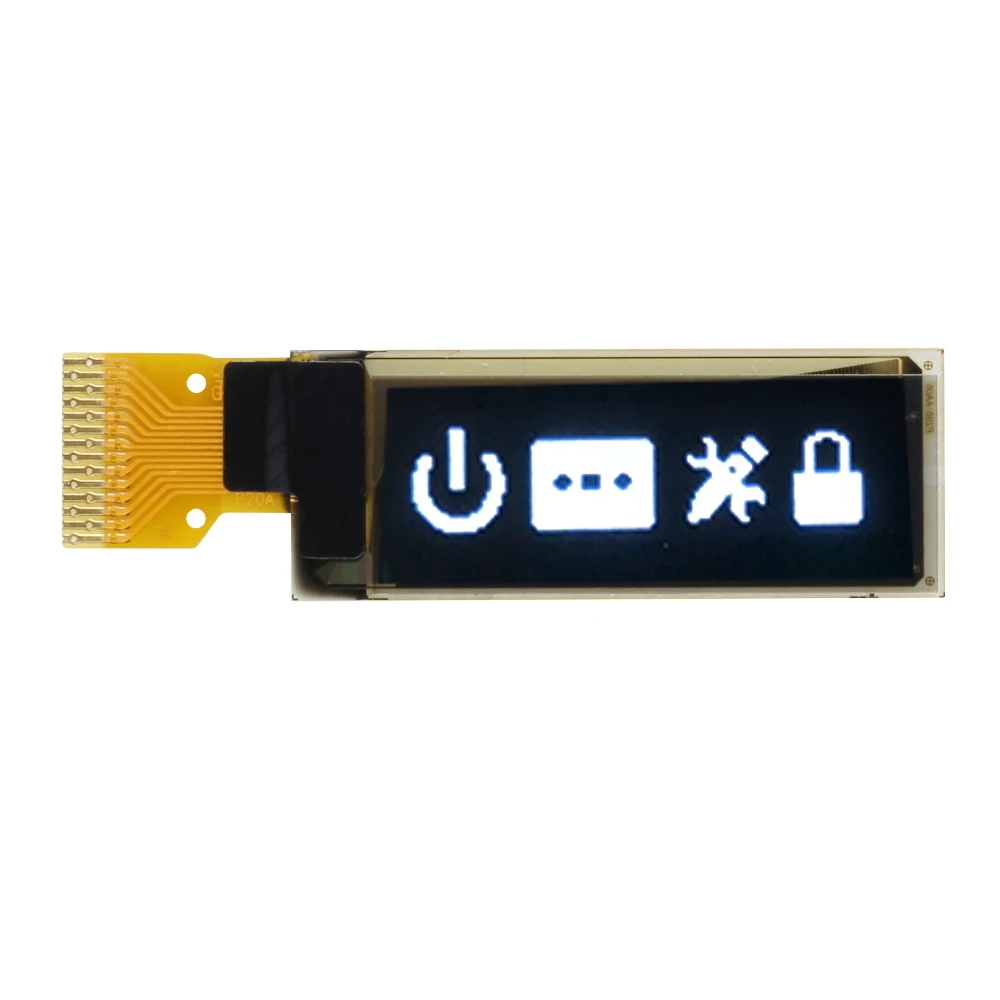

0.91" 128*32 Dot Matrix OLED i2C Touch Screen Display
Diagonal Screen Size	0.91inch
Color	Monochrome (white/Blue)
Module Construction	COG
Number of Pixels	128X32
Active Area	22.384x5.584mm
Pins	14
Drive IC	SSD1306
Interface	I2C





Temperature range
Item	Min.	Max.
Operating Temperature (°C)	-30	70
Storage Temperature (°C)	-40	80





OLED Displays

More Product List of 0.91" OLED Display
0.91" OLED Display	Picture	Features
GLO091-D-M2019		128x32 Drive IC: SSD1306 Interface: I2C Pins: 14-pin Color: Monochrome(White/Blue)
GLO091-D-M2008		128x32 Drive IC: SSD1306 Interface: 4 Wire SPI Pins: 15-pin Color: Monochrome(White/Blue)
GLO091-D-M2018		128X32 Drive IC: SSD1306 Interface: I2C Pins: 8-pin Color: Monochrome(White/Blue)
GLO091-D-M2017		128X32 Drive IC: SSD1306 Interface: 4 Wire SPI Pins: 12-pin Color: Monochrome(White/Blue)
GLO091-D-M2021		128X32 Drive IC: SSD1306 Interface: 4 Wire SPI Pins: 18-pin Color: Monochrome(White)



Applications

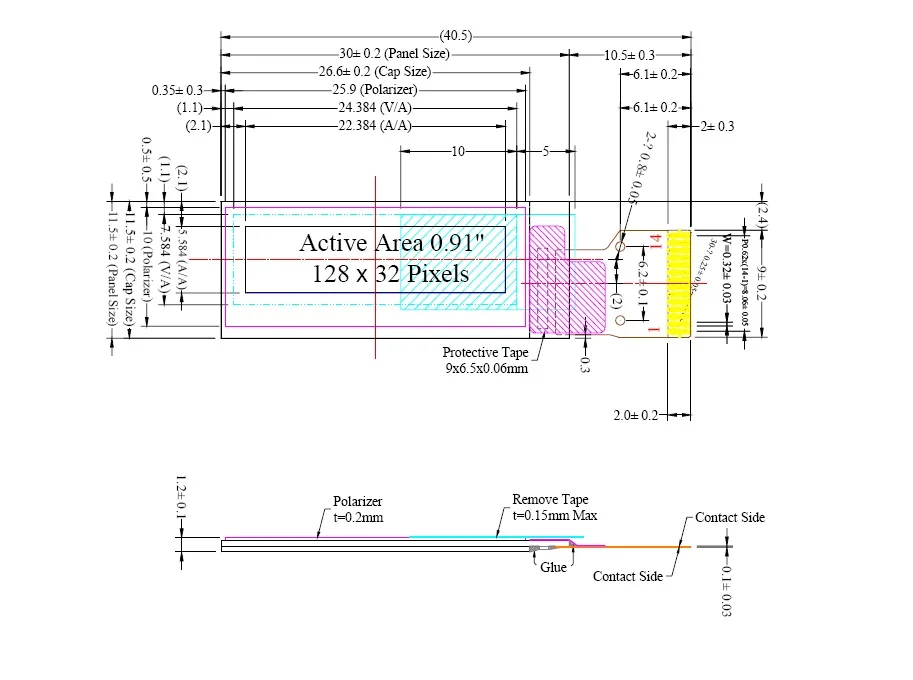

Drawing
