Цзинань SW-6090 производитель металла гравировальный станок для резки
- Категории: Metal Engraving Machinery >>>
- Поставщик: Jinan,Huawei,CNC,Machinery,Co.,Ltd
Поделиться:
Описание и отзывы
Характеристики
jinan huawei manufacturer metal engraving pattern /metal cutting and engraving machine
Product Description
Features:
1.Lathe bed:Integrally cast lathe bed, solid and stable, high rigidity and long service time.
Gantry and side arms: welded by steel plate, 8mm thickness , higher precision, longer service life.
Mesa: pvc or aluminium, good strength and rigidity, great weight bearing, protect spindle from damage.
2.X,Y HIWIN square guide rail, ball screw tansmission; Z HIWIN square guide rail, ball screw.
HIWIN square guide rail: good wear resistant, high speed, low resistance, stable movement.
Rack pinion: fast speed.
Ball screw: high accuracy.

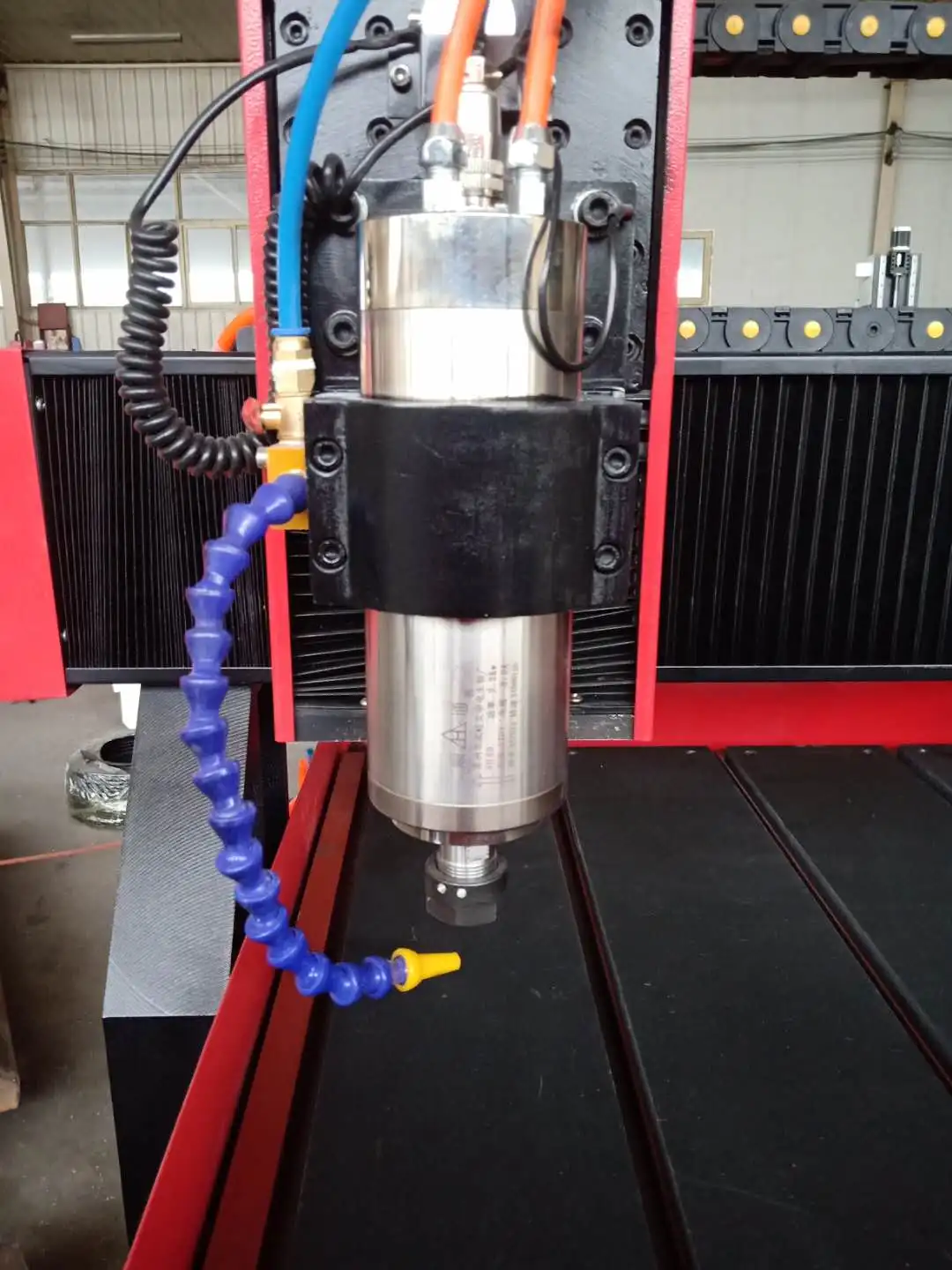

3.Spindle
2.2KW for relief carving. Higher power spindle works deeper, larger engraving and cutting force.
4.DSP control system: continued carving after power failure, re-processing,work off-line.Operating with handle ,convenient and practical,concise and humanized. Also available for higher speed.
5.Software: adopt original Artcut software in English including the English manual.
6.Motor: stepper motors and drivers. warranty one year.
7.Water slot: stainless steel water slot for marble grantie jewelry carving.
8.Working area 600*900*200mm for materials within this size.
9. Machine color is optional as you like.
Parameter:
| 1 | X,Y,Z working area | 600x900x200mm |
| 2 | Structure | X HIWIN square guide rail |
| Y HIWIN square guide rail | ||
| Z HIWIN square guide rail | ||
| 3 | Transmission | X,Y ball screw |
| Z ball screw | ||
| 4 | Workpiece holding | By clamp |
| 5 | Resolution | <0.02mm |
| 6 | Drive motors | Stepper motors and drivers |
| 7 | Max working speed | 24000mm/min |
| 8 | Spindle | 2.2kw,water-cooling |
| 9 | Spindle revolving speed | 6000-24000rpm |
| 10 | Frequency inverter | Fuling |
| 11 | Working voltage | 220V |
| 12 | Command language | G-Code |
| 13 | Operating system | DSP |
| 14 | Computer interface | USB |
| 15 | Flash memory | 128M(U Disk) |
| 16 | Collet | ER20(3.175/4/6/12.7mm. Optional ) |
| 17 | Software compatiliby | Type3/Artcam/Artcut/Ucancam/JDpaint etc |
| 18 | Running environment temperature | 0-45 centigrade |
| 19 | Relative humidity | 30%-75% |
| 20 | Optional parts | 1.Spindle power |
| 2.Working area,table size | ||
| 3.Color | ||
| 4.Voltage(110V,220V,380V) | ||
| 5.Cylinder rotary attachment |

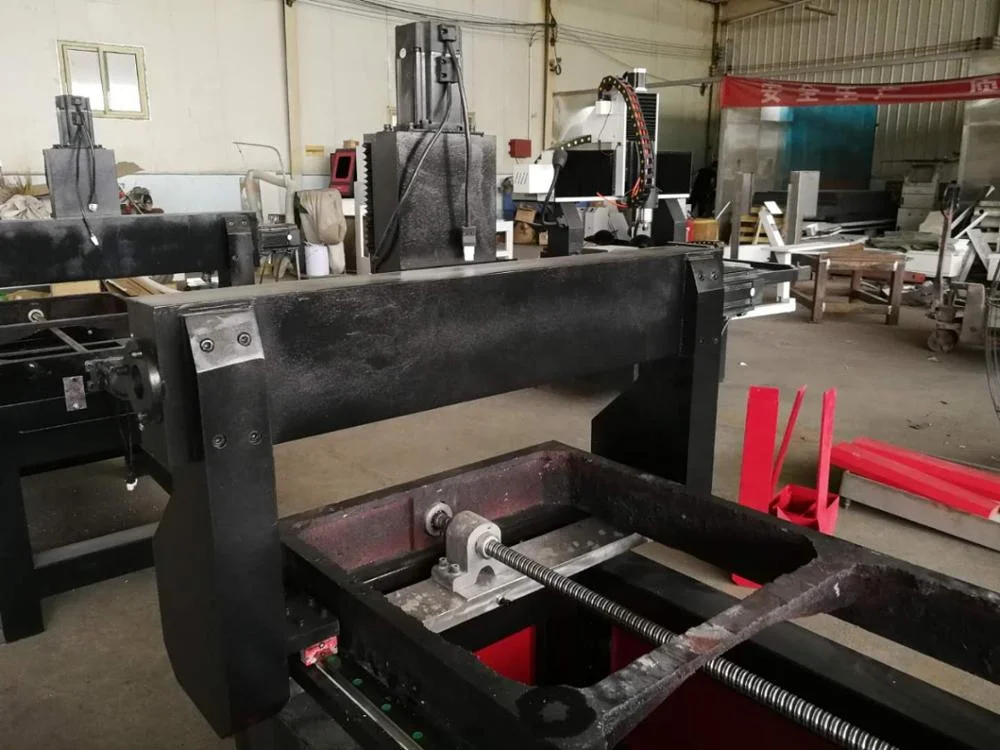

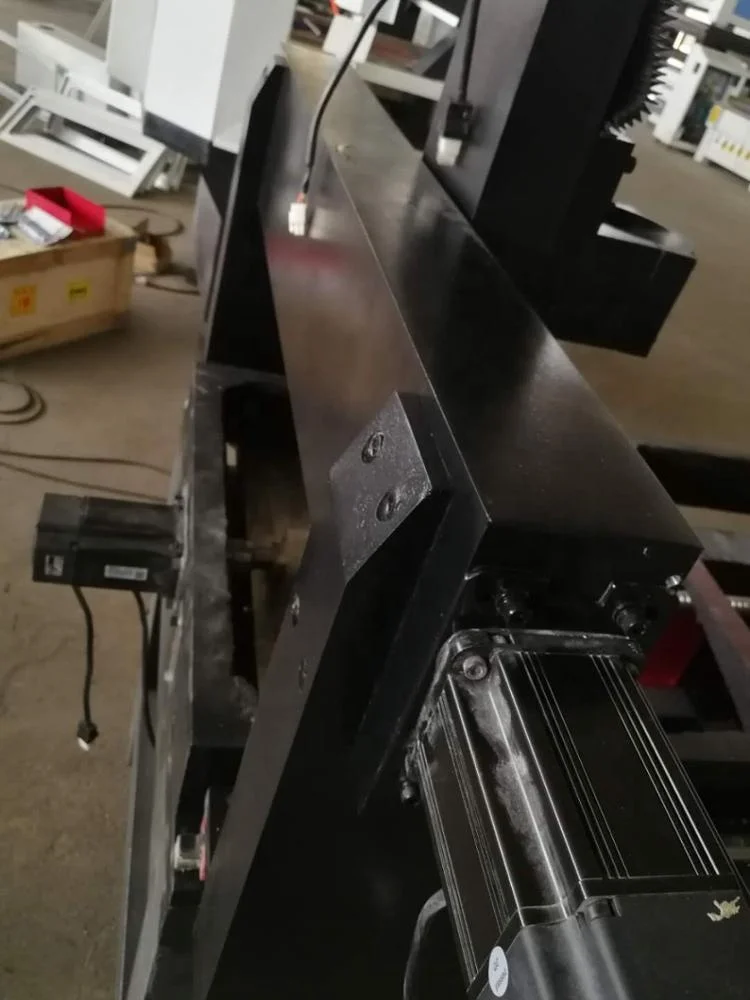

Machine Parts:
Application
1.Widely used for engraving jewelry and other jades.
2.The machine is suitable for acrylic,PVC,wood,marble,wood,mould,metal,stone,handicraft,embossed
pictures etc.
3.Power cutting,3D characters and enchase production etc.
4.Fast speed,suitable for larger Characters processing,relief processing and 3D processing etc.
5.Especially for metal engraving and cutting.
Samples:

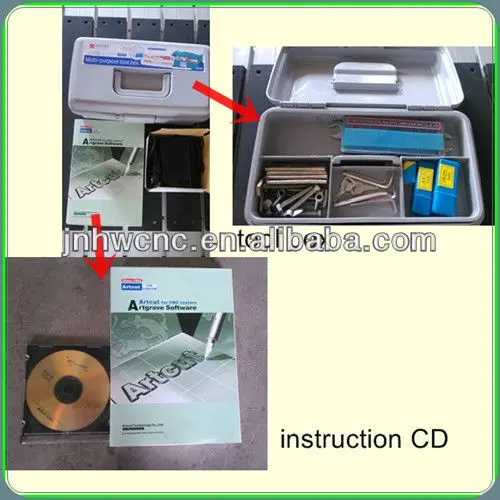

Free accessories:
1.Engraving Tools, collets ,Data Wire, Power Line, Spanners and Clamps,water box.
2.CD, including design software installation bag,control system installation and usage video.
3.Water pump for water cooled spindle and machine with water tank.

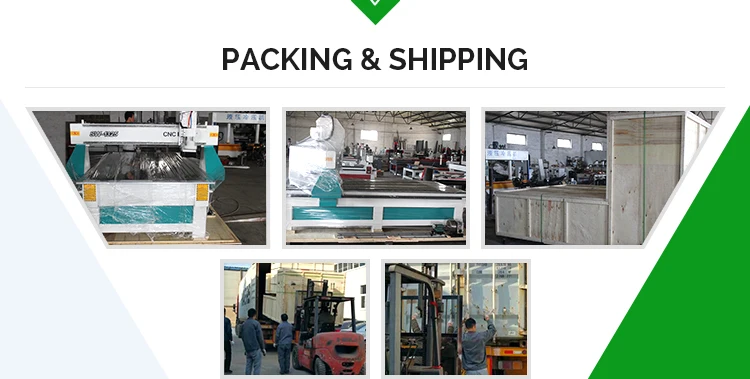

Packaging & Shipping
1.From Jinan, Shandong to Qingdao Port.
2. From Qingdao Port to your destination port by sea.
3. If you want other transport, please tell us, we're glad to do it for you, for your convenience.
Our Services
Contact me
If you choose us, we can do that:
1. High quality of every machine parts. warranty one year. Our machine has the ability of 24 hours of continuous work.
2. Good service. If you have any questions, you can contact me at any time. we are on service for 24 hours.
3.Competitive price for distributor. we are the manufacturer so our price is most competitive in the market.
4.Timely delivery. If our clients are badly in need of the machine, we can overtime work.
Any questions,please feel free to contact me !
