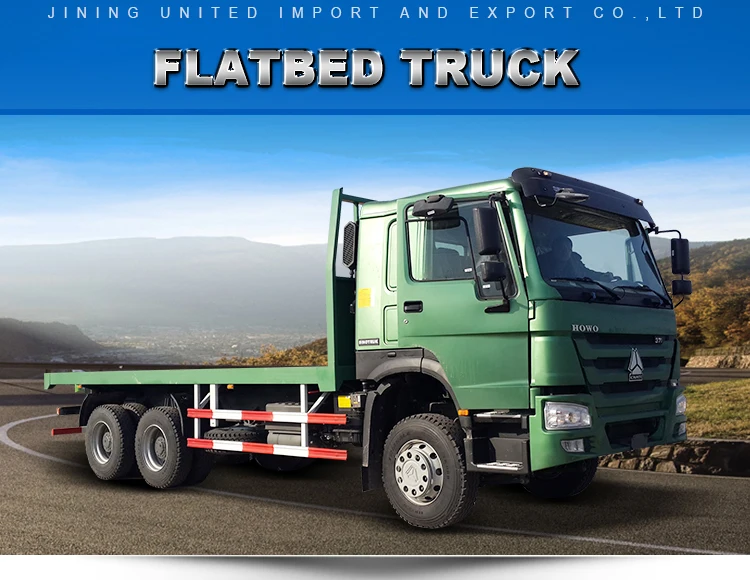

SINOTRUK Direct factory supply container carry flatbed truck
Our Products
Product Description
Main parameters:
Overall Dimension(mm) | 9895x2496x2958 | ||||
Wheel Track(mm) | 2022,1830/1830 | ||||
Wheel Base (mm) | 4600+1350 | ||||
Weight Rating(kg) | Kerb.Weight(kg) | 9230 | |||
| Load weight(T) | 30T-40T | |||
Engine | Mode | WD615.69 | |||
| Engine power (hp) | 336HP | Displacement(L) | 9.726 | |
| Maximum Torque(n.m) | 1500Nm | Fuel type | Diesel | |
| Emission Standard | Euro Ⅱ | cylinder (quantity) | 6 | |
| Diameter/ stroke | 130 x 126 | |||
| Rated revolution | 2200rpm | |||
Front/Rear Hanging(mm) | 1500/2445 | ||||
Maximum speed | 90km/h | ||||
Transmission | Mode | HW15710 | |||
| Description | Manual operation,10 forward & 2reverse with no synchronized | |||
Cab | Mode | HW76 | |||
|
Description | 1.Standard cab with one sleeper, 2.New type seats 3.Safety belts and adjustable steering wheel 4.With heating and ventilating 5.With stereo radio/cassette recorder 6.With 4-point support fully floating suspension and shock absorb, 7.Outer sun visor 8.A/C | |||
Axle | Mode(front) | HF 9 | |||
| Payload(kg) | 9000 | |||
| Mode(rear) | HC16 | |||
| Payload(kg) | 16000 x2 | |||
Rim Size & Numbers | 8.5x11,10+1 spare tyre | ||||
Typ & Numbers | 12.00R-20 10 +1 Spare (Radial Tyre) | ||||
Body Description | Length(mm) | 7650 | |||
| Width(mm) | 2300 | |||
| Bottom(mm) | 8 | |||
| Sides(mm) | 6 | |||
Hydraulic cylinder | Front lifting hydraulic cylinder | ||||

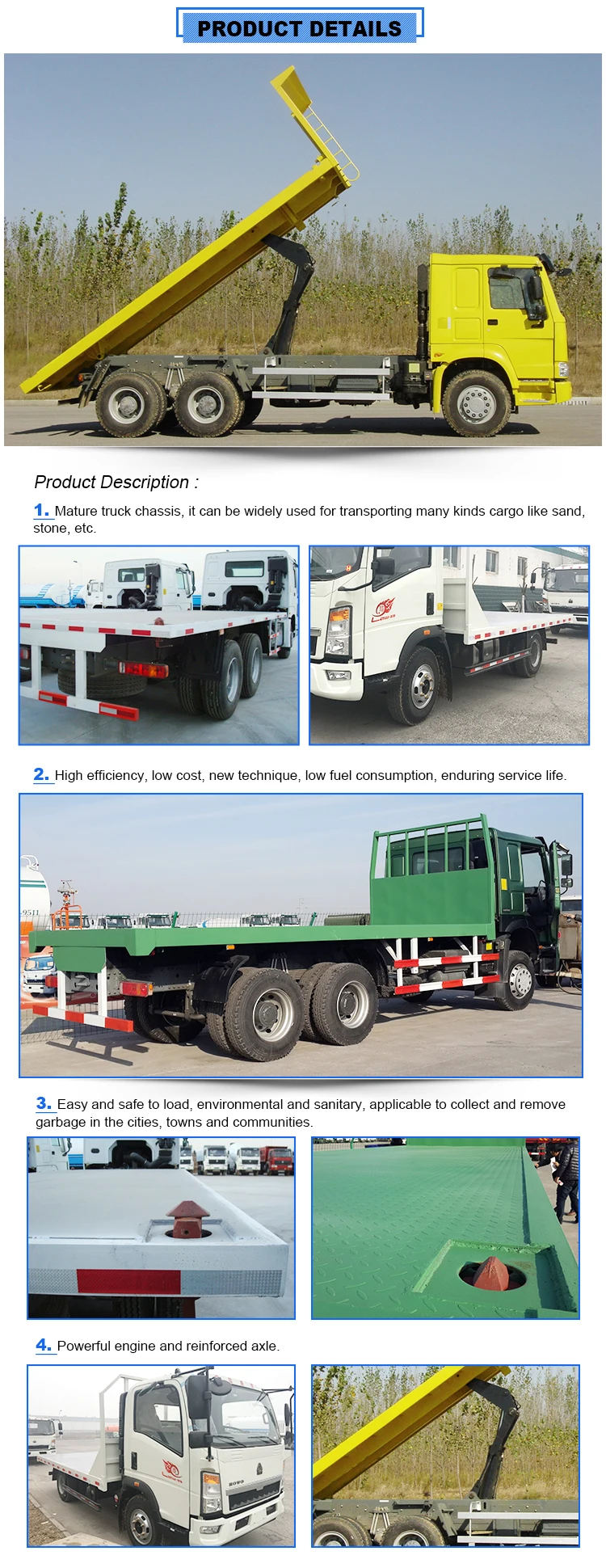

Product Details
Production Process
Packaging & Shipping
Package :Nude or Polish with wax before shipping.
Shipping:Withing 45days after payment
Company Information
Jining United Import and Export Co.,Ltd is the authorized company of SINOTRUCK, we are doing all series of Sinotruck , including Dump truck, Tractor truck, Cargo truck, Concrete mixer and pump truck, Van truck, Semi-trailer truck, Tank truck, Dangerous goods transfer truck, Environment sanitation truck, Road maintenance truck, Fire-extinguishing truck, Aerial platform truck, Wrecker truck, Oil field truck, Vehicles for animal husbandry, Truck crane, New energy series, HIAB crane and etc.
Our company was found in 2011,located in Jining City, Shandong province,Before we worked as the construction machinery factory Jining Changhong Construction Machinery Co.,Ltd in Nov, 1996, mainly doing all construction machine spare parts, though all staff ‘effort and government`s support, We has quickly developed and expansion into overseas market.Now as a special spare parts and whole machine supplier, we have a complete set of service from before-sales to after-sales. Now our product have been sold all of the world,like Russia,India,Brazil,Southeast Asia,Africa and other countries.Warmly welcome all regular and new customers to visit our company.
FAQ
1, What’s your MOQ?
Minimum order is 1 pc only, dealership is warmest welcome.
2,What’s the qualify assurance we provided and how do we control quality?
1. Established a procedure to check products at all stages of the manufacturing process from raw materials to final products. Beside, we have also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process.
2.100% inspection in assembly lines. All controls, inspections,equipment,fixtures,total production resources and skills are inspected to ensure they consistently achieve the required quality levels.
3, How do you transport the trucks?
We transport the vehicle in nude or Polish with wax before shipping.
Our company has long -term cooperation with ship agency which can provide you lowest shipping fee.
4, Can you satisfy my special requirement?
Yes, We can make customized design to utmost meet your special requirements.
