2017 most popular high quality precision vise with high quality

Product Description

1.Mechanical/ Hydraulic spindle without original clutch mechanism

2.Rigid material-vise body of ductile iron FCD60JIS(Equal to GGG60) with 60kgs/mm or 80,000psi tensile strength.

3.Vise bed flame hardened to HRC45°and takes up wear and maintain accuracy for long

4. Seal and other key parts are all famous brand products of German.



Model:MR-NHV-160B
Drive ModeManual
Metial Spheroidal graphite cast iron
HardnessHRC 52-60
ParallelismWhthin 0.003mm/100mm
SquarenessWithin 0.005mm/100mm
Precision0.008mm
Machine TypeGrinding Machine
PackageCanton



Specification



MR-NHV-160B

        WORKING PRECISION HYDRAULIC VISE

        High power type omnibearing precision pressure vice, suitable for general milling machine, CNC vertical comprehensive processing machine, the largest opening can clamp 300mm.

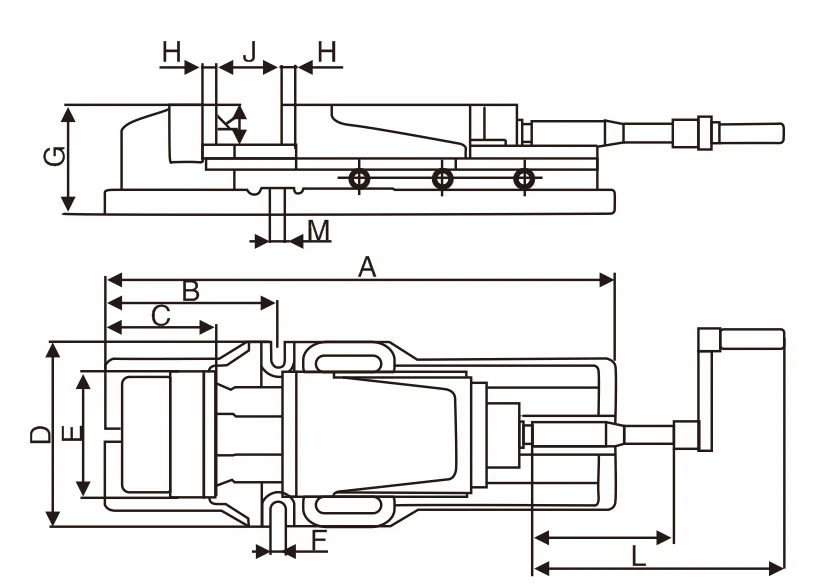

Unit: mm

ModeABCDEFGHJKLMClamping forceWeight
NHV-130A52919512122413019134160-210523101840KN38KG
NHV-150A62021013622413019134160-300523101850KN58KG
NHV-130B67018511718516519118160-320463101835KN36KG
NHV-160B80024712524020019133160-300513101845KN57KG
NHV-200B900266165280240 162 0-30062  55KN93K






Packaging & Shipping

   EXPORTING PACKAGE, SAFE AND STABLE

delivery

Company Information

MRCM is a manufacturer specialized in developing and producing small special-purpose tool grinders, precision machinery tools. It is a high-tech enterprise which includes research and development; design; production; sale; and after-sale service. In the past many years, we’ve been committed to research, develop and produce the grinding tools. We’ve been started from the portable drill bit sharpener and continuously developed to the current four-axis and six-axis CNC tool grinding machine. The CNC machine with different functions to meet the market requirements, effectively improve the working life of tools and reduce production costs.

 (1)

Main products include: CNC tool grinder, drill bit sharpener, end mill sharpener, screw tap sharpener, lathe tool grinder, saw blade sharpener, universal cutter grinder, universal tool grinder, chamfer, tapping machine, vise, sucker, zero positioning, and so on.

Engaged in international marketing, participated in international exhibitions, such as EMO Hannover, cooperated with the domestic and foreign companies. We’ve passed the CE, ISO 9001 certification, have been applied for over 70 national patents, sold product to 60 countries and regions, 80% of exporting products are sold to developed countries such as Japan, Europe countries and so on.

HTB13aFImS_I8

FAQ

 1.What is your advance?                                                                                                                                                  A:(1)We have ourselves factory. We accept the order if you want to customize products or design the product.

(2)Professional website platform and one-to-one online service.
(3)Various products in low MOQ and competitive prices.
(4)We have a strong R&D team and now we have 52 patents products.
(5)80% exporting products have been sold to Europe,America and Japan, high quality.
2. What's the minimum order quantity?
A: One set is acceptable
3. How about the payment Term?
A: We accept T/T,Western Union,LC
4. What's your port?
A: Ningbo/Shanghai.
5. Can we use our own shipping agent?
A: Yes,you can. we had cooperated with many forwarders.If you need,We can recommend some forwarders to you and you can compare the price and the service.
6. Can we use our own LOGO or design for sticker?
A: Yes,you can contact with the salesman. And sent us more details about the LOGO or sticker.
7. How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
8. Do you provide samples? Is it free or extra ?
A: Yes, we could offer the sample for cheaper price but do not pay the cost of freight.
