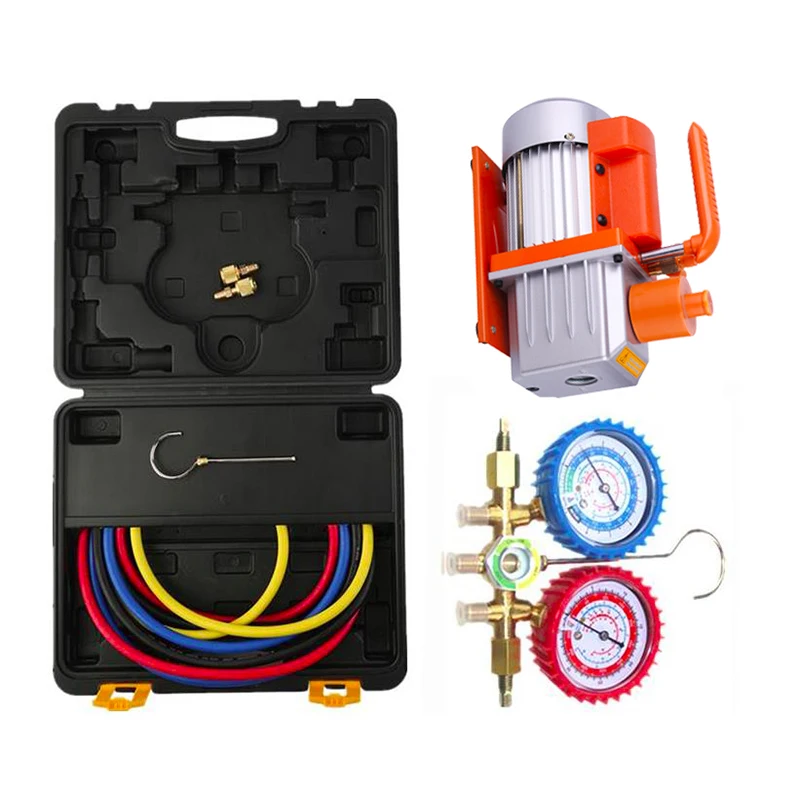

Двухступенчатый 4.8cfm 1/2hp автомобильного кондиционера холодильное масло вакуумного насоса и r134a Холодильный коллектор набор инструментов для

Описание и отзывы

Характеристики



Product description





 Description:



For the two stage 5cfm vacuum pumps:

The vacuum pump voltage input can be customized according to the different countries’ requirement, such as :

Argentina 220v(single phase) 380v(3 phase)/50hz vacuum pump;

Brazil dual voltage 110v/220v/60hz vacuum pump;

Canada dual voltage 120/240V/60hz, 208/240V/60hz vacuum pump;

Mexico dual voltage 127/220V/60hz (sinlge phase) 220v/60hz(3phase)vacuum pump;

America dual voltage 120/240V/60hz (single phase),120/240V/60hz(3 phase)

380v/60hz scroll vacuum pumps.

HONGKONG 120V/220V/50HZ (single phase), 220V (3phase) vacuum pump

India 230v/50hz vacuum pump and so on.



1. High efficiency and low noise, heavy-duty aluminum alloy casing construction for maximum durability.

2. Anti-backflow: Internal intake check valve prevents oil backup or oil suck back into the system during a power failure or when stop pumping.

3. Environmental :Intake filter screen keeps damaging particles from entering the pump; An oil fog cleaner is set inside to prevent the oil fog exhausting to the atmosphere.

4. The pump is specially designed for low temperature environment, and large starting torque guarantees to start normally under cold winter’s extreme low  temperature.

5. Oil drain plug positioned at Bottom of oil tank , faster and complete draining.

For manifold gauge car air conditioner settings:

1. Dual channel RT measurement can work out the superheat and supercooling.

2. Mlti-mode option can be used in vacuum measurement, pipe leak detection and routing maintenance.

3. Large screen, multi-angle, big-font LCD and backlight design make it clear in displaying, convenient in observing. It can also be used in weak light.

4. Safety and environmental.



Applications:

RS series vacuum pump is air operated vacuum pump, they are widely applicable to the following fields:

1). Special vacuum pump for food packaging equipment

2). Special vacuum pump for tea packaging equipment

3). Special vacuum pump for refrigeration and maintenance

4). Vacuum pump for laboratory equipment

5). Printed special vacuum pump

6). Special vacuum pump for medical equipment

7). Vacuum drying special vacuum pump

8). Special vacuum pump for resin glue

9). Special vacuum pump for mobile phone patch

10). Special vacuum pump for teaching instruments

11) Vacuum coating,vacuum adsorption, vacuum forming, photo-voltaic technology, aviation,and many other fields.

12) Automotive or household air conditioning units; Refrigerator, air conditioner and industrial refrigeration equipment.

Specifications:

The optional specification for two stage rotary vane HVAC 5CFM vacuum pumps:

Oil sealed single stage rotary vane vacuum pump specification
Model		2RS-2
Voltage		100v~127v	200V~240v
		60HZ	50HZ
Free air displacement	CFM	5	4.5
Ultimate vacuum	PA	0.2
	mbar	0.002
Rotating Speed (rpm)		3500	2800
Power(HP)		1/2
Oil Capacity(ml)		330
Dimension(MM)		290*115*220
Weight(kg)		10
Optional colour		black, orange, light blue, dark blue,purple
Payment term		T/T,LC,Western union
Loading port		Shanghai or Ningbo





Specification for  r410a manifold gauge set:

Model	refrigerant	Gauge diameter	Pressure   Scale	Hose	Length	Package
HBS-BZ-5	R404A,R22,R410A, R134a	φ68mm	0-800 PSI             30-500PSI	red&yellow&blue:1/4"	150cm	blow case

 Burst pressure: 3000 PSI , three color tubes.

Including :

Brass body valve manifold gauge;

Three color tube,1.5m length;

A pair of car/auto air conditioner fast switch connectors;

A pair of 3/8”SAE or 1/4” SAE connection, it is customized by customer.

Other accessories can be customized as requested by customer.



Flaring tool kits:

Rigid flaring tool specification:

Flaring Diameter

6, 8, 10 , 12 , 16 ,19mm      (1/4'' , 5/16'' , 3/8'' , 1/2'' , 5/8'' , 3/4'')

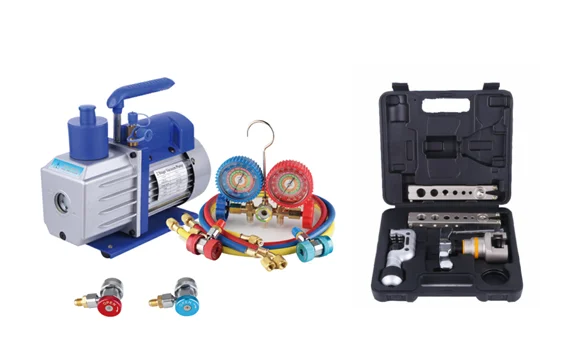

Product pictures

Reference of relative Manifold Gauge



Part show of gauge
