48v 36v 10ah water bottle electric bicycle battery
Basic specification
48v 36v 10ah water bottle electric bicycle battery
Specification :
| Norminal Voltage | 36v |
| Nominal Capacity | 10ah |
| Product name | 36v 10ah water bottle electric bicycle battery |
| Features | Lithium ion battery cells 18650, aluminium case, Large capacity 10Ah, motor 1000w |
| Dimenssion | 340*90D mm |
| Cycle life | more than 1000 times |
| Customized capacity | 10ah, 12ah, 15ah, 17.5ah, . OEM/ODM case length and cost increase accordingly |
| Source Resistance (mΩ) | < 40 |
| Cell Specification | 3.7V 2500mAh |

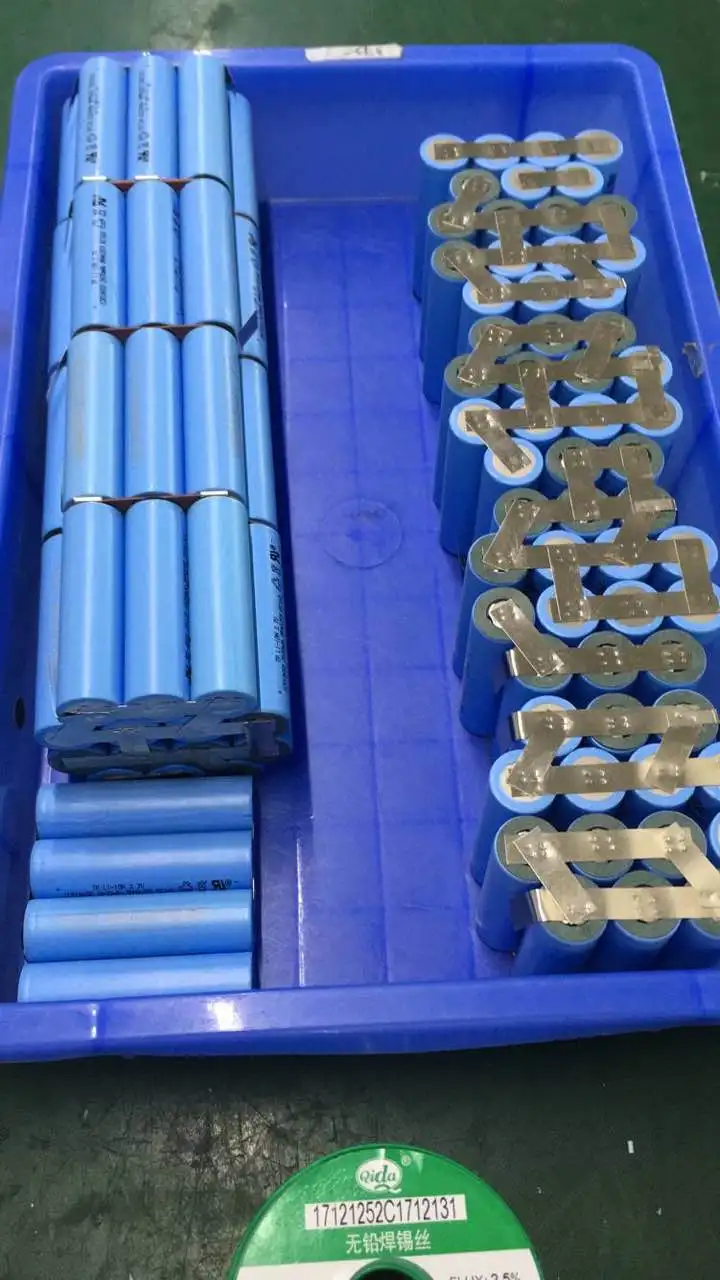

| Cell Combination | 4P-paralle, 10-series 10S4P |
| Cell type | 18650 LITHIUM ION BATTERIE CELLS |
| Cell Quantity (parallel*series) | 40pcs |
| Charge Cutoff Voltage (V) | 42V |
| Discharge Cutoff Voltage (V) | 41+/-1V |
| Maximum Continuous Charge Current (A) | 2A |
| Instantaneous Maximum Discharge Current (A) | 10Ah |
| Maximum Continuous Discharge Current (A) | 10Ah |
| Standard Charge Current (A) | 2C |
| Charge Time under Standard Charge Current | 5 HRS |
| Battery Net Weight | 4.3 KGS |
| Battery Gross Weight | 5.0- kgs |

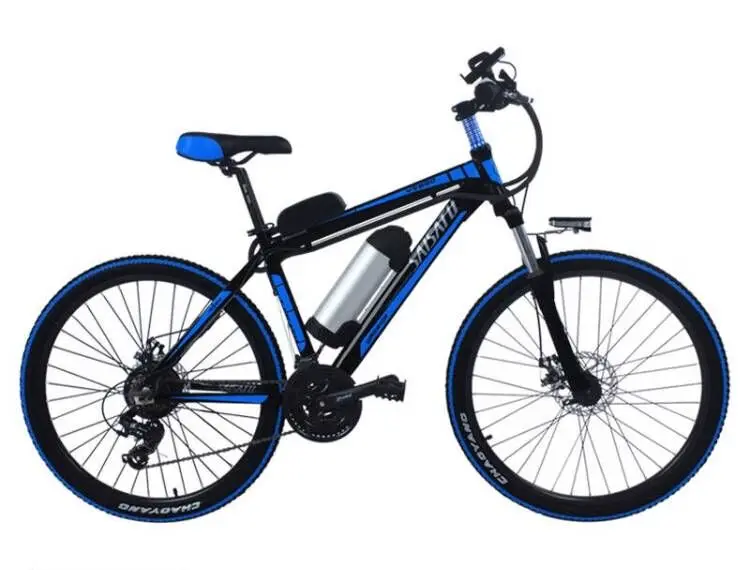

| Applications | Widely applied in Electric Bicycle, Electric vehicle, Electric Tricycle, Electric scooter, Electric golf trolley, Electric car, Electric wheelchairs,two wheel vehicles and etc. |

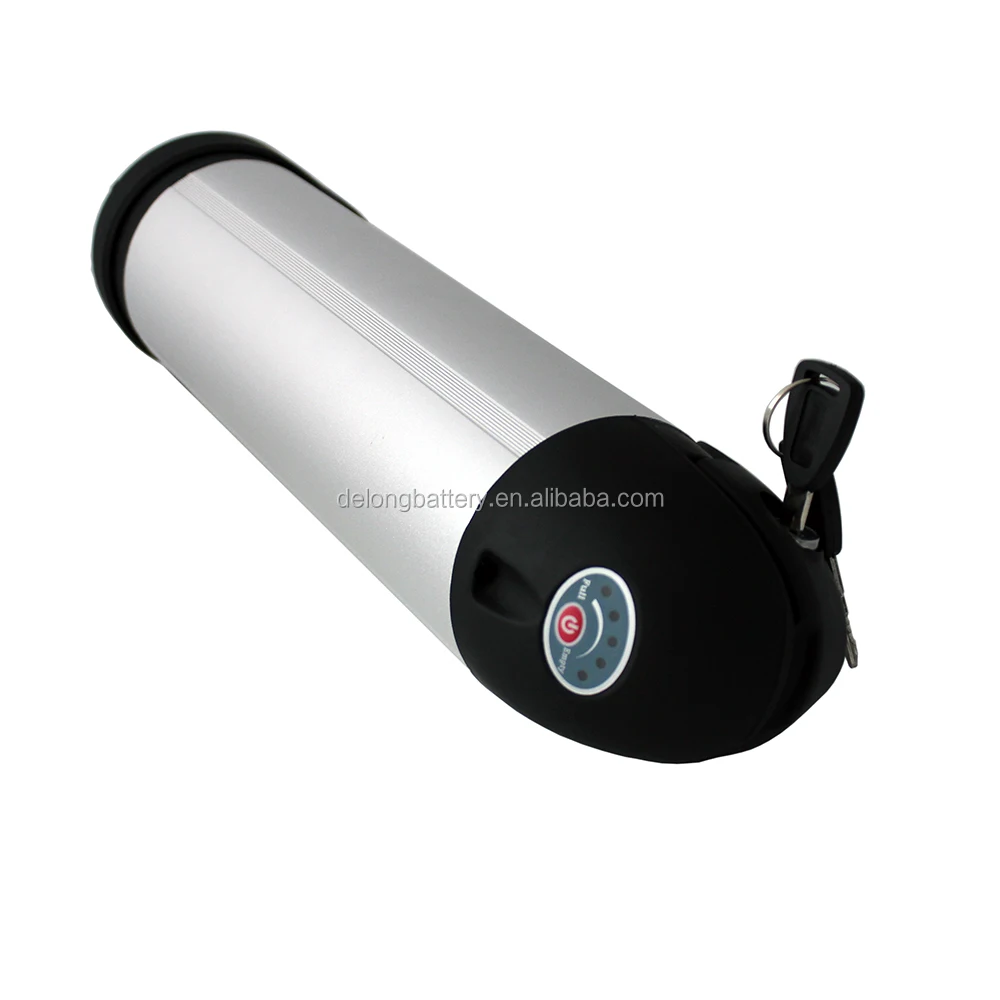

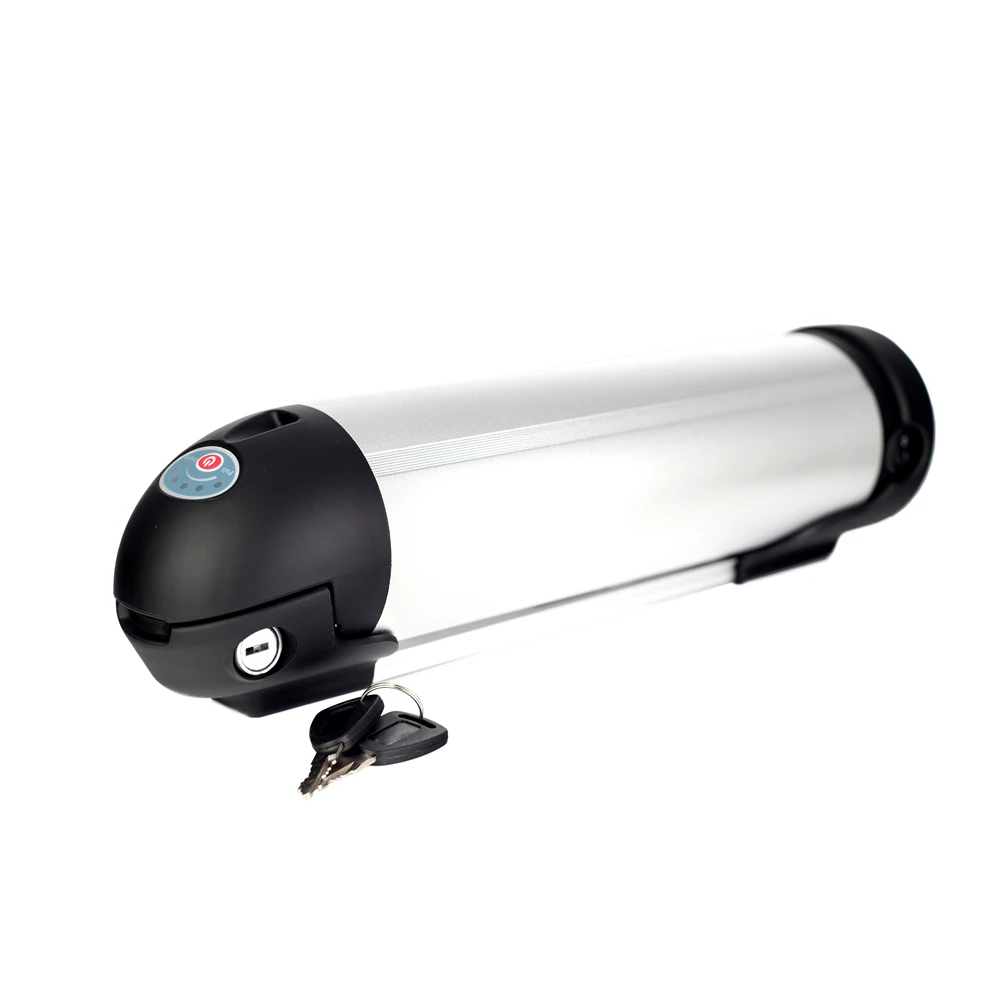

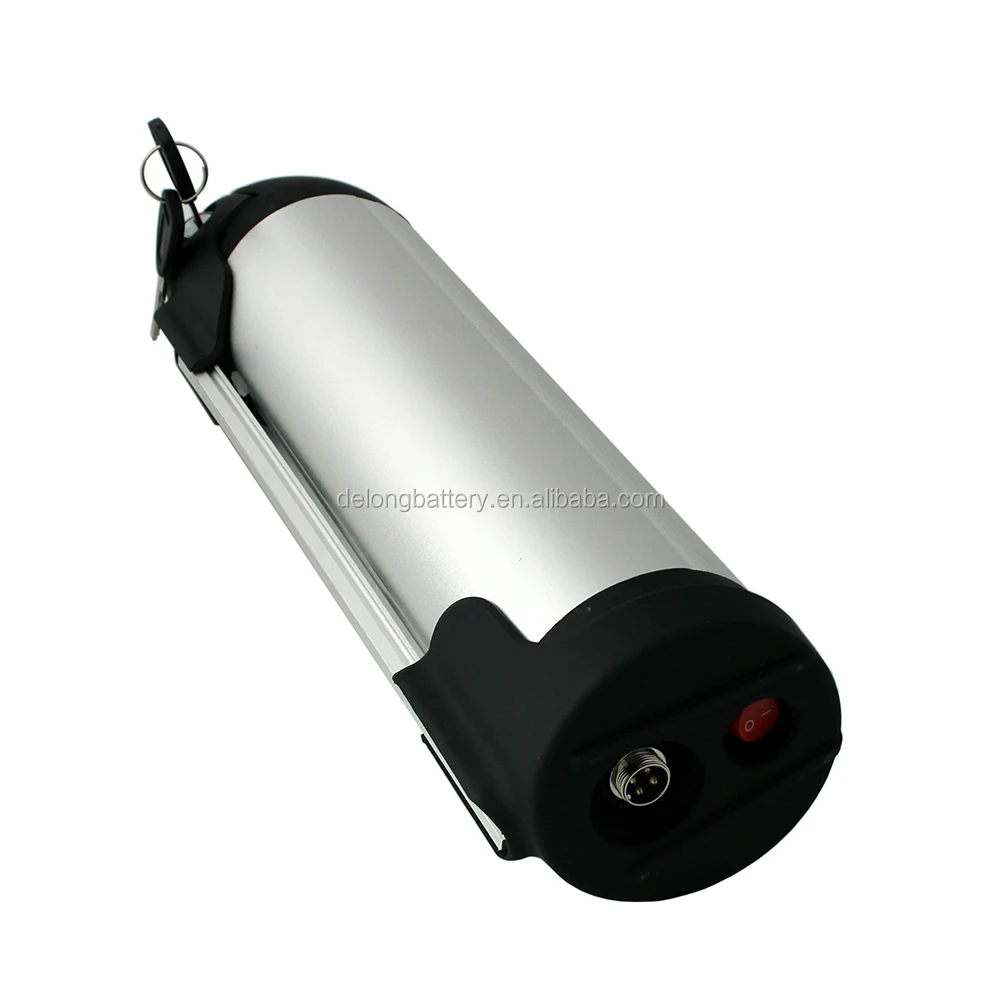

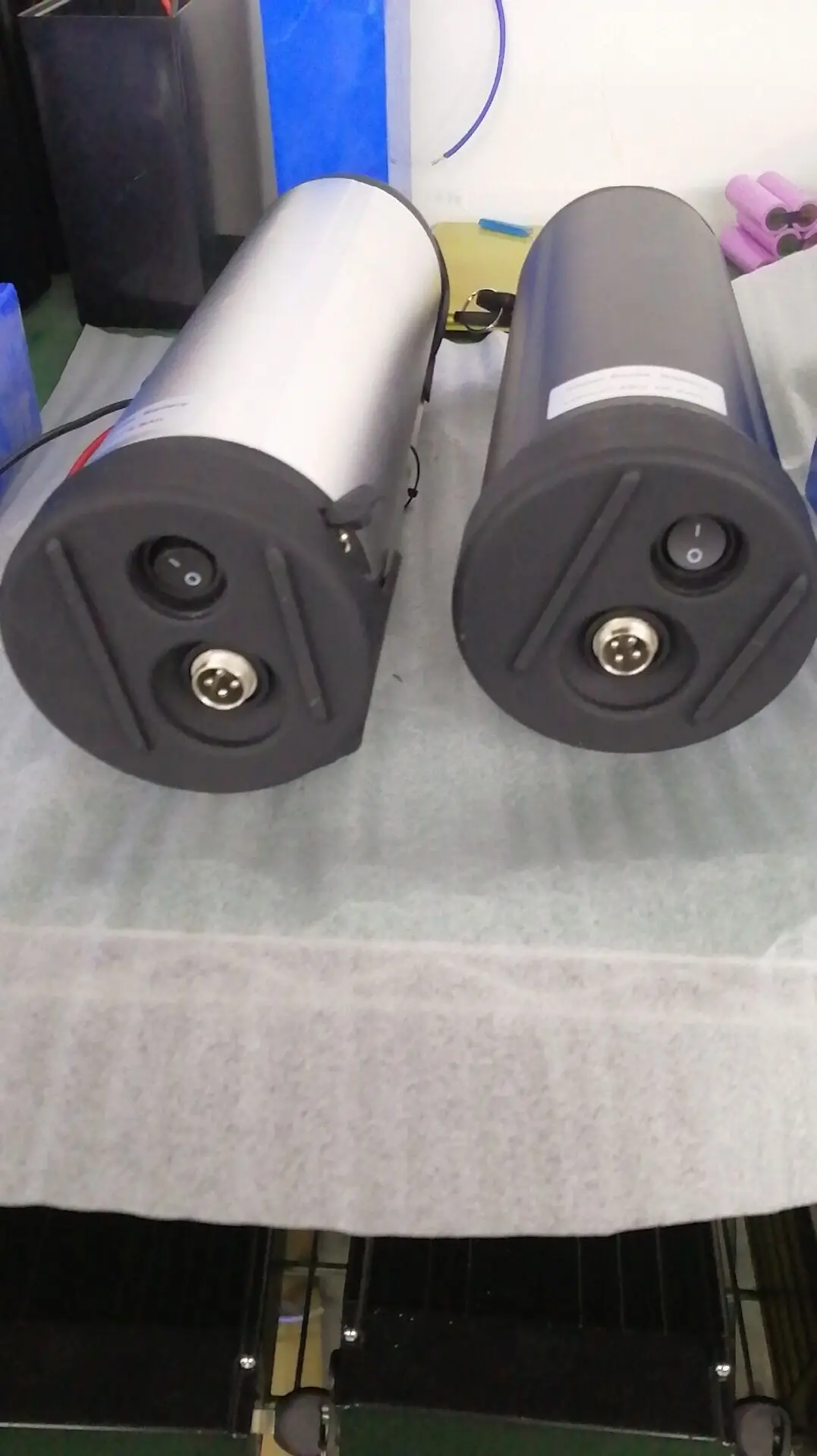

Product Views Photoes:
48v 36v 10ah water bottle electric bicycle battery

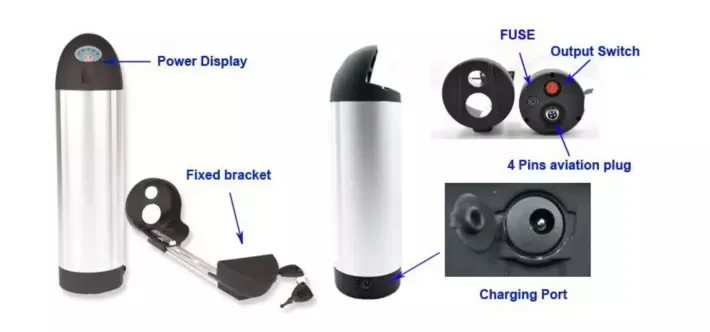

Features:
1. Lotus input port design

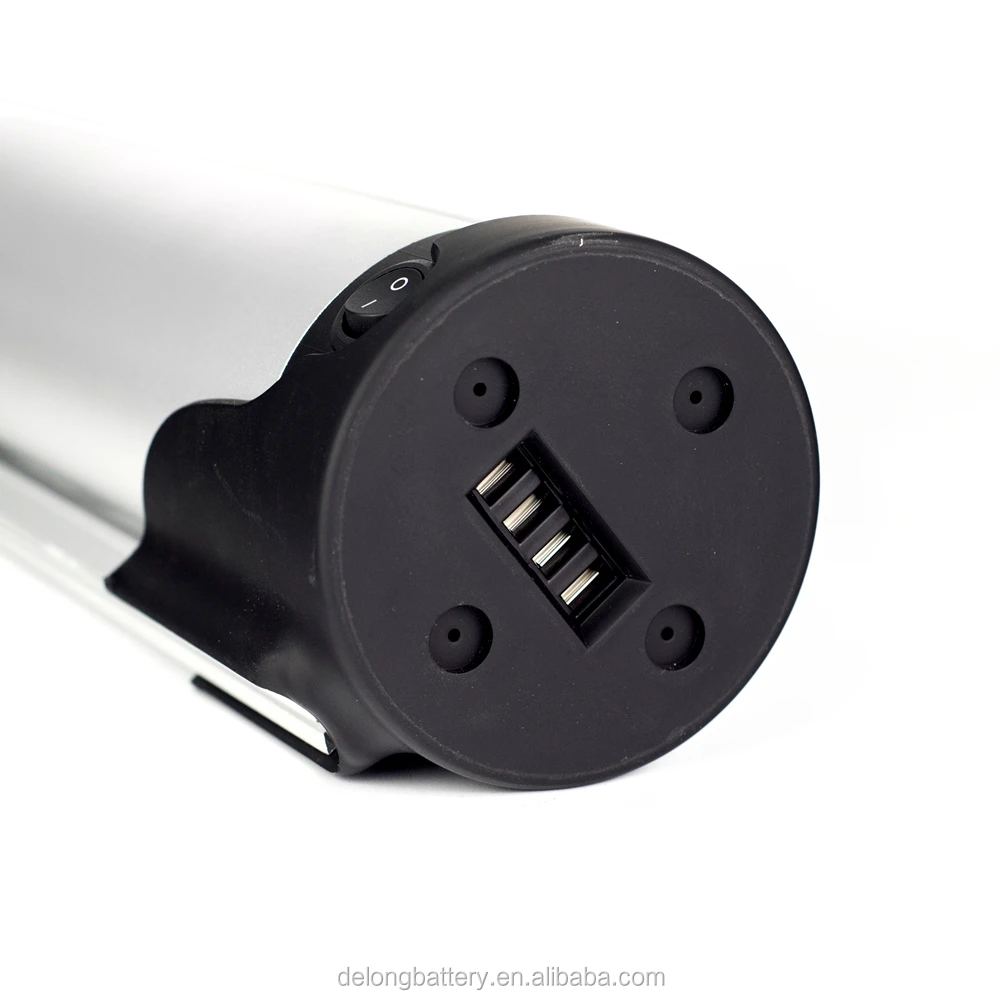

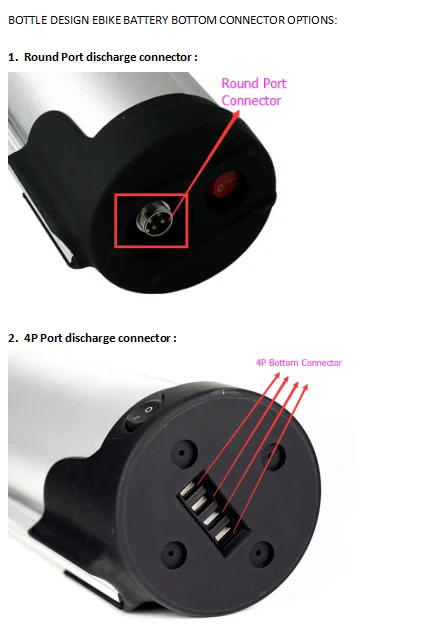

2. Bottom 4P discharging port : Round discharging port or 4P discharging port options
3. Iron guid rail line

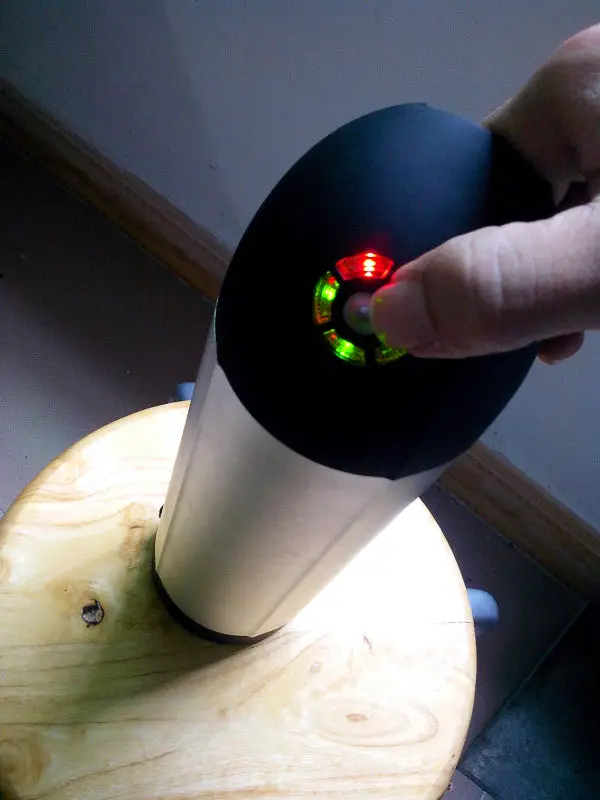

4. BMS power management 4 Led indicators
Poduct feature and characteristics of our 48v 36v 10ah water bottle electric bicycle battery
1)) Power energy :as the high voltage and light weight ,Motors acceleration speed performance are very good
2)) Energy density per volume are higher : it can reach 227wh/L
3) Energy density per weight :80wh/Kg
4) Stable BMS system with short-circuit protection ,over-charge protection ,over-discharge protection and over-current protection fuctions .
10 ) With at least More than 1000times cycle life
11) It can run well under different temperature environment condition
12) No memory effects.
13) Light weight
14) Can be discharged at big current
Customers' Feedbacks
Certifications

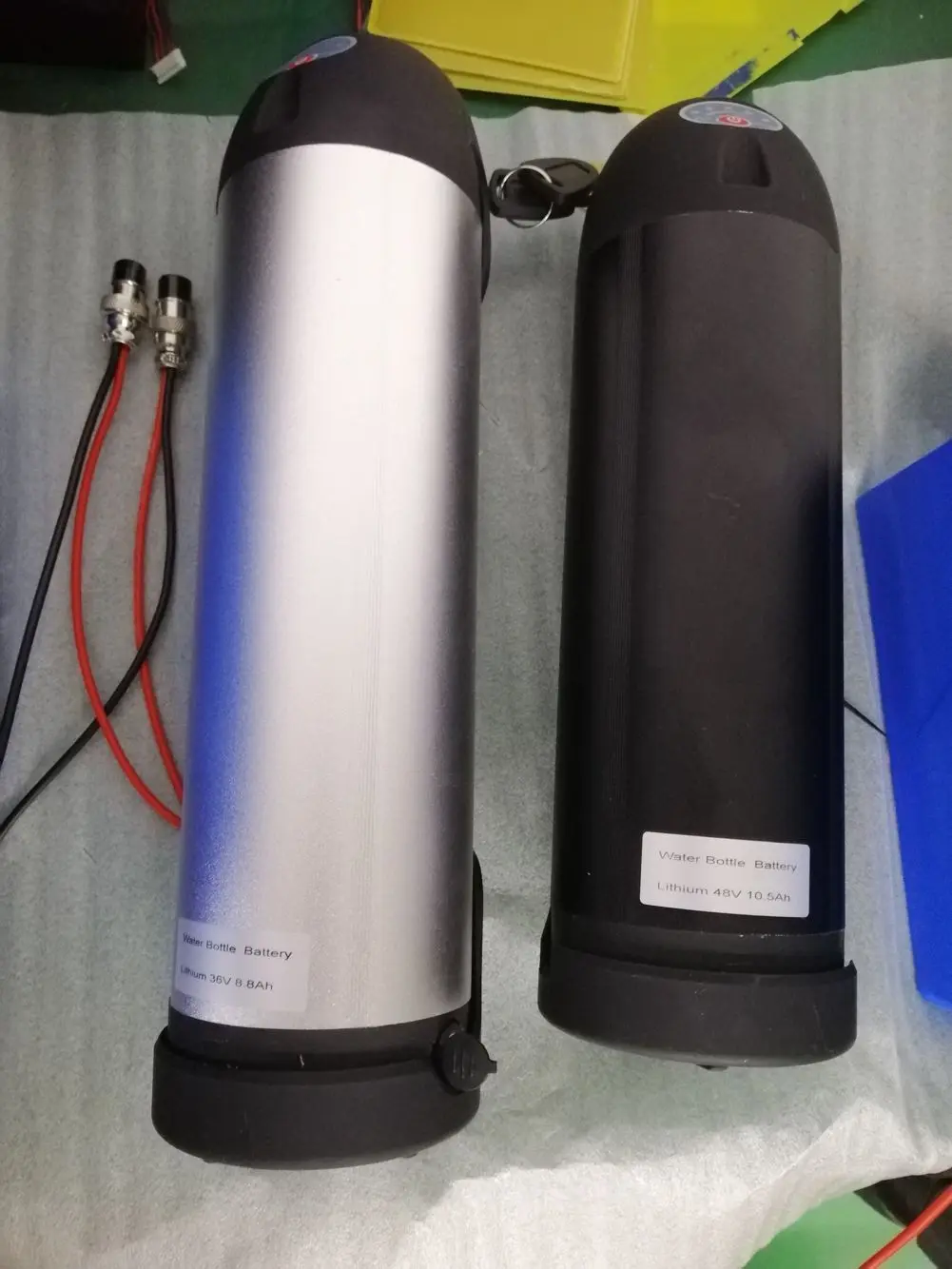

Other ebike bicycle /electric bike battery designs we produce :
Our battery features
1, High energy density
2, High working voltage for single battery cells
3, Pollution-free
4, Long cycle life
5, No memory effect
6, Capacity, resistance, Voltage, platform time consistency is good
7, With short-circuit production function, safe and reliable
8, Factory price & High quality
9, Good consistency, low self discharge
10, Light weight, small size
FAQ
Q: What are there included for a battery or pack , may i buy charger from you?
A: Battery case, BMS, battery pack, can buy customzied connector, charger
Q: How long frequency does recharge the battery?
A: usually per 2 months to recharge the battery pack , to charge the battery depends on the charger current you use. 2A charger can charge full for 10Ah battery in 5+ hours, fast charger 5Ah in 2 hours.
Q: What's the sample lead time, and bulk order delivery,How long I can get it?
A: Fast delivery : If small quantity, can be finished in 10-15 days days after payement, bulk in 15-25 days depends on the quantity AND Specification details required and shipping delivery depends on the agents flights schedules.
Q:What's the warranty?
A: warranty from the delivery date 12 months. Man-made problems not in warranty.
Q: Can i customize the size of battery?
A: Of course yes if yourquantity MOQ workable.
