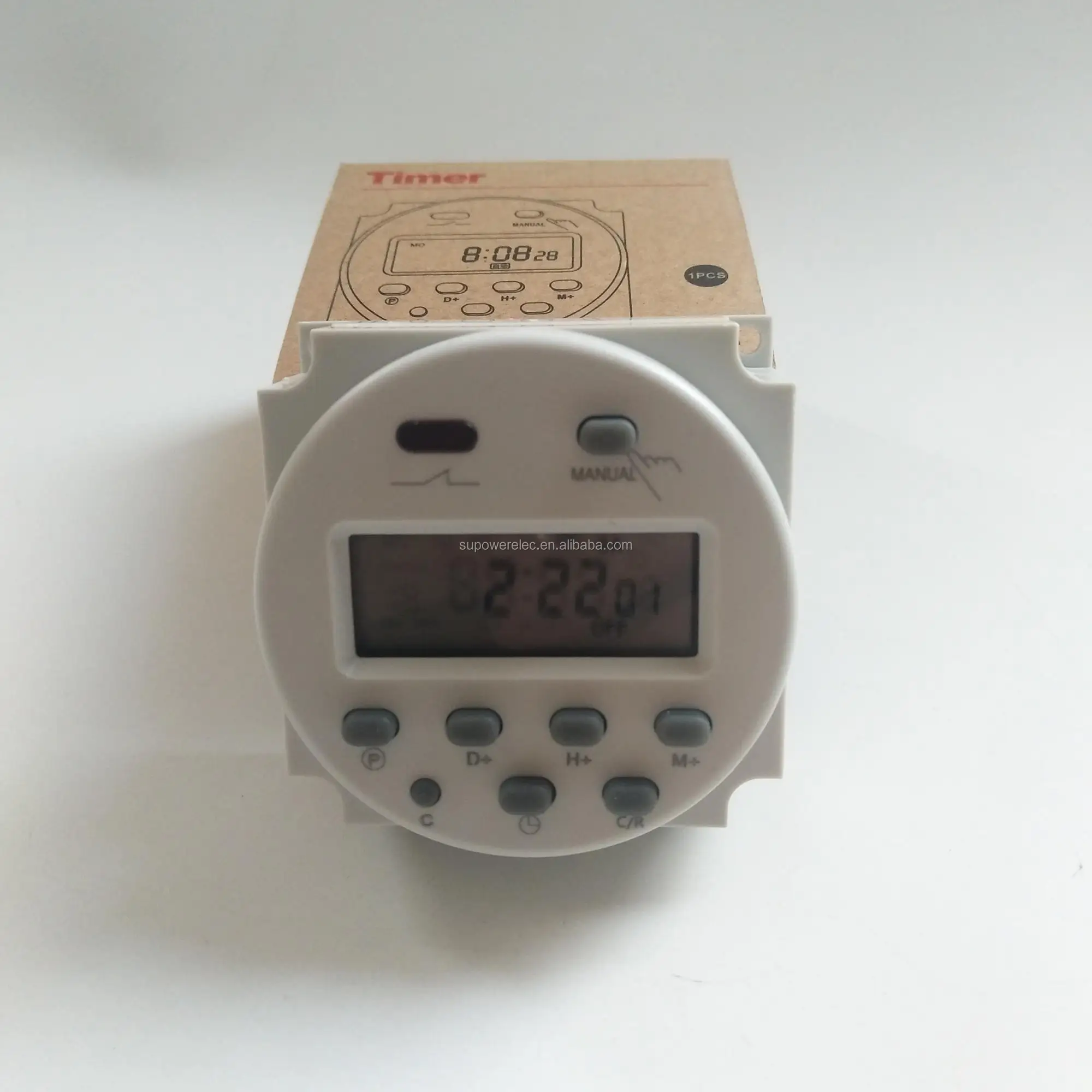

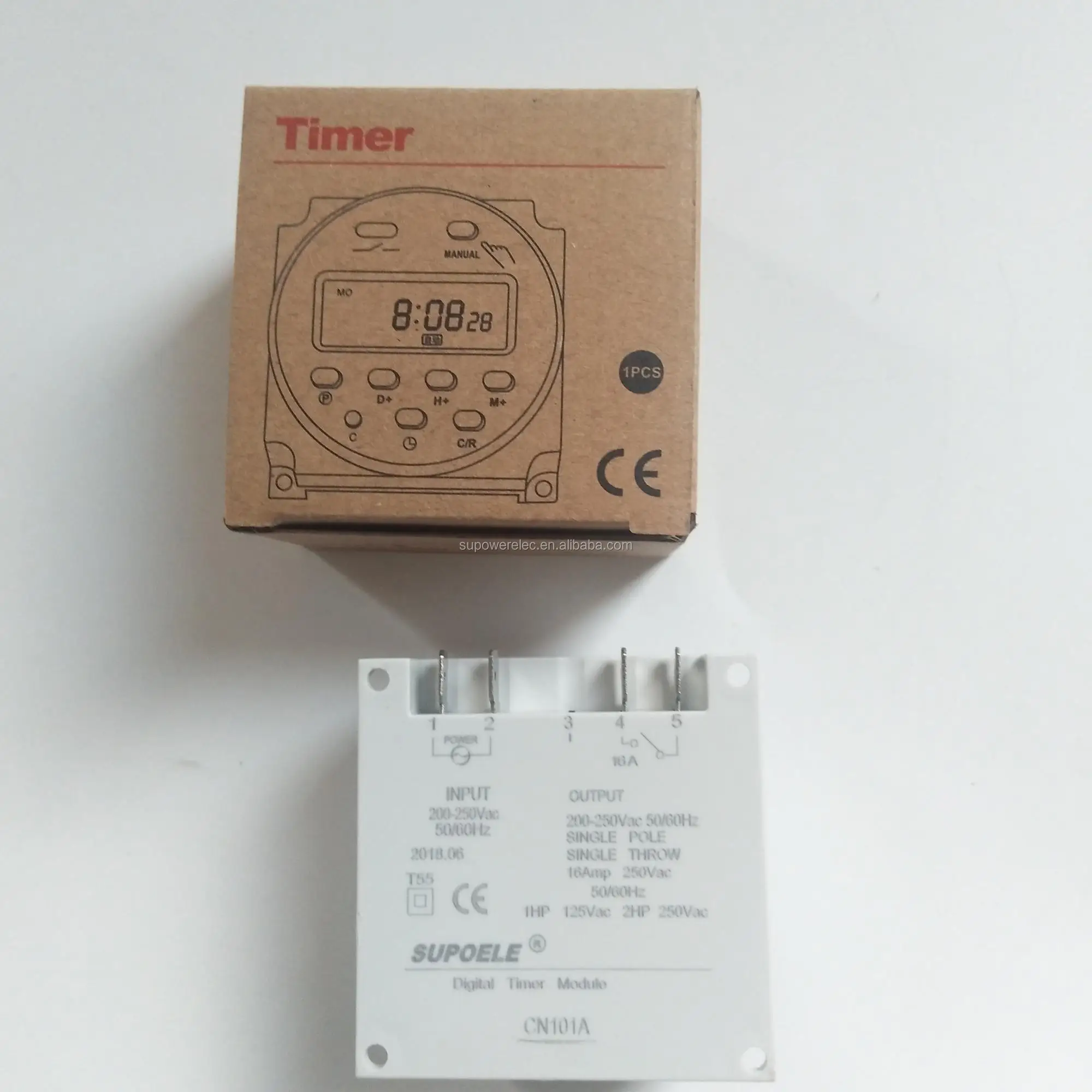

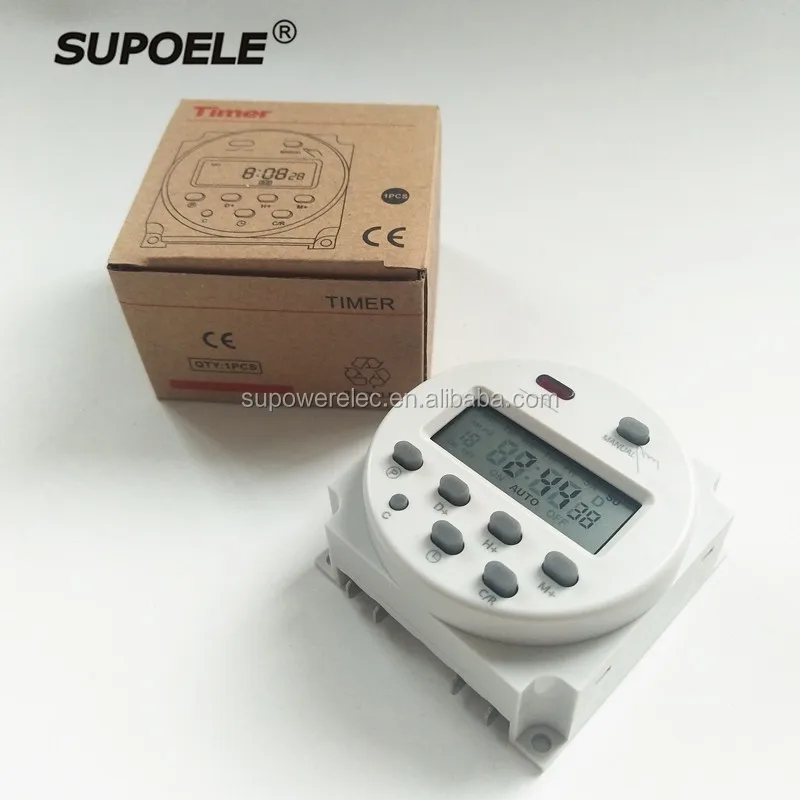

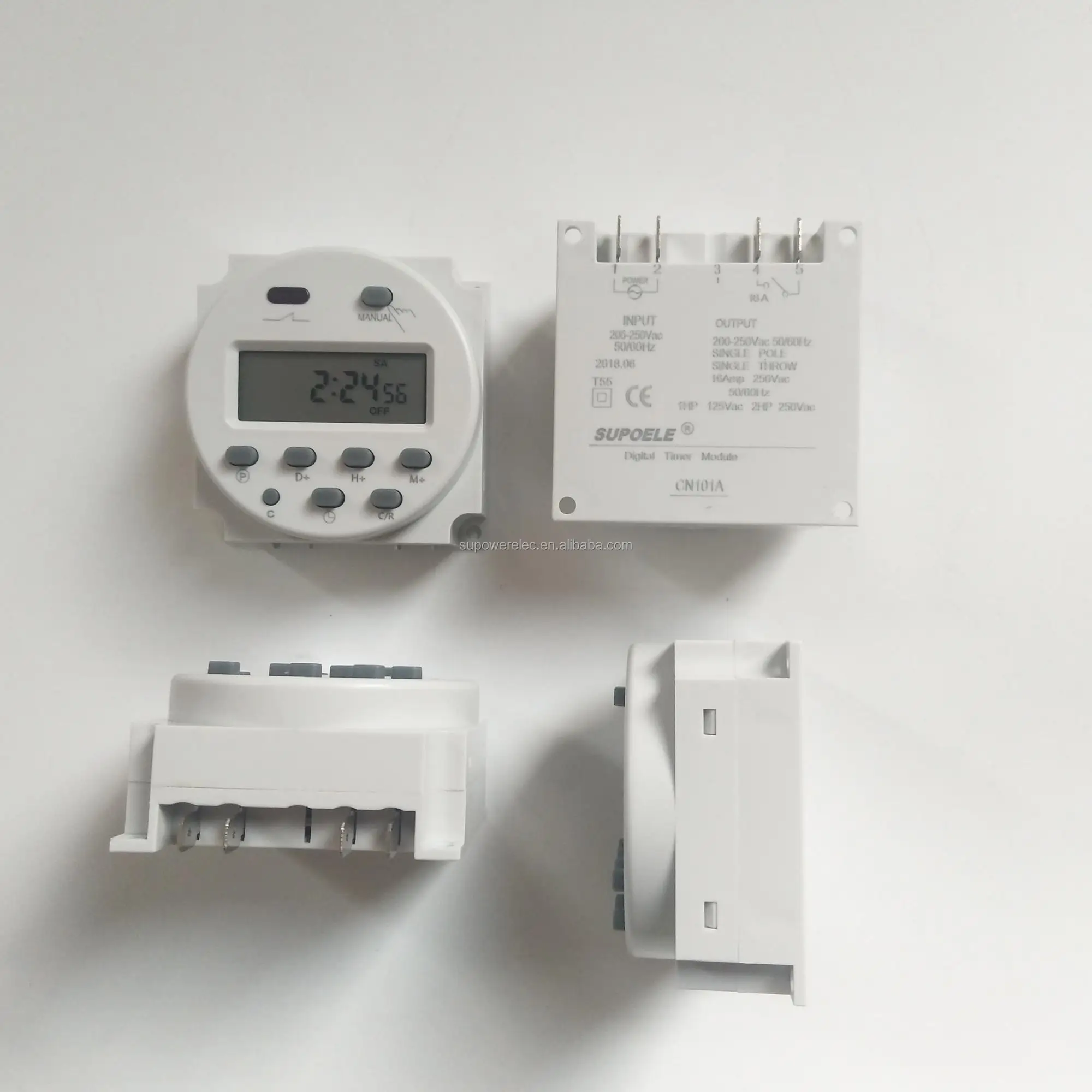

SUPOELE CN101A 220V 120V 24V 12V Daily Weekly Programmable Digital Timer Time Relay Switch

Latest technology COMS quartz Mico-controller

Digital electronics general purpose time switch with daily and weekly programs

Repeat programs with 17ON/ OFF setting and manual over-ride

Lithium battery power reserve when electric supply cut off

Technical Data

Voltage limit: AC180V~250V(50/60Hz)

Hysteresis: ≤1s/d(at 25°c)

On/off operation: 17ON/OFF

Minimum interval: 1 minute

Weight: Approx 66g

Display: LCD

Battery backup: 150h

Number of circuits: 1c

Load capacity: 16A 250VAC(ohmic load cosΦ=1)

Service life:      Mechanically:10⁷

                        Electrically:10⁵

Ambient temperature:-10~55°c

Storage temperature:-20~70°c

Power consumption:  7.5VA (Max.)

OPERATING INSTRUCTION:

1.First time use this timer switch,please input AC and let battery recharge,after then press reset key.

2.At first time,the timer switch is in 24h mode.If you want change to 12 mode please press on "©"

key 5s,and LCD will display AM.If you want re-change to 24h mode,and press on "©" key 5s to return.

3.Programming:

Step	Key	Programming
1	Press P	Setting 1 ON time(display 1 ON)
2	Press D+	Select days of week(If you want same set in every day,you need not press this key
3	Press H+/M+	Set hours and minutes
4	Press P	Setting 1 OFF time(display 1 OFF)
5	Press D+	Select days of week(If you want same set in every day,you need not press this key)
6	Press H+/M+	Set hours and minutes turn off time
7	Repeat step 2-6	Set 2-17 on/off time
8	Press ©	End

For cancel engagements,press"MANUAL" then "--:--" is displayed on LCD to confirm cancel.May press "MANUAL" again to resume initial setting.

*10 deferent mode:(1.MO 2.TU 3.WE 4.TH 5.FR 6.SA 7.SU 8.MO TU WE TH FR 9.SA SU 10.MO TU WE TH FR SA SU)

**If you need not 8 time setting press " © "key to the end

4. CLOCK SETTING

(1) Press " © " and " D+ " together till correct date is shown.

(2) Press " © " and " H+ " together till correct hour is shown.

(3) Press " © " and " M+ " together till correct min is shown.

(4) Press " MANUAL " key to display ON AUTO or AUTO OFF.(If this clock in your program is ON selects ON AUTO,and this clock in your program is OFF selects AUTO OFF)

5.If you alway want to use time switch ON or OFF,Please Press "MANUAL" key to display " ON " or " OFF "
