Export the golden cup sea lion 4x2 medical Ambulance
[Main technical parameters] | |
Total mass (kg) | 2800 |
Rated mass (kg) | / |
Cube weight (kg) | 1720 |
Tank volume (m3) | / |
Overall size (mm) | 5070,5020x1690x2115,2405 |
Passengers(person) | 2,3 |
Approach/Departure angle (°) | 14/12 |
Front/rear suspension (mm) | 1320/1160,1320/1110 |
Maximum speed (km/h) | 130 |
Number of axles | 2 |
Wheelbase (mm) | 2590 |
Axles load(Kg) | 1280/1520 |
Comments | Top selection (with photo); Select and install front lamp, front fog lamp, front radiator grille, rear lamp, rear bumper, rear ground mirror, high position brake lamp, left pull door (with photo); Select the front radiator grille (with photo). In VIN, LSY8CABA is an optional single air bag; in VIN, LSY8FAAA is an optional air bag and left pull door; in VIN, LSY8FABA is an optional single air bag and left pull door. OBD. |
[Chassis technical parameters] | |
Number of tires | 4 |
Tire specifications | 195/70R15,185R14,195/70R15C,185R14C |
Front track (mm) | / |
Rear track (mm) | / |
Fuel type | gasoline |
Emission Standards | EURO V |
[Engine parameters] | |
Engine model | 4G20C |
Engine manufacturer | Shenyang xinguang brilliance automotive engine co. LTD |
Displacement (ml) | 1998 |
Power (kw) | 75 |
Vehicle standard configuration
1.ABS: integrated medical cabin equipment
2.Seamless integration of whole vehicle body, car body for durability: bridge and medical tank wall separating installation, before and after the separate compartment, use of polymer materials, separating the wall there is a sliding window, the window is transparent, convenient for observation before and after.
3.Electric window and central door lock: the floor in the car adopts the floor that can be washed, but acid and alkali, fireproofing, anti-skid, anti-static electricity entrance floor

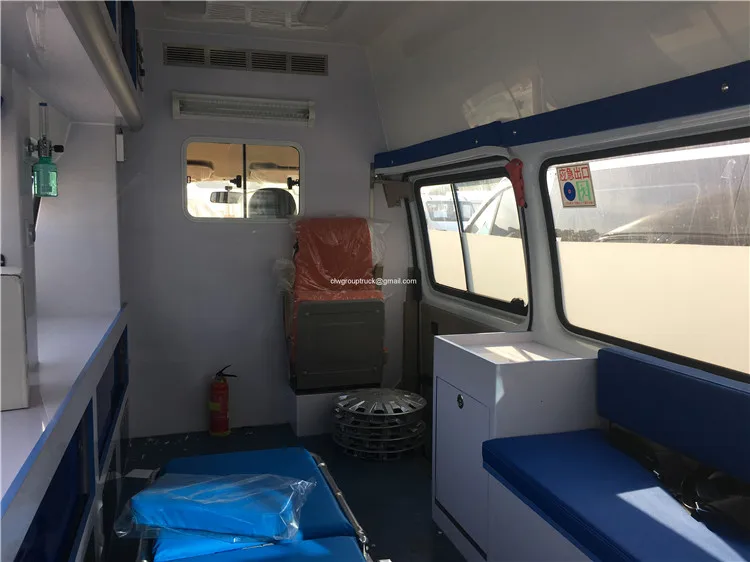

4.Power steering: a set of equipment cabinets is installed in the front of the medical cabin, including an equipment cabinet, a cabinet for first aid kit, and a set of doctor seats

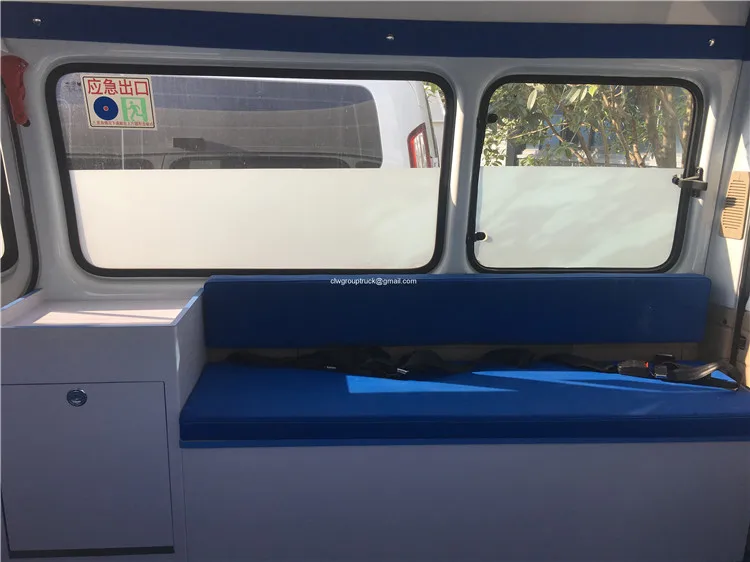

5.The left side of the medical cabin is a blind window: there is a row of seats with safety belts on the right side of the medical cabin
6.Air conditioning and lighting system: control switch is installed in medical cabin
7.Original air conditioning: the oxygen cabinet (including 2 10L oxygen bottles and decompression devices) is placed on the left side of the medical cabin.
8.Ventilation system is installed in the medical cabin: infusion hanger is installed on the top of the medical cabin
9.Lighting system :2KG fire extinguisher and supporting frame
10.Warm air position: pick up the stretcher automatically
11.Uv disinfection lamp system: the stair stretcher is placed between the oxygen bottle cabinet and the back door for easy access
12.Alarm system: red/blue reflector and Red Cross at the waist
13.The cab is equipped with alarm and alarm light controller: dirt bucket
14.Long row of blue LED lights are installed in the front of the roof, and 100W built-in speakers: blue cylinder flash lights are installed in the rear of the roof
WuhanCLW GROUP TRUCK CO., Ltd. is an important part of hubei chengli group, is also supporting group hubei automobile plate mainstay enterprise, registered trademarks CLW brand.Is the government designated procurement enterprise, is also the only won the \\"China well-known trademark\\" special purpose vehicle manufacturing enterprises, the main products are water sprayer, oil tanker, garbage truck, suck fecal pollution cars, road sweeping vehicles, repair car, the work high above the cars, fire engines, refrigerator cars etc. More than 100 varieties.
Waxed before shipping , shipped by RORO or bulk ship.
Q:How about the warranty?
A:One year
Q:Do you have ISO certificate ?
A:Yes , we have,pls contact us to get our certifications.
Q:How about the delivery time?
A: Most of our trucks are all have in stock ,We can delivery to you within 7 days, if specially ordered , we always need around 30 days for production.
Q:How about shipping ?
A:Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container , small type can shipping by container ,Pls contact us to get a shipping quotation .
Q: How many trucks does your factory produce per years?
A:Almost 3500 units
Q: How do you control the quality of product?
A:Our Factory is standard production workship,got ISO CCC BV Certification,our workers are well trained. Our very product under goes a scrutinizing inspection process.
Q: How about your product After-sales service system?
A:Our main export country have accepted after-sales service,some of country used the third department service.
Q: Do you accept Custom orders? What’s is your MOQ order?
A:Yes, we do, our MOQ is 1 set.
Q: What’s the payment terms?
A:By T/T or L/C at sight.
Q: How about your shipment?
A:Small one put into container,bigger one By Ro-Ro ship, Bulk ship,or 40FR.
