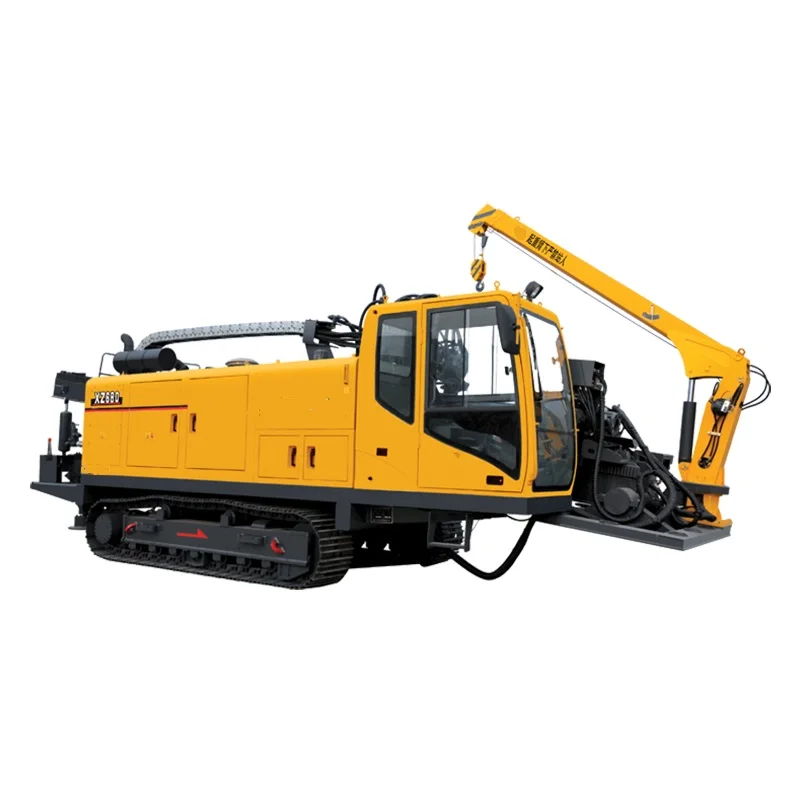

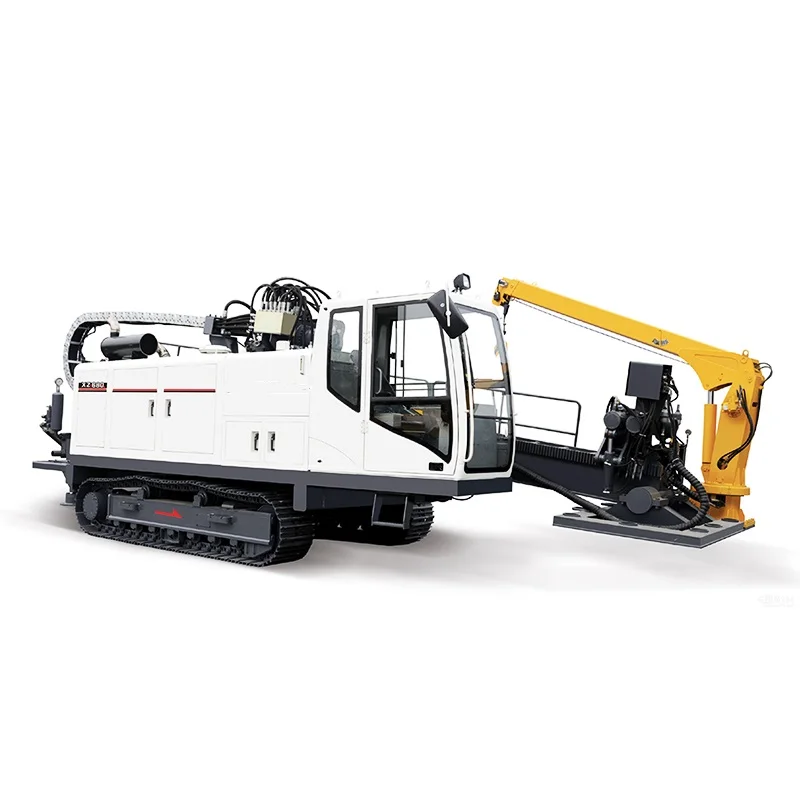

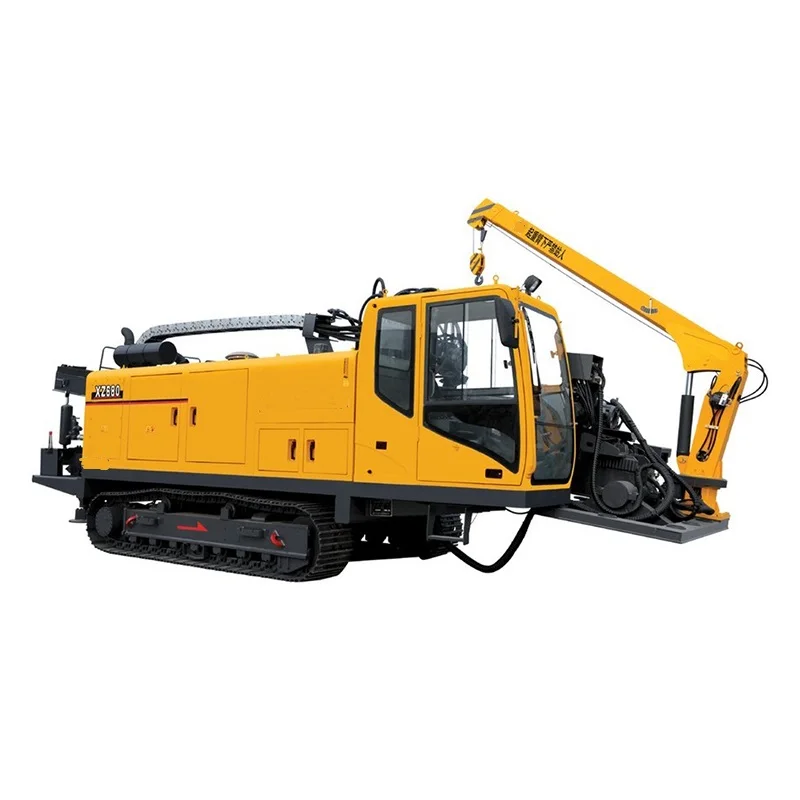

Chinese hot brand horizontal directional drill machine XZ320
These kind of horizontal directional drill mainly used under the condition of non-excavating ground surface, laying and replacing various kinds of underground pipes and lines.
The machine features advanced performance, high efficiency, and comfortable operation, and the key parts
all matches international standards. It is the optimal equipment for the construction in the fields of water
supply, gas supply, as well as electricity, telecommunication, heating, and petroleum supply.
Model | XZ280 | XZ320 | |||
Engine Model | Shangchai D6114ZG | Shangchai D6114ZG | |||
Rated engine power(KW/r/min) | 140/2300 | 140/2300 | |||
Max. pullback/thrusting(kN) | 280/280 | 320/200 | |||
Max torque of driving head(N.m) | 10000 | 12000 | |||
Driving head speed(r/min) | 0-120 | 0-140 | |||
Bore diameter(m) | 400 |
| |||
Max backreaming diameter(mm) | Ø750 | Ø800 | |||
Drill pipe length(single)(m) | 3 | 3m | |||
Drill pipe diameter (mm) | Ø73 | Ø73 | |||
Drilling angle(·) | 10-23 | 10-20 | |||
Max flow rate of mud(L/min) | 250 | 320 | |||
Max mud pressure(bar) | 80 | 80 | |||
Overall weight(kg) | 12500 | 10500 | |||
Dimension (mm) | Length | 7100 | 7100 | ||
Width | 2260 | 2300 | |||
Height | 2450 | 2500 |
1.Offer you the high quality products with a low price, quick delivery,and professional after-sale service.
2.A twelve-month-period or 2000-hours warranty for any machine exported from us.
3.Spare parts are available to be supply at any time.
As excavator,truck crane,bulldozer,wheel loader,motor grader,drilling rig,dump truck,road roller,forklift,reach stacker,and also including the spare parts......Any machine that you want to get more detailed information., let me know. Sincerely hope we have chance to cooperate with you.
Kindly contact me if any questions. Look forward to hearing from you.
