MKS1620 CNC Cylindrical Grinding Machine Price
Features of the machine tool performance and structure |
1.With structural layout of mechatronics and integral protective cover, the machine tool is convenient for maintenance and in conformity with human engineering requirements. 2.With a sleeve type hydrostatic/ hydrodynamic mainshafting adopted for the grinding wheel spindle, the machine tool features on the high rotary precision and good rigidity. The linear speed of the grinding wheel can reach 60m/s (for specially ordered) and that of CBN grinding wheel is 80m/s (for specially ordered). 3.With two-axis linkage feeding, the machine tool is equipped with worktable (Z axis) and a wheel head (X axis) driven by AC servomotor and ball screws, the maximum feed speed of 10m/min; the feed of the wheel head is equipped with special vibration absorbing measures. 4.The machine tool can be provided with various types of diamond dressers (installed on the rear side of the work head) according to the needs of customers, thus realizing precise CNC dressing, adapting to grinding of external cylindrical surfaces, taper surfaces, end faces, shaped cylindrical surfaces, arc surfaces and grooves, ensuring the stability of the fitted precision not less than 80% in case of grinding batches of tapered surfaces and achieving automatic compensation. 5.The machine tool is provided with an imported or a domestic active measuring device, thus realizing the closed-loop control of grinding process. 6.The machine tool adopts an imported advanced CNC system and is provided with all-around controlling functions including grinding program changes, work-piece quality control, machine condition monitoring, fault self-diagnostics, abnormal alarm, and convenient menu type interface input. |

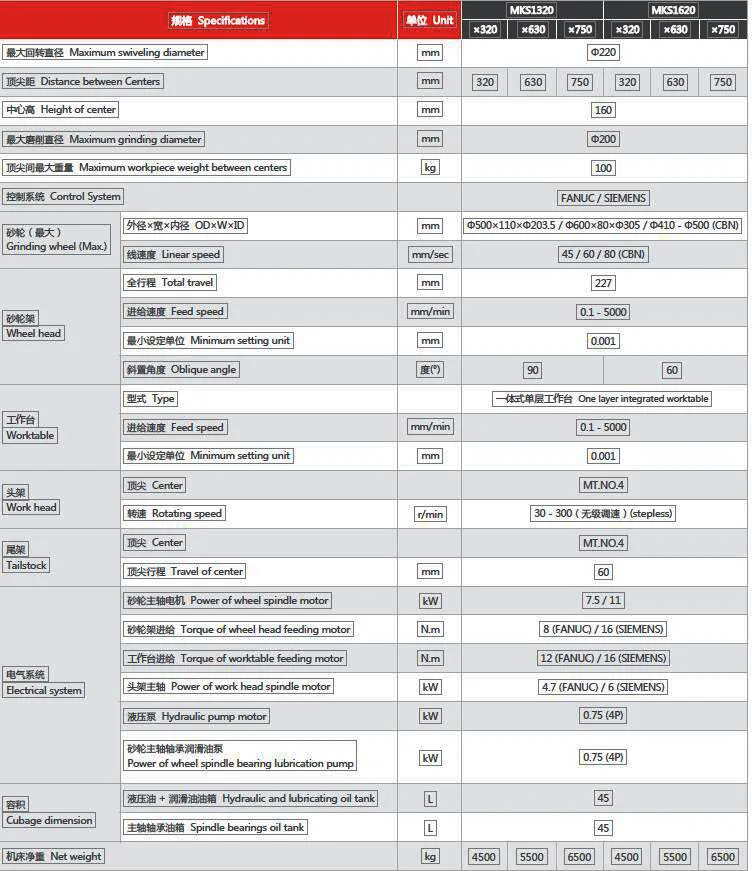

Specifications of MKS1620 CNC END FACE Cylindrical Grinding MACHINE |
|

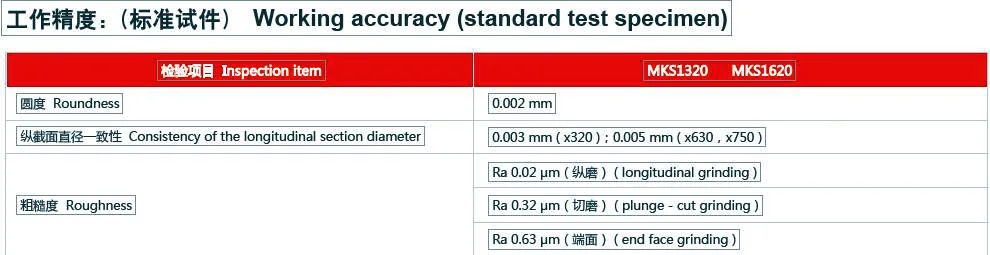

Working accuracy (standard test specimen) |
 |

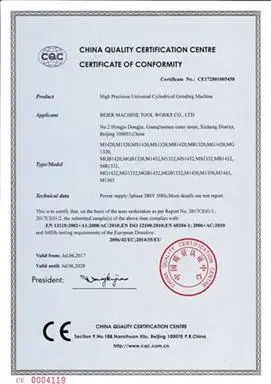

Certificate |
|
Guarantee & After-selling Service |
We will supply enough spare parts and accessories with our machine when shipment. Within one year after receiving our machine, If there are any damaged parts or accessoreis, We will supply them to you by air-mail free of charge.
|
About Our Company |
We are specialized manufacturer of producing MKS1620 Cylindrical GrindING Machine in China. Our machines are sold to Aisa, European, American, African countries. Our machines are very popular with its high quality and competitive prices.
|
Why choose our machine? |
1) High quality with competitive price
|
