Original Meanwell ELG-75-12B IP67 Waterproof 0-10V Dimmable 230V to 12V DC 5A 60W LED Driver

Original Meanwell ELG-75-12B IP67 Waterproof 0-10V Dimmable 230V to 12V DC 5A 60W LED Driver

Product Description

Features:

  • Meanwell 230V 12V DC LED Driver
  • Constant Voltage + Constant Current mode output
  • Metal housing design with functional Ground
  • Built-in active PFC function
  • Class 2 power unit
  • No load  / Standby power consumption <0.5W
  • IP67 / IP65 design for indoor or outdoor installations
  • Function options: output adjustable via potentiometer; 3 in 1 dimming(dim-to-off); Smart timer dimming, DALI; Auxiliary DC output
  • Typical lifetime> 50000 hours
  • 5 years warranty
Application:
  • LED Street Lighting
  • LED architectural Lighting
  • LED bay Lighting
  • LED floodlightng
  • Type "HL" for use in ClassⅠ, Division 2 hazardous (Classified) location.
  • Comply with class Ⅱ application
Model Series:

ELG-75-12B / ELG-75-24B / ELG-75-36B / ELG-75-42B / ELG-75-48B

Similar Models: HL-80H-12B / More

Details:

MODEL ELG-75-12 ELG-75-24 ELG-75-36 ELG-75-42 ELG-75-48
OUTPUT DC VOLTAGE 12V 24V 36V 42V 48V
CONSTANT CURRENT REGION 6 ~ 12V 12 ~ 24V 18 ~ 36V 21 ~ 42V 24 ~ 48V
RATED CURRENT 5A 3.15A 2.1A 1.8A 1.6A
RATED POWER 200VAC ~ 305VAC
60W 75.6W 75.6W 75.6W 76.8W
100VAC ~ 180VAC
48W 60W 60W 60W 60W
RIPPLE & NOISE 150mVp-p 200mVp-p 250mVp-p 250mVp-p 250mVp-p
VOLTAGE ADJ. RANGE Adjustable for A-Type only (via built-in potentiometer)
10.8 ~ 13.2V 21.6 ~ 26.4V 32.4 ~ 39.6V 37.8 ~ 46.2V 43.2 ~ 52.8V
CURRENT ADJ. RANGE Adjustable for A-Type only (via built-in potentiometer)
2.5 ~ 5A 1.57 ~ 3.15A 1.05 ~ 2.1A 0.9 ~ 1.8A 0.8 ~ 1.6A
VOLTAGE TOLERANCE ±3.0% ±3.0% ±2.5% ±2.5% ±2.0%
LINE REGULATION ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
LOAD REGULATION ±2.0% ±1.0% ±1.0% ±0.5% ±0.5%
SETUP, RISE TIME              500ms, 100ms/115VAC, 230VAC
HOLD UP TIME 10ms/ 230VAC 10ms/ 115VAC(at full load)
INPUT VOLTAGE RANGE         100 ~ 305VAC 142 ~ 431VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF≥0.97/115VAC, PF≥0.95/230VAC, PF≥0.92/277VAC@full load
TOTAL HARMONIC DISTORTION THD< 20%(@load≥50%/115VC,230VAC; @load≥75%/277VAC)
EFFICIENCY 85% 88% 89% 90% 90%
AC CURRENT 0.7A / 115VAC 0.45A / 230VAC 0.38A/277VAC
INRUSH CURRENT COLD START 50A(twidth=350μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
Max. No. of PSUs on 16A CIRCUIT BREAKER 5 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION No load power consumption <0.5W for Blank / A / Dx / D2-Type                                  Standby power consumption <0.5W for B / DA-Type
PROTECTION OVER CURRENT 95 ~ 108%
Protection type : Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 14 ~ 18V 28 ~ 34V 41 ~ 48V 47 ~ 54V 54 ~ 62V
Protection type : Shut down o/p voltage, re-power on to recovery
OVER TEMPERATURE Shut down o/p voltage, re-power on to recovery
ENVIRONMENT WORKING TEMP. Tcase= -40 ~ +85°C (Refer to "Derating Curve")
MAX. CASE TEMP. Tcase= +85°C
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80°C , 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/°C (0~50°C)
VIBRATION 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS U8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC EN61347-1, EN61347-2-13 independent, EN62384; IP65 or IP67; GB19510.1, GB19510.14 approved
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH
EMC EMISSION Compliance to EN55015, EN61000-3-2 Class C (≥50% loading) ; EN61000-3-3, GB17743, GB17625.1
EMC IMMUNITY Compliance to EN61000-4-2,3,4,5,6,8,11; EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV)
OTHERS MTBF 331K hrs min.  MIL-HDBK-217F (25°C )
DIMENSION 180*63*35.5 mm (L*W*H)
PACKING 0.7Kg; 16pcs / 12.2kg / 0.67CUFT

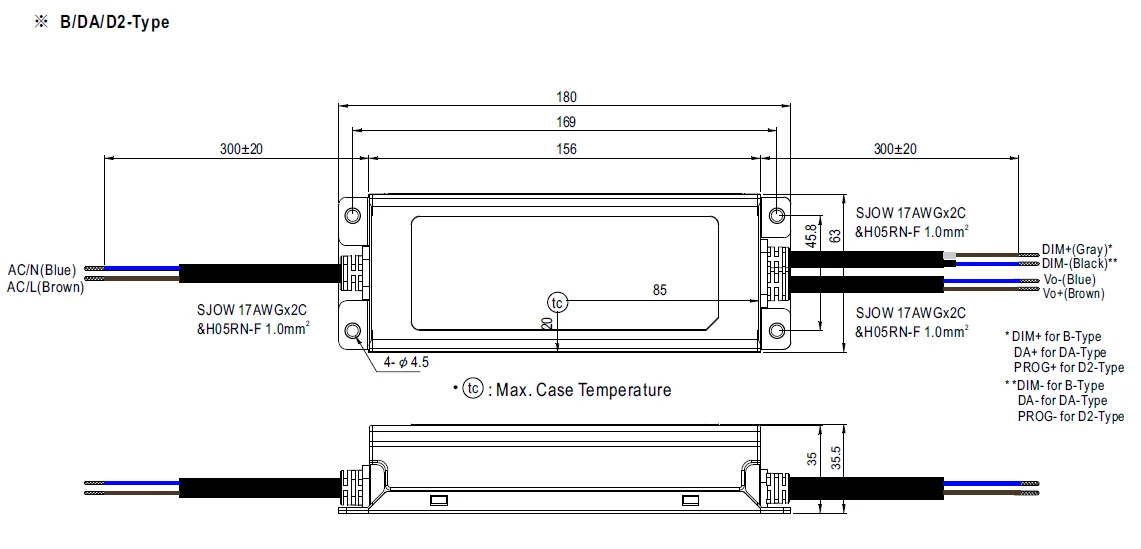

Mechanical Specification:

Original Meanwell ELG-75-12B IP67 Waterproof 0-10V Dimmable 230V to 12V DC 5A 60W LED Driver

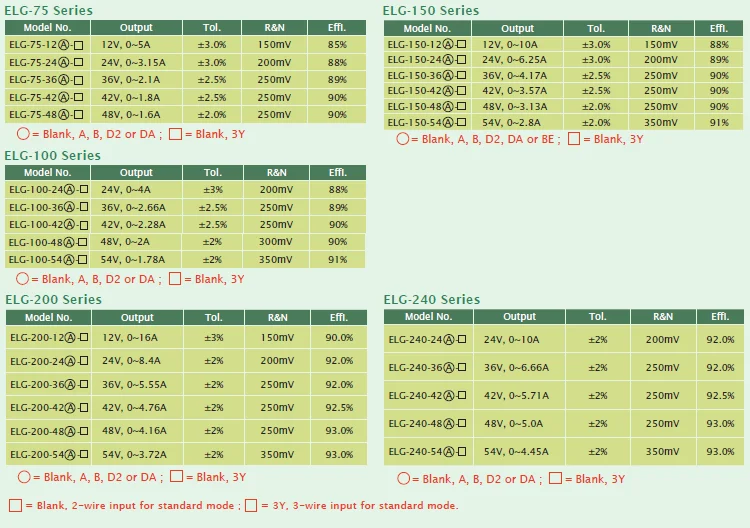

Other Series for Choose:

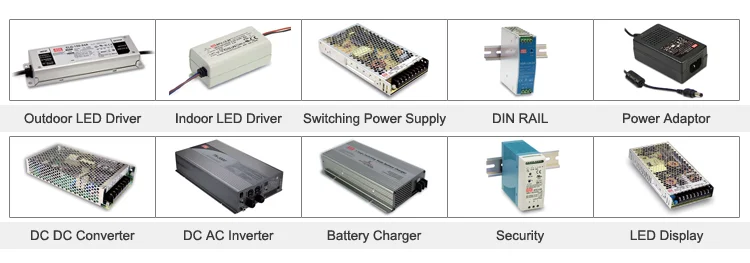

More Products for Choose:

Original Meanwell ELG-75-12B IP67 Waterproof 0-10V Dimmable 230V to 12V DC 5A 60W LED Driver

Warehouse & Shipping

Original Meanwell ELG-75-12B IP67 Waterproof 0-10V Dimmable 230V to 12V DC 5A 60W LED Driver

Certifications

What Certification do we have?

Original Meanwell ELG-75-12B IP67 Waterproof 0-10V Dimmable 230V to 12V DC 5A 60W LED Driver

FAQ

Q1. Are you original Mean Well Power Supply?

A: Yes, We sell 100% Genuine Mean Well. And there are 2 method to identify:
Method 1: The Original Brand Logo is 'Mean Well', not 'MiWi' 'MeanWell' or 'MingWei' etc.
Method 2: Each product has an unique Serial No. on it, which can be checked in Mean Well official website. (For more information, please contact our sales. )



Q2: Do you offer guarantee for the products?

A: Yes, we offer 2 ~ 7 years warranty.
If the goods have quality problem during warranty period, we provide maintenance service.
If you have using problem, welcome to contact us for help.


Q3. Can I have a sample order firstly? What is your MOQ limit?

A: Yes, sample order is acceptable. And we do not have MOQ limit. Welcome to inquiry.


Q4. What about the lead time and shippment?
A: For common type like APV, LPV, ELG, LRS, DR, MDR series, we have enough stock. Sample Order can be delivered within 3 days, Bulk Order can be delivered within 3~7 days after payment, not common type need 10~35 days after payment, for detail lead time, please contact our sales.
For shipping, we often use DHL, FedEx, UPS, and TNT. And they take 3-5 days to arrive. For bulk order, we recommend to send goods by Air or by Sea to save your transportation cost.


Q5: What is your payment terms?

A: We accept pay via Bank Transfer, Paypal and Western Union.

For bulk order, if the lead time is long, we also accept 30% in advance, and 70% balance before shipping.
We also accept Trade Assurance online to get 100% guarantee for your orders.

(For more details, please contact us)



Q6. How to proceed an order?

A: 1. Inquiry: Tell us your requirements, such as model No, Quantity and delivery address...

2. Quotation: We will quote you soon according to your requirements.

3. Confirmation: If quotation is OK, we will send PI to you for payment.

4. Payment: After your payment, please give us your bank slip, then we can arrange goods for you soon.

5. Delivery: Once get your payment and goods all ready, we will delivery goods soon, and tell you the tracking number or Vessel No. then (For more details, please contact us.)
