OEM 128x128 Графический ЖК-дисплей со светодиодной


Поделиться:

Цена:594,62 ₽*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

OEM 128x128 graphic lcd display with LED Backlight

graphic LCD display

Product specifications:

Product Name OEM 128x128 graphic lcd display with LED Backlight
Display format 128x128 dots
Display mode FSTN, Positive, Transflective
Dimension 46.5*55.2*3.5mm
Viewing Area 39.64*46.04
Drive IC  SSD1848
Blacklight White led backlight
Working temp -20℃~+70℃
Driving method  1/128 Duty, 1/12 Bias
Storage temp -30℃~+80℃

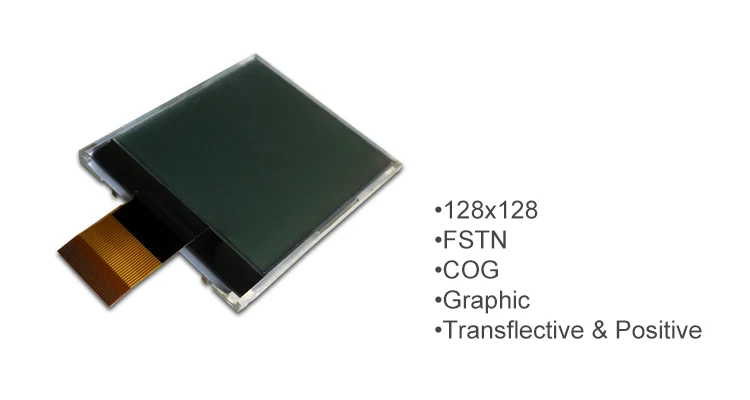

128x128 graphic lcd display

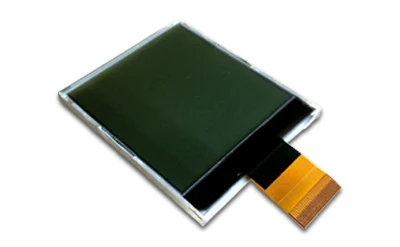

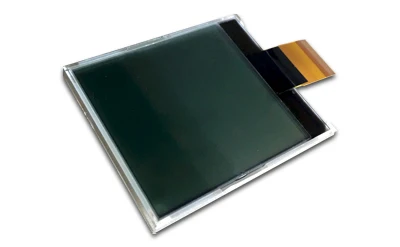

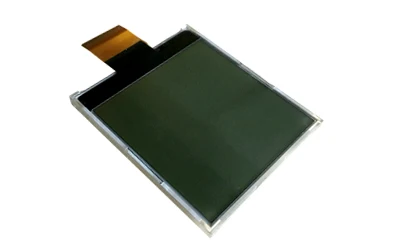

128x128 lcd module graphic WG1212Y7FSB6G-4.jpg WG1212Y7FSB6G-5.jpg



Related Products
Model  WG1206H1FSW6G  WG1206Z8DVW7G WG1206Z0FSW6G-B WG2412Y4SGW6B-E WG1306U7FSE6G
Picture 128x64 LCD display  128*64 graphic lcd  128 x 64 cog lcd module  stn lcd cob 240x128 132x64 fstn lcd screen
Display Mode

 FSTN,

Positive, Transflective

Graphic, COG

 DFSTN,

Negative,Transmissive

Graphic, COG

 FSTN,

Positive, Transflective

Graphic, COG

 STN,

Negative,Transmissive

Graphic, COB

 FSTN,

Positive,Transflective

Graphic, COG

Display format 128x64  128x64  128x64  240x128 132x64
Viewing Direction 6 O’clock  12 O’clock  6 O’clock  6 O’clock 6 O’clock
Color

Display dot :Black

Background:White

Backlight:White

Display dot :White

Background:Black

Backlight:White

Display dot :Black

Background:White

Backlight:White

Display dot :White

Background:Blue

Backlight:White

Display dot :White

Background:Blue

Backlight:Green

Module Size(mm)  40.8x33.1x4.2  79.7x53.5x4.0  77.4X52.0X7.5  144x104.0x15.0  86.24*55.71*10.4
Viewing Area(mm)  36(W) x23.5(H)  72.5(W) x39.8(H)   70.0(W) X 38.5(H)  114(W) x64(H)  79.56(L)*40.12(W)
Dot Pitch(mm)  0.26(W) X 0.32(H)  0.52(W) X 0.52(H)  0.52(W) X 0.52(H)  0.45(W) X 0.45(H)  0.58(L)*0.58(W)
Interface Parallel or serial Parallel or serial Parallel or serial 8 bit Parallel  4-line SPI
Application

LCD Display Application

Company Information

01-formike company.png



FORMIKE is an enterprise integrating R&D, production and sales. its has a team of more than 300 people, a production line and office space of more than 200 million square meters, rich R&D experience, advanced equipment, and exquisite workmanship. It provides OEM&OEM services for customers all over the world.

Contact us today for more coopearion.

02-formike factory.png

Formike Group, the leading supplier of TFT LCD Display, Monochrome LCD, Segment LCD, OLED Display, Wifi Module, Cell Phone Parts, Smart Watch and Smart Bracelet industry.We engage in developing and manufacturing related products and solution over 22 years experience.Our products are widely used in smart homes, intelligent buildings , smart hotel, smart park, smart health, smart security, smart travel and other fields.Rich experience and friendly communication make sure that the best solution of customized or semi-custom can be done in short time.
Formike has strong technical strength , provide integrated software and hardware solutions. and More than 20% of the company's employees are experienced and experienced technical researchers. We have automatic SMT high-speed production line, wave soldering plug-in line, test line, aging room, shielding room, assembly line, packaging line, quality laboratory and other equipment and facilities.
Backed up by other full advanced production equipment and production technology, we provide support for various domestic and overseas famous clients from USA, Europe, and Asia, etc.
We are certified to the ISO9001 & ISO14001 successfully.The annual production capacity reaches 500,000,000 pieces.All of our products are RoHS, CE, FCC compliant.
We are committed to creating maximum values for clients. We support Customize LCD accroding to your demand.Whether selecting a current product from our catalog or seeking for engineering assistance, you are more than
welcome to contact us.

03-formike workshop.png04-formike.png

Package Standard carton, corrugated paper+outer carton.

Lead Time

In Stock: 3~8 working days.

No Stock: LCD / LCM Products——5~8 weeks;

                Wifi Module Products——2~5 weeks;

                Mobile Phone Spare Parts Products——1~3 weeks;

                Smart Watch Products——2~5 weeks.

Payment

Cash;

In advance;

Net 30 days.



Shipping Term EXW / FOB
Shipping Way By air/sea/courier
Please feel free to contact us now, thank you!
FAQ

Formike faq

1.Q: Order process
A:PO is placed by client → PI is issued by Formike → Payment by client → Lead time is
confirmed by Formike → Shipping Doc. is provided by Formike → Shipping instrction by Client → Delivery → Cargo tracking → Receipt of cargo


2.Q: Lead time ( after payment is confirmed)
A: Sample: 1-10 working days
Volume: 3-60 working days


3.Q: Payment
A: T/T , Western union, L/C, Credit card, and Cash


4.Q: Warranty
A: 12 months warranty since Delivery Day


5.Q:RMA Process
A:Claime issued by client with photos or videos → QA of Formike confirm the claim → RMA No. provided by Formike → Analysis report provided by Formike in 5~10 working days after defective is received → The two parties will discuss the report, if necessary → Proceed as per the final report.



6.Q:Notes
A:Please check both appearance and function of products prior to installation.
Any damage caused by improper use or unprofessional installation is not covered under warranty.
