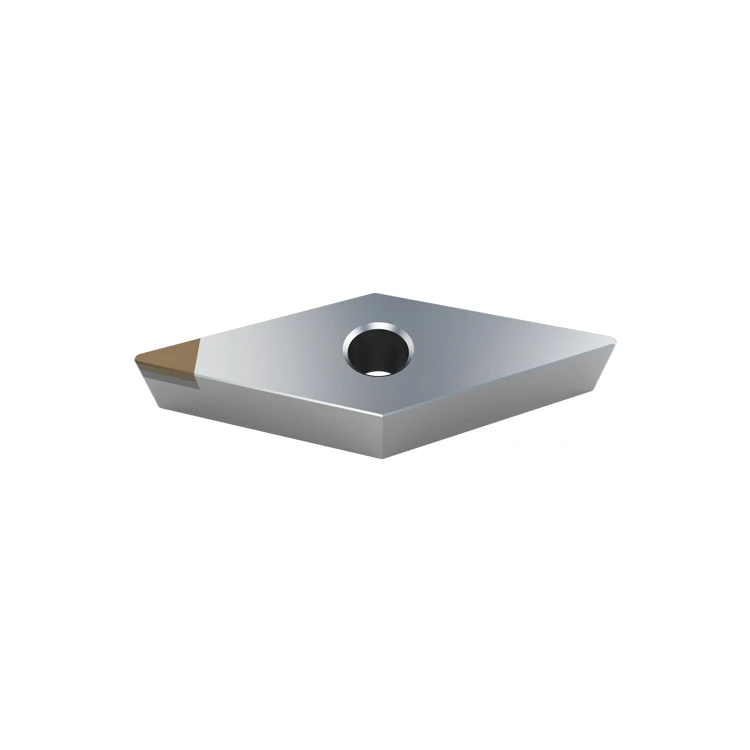

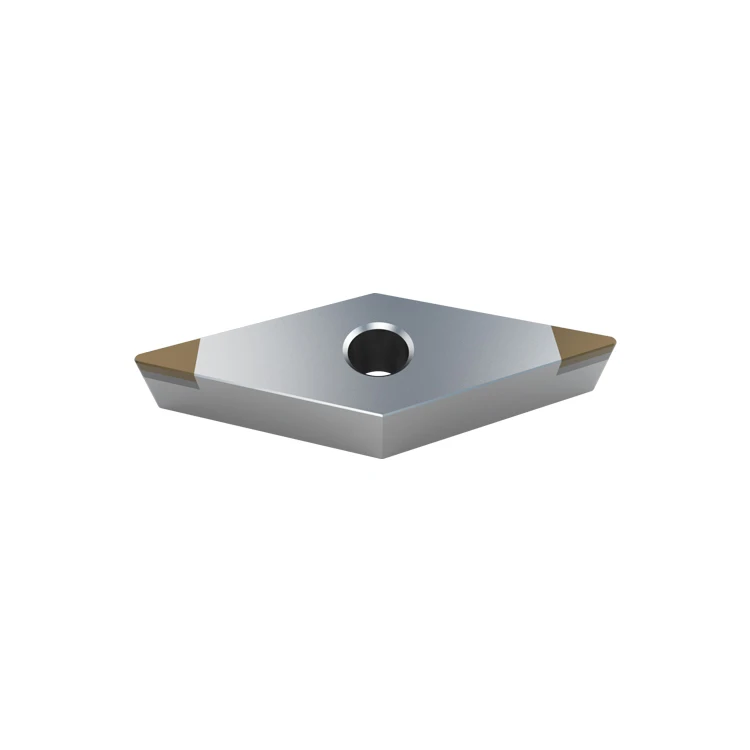

Cbn вставка VNGA

 cbn insert VNGA carbide insert

Material : CBN

CBN (cubic boron nitride) is the second hardest material after diamond.
Method of production of CBN plates is similar to the production of PCD,
i.e. sintering at high temperature and pressure.

Preferably CBN inserts versus the diamond is the possibility to use also for machining materials with iron content (hardened steel, cast iron etc.).

After proper use and the appropriate cutting parameters are suitable CBN cutting material for many applications.
Significant application CBN inserts are especially in mass production,
where the emphasis is on productivity and surface quality.
According to the type of application, whether by roughing or finishing the cutting edge of CBN inserts adapted to more or less known.
Protective chamfer, which protects the relatively delicate blade against chipping.

We are able to offer and supply CBN inserts as special shapes and forms ISO standardized inserts.

CBN inserts are delivered as so-called. "Solid CBN" or CBN sintered carbide layer on a carrier.
"Solid CBN" CBN is of solid material, which allows the use of both sides of CBN plates.
The advantages of this approach are used for operations with high-standard material removal
CBN sintered to the carbide support layer finds application particularly for smaller cutting depth.
From initial CBN disc is cut out a small segment of CBN and this is subsequently vpájen into the desired shape of carbide.

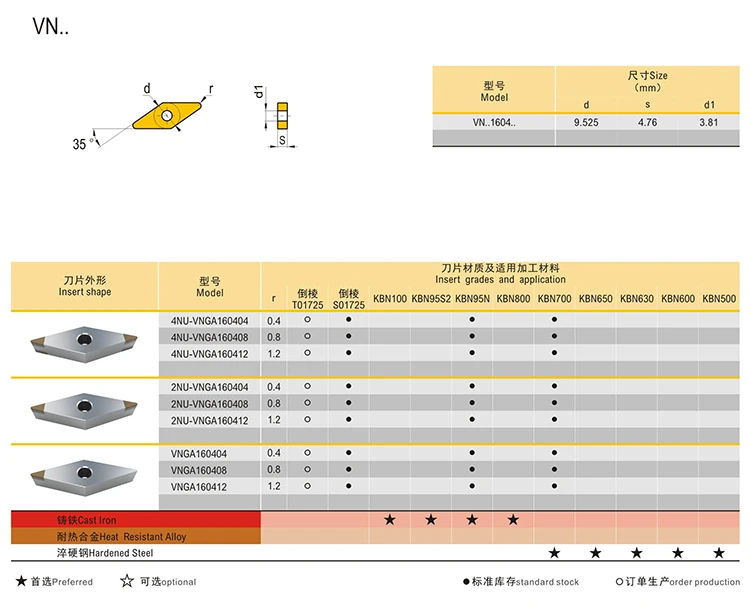

Edge type : 1 edge, 2 edges, 3 edges, 4 edges, 6 edges, 8 edges

Grade: P ( HRC45 - HRC60 ) , Cast iron

Workpieces: Harden steel, Cast iron

MOQ: 2 pcs of each size

Packing: 1 pc per box

Delivery time: 5 - 7 days

1. Is your company a trading one or a factory?

    Factory (We produce, we sell)

2. How long have you done in this industry?

    Over 6 years specializing in producing non-standard cutting tools

3. How do I pay for my purchase?

    Escrow, Credit card, Western union, Paypal, MoneyGram,T/T,  L/C, L/C, D/A, D/P are all accepted.

4. How about the delivery?

 10-15 days we took, once you payed.

5. Do you accept trial order?

    Sure we can. And we would like to quote our most favorable price if your order is big enough.

6. Is your company accept customization?

   OEM and ODM are available. And we have our own professional R&D team servicing for you
