Product Description
\t
SPECIFICATIONS
\t
Model No.
\t
AH9ZFP-C3
\t
Servo motor
\t
Japanese Fuji
\t
Configuration
\t
High (special holes)
\t
Tufting speed
\t
720 holes/min
\t
Bristle box
\t
3 colors
\t
Computer
\t
Touch screen LCD
\t
Power Input
\t
3-phase 380V AC
2.2KW (MAX)
\t
Air source input
\t
0.4-0.5MPa
\t
Equipment size
\t
1250*1200*1340(mm)
\t
Positioning accuracy
\t
0.05mm/100mm
\t
MEAS
\t
1400*1400*1600(mm)
\t
Tufting length
\t
10-15mm
\t
GW
\t
900Kg
\t
Tufting aperture
\t
1.2-3mm

Main Features

1) R&D automatic intelligent digital control scanning hole coordinate, touch / botton screen LCD computer based on German CNC technology .
2) Japanese Fuji 5 axis original servo motor available .
3) Trimming device can be installed to reduce trimming process according to your requirement.
4) The whole machine uses German imported AFG, DURBAL and Japan NSK, IKO and other brands of bearings.
5) Universal fixture and universal special-shaped handle box available.
6) Automatic cylinder pressure, nylon rolling handle-off hopper available.
7) Strong stability of the whole closed loop system, high precision of repeated positioning, easy to operate ,strong anti-interference capability .

Detailed Images

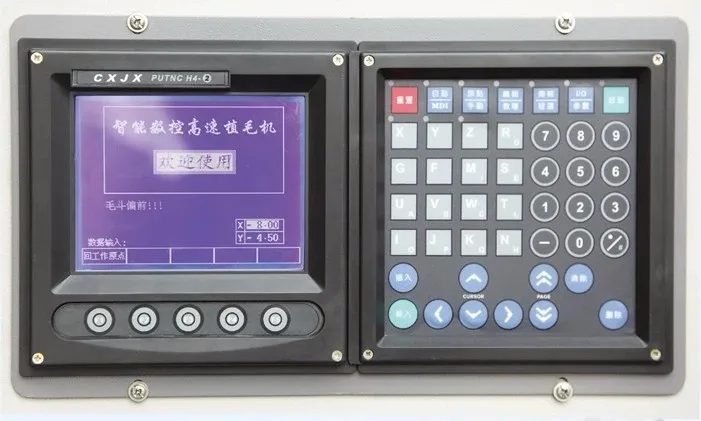

Intelligent NC Computer Parts

Features:

1)Introducing German CNC technology ,we research and develop the NC LCD computer ,which scans hole coordinates automatically .
2)Using the American imported NC CPU chip, speed P4 and dual core.
3)Automatic tracking speed.
4)Precise positioning , convenient operation.
5)The system is stable and reliable, adapted to different environmental conditions .
6)The whole closed loop system, strong anti- interference ability.
7)The maximum number of tufting holes can be upgraded to 99 as required .
8)Can be upgraded by installing up-down bristle separation device as required .

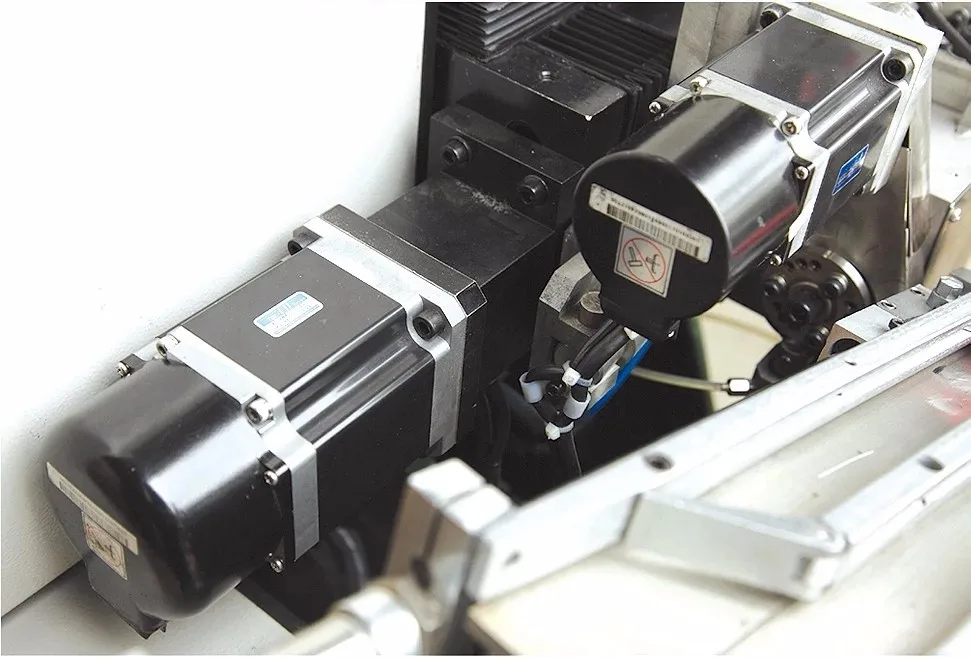

Servo Motor Parts
Features:
1)Adopted original high precision servo motor from Japan for the worktable of X axis, Y axis and handle's change.
2)Use the German imported precise level C1 double thread rolling screw rod.
3)Fast displacement: 750/minute, jumping hole distance reaches 8-10mm.
4)Soft rigidity and reliable stability.

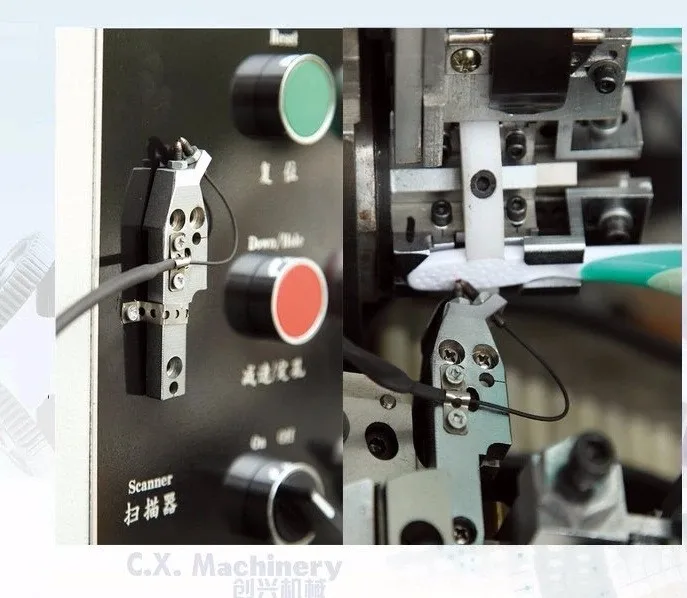

Automatic Scanning Holes Coodinate Parts

Features:
1)Hole coordinates are scanned automatically by high-tech infrared ray
2)High efficiency in changing product: it takes about 5 minutes for every 40 holes .
3)High precision positioning coordinates: tolerance +/- 0.02 mm.
4)Easy to operate and learn, high scanning speed.
5)Less tedious steps: manual measuring pitch error precision fine tuning.

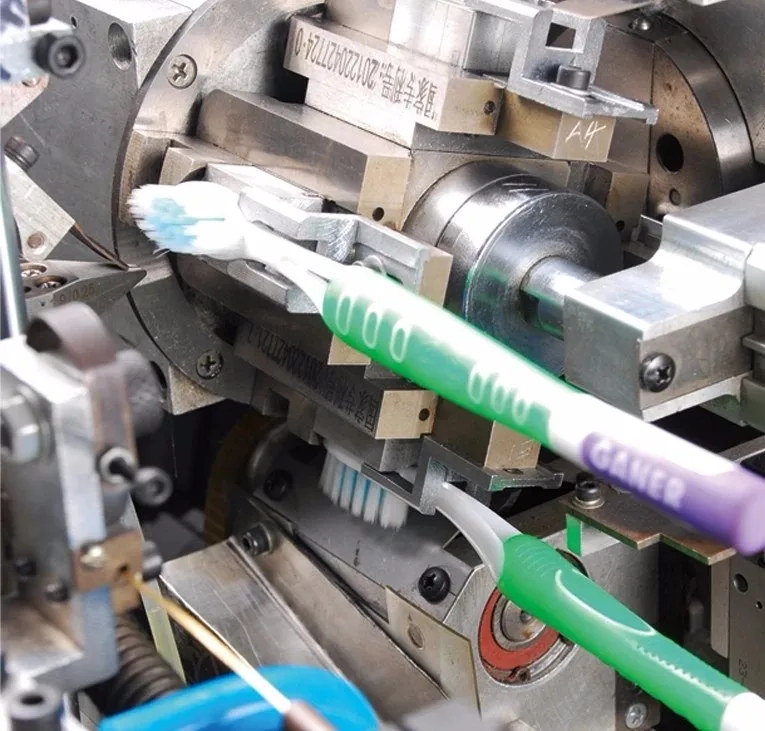

High Speed Tufting Parts
Features:
1)The universal fixture is researched and developed on the base of introducing German technology
2)The tufting head ,bristle taken knife ,tufting rod are
made with imported German material.
3)WIth Mirror Spark Technology of high precision ,
tufting mouth and tufting rod are manufactured with
high hardness and good wear resistance .
4)Tufting machine process error value+/-0.01mm, tufting aperture: 1.2 to 3.0mm.
5)Strong stability , high efficiency and bristles won't get loosen .

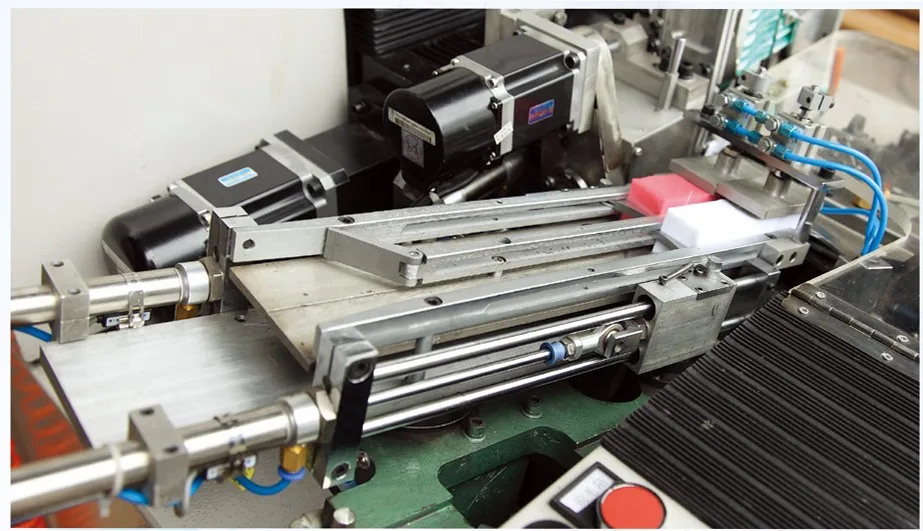

Three- Color Bristle Box Parts

Features:
1) Based on German technology ,bristles are pressed by
cylinder with auto cycle function .The pressure is uniform
and the adjustblity is flexible .
2) Double dabbing cylinder available , convenient to make
the bristles neat .
3)The color changed part adopts Japanese servo motor ,
2 holes can be changed one color .
4)It adopts bristles added technology of electronic control .
5)High stability while taking bristles , bristles won't get loosen and sparse .

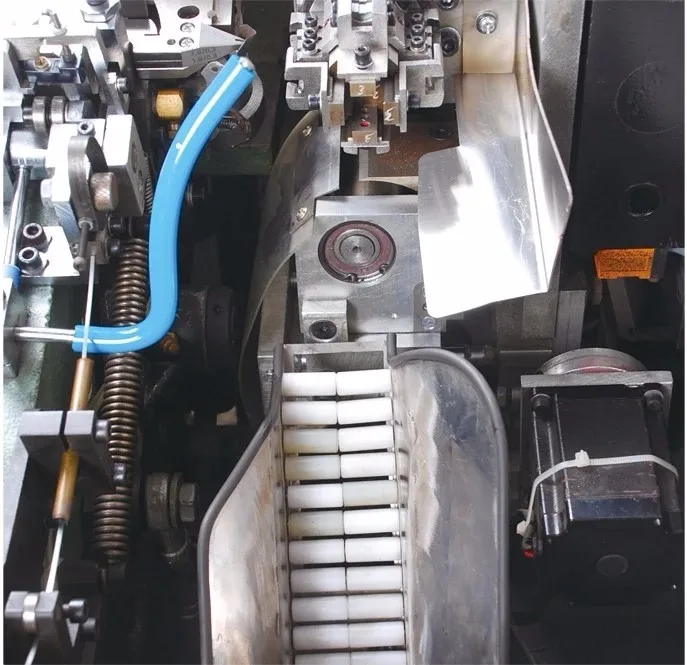

Nylon Rolling handle -off Hopper

Feature:
Brush handles drop more easily .

Trimming Device Part

Feature:

Trimming device can be added to reduce trimming process according to customer 's needs .

Our Company
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.


Packing & Delivery
\t
Packaging
\t
Size
\t
1400 (L)* 1400(W) * 1600(H) (mm)
\t
Weight
\t
900kg
\t



Packaging Details
\t
The normal package is use pe film for packing first and wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.Or pack it according to customers special request.
FAQ

1. Q: Are you a factory or trade company?
A: We are a factory.

2. Q: Where is your factory located in? How can I visit there?
A: Our factory is located in Shantou City, Guangdong Province, China, about 2 hours train from Shenzhen/HongKong. Warmly welcome to your visit!

3.Q: What is your terms of payment?
A: T/T 70% as deposit, and 30% before delivery. We'll show you the photos of the products and packages before you pay the balance.

4.Q: How can I get some samples?
A: We are honored to offer you samples.

5. Q: What is the advantage of your products?
A: High-tech, pretty competitive price and superior service!
