plastic raw material/eps block scrap/polystyrene resin
Grade |
Code | Bead size(mm) | once expansion ratio |
C CERIES SELF EXTINGUISHING GRADE |
C-103 | 1.00-1.60 | 45-65 |
C-104 | 0.85-1.25 | 40-65 | |
C-105 | 0.70-1.00 | 40-60 | |
C-106 | 0.50-0.80 | 30-50 | |
C-107 | 0.40-0.60 | 25-40 |
Properties:
Flame retardant Grade
Specification | C-103 | C-104 | C-105 | C-106 | |
Beads Size mm | 1.00-1.60 | 0.85-1.25 | 0.70-1.00 | 0.50-0.80 | |
Vol.Cont % | 6.85 | 6.8 | 6.66 | 6.27 | |
H2O % | 0.95 | 1.12 | 1.25 | 1.26 | |
F.M % | ≤0.10 | ≤0.10 | ≤0.10 | ≤0.10 | |
Avg.size mm | 1.32 | 1.01 | 0.8 | 0.63 | |
PRE-EXPENSION DENSITY | 15.0-22.0 | 15.0-25.0 | 17.0-25.0 | 20.0-33.0 | |
Sieving ≥ 95% | 95.0 | 95.0 | 95.0 | 95.0 | |
Oxygen Index | ≥30 | ≥30 | ≥30 | ≥30 | |
Remark | ALL THE DATA IS BASED ON LAB TEST FOR FIRST TIME EXPANSION IN CONTINOUS EXPANDER |
The EPS series products of our company need to be put on the place where it is cool and ventilated, keep the storage temperature below 20°C in order to minimize the lost of frothing agents from escaping.
1 | 25kg/paper bag | 680 bags | 17 tons | one 20feet container |
2 | 850kg/textile big bag | 20 junbo bags | 17 tons | one 20feet container |
3 | 25kg/paper bag | 1020 bags | 25.5 tons |
one 40feet container |
4 | 850kg/textile big bag | 30 jumbo bags | 25.5 tons |
one 40feet container |

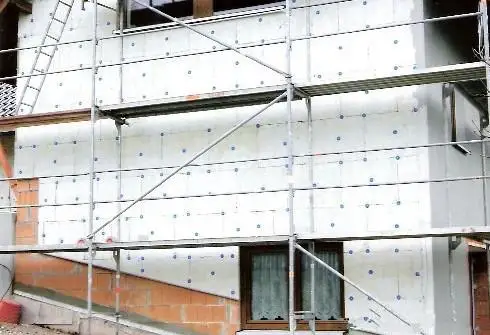

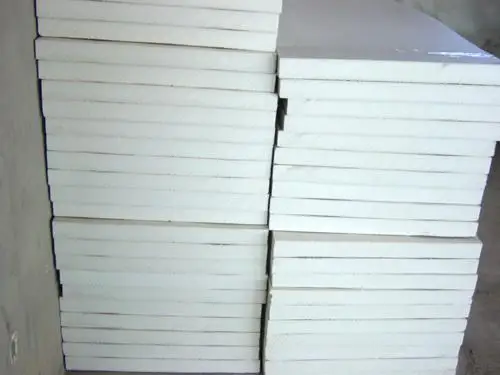

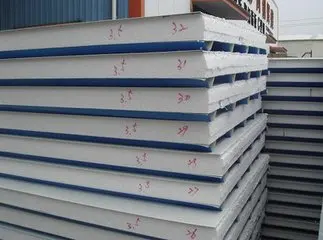

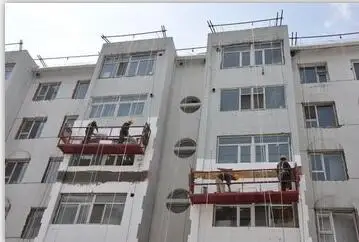

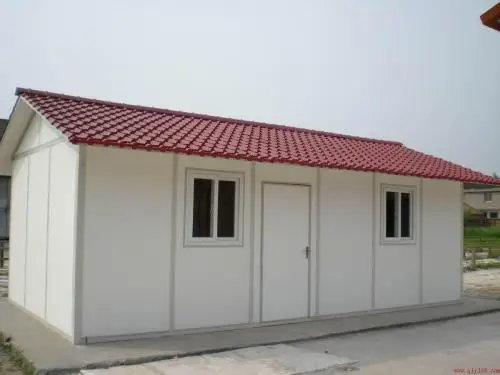

Applications photos
