Модуль ЖК-дисплея COB 16x2 STN
US $0.30-$1.00
Пользовательский LCD COG + FPC 128x64 модуль точечной матрицы 12864 Графический
- Категории: >>>
- Поставщик: Shenzhen,Genyu,Optical,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Custom Size very small FPC 128x64 dot matrix screen module lcd display
| 1. Feature: | |
| 1. Display Mode: | STN (Grey or Blue) |
| 2. Polarizer | Transmissive / Positive |
| 3. Viewing angle: | 6 O’Clock |
| 4. Operating temp: | -10°C~60°C |
| 5. Storage temp: | -20°C~70°C |
| 6. Operating voltage | VDD=2.8V, Vop=8.2V |
| 7. Driving condition : | 1/64Duty,1/7Bias |
| 8. Connector | COG+FPC |
| 9. Drive IC | ST7567 |
| 10. Backlight | 1 pcs White LED |
| 11. ROHS compliant | |

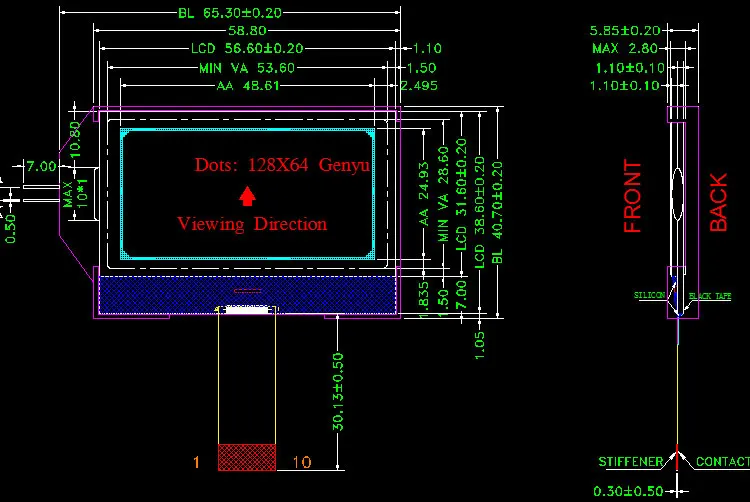

| 2. Mechanical Parameters | |
| Item | Description |
| LCD size | 65.3(W)x40.7(H)x5.85(D) mm |
| Viewing Area | 48.6(W) x 24.9(H) mm |
| Dots size | 0.35×0.36 mm |
| Dots pitch | 0.38 x 0.39 mm |
| 3. Pin assignment | |
| Pin No. | Symbol |
| 1 | VG |
| 2 | XV0 |
| 3 | V0 |
| 4 | VSS |
| 5 | VDD |
| 6 | D7(SDA) |
| 7 | D6(SCLK) |
| 8 | A0 |
| 9 | /RES |
| 10 | CS1B |

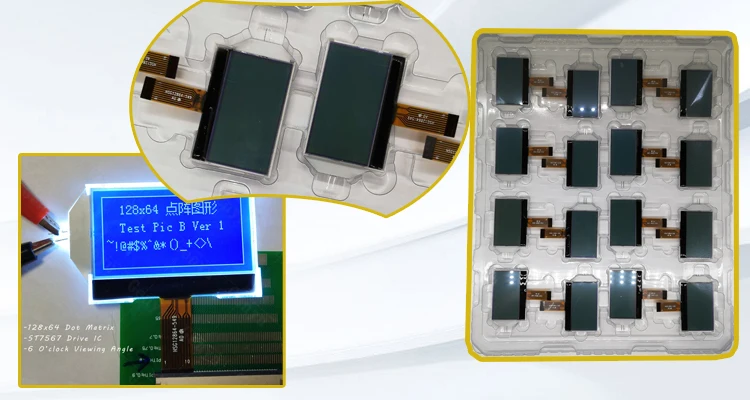

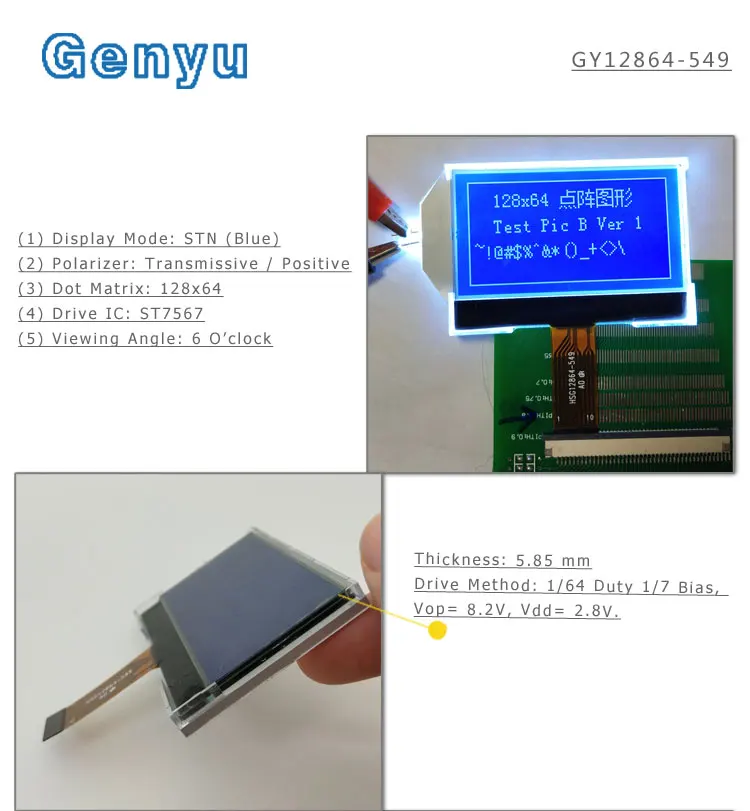

Detailed Images
Packaging & Shipping
Payment
Please contact us before you make payment.
Payment terms: T/T, Western Union. Paypal....
Delivery
Items will be shipped within 3 working days on payment received.
By DHL/UPS/FedEx/TNT: about 2-5 working days.
By EMS: about 7-10 working days.
By CPAM/HKPAM: about 10-30 working days.
Packaging
1. Anti-static bag or Bubble bag; (For samples)
2. Plastic pallet;
3. Carton box.
Our Services
Genyu Technology (H K) Limited
Shen Zhen Genyu Optical Co.,Ltd
1. All products are being sent in accord with the real goods. When the clients purchasing, we will provide detailed instructions and procedures. And if it is necessary for you to have technical support in the process of development, we can provide it for you at any time.
2. Good quality and credit is the soul of our company. Before shipment, we will guarantee that the products will be done the aging test and 100% of the visual and electric logging.
3. When the product upgrades, we will notify the related clients in advance, and the upgrading product can be perfectly compatible with the old ones.
4. The warranty period of the product is 12 months.
Custom lcd STN (Grey) COG 128x64 Dots matrix Graphic LCD Display With White Backlight
Custom lcd STN (Grey) COG 128x64 Dots matrix Graphic LCD Display With White Backlight
Custom lcd STN (Grey) COG 128x64 Dots matrix Graphic LCD Display With White Backlight
FAQ
Q1: How does your factory do regarding quality control?
A1: Quality is the priority. We always attach great importance to quality controlling from the start to end.Our factory has gained ISO9001, RoHS, CE certification.
Q2: Can I get Customize product?
A2: For sure that OEM service is availiable.
Q3: Where is your factory located? How can I visit there?
A3: We have two factories, one is in Shenzhen, the other in DongGuang Province. Welcome to visit our factory. We could pick you up in Shenzhen Bao'an Airport, or High-way Shenzhen North station.
Q4: Can I get some samples to test? Or how to customize my own specifications?
A4: For standard items, Free Sample is available.
Contact Us
Hi, I am Erica. We have focused on micro lcd panel for 14 years.
WHAT CAN WE OFFER?
a) Small orders will be acceptable.
b) High quality, durable-competitive pricing.
c) Mass production leadtime would be guaranteed.
d) Free technical services will be provided.
e) Each order will have enough spares.
Pls feel free to contact us,my friend!
b) High quality, durable-competitive pricing.
c) Mass production leadtime would be guaranteed.
d) Free technical services will be provided.
e) Each order will have enough spares.
Pls feel free to contact us,my friend!
