Why choose us?
1.Speciality
Peakon is Top 3 of fastest-growing manufacturers in China and specialized in 100% non- asbestos reinforced fire resistant calcium silicate board & Fiber Cement Board for 8 years .
Peakon provides fire & thermal insulation solution for more than 5,000 customers :
Architects, specifiers, site managers, agent, wholesaler, contractors, subcontractors and even domestic end-users.
3.Reliability:
Through ISO14001, ISO9001,OHSAS 18001, SGS & CE certified. CE test is generally considered to be more onerous than other testing regimes, it's testing for resistance to fire, impact, noise, moisture, frost humidity,formaldehyde......

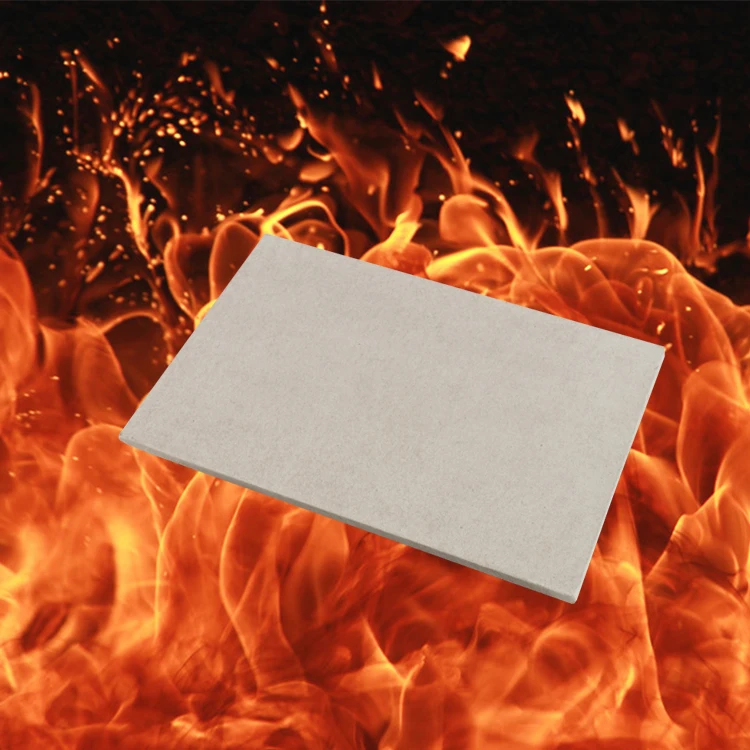

Peakon 2440*1220*6mm Calcium Silicate Board for Door
Calcium Silicate Board is a composite material made of quartz sand, cement and pulp fibers. This product adopts imported pure paper pule from Canada, not included waste paper pulp. Calcium Silicate Board is manufactured in a sheet form and they are used for interior and exterior suspension, partition and flooring application.The normal size is 1220×2440mm,thickness from 3~30mm, and density is 0.95~1.30g/cm3. There are low-density, middle-density and high-density.
Product features:
1.Structurally Strong
2.Fire Resistance (Class A)
3.Excellent Thermal Insulation
4.100% Non-Asbestos
5.Excellent Sound Insulation Propertiyes
6.Moisture Proof
7.Lightweight
8.Fungus and Termite Resistant
9.Resistant to Vermin Attach
10.User-Friendly and Easy to Install
11.Safe and Environmental
12.Cost-Effective
Parameters of 50mm thickness calcium silicate board:
Specification | 2440*1220 / 2400*1200mm Thickness:3-30mm |
Width | 1200-1220mm |
Length | 2440mm |
Color | as pictures or customized |
Density | 0.95~1.3g/cm3 |
Water Content | ≤10 |
Fire Resistance | Incombustibility A-Class |
Thermal Conductivity | <0.3W/m.k |
Bending Strength | Grade 4(>10Mpa) |
Radioactivity | GB8624-2006 A-Class |
Asbestos | 100% Non-Asbestos |
Certification | ISO/CE/SGS |
Applications of calcium silicate board:

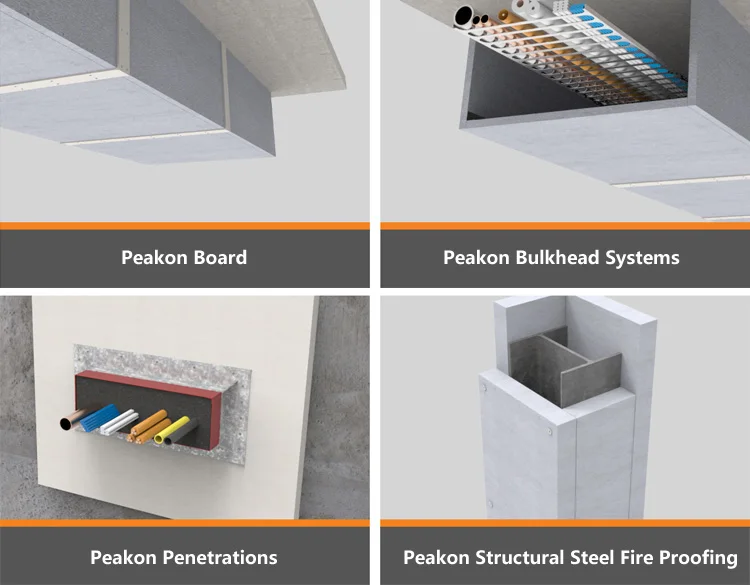

Widely used in steel industry, cement industry, no ferrous metallurgy and carbon industry, glass industry, ceramic industry, electric power plants, electric heating equipment. Steel structure cladding, fireproof partition, fire door core, fire door components, elevator doors, fire places and stoves, etc.
Thickness | Weight | Edge Profile | Application |
6mm | 24kg | square-cut edge/tapered edge | internal cladding |
8mm | 32kg | square-cut edge/tapered edge | internal/external ceiling |
9mm | 36kg | beveled edge/tapered edge | internal partition/external wall cladding/wet area and tile backing/floor underlay |
10mm | 40kg | square-cut edge/tapered edge | internal partition/external wall cladding/wet area and tile backing/floor underlay |
12mm | 48kg | square-cut edge/tapered edge | external wall cladding/wet area and tile backing/floor underlay |
15mm | 60kg | square-cut edge/tapered edge | internal partitions with special requirements/elevated floor |
18mm | 72kg | square-cut edge | internal partitions with special requirements/elevated floor |
20mm | 80kg | square-cut edge | internal partitions with special requirements/elevated floor |

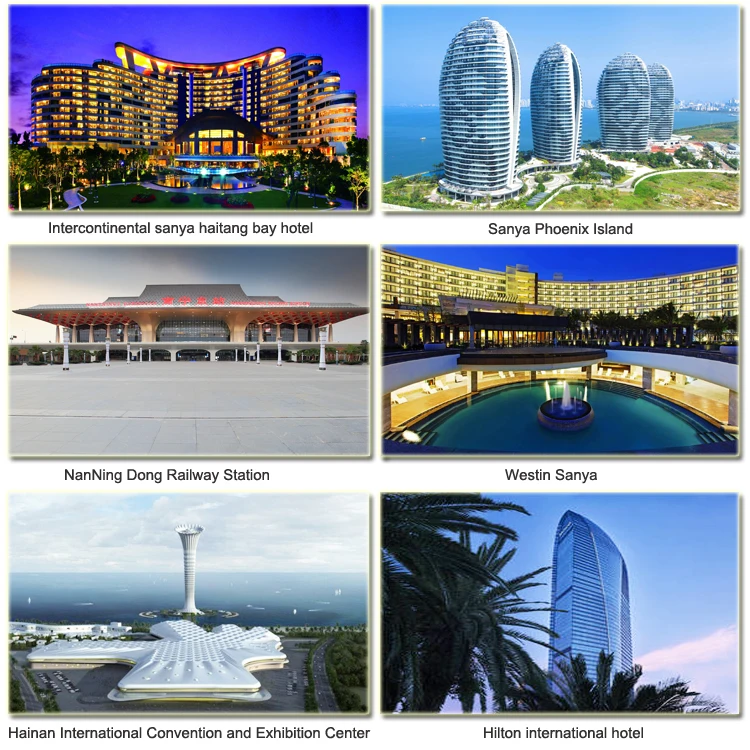

Our project case:
Packaging:wooden pallet + PE covering + corner protector + strong tape
20GP | Peakon Calcium Silicate Board | SIZE | QUANTITY | WEIGHT | VOLUME |
1220*2440*6mm | 900PCS | 21600KGS | 25CBM | ||
1220*2440*9mm | 600PCS | 21600KGS | 25CBM | ||
1220*2440*12mm | 450PCS | 21600KGS | 25CBM | ||
1200*2440*20mm | 270PCS | 21600KGS | 25CBM |
About us:
Peakon is a privately-held Chinese company founded in 2011 in Dongxing, China. CEO purchased German advanced equipment & technology and quickly recognized Peakon to be an innovative material for passive fire protection in the Heating, Ventilation, Air Conditioning & Building industry and envisioned how this unique product could solve many fire protection issues in other industries in China. The main product is 100% non-asbestos fire prevention board, low density & medium density fiber cement board, calcium silicate board, other high-tech energy-saving environmental protection board.
Peakon has since matured into a globally recognized ISO 9001, ISO 14001, CE & SGS certified provider of passive fire protection systems with tested and listed designs to solve most fire protection issues. Peakon has developed many fire protection solutions and now holds Chinese patents for a wide range of systems for use in the fire protection industry.
Peakon has developed many unique passive fire protection systems for some of the world's most valuable assets. Through our commitment to research and development and to continuous improvement, Peakon has gained the trust of our clients for protecting people and property worldwide. Peakon boards are widely exported to USA, Southeast Asia, UAE, Middle East and African.
Q1.What is your MOQ, Can we order mixing different sizes?
A: Sure, normally the MOQ of each size is 1×20ft container but for your testing quality we can accept small/sample order for different sizes
Q2.Which port can you support?
A: Fangcheng Port or any other China port you need. If provided destination port, CFR and CIF can be quoted for your reference.
Q3. What's the delivery time of your products?
A: Usually it takes about 10-15days after receiving the advance payment to send out the goods by sea or air.
Q4. Can we print the logo or another mark on the product?
A: Yes, please send your design to us.
Q5. How can you guarantee our business safe?
A: You can use the Alibaba Trade Assurance for your payment and we can sign a business contract for your safety.
Q6. Do you have a after-sale service?
A: Yes, After-sale service 24h×7.
Q7. What are the advantages of your board?
A: Outstanding lightweight, heat insulation, waterproof, fireproof, sound insulation, fast construction.
Q8. Do you have any certificate to help us get the government's approval?
A: CE certificate, SGS certificate and China testing report and our laboratory's testing data, etc. by ourselves as your supporting document. Because building standards are different in different countries, most of our customers buy the boards for testing and get approval by themselves.
Q9. If we need samples for customer approval, will it be possible?
A: Of course we can.
Q10.How to guarantee quality?
A: Laboratory, the integral testing process from raw materials to finished product till loading containers will be done by our factory.
