FP05 is one of HFSecurity's best selling Android fingerprint handheld terminal. It is Android 7.0
based and with 4G communication. Has been widely used for e-government, banking, telecom,
NGO associations, education, etc. The fingerprint sensor is ISO 19794-2 and ANSI 378 standard,
compatible with most Biometric national databases. Open free SDK for integration
1.Support Android 6.0 embedded operating system.
2.Support GPS precision positioning, WIFI, Barcode.
3.RFID: support for S50, S70 card, 2.4G
4.Support True Safe fingerprint identification.
5.Supports RFID and fingerprint card identification.

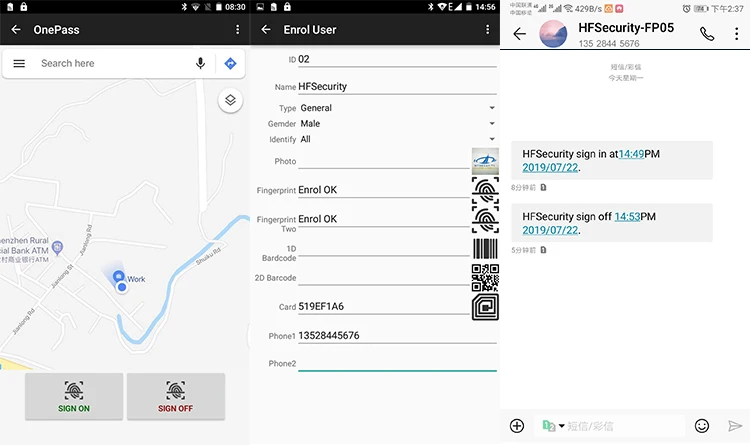

6.It has portable cloud employee attendance system.
Hardware | |
Physical size | 175 (L) *78 (W) *27 (H) mm |
RAM | 1GB (optional 2G) |
ROM | 8GB (optional 16G) |
LCD Display | 5”, 1280*720; Optional protection screen |
Touch Panel | Capacitive panel, multi-point touch, G+G |
Camera | Rear: 8.0M |
Battery | DC 3.7V/4000mAh |
RFID | NFC, RFID, 13.56MHz smart card |
G-sensor | Gravity acceleration sensor |
GPS | Support for A-GPS |
MIC | Built-in microphone |
Speaker | Built-in stereo speaker 8Ω/1.5W |
SIM Card | Support 1 SIM card |
TF | 1x mini SD card up to 32G |
Earphone | 3.5mm stereo phone jack |
Operating Temperature Range | -20℃ to + 70℃ |
Certification | CE, ISO9001, GSM TAC certificated |
Rugged | IP65 |
Operating Humidity | 0-95% |
Barcode | Support one-dimension, two dimensional bar code (optional) |
Antistatic Ability | IEC64000-4-2 standard 15KV |
OTA | Support (Can update firmware & app remotely via OTA function) |
Package Accessories | Device bag, Screw driver, adapter, USB cable |
Software | |
OS | Android 6.0 |
CPU Professor | Quad-core 1.3GHz |
SDK | For free |
Extra Support | Launcher APP for free (Only allow to use the specific app, user cannot access other settings/apps on devices) |
ODM logo | |
Can optional wall-mounted metal box | |
Fingerprint Sensor | |
Image Size | 256*288 |
Image Resolution | 500DPI |
Window Area | 10.4mm*14.4mm |
Standard | Support ANSI378, ISO19794-2 |
Image Format | WSQ, JPG, BMP, etc. |
Communication | |
Data link | 2G: GSM CDMA 850/900/1800 MHz |
3G: WCDMA 2100/1900/900/8500MHz(Can do customization according to clients country details) | |
Wi-Fi | 802.11 b/g/n |
USB | Type C with OTG function |
We provide SDK for you to integrate with your own system or do secondary development.
Huafan Group is located in Chongqing city,Southwest of China.Her severalbrands,HFSecurity,BIO,Heystar,are widely in the field of interior decoration,light current,security and protection.We provide your one-stop solution in security and protection with the most professional and exprienced team in China(Shenzhen and Chongqing city),Pakistan,and United Kingdom.With professional attitude,we provide secure integration solution and products.Committed to the success of clients,we have server for more than thousands pf partners with 90% positive feedbacks in the last 10 years.We will keep going,creat interests of clients,create opportunities for staff,and create value for the society.
F:Do you offer warranty for the device? |
Q:Yes,we offer one year warranty,also life soan technical support |
F:What is your MOQ |
Q:MOQ is 2pcs |
F:What is your payment term? |
Q:Paypal,T/T(Bank Transfer),Western Union,Cash,Visa and Credit Card |
F:How to get software and SDK? |
Q:Software and SDK is free.Will send download link after you place order. |
