51110 NSK Single Direction Thrust ball Bearing 50x70x14mm
Product Description
The Brief Description of NSK Thrust Ball Bearings:
Thrust ball bearings are made up of series balls (with cage), a shaft washer (fit tightly with axis), and a housewasher, balls are rotating between them. They only bear axial load in one direction, not radial load.
As the axial load is evenly distributed on each ball, load capacity is very large. But the temperature is higher during working, allowing speed limit is lower. Thrust ball bearings are separable, single direction thrust ball and double direction thrust ball bearings according to their structures. The former can withstand axial load in one direction, the later can withstand axial load in both directions, but not bear radial load. They have the structure with a seat, and the installation surface is spherical, it has a self-aligning performance and reduces installation errors.So thrust ball bearings are mainly used in automotive, machine tool industries.
Thrust ball bearings consist of shaft washer, housing washer, steel balls and a cage. The ring matched with shaft is called shaft washer, matched with housing is called housing washer. According to the acceptance of situation divide into one-way thrust ball bearings and two-way thrust ball bearings. One-way thrust ball bearings can withstand one-way axial load. Two-way thrust ball bearings can withstand two-way axial load. Two-way thrust ball bearings with ring and shaft. The installation of housing washer are spherical bearings with self-aligning properties, can reduce the impact of installation errors. Thrust ball bearings can not bear radial load, and have a lower speed limits. They can be applied to steering system and main shaft of machinery.
Type available:
a) Single-direction thrust ball bearings
b) Double-direction thrust ball bearings
c) Single-direction thrust angular contact ball bearings
This 51110 bearing is a Single direction thrust bearing with a flat housing locating washer. The bearing's dimensions are 50x70x14.
511
10
Ball Thrust, Single Direction, Metric, Extra Light
50mm - Bore Size
Steel Cage
Dimensions (mm)
Weight (kg)
Brand
d
D
B
50
70
14
0.153
NSK
Basic Dynamic Load Rating (kN)
Limiting Speeds (r/min)
Dynamic
Static
Grease
Oil
29000
75500
3200
4800

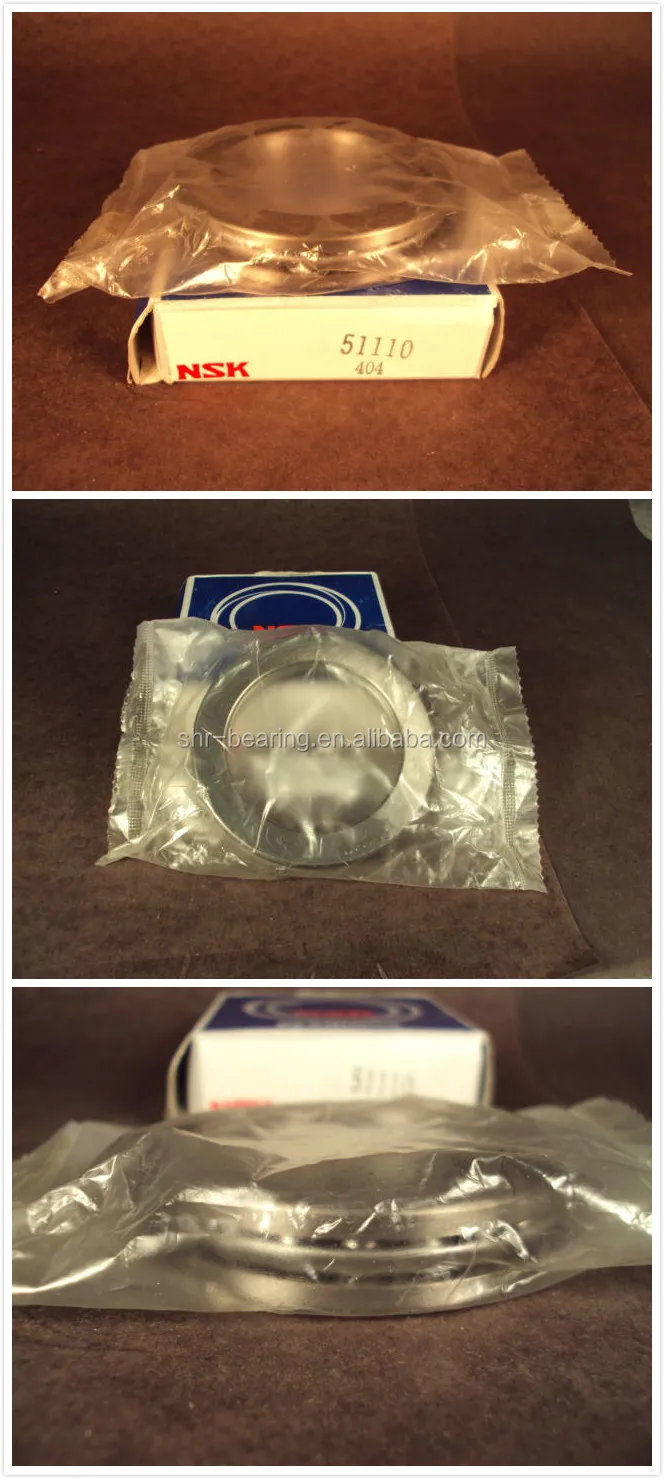

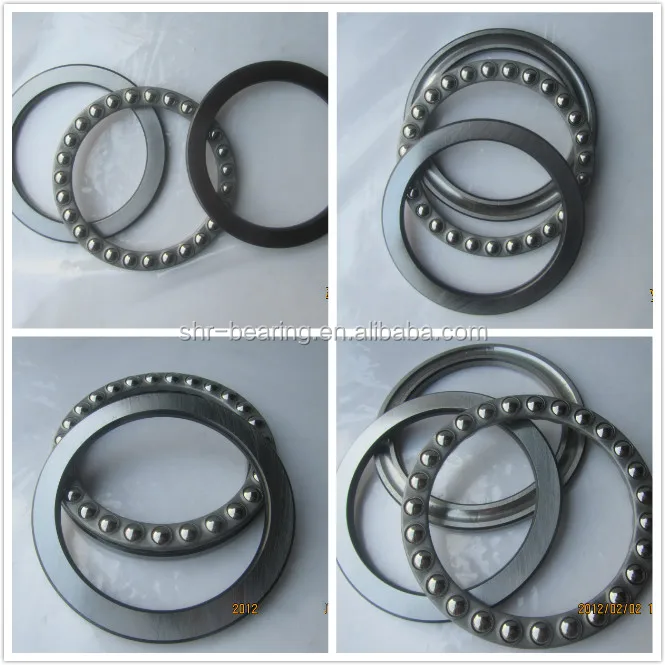

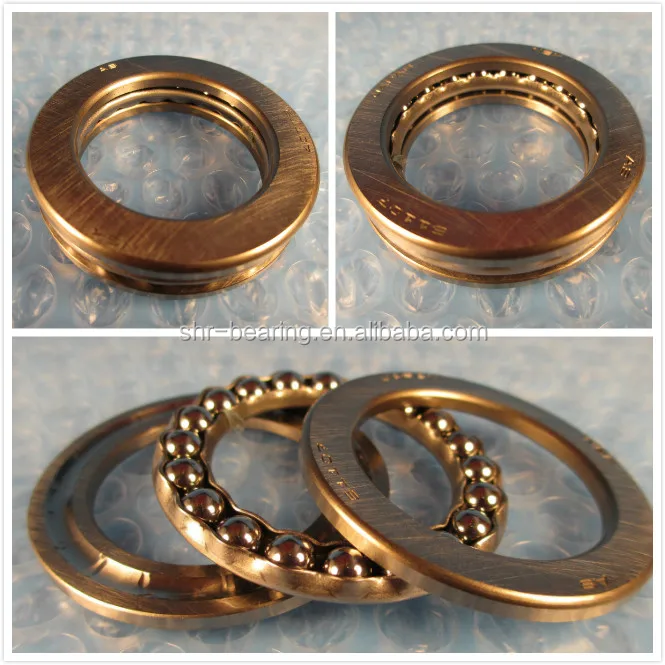

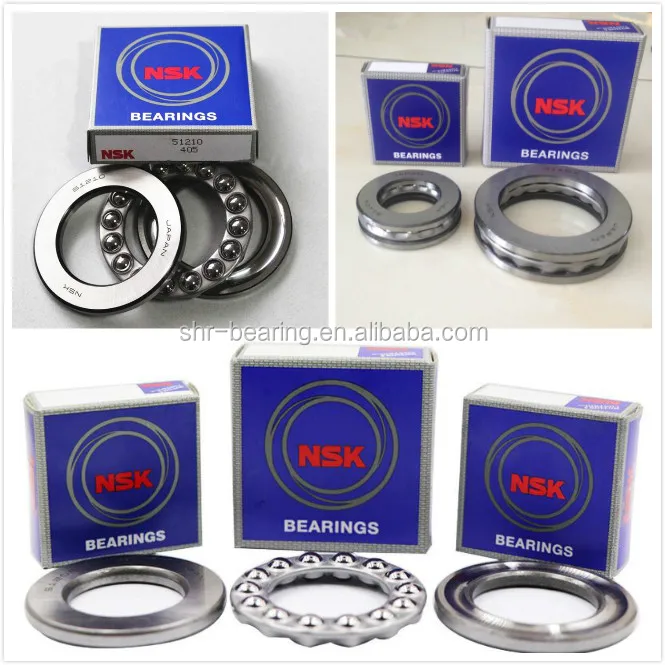

NSK Thrust Ball Bearing Pictures:
NSK Thrust Ball Bearings 51100 series Catalog:
Model
d/mm
D/mm
w/mm
WEIGHT/kg
51101
12
26
9
0.022
51102
15
28
9
0.024
51103
17
30
9
0.025
51104
20
35
10
0.037
51105
25
42
11
0.056
51106
30
47
11
0.063
51107
35
52
12
0.08
51108
40
60
13
0.12
51109
45
65
14
0.14
51110
50
70
14
0.16
51111
55
78
16
0.23
51112
60
85
17
0.27
51113
65
90
18
0.33
51114
70
95
18
0.346
51115
75
100
19
0.4
51116
80
105
19
0.42
51117
85
110
19
0.44
51118
90
120
22
0.67
51120
100
135
25
0.97
