Product Description




Automatic  High Quality Frozen french fries production line 100kg/h--300kg/h

1) process:
washing and peeling machine-cutting machine-washing machine-blanching machine-frying machine-quick freezing-packing machine
2)Output capacity
It is 2:1 for fresh potato and frozen French fries
Automatic line: 200kg/h, 300kg/h, 500kg/h, 1000kg/h, 2000kg/h
Frozen french fries production line making machinery for frozen potato fries

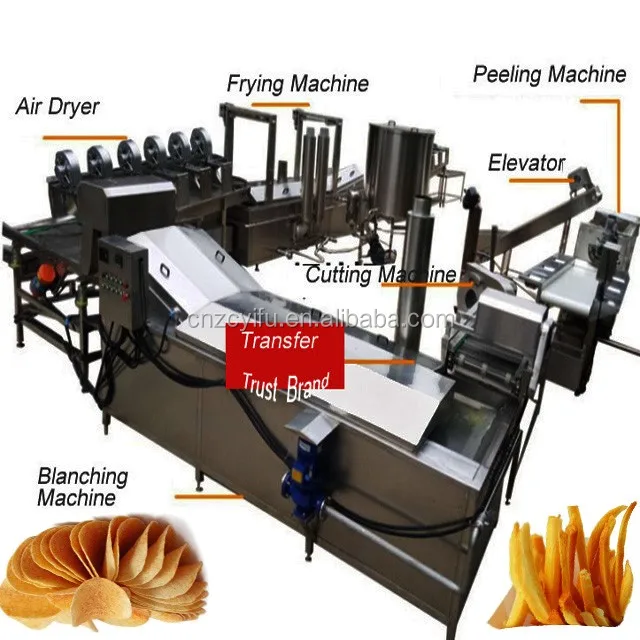

 1.The  French fries production machine main process:

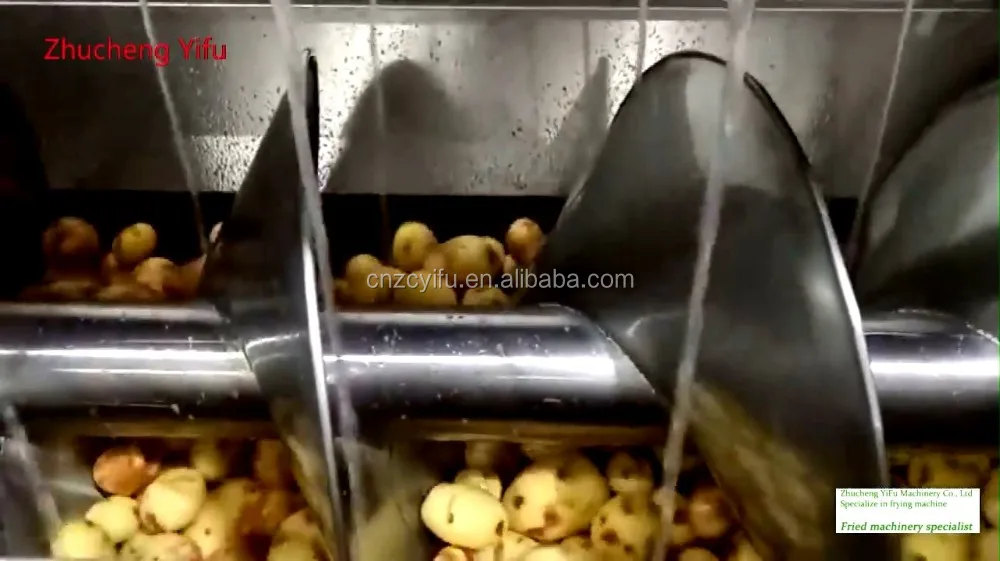

1)Washing and deboning: brush or rolling type
2)Peeling: merchanical or steam
3)Picking table:  Automatic and manual
4)Cutting: Automatic merchanical
 5)Washing:preclean to remove the starch

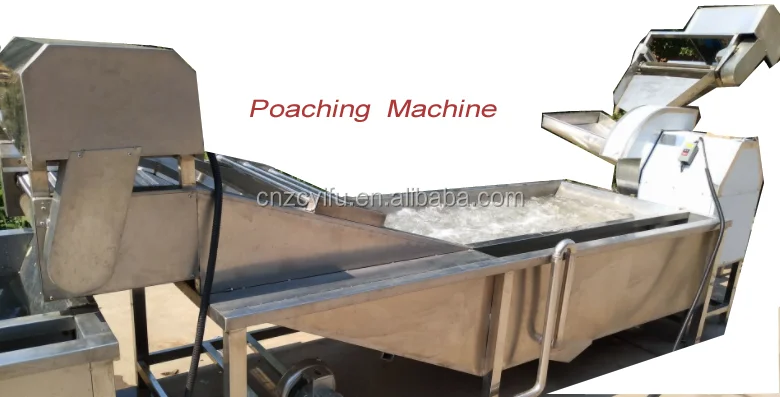

6)Blanching
 7)Dewatering and anhydrating
8)Frying: electrical, gas, diesel
9)Cooling
10)Quick freezer
 11)Weighing and packing


Frozen french fries production line 100kg/h--200kg/h

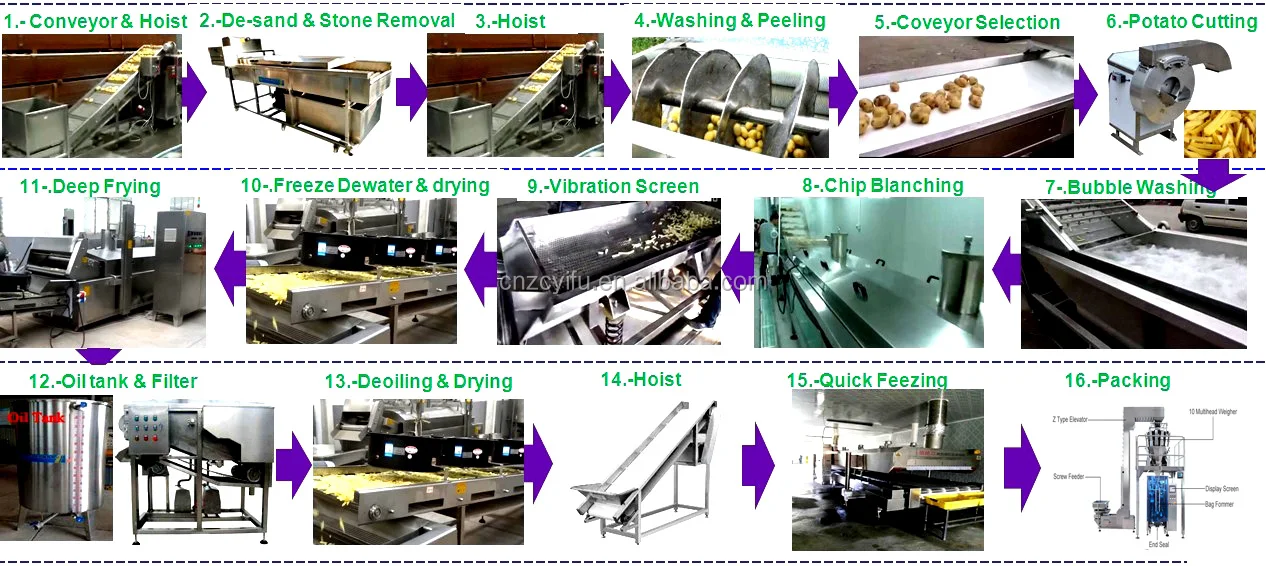

2.The frozen french fries production line making machine process:
1)Frozen french fries produciton line
washing and peeling-picking-cutting-blanching-frying-deoiling-quick freezing-packing
2)Vacuum packed french fries production line
washing and peeling-picking-cutting-blanching-dewatering-vacuum packing
3.The frozen french fries production line making machine service which we can supply:
1)As customer's demands(heating methord,capacity,workshop size,invest condintion) to supply the suitable proposal and quotation.
2)Further confirm and supply our experience(over 10years)
3)The order confirmation
4)Shipping
5)Overseas installation, testing and training
6)Good after sales service

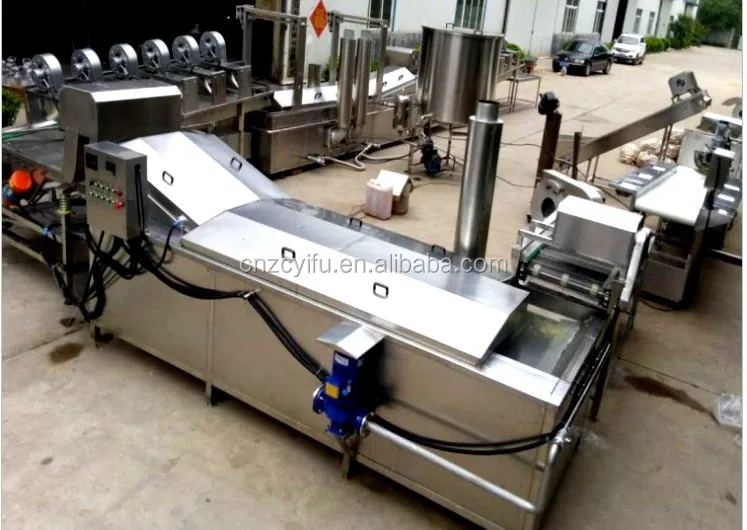

The follow is full-auto frozen french fries production line making machinery line
4.The specification of frozen french fries production line making machine:
The final products:frozen french fries/vacuum fresh french fries frying line
Size:7*6/8*9/10*10
Quality: hard french fries, smoothly surface, 12months shelf life
Quick freezer type:  Fluidized quick freezer for french fries individual frozen
Capacity: 100kg/h.

Automatic High Quality Frozen french fries production line 100kg/h--200kg/h
Frozen French Fries Production Line Making Machinery
Device Name                  Power and Voltage                                             Dimensions
1:Hoister                      0.75kw/380v/50Hz/3P                                        1800x800x1600mm

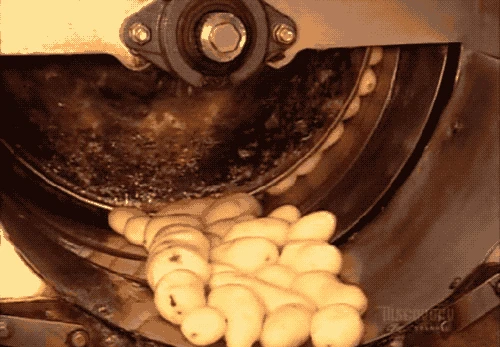

2:Washing and peeling machine\t4.75kw/380v/50Hz/3P          3100x900x1500mm
3:Inspecting table                0.75kw/380v/50Hz/3P                    3000x900x900mm
4:Potato cutter                1.1kw/380v/50Hz/3P                         950x800x950mm
5: Pelton hoist                     0.75kw/380v/50Hz/3P                 1500*800*1300mm
6:miscellaneous machine          0.75kw/380v/50Hz/3P          1600*1000*1400mm
7:Rinsing line machine            5kw/380v/50Hz/3P                3000x1600x900mm
8:Blanching line machine         70kw/380v/50Hz/3P            3500x1600x950mm
9:Air-dryer machine          15kw/380v/50Hz/3P                       3500x1200x1400mm
10:Hoister                0.75kw/380v/50Hz/3P                                          1500*800*1300mm
11:Vibrating machine           0.5kw/380v/50Hz/3P                         1500*800*1200mm

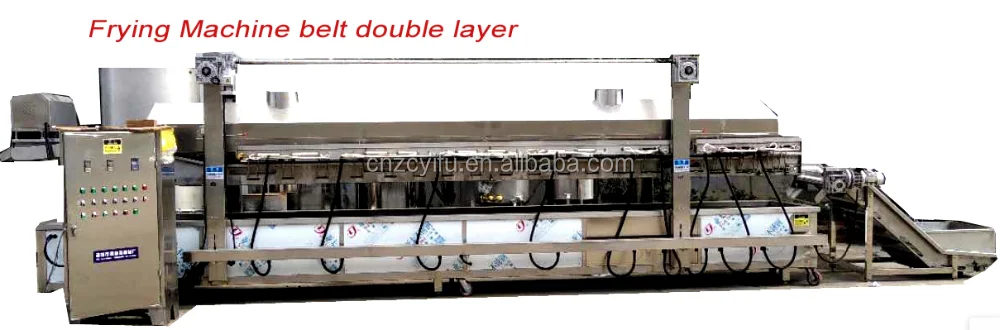

12:Continuous frying line machine\t140kw/380v/50Hz/3P              4000x1200x2400mm
13:Dried degreasing machine      8kw/380v/50Hz/3P                  3500x1100x1600mm
14:Hoister                   0.75kw/380v/50Hz/3P                                             2000x800x2200mm
15:Fluidized-type freezer          80kw/380v/50Hz/3P                         6000*3000*3000mm
16:Hoister                      0.75kw/380v/50Hz/3P                                      2100*600*2000mm

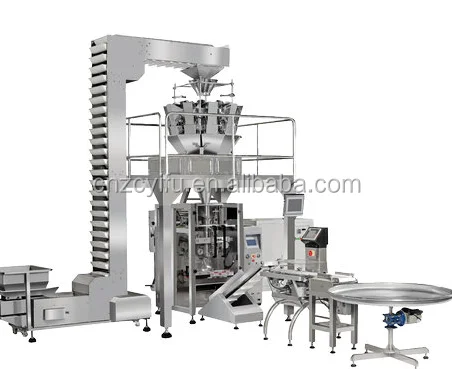

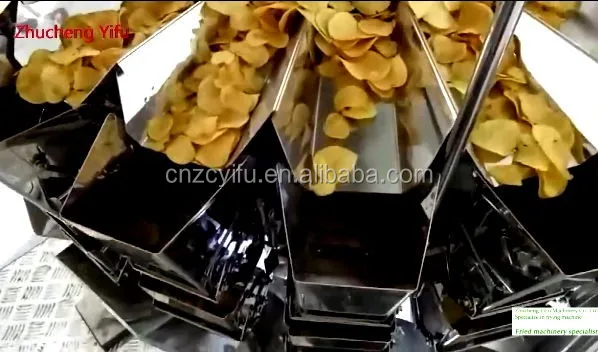

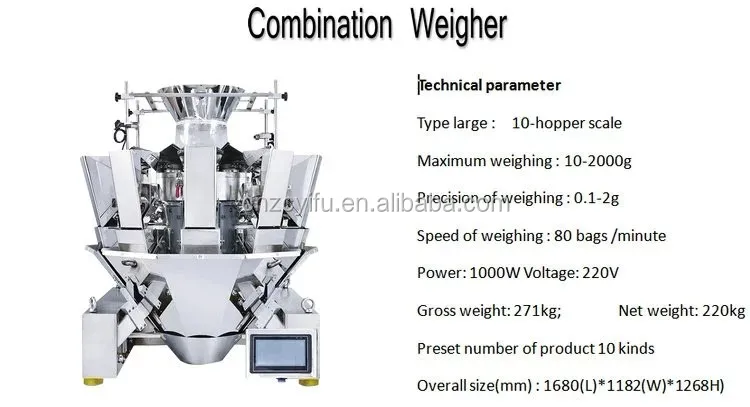

17:Automatic weighing machine         1.5kw/380v/50Hz/3P           900*600*2000mm
18:Foot Sealer           2kw/380v/50Hz/3P                                            1000*500*1200mm


Frozen french fries production line 100kg/h--300kg/h

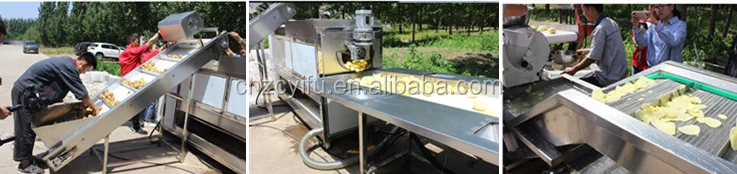

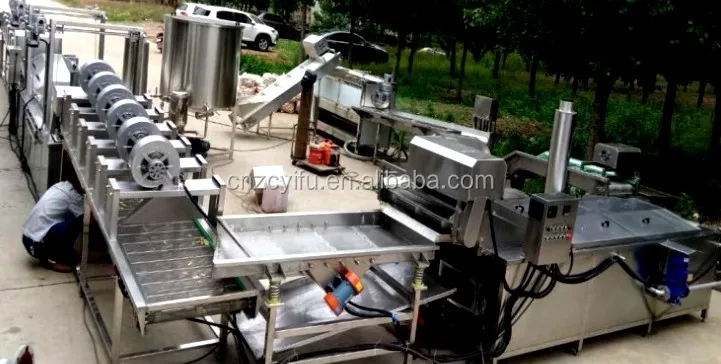

Detailed Images




Automatic High Quality Frozen french fries production line 100kg/h--200kg/h











Packing & Delivery






1.Packing:
Covered with film and put into the export standard wooden case, using the cystosepiment to prevent breaking .
The wooden case fix inside the container tightly by the rope.Export standard wooden case with pallet for unloading.
2.Shipping
 Directly for sending the machines to customers within shortest voyage as we can. And all main BL for ensuring the safety of the machines.
We update the shipping information to customer in time.







Our Company


Zhucheng Yi Fu Machinery Co., Ltd., is the earliest in the vacuum frying equipment, pure oil frying machine , oil and water mix frying lines, low temperature quick-frozen lines, sterilization lines, drying line, cleaning washing machine manufacturers.
1.Frying solution ( potato chips, french fries ,meat, Tofu ,Fish peanut,cake ,chicken , fruit , vegetable ..)

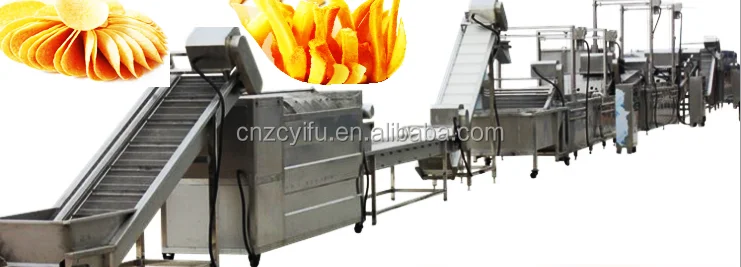

2.Potato solution: frozen french fries production line, potato chips production line.
3.frying machine ( batch frying , continuous frying machine, oil-water mix frying machine, pure oil frying machine).
4.Vacuum cooler/dryer
5. Vacuum frying machine
6.IQF tunnel quick freezer
7.Frozen vegetables processing/frying production line
8.Meat , Beef ,Chicken nuggets/burger patty processing/frying line
9.Dumpling donut , doughnut frying machine /making line.
10.Frying machine for Potato Pancakes , Potato cake, Dumplings , Kentucky Fried Chicken, Kataifi Rolls,chicken nugget, Fried glutinous rice balls, Fried pumpkin pie, sweet-potato pastry , Sweet potato cake , Fried sweet potato ball

Automatic High Quality Frozen french fries production line 100kg/h--300kg/h
