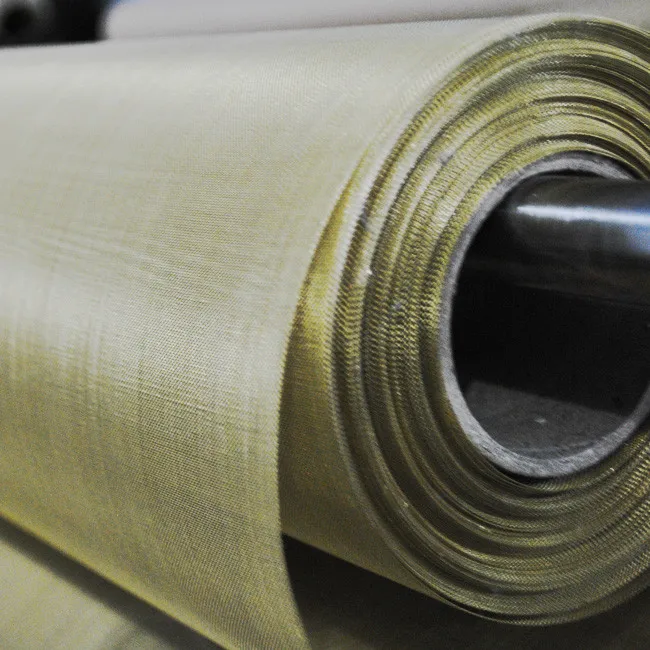

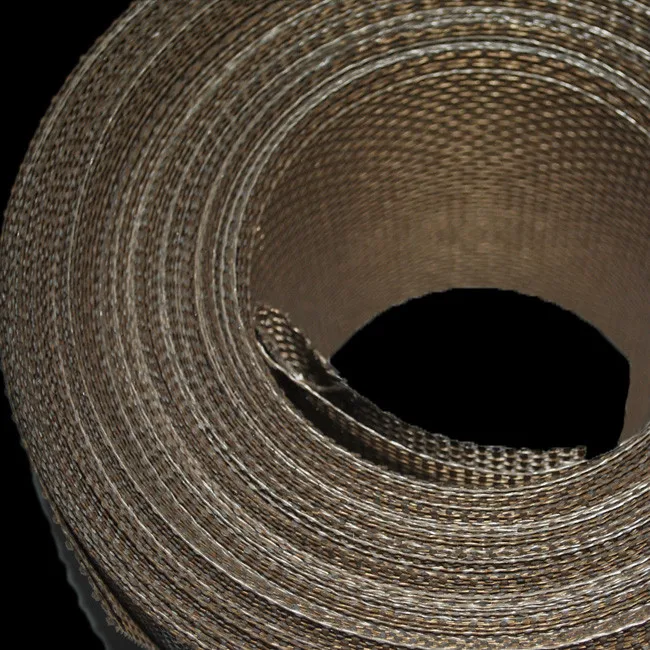

Brass copper grid mesh for screen filter

Material instruction: is it pur brass/copper wire?

The brass wire that we adopt has the high brass type with 80% copper and 20% zinc, as well as the low brass type containing 70% copper and 30% zinc. Compared with the copper wire, it has better resistance to corrosion and abrasion as well as lower electrical conductivity.

Application:

It is often used for decoration due to its bright gold-like appearance. Because it is softer than most other metals in general applications. Therefore, it causes less friction. Brass is often used in situations where it is important that sparks are not struck, such as for fittings around explosive gases.

Brass has a muted yellow color which is somewhat similar to gold. And it is relatively resistant to tarnishing.



Mesh Count	Wire Dia. (MM)	Opening(mm)
SWG	mm	inch
6mesh	22	0.711	0.028	3.522
8mesh	23	0.610	0.024	2.565
10mesh	25	0.508	0.020	2.032
12mesh	26	0.457	0.018	1.660
14mesh	27	0.417	0.016	1.397
16mesh	29	0.345	0.014	1.243
18mesh	30	0.315	0.012	1.096
20mesh	30	0.315	0.0124	0.955
22mesh	30	0.315	0.0124	0.840
24mesh	30	0.315	0.0124	0.743
26mesh	31	0.295	0.0116	0.682
28mesh	31	0.295	0.0116	0.612
30mesh	32	0.247	0.011	0.573
32mesh	33	0.254	0.010	0.540
34mesh	34	0.234	0.0092	0.513
36mesh	34	0.234	0.0092	0.472
38mesh	35	0.213	0.0084	0.455
40mesh	36	0.193	0.0076	0.442
42mesh	36	0.193	0.0076	0.412
44mesh	37	0.173	0.0068	0.404
46mesh	37	0.173	0.0068	0.379
48mesh	37	0.173	0.0068	0.356
50mesh	37	0.173	0.0068	0.335
60X50mesh	36	0.193	0.0076	-
60X50mesh	37	0.173	0.0068	-
60mesh	37	0.173	0.0068	0.250
70mesh	39	0.132	0.0052	0.231
80mesh	40	0.122	0.0048	0.196
90mesh	41	0.112	0.0044	0.170
100mesh	42	0.012	0.004	0.152
120X108mesh	43	0.091	0.0036	-
120mesh	44	0.081	0.0032	0.131
140mesh	46	0.061	0.0024	0.120
150mesh	46	0.061	0.0024	0.108
160mesh	46	0.061	0.0024	0.098
180mesh	47	0.051	0.002	0.090
200mesh	47	0.051	0.002	0.076

Recommendation:

1. 60 - 70 mesh count for making newsprint and printing paper.

2. 90 - 100 mesh count for typewriter paper.

Manufacture:

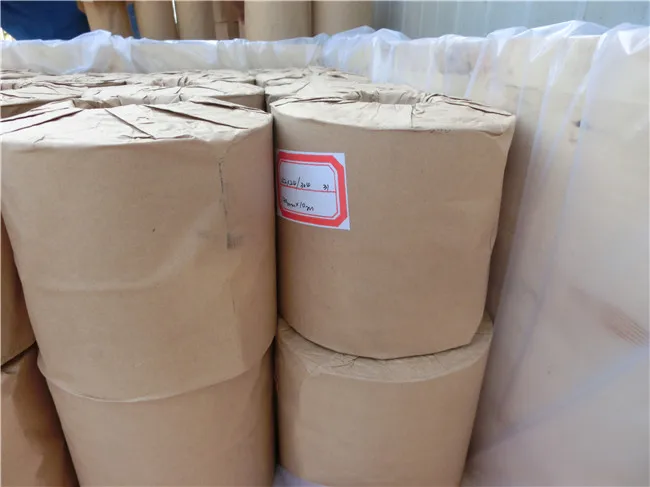

Packing:
