BU-50 BYPASS OIL CLEANER FOR MOLDING SYSTEM OIL CLEANER
This BU-50 oil cleaner is designed with bypass filtation system.
The oil coming from the hydraulic pump flow through a specially designed throttle valve which distributes a certain amount of oil to the CGL oil cleaner for accurate filtration.After filtrated,the clean oil return to oil tank.The oil cleaner ensures a constant oil circulation continuously.It does not require a routine maintenance in addition to periodic replacement of filter core .The more frequent of hydraulic pump running,the more cleanof oil.It keeps oil clean at all times
Features:
1. Very compact and light bypass oil cleaners.
2. Connect directly to the high pressure line. No motorand pump necessary.
3. Designed for hydraulic system up to 10~210kgf/cm2.
4. With built in pressure, andlfow control valve ,saftey valve and pressure gauge for checking element change.
5. Low running cost, easy installation and maintenance, also available for water glycol fluids, with coated housing and WG element.
Parameters

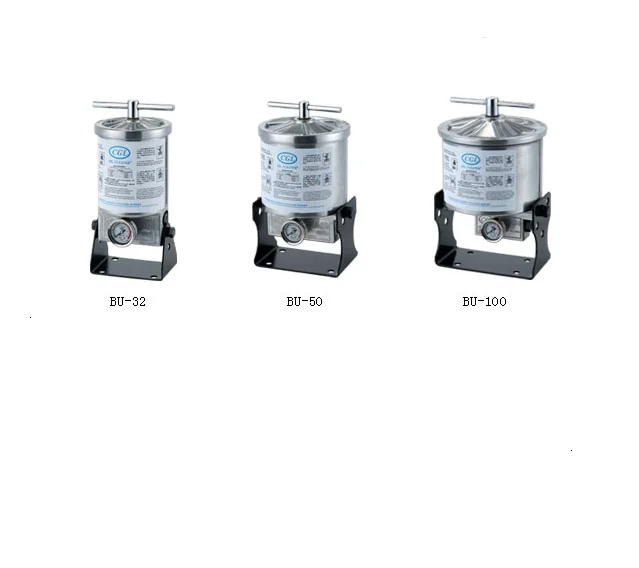

MODEL | BU32 | BU50 | BU100 |
Applicable oil | Hyd,ad lubr.Oil etc. | ||
Filtration accuracy | From NAS class12 to NAS class6-9(1pass) | ||
Pressure range | 10~210kgf/cm2 | ||
Flow amount(L/min) | 1.0 | 1.5 | 2.0 |
Oil temp | 0~80℃ | ||
Viscosity Range | 9~180cSt | ||
In/out port | IN.RC1/4,OUT.G3/8 | ||
Prs gauge | φ40,0~10kgf/cm2 | ||
Weight | 2.5Kg | 4.0 Kg | 6.5Kg |
Oil tank cap | Max300L | Max500L | Max1000L |
