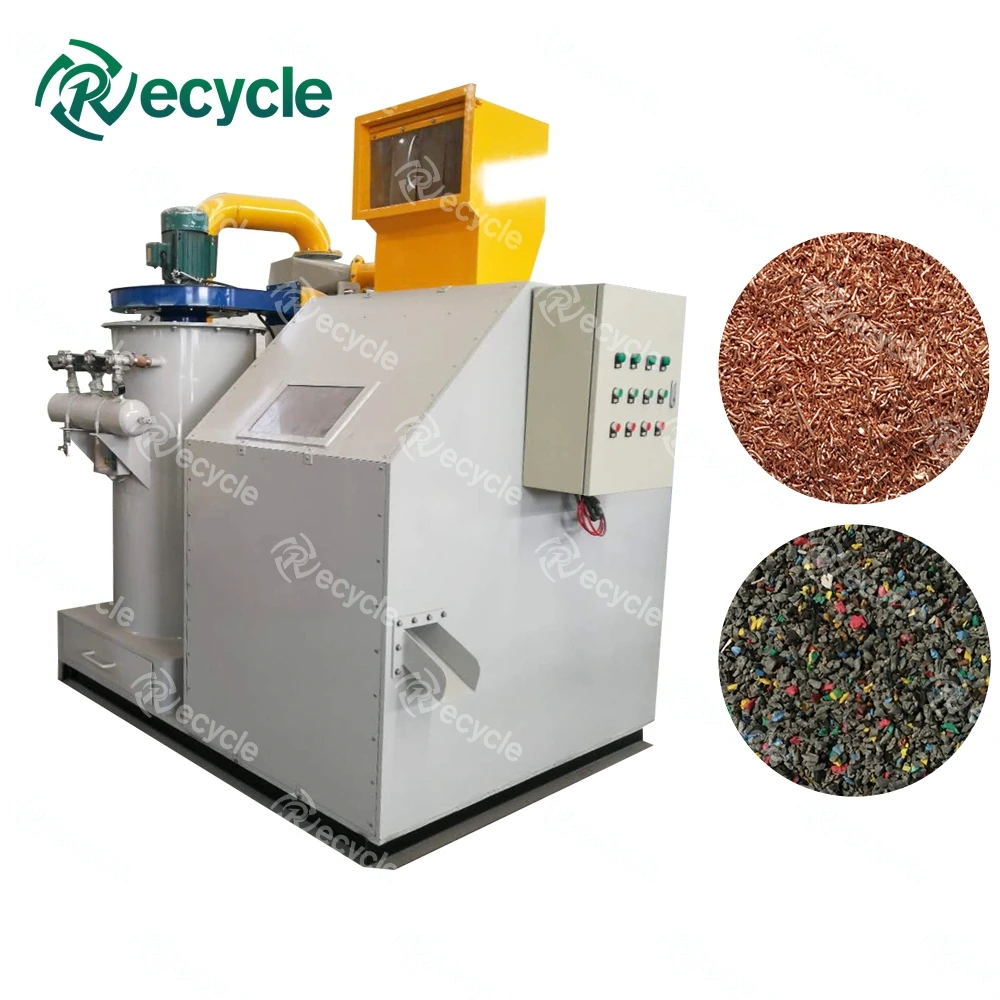

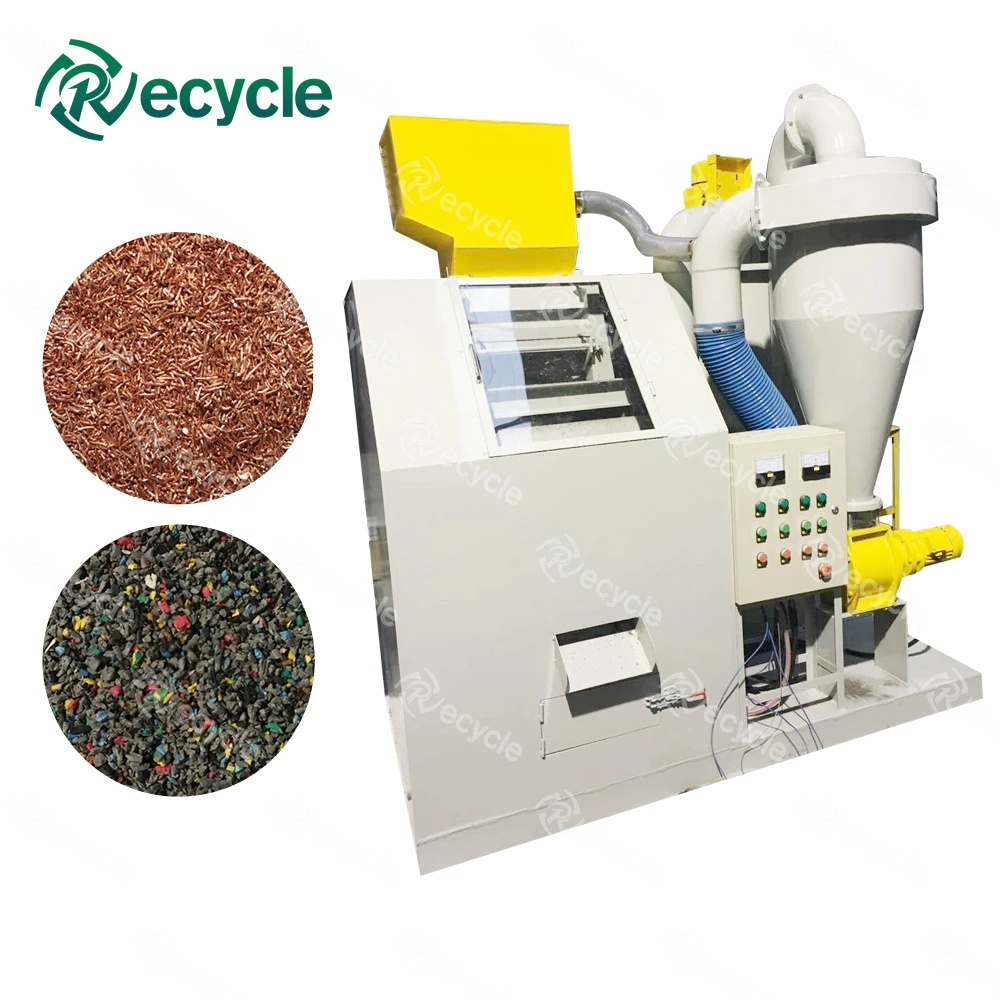

High Performance Scrap Cable Crusher Copper Wire Recycling Machine
PRODUCT APPLICATION
The High Performance Scrap Cable Crusher Copper Wire Recycling Machine is dry type structure, mainly used to all kinds of waste copper wire, the copper wire will be separated into tiny copper rice and PVC. High Performance Scrap Cable Crusher Copper Wire Recycling Machine can recycle the copper wire which diameterer is 0.3mm-20mm. Automobile electrical wire or the electric wire of car, motorcycle electric wire, computer case wire and communication calbe, etc.
FINAL PRODUCTS
High Performance Scrap Cable Crusher Copper Wire Recycling Machine process the waste electric wire and cable into copper and plastic granule. Copper is separated from the plastic, separation efficiency can be 99%. For the copper granule, it can be sold directly or go to further refining. Through our copper electrolysis machine, the copper can be refined into cathode copper in above 99.99% purity. The plastic granules normally are PVC or rubber material, it can also be sold directly.High Performance Scrap Cable Crusher Copper Wire Recycling Machine
PRODUCT STRUCTURE
High Performance Scrap Cable Crusher Copper Wire Recycling Machine consists of shredding system, crushing system, sorting system and dust collection system. The whole process is controlled by PLC. High Performance Scrap Cable Crusher Copper Wire Recycling Machine
Through shredding, crushing, vibration screening, (the incompletely separated metal and nonmetal will reentry into the crushing machine and be crushed again) gravity separating, electrostatic separating and pulse dust collecting, the separation rate of the copper and plastic will reach about 99% , eventually get metal and non-metallic collective.
PROCESS DESCRIPTION
For the small capacity, the cable wire raw material can be put into the all-in-one machine directly, after crushing, then the air separtor will make the copper and plastic suspended on the screen. Then the Copper will be separated from the plastic by weighting method and the friction force which produced by the Surface of the mesh. High Performance Scrap Cable Crusher Copper Wire Recycling Machine
For larger capacity, the cable wire raw material will be firstly put into the shredder, then go into crusher to get the small pieces wires, then the air separator will make the copper and plastic suspended on the screen to separate the Copper from the plastic by weighting method and the friction force which produced by the Surface of the mesh. To improve the purity and capacity, the rest materials will be go into our high voltage electrostatic separator. The copper wire recycling production line including the crushing system, air separator system, dust and fiber collection system and high voltage electrostatic separator.PRODUCT FEATURE
1. Compact structure and reasonable layout, safe and reliable, easy to install.
2. Controlled by PLC. Continuous feed, intelligent operation, automatic alarm make it easy to operate and save your time and energy, to ensure the stable operation of the equipment.
3. The shredding machine adopts the high hardness main shaft, make it has more impact power when crushing materials. It is composed of micro cutting head and cylindrical tool rod, greatly reduces the wearing (blades).
4. The crusher, air separator and the pulse dust collector installed together, so the structure of the machine is easy to move and transport.
5. The second crusher adopts alternate blades leading to high productivity, low noise and stable running.
6. This production line use the air separator and the high voltage electrostatic separator together, to improve the recovery rate up to 99%.
7. Back feeding system will crush the unfinished material again, which guarantee the totally separation of copper and plastic.
8. No dust outlet, the dust separation rate can reach up to 99%.
9. The blade and screen adopts special wear resistance and high toughness alloy material, which improve the service life and reduce the production cost.

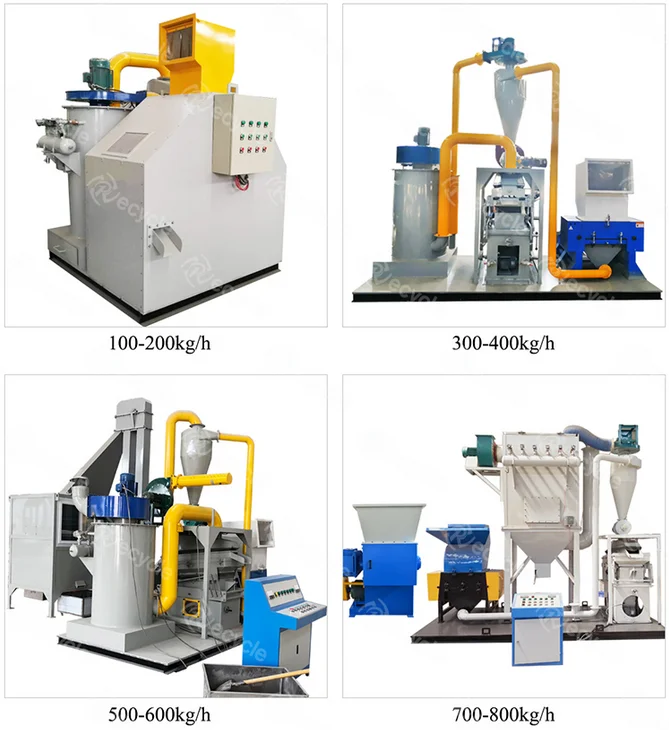

PRODUCT DISPLAY
Technical Parameters
Model
Power (Kw)
Weight (Kg)
Capacity (Kg/H)
Dimension (m)
ZY-TMJ200
28
1850
100-200
2.2*2*2.3
ZY-TMJ300
39
2500
200-300
3.2*2.1*2.3
ZY-TMJ400
45
3200
300-400
4*2.1*2.5
ZY-TMJ500
68
3850
400-500
6.2*5*3.3
ZY-TMJ800
75
5500
700-800
10.4*2.1*3.3
ZY-TMJ1000
95
8200
800-1000
12*4.1*4.5
TIPS:
1. Working voltage:380±10V(415V ,440V also can be custom);
(If you want more detailed parameters and quotations, please contact us)
RECYCLE support team has more than 20 professional engineers to provide clients professional solutions, facing multitudinous requirements, RECYCLE team always pay patience and offer as more options as possible, to ensure every users have all security while running our machines, in this way, RECYCLE keep growing and now owns ability of taking large wood to sawdust/powder plant, scrap tires to rubber granules/powder plant, waste metal downsize project,WEEE recycle plant in China or abroad, under the support of internal business department, RECYCLE is able to take"Turn-Key" projects in China or abroad. High Performance Scrap Cable Crusher Copper Wire Recycling Machine
WELCOME TO VISIT OUR FACTORY
-- Our customers from over 30 countries and regions.
-- High efficiency,high quality,lowcost. No chemical process involved and no pollution.
-- We provide engineer to help you with installation, training, our engineers are also available to install overseas if you need.
1). We are manufacturer with own factory for many years.
2). With professional design and sales team, we can serve you perfect solution with competitive direct factory price.
3). Our machines are popular among customers around the world ( India, Pakistan, Spain, Italy, Korea, Mexico, UK etc).
Q: What Is Your Service?
1). Pre-Sale Service
According to the customers' special requirements,we provide the most suitable project design, process design and the purchase program. Guide customers to choose the best and economical plant, recover investment within short time.
2). On Sale Service
You are welcome to visit our factory to test the machine. And we will customize the equipment strictly according to your special requirements and arrange the timely delivery.
3). After-Sale Service
We will provide one year warranty for our machine.According to your need,we will dispatch our engineers to your factory to guide the installation,commissioning and training your workers.
Q: How Do You Ensure The Machine Quality?
A: You can send your sample scrap materials to us and we will test the machine for you without charging the fees. And we can send the machine test video to you. According to your time, you can pay a visit to our factory to test our machine.
Q: How About The Motor?
A: We use domestic Chinese-famous motors,but you can choose Siemens or other brand motor as your requirement.
