HTL3140ASY дешевый наружный автомобильный подъемник с асимметричной
- Категории: Car Lifts >>>
- Поставщик: Hauvrex,(hangzhou),Automotive,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
\t\t\t\t\t\t\t\t\tProduct Photo \t\t\t\t\t\t\t
Hauvrex car lift:Steady and prompt,guided operation and independent intellectual property rights.

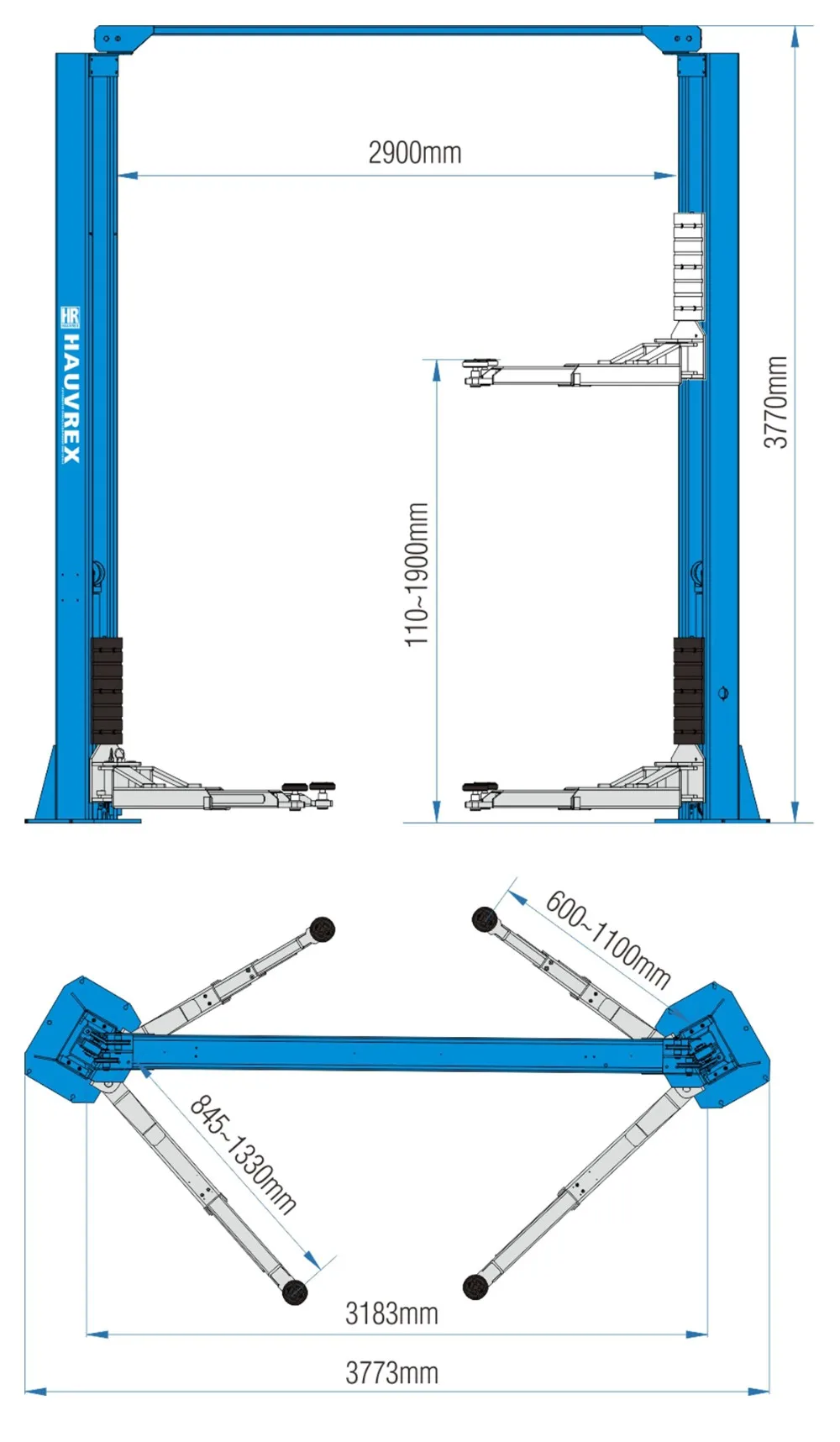

Technical Drawing
Technical Parameters
Lifting Capacity | 4000kg |
Min. Height | 110mm |
Max. Lifting Height | 1900mm |
Overall Height | 3770mm |
Overall Width | 2773mm |
Width between Posts | 2900mm |
Short Arm Length | 600mm~1100mm |
Long Arm Length | 845mm~1330mm |
Lifting/Lowering Time | 55 Sec./45 Sec. |
Motor Power | 2.2kW |
Power Supply | 380V/50HZ/3Ph 220V/50HZ/1Ph |
Product Description | ||||||
♦ Baseless lift, allows easy access into the working area. | ||||||
♦ Asymmetric column design makes vehicle door open easier. | ||||||
♦ Dual-point mechanical lock release. | ||||||
♦ Two-stage elbow type arms and two-stage straight arms provide asymmetric lifting of vans and off-road vehicles. | ||||||
♦ Arms suitable for quick drop-in extensions and other lifting accessories. | ||||||
♦ Automatic arm locking during lifting and automatic unlocking when the arm reaches the floor. | ||||||
♦ Equipped with safety valve to prevent overloading and in case of hydraulic pipe fracture. | ||||||
♦ Self-controlled lowering speed. | ||||||
♦ Mechanical safety latch with automatic engagement ensuring maximum safety when lift is in standing position. | ||||||
♦ Overhead safety cut off. | ||||||
♦ Rubber door guards protect vehicle from door damage. | ||||||

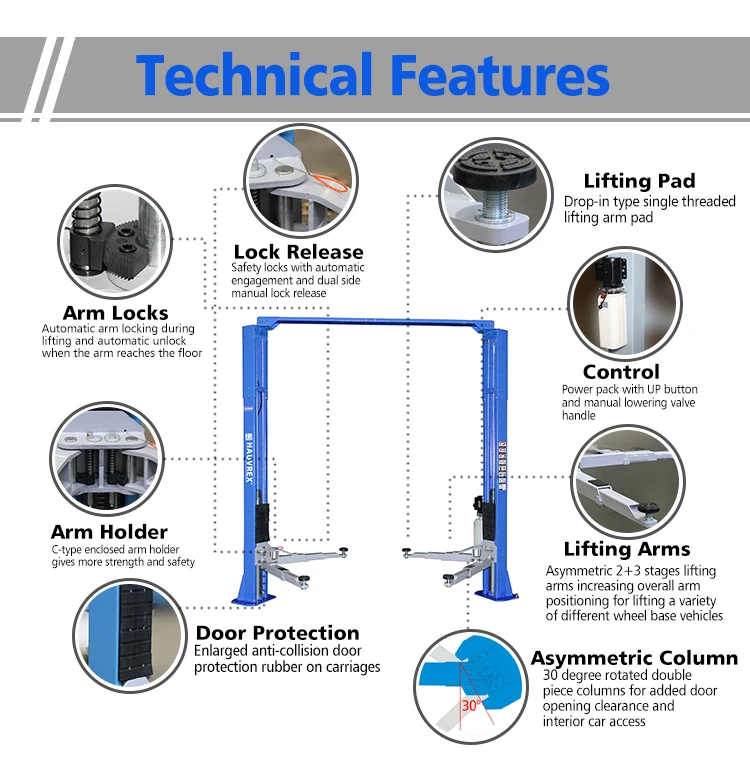

Product Details
Control
Power pack with UP button and manual lowering value handle
Lifting Arms
Asymmetric 2+3stage lifting arms increasing overall arm positioning for lifting a variety of different wheel base vehicles
Lifting Pads
Drop-in type single stage threaded lifting arm pad
Arm Locks
Automatic arm locking during lifting and automatic unlocking when the arm reaches
the floor
Lock Release
Safety locks with automatic engagement and dual side manual lock release.
Arm Holder
C-type enclosed arm holder gives more strength and safety
Door Protection
Enlarged anti-collision door protection rubber on carriages
Asymmetric Column
30 degree rotated double piece columns for added door opening clearance and interior car access
none
none
Why choose Hauvrex?
Packing & Delivery
Related Products
Company Info
1.HAUVREX have full range of garage equipments.
You can buy most items in HAUVREX related to garage equipments to save your energy to purchase somewhere else.
2.HAUVREX main products:
1)car lifts(1 post lift,2 post lift ,4 post lift,scissor lift,etc)
2)tire changer(car tire changer,truck tire changer,semi-automatic tyre changer,full-automatic tyre changer)
3)wheel balancer(car wheel balancer,truck wheel balancer,semi-automatic wheel balancer,full-automatic wheel balancer)
4)Wheel alignment(commercial ccd Wheel alignment,commercial zigbee wheel alignment,3D wheel alignment, truck wheel alignment)
3.Easy way to submit the order
You can submit the order list in our website www.hauvrex.com ,after we get the list ,we will issue the PI to you to save your time!
4.HAUVREX quality management:
To guarantee high quality and efficient management, we have passed ISO9001 quality management system certificate and CE certification. All of our products are 100% inspected before shipment.Our whole manufacturing processes are under a very serious and strict system in our company.
5. HAUVREX services:
To meet the every demand of customer is our goal. We are standing by for any question of customer. We try to make our service fast, efficient and satisfied.
6. HAUVREX products warranty:
We provide 12 months trouble-free warranty and online support for all of our machines. We will provide the service forever. We are standing by for any of the quality problems.
