Уличный Алюминиевый автомобильный навес/металлический навес/навес для

Описание и отзывы

Характеристики

Dimension:	3m x 6m x 2.1m(W x L x H) for 1 car 6m x 6m x 2.1m(W x L x H) for 2 cars
Materials:	Roof cover is PVDF membrane
	Roof structure is Aluminium
	Column and beam is galvanizing steel
Weight:	300kg for 1car 450kg for 2 cars
Package:	Plywood case
Anti-wind:	10 grade(100km/h)
Anti-snow:	75kg/sq.m
Fire Resistance:	DIN4102 B1/M2
Life span:	15-20 years
Labour:	3 persons
Time of installation:	2-3 hours
Color:	Yellow,Gray,Blue,White,Brown,White,etc
Container loading:	40units/20ft for 1 car 32units/20ft for 2 cars





Material Introductions:

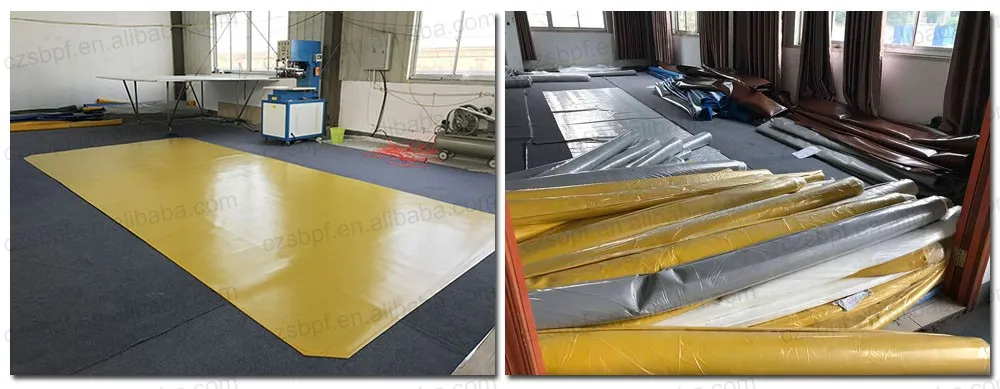

1. Materials of roof cover

Roof cover of this carport is made of 1150g/sq.m high density polyethylene fabric coated with PVDF (Polyvinylidine Fluoride) at surface.It is high quality at waterproof,flame retardant,UV resistant,heat insulating and will not sag,fade,rot or mildew.The temperature resistance(ºC) is from -40ºC to +70ºC and the life span is at least 15 years.Color options:Yellow,Gray,Blue,White,Brown,White,etc

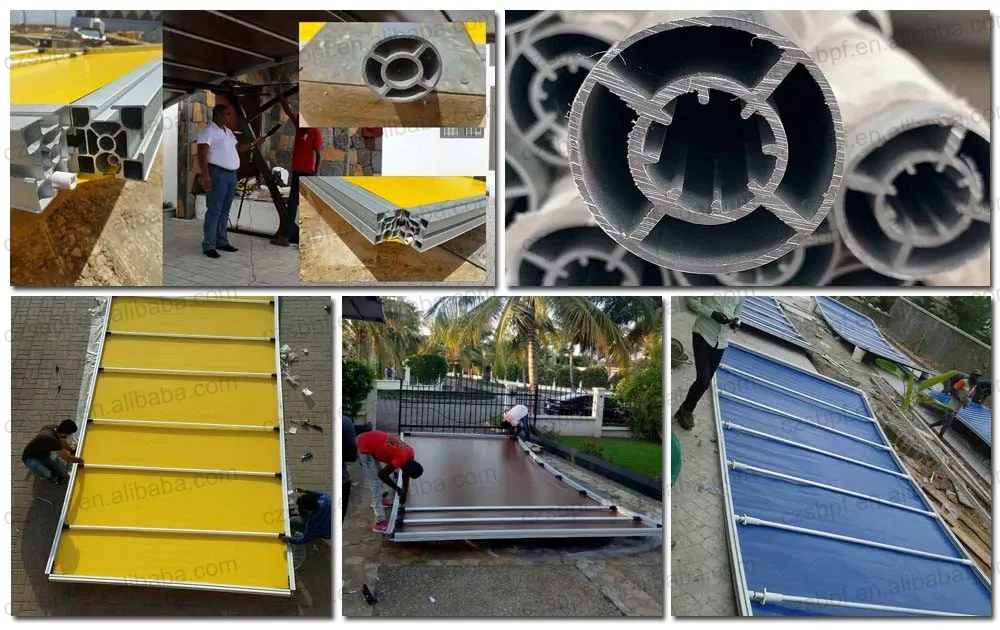

2. Materials of roof structure
The roof frame to attach the PVDF membrane is made of aluminium(6061-T6).

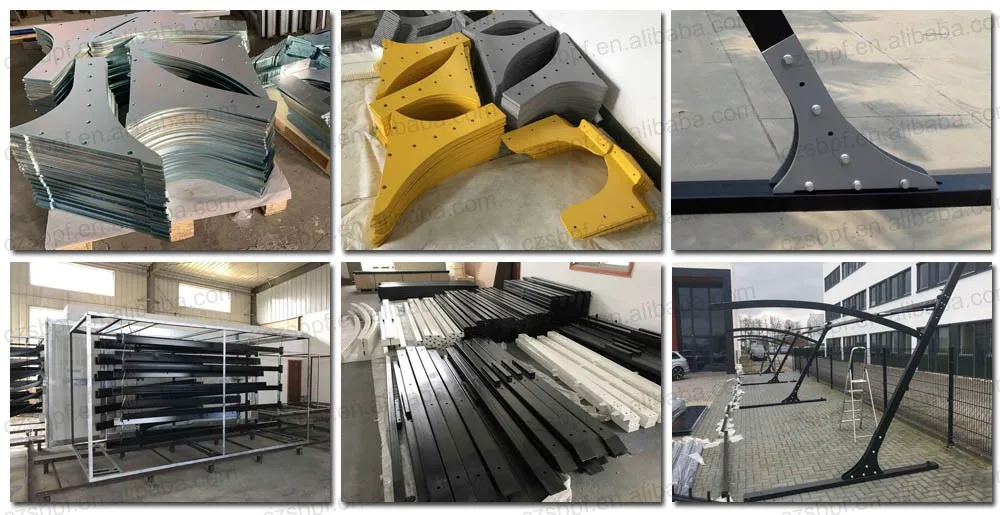

3. Materials of Column and Beam
It is made of Q235 steel,and we use the best surface treatment process for the steel---electrostatic powder spraying and hot galvanizing,it is high quality at resistance to corrosion and oxidation,also will be not fade.Color options:Black,White,Brown,Green,etc

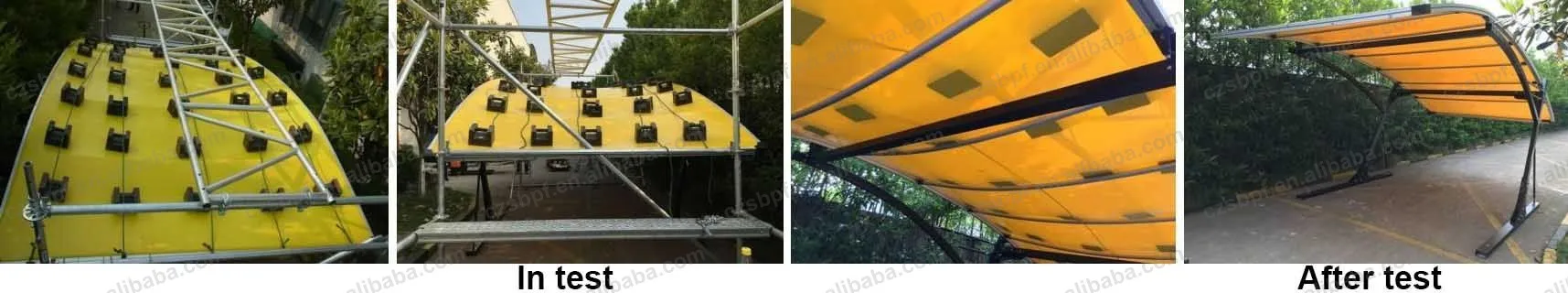

Resistance of our carports to Wind and Snow load:

Our carport are not only the beautiful apprearance,but has also been designed to withstand the extreme climate,especcilly is the typhoon and heavy snow.It can withstand 100-120km/h Wind Speed.Besides,we also supply the expand screws for you to fix carport on the ground very well.

Our carport is well designed against the heavy snow.There are 6-8 aluminium pipes on the roof to support the heavy snow.Snow load exceed 0.3KN/sqm(50kg/sq.m and thickness of snow at 40-50cm).

Guarantee of Our Carports:
We have quality control team who have strict quality control on all raw material. We ensure each part of carport will be in the highest quality.
The warranty of our carport is 5 years,if you have quality problem you need submit detail instruction and send clear photos for us in 7 days after you receive the product,then we will deal with the problem in 15 days.If the structure or cover of our carports has quality problem,we can send the new parts for free to you to replace.If it is damaged by your local people,we will offer to you at our lowest cost price.

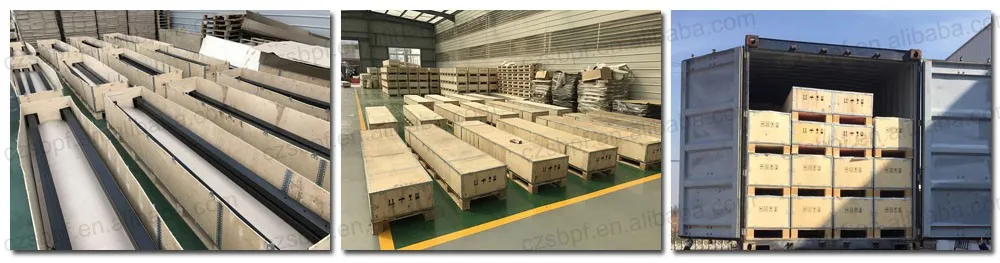

Packaging & Shipping:
The carports will be packed in wooden case to avoid something missing or damage in the transport process.Please see the package size and weight as follows.

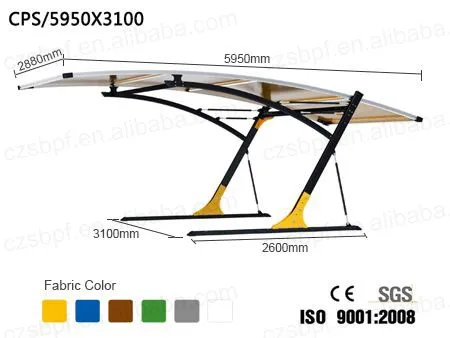

Item	Carport size	Packing size	Packing weight	20ft container
Single carport	5.95(L)x3.1(W)m	2.9x0.58x0.43m	350kg	40units
Double carport	5.95(L)x6.0(W)m	2.9x0.58x0.50m	500kg	32units
Triple carport	5.95(L)x9.0(W)m	2.9x0.58x0.65m	650kg	24units
Carport for 4cars	5.95(L)x10.0(W)m  5.95(L)x12.0(W)m	2.9x0.58x0.75m 2.9x0.58x0.80m	750kg 800kg	24units 24units

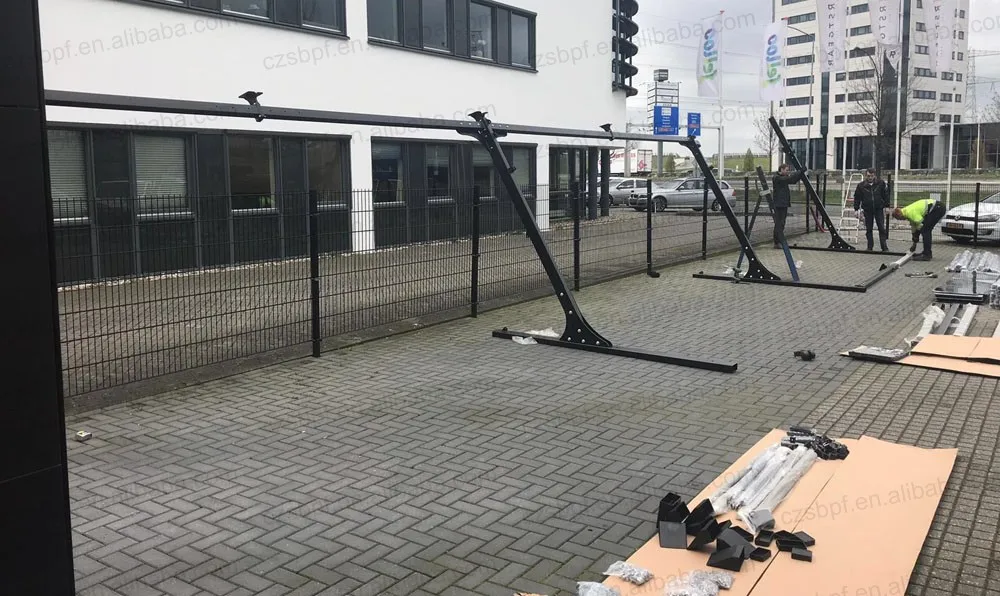

Installation of our carports:
It is not difficult to install this carport.We will offer detail Installation Manual(documents and video) to you to study.
