26Pin соединением PLC Клеммная колодка интерфейсный модуль доска
- Категории: ПЛК >>>
- Поставщик: Wenzhou,Ginri,Power,Automation,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Specification
Model | JR-26TSC |
Mounted connector type | SCSI/MDR |
I/O points | 20,26,36,50 |
Wiring method | Euro terminal (slotted screws) *Japanese terminal (Phillips screws) can be customized |
Rated current | 1A |
Rated voltage | DC24V,AC125V |
Insuration resistance | 100M min. (at 500VDC) |
Dielectric strength | 500VAC 1min |
Ambient operating temperature | -20 ~+55℃ |
Applicable wires | AWG 22~16(0.3~1.25mm2) 6~7mm |
Dimensions(WxH) | 49*44MM |
Mounting | Din rail |
Product Paramenters
1.Features
--Support most of PLC output interface
--Standard DIN rain mounted
--High quality connectors with excellent stability
--Models available with Phillips screw, slotted screw
--Greatly savings in wiring and wiring Work
--Easy for inspection and maintenance
-- Compact slim 49mm width
--Standard DIN rain mounted
--High quality connectors with excellent stability
--Models available with Phillips screw, slotted screw
--Greatly savings in wiring and wiring Work
--Easy for inspection and maintenance
-- Compact slim 49mm width
2.Protective Functions
-- Overvoltage -- Undervoltage
-- Overvoltage -- Undervoltage
3.Typical Applications
--Micro-controller
--PLC control
--Electro-magnetic valve
--DC Motors
--Home intelligent control
--Servo System
--CNC machine
--PLC control
--Electro-magnetic valve
--DC Motors
--Home intelligent control
--Servo System
--CNC machine

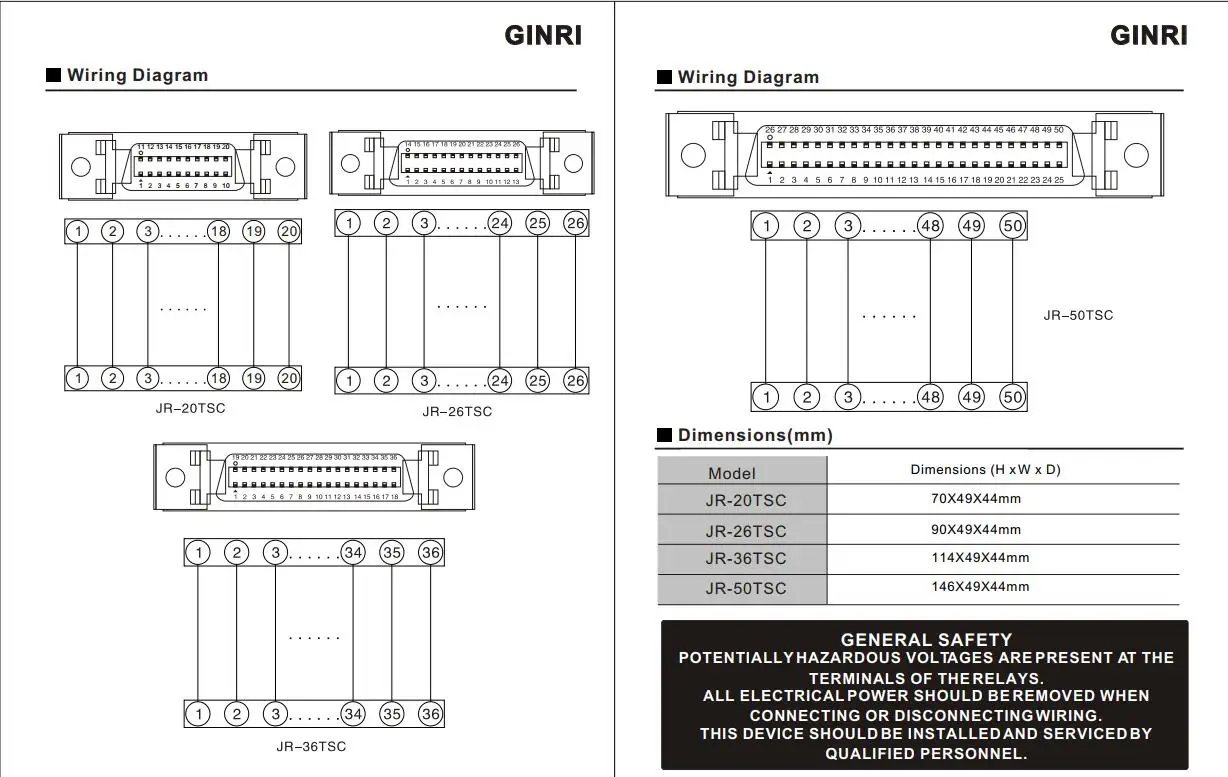

Wiring diagram
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Ginri Selection Guide
Company Profile
FAQ
Q1. What advantages do you have?
A1. Ginri Power Automation are the direct Manufacturer in Wenzhou China from 1995, we have professional developing, marketing & production team to offer you the most competitive price and best service.
Q2. What’s your main product?
A2. We are 100% focus on Automation Products Voltge Monitoring Relay, Motor Protection Relay, Relay Modules, and
Connector-Terminal Conversion Units.
Q3. Could you print our own logo?
A3. Yes, Our company are available for Retail & Wholesale & OEM & ODM.
Q4. How long is the quality guarantee?
A4. 18 month warranty, our products are 100% inspection.
Q5. How long is the deliver time?
A5. It usually takes about 3 - 5 working days for sample order and 10 - 25 days for big order.
Q6. What is your payment terms?
A6. Our Payment term is T/T, Aliexpress, Western Union, PayPal, Money Gram, L/C at sight.
Q7. How could I get your sample?
A7. You can request sample purchse through our alibaba trade assurance service.
A1. Ginri Power Automation are the direct Manufacturer in Wenzhou China from 1995, we have professional developing, marketing & production team to offer you the most competitive price and best service.
Q2. What’s your main product?
A2. We are 100% focus on Automation Products Voltge Monitoring Relay, Motor Protection Relay, Relay Modules, and
Connector-Terminal Conversion Units.
Q3. Could you print our own logo?
A3. Yes, Our company are available for Retail & Wholesale & OEM & ODM.
Q4. How long is the quality guarantee?
A4. 18 month warranty, our products are 100% inspection.
Q5. How long is the deliver time?
A5. It usually takes about 3 - 5 working days for sample order and 10 - 25 days for big order.
Q6. What is your payment terms?
A6. Our Payment term is T/T, Aliexpress, Western Union, PayPal, Money Gram, L/C at sight.
Q7. How could I get your sample?
A7. You can request sample purchse through our alibaba trade assurance service.
