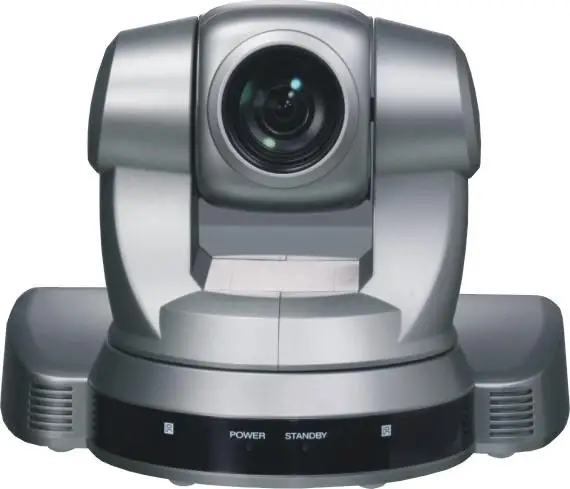

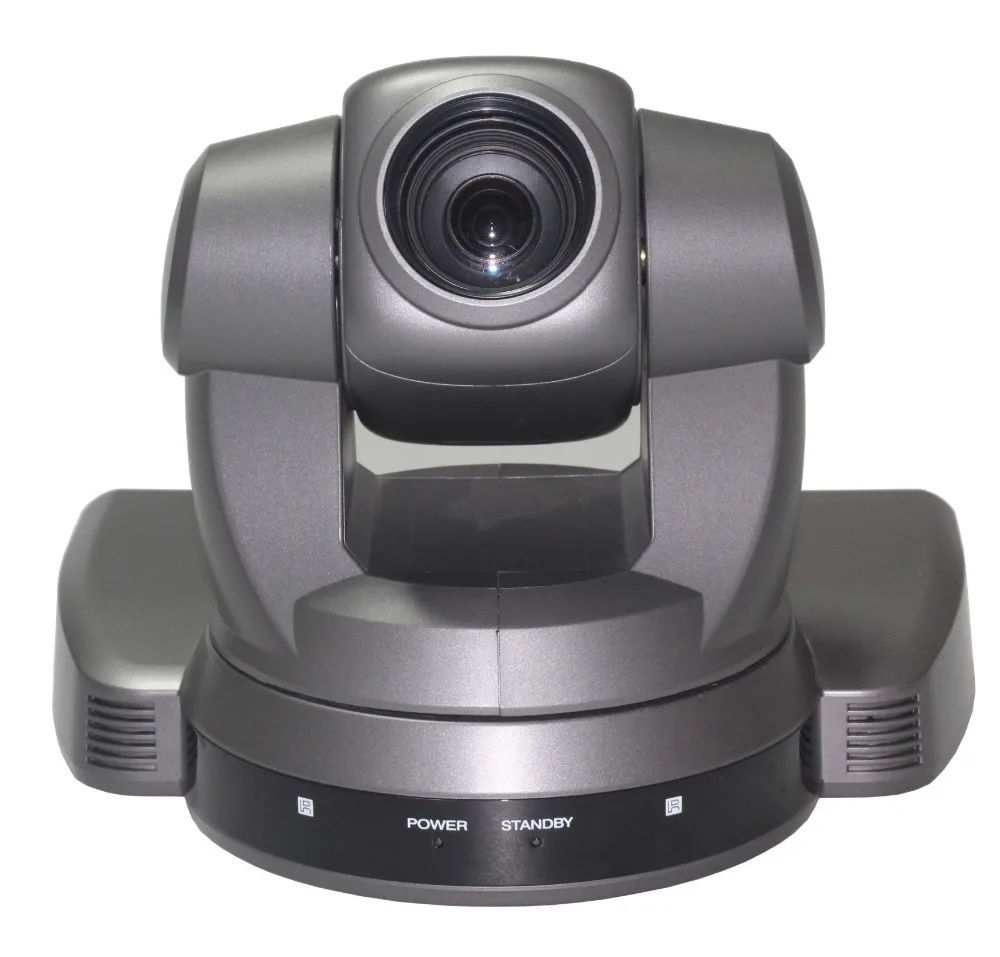

SOC-701HD SINGDEN conference video camera professional
(image smooth 1080 P / 59.94, 50)
1.8 V low super-fast 3 GBT/s FPGA processor
Effects: Edge sharpness ultrahigh image enough reduction,black and white article without the interference phase boundary,Under the condition of ultrahigh image contrast high lumen image gray scale reach level 10,ultra fine image noise reduction effect ,high quality color reduction.
♦The product features
HD26xP - SDVI is the company to develop a high intelligent man-machine dialogue, can be custom menu programming and operating information display; Can condole top, have auto-reverse function; Built-in Built-in 26x optical zoom, ,automatic focusing import hd movement, with high-speed holder, 256 presetting bit and has regular calibration reset function; Support SONY VISCA, PELCO P/D RS232C and RS422 communication protocol of 1080 P / 50 and 59.94 digital non-coding output broadcast hd video conference cameras.
•26x optical zoom
•Horizontal resolution: 1/2.8 CMOS 3.3 million pixels
•Electronic switch upside down and rotate 360 degrees
• VISCA Computer control software extend the agreement
• A variety of quick video continuously electric switch, two kinds of high definition video output at the same time
•The menu can choose l VISCA, PELCO protocol to operate
• Multi-function QuickSeeting, call, modify, input, remove ect. Function convenient operation and use
•Boot self-checking message reminder,Remote menu changes the agreement, address, baud rate and so on communication information.
•Variable lens changing times to control the speed : through the built-in menu Settings will be set the speed at 1-7 level
•Clock display, menu programming 10 group clock timing run: preset position, the vertical/horizontal scanning ,preset a patrol at four o 'clock scanning , multi-point scanning
•256 preset bit arbitrary programming function:residence time 1-255 seconds, can be set up through the Settings menu
• 2 groups synchronized tracks run storage demonstration,can be memory of all the standard P/T/Z control trajectory
•Level of manual control speed: 0.1-180 degrees per second;Vertical manual control speed: 0.1-120 degrees per second
•Output HD-SDI signal fully support SMPTE424M, SMPTE292M, SMPTE 259 m, transmission rate 2.970 Gbps
♦Technical parameters
Model HD26xP-SDVI | |
Imaging device | 1/2.8CMOS 3.3 million pixels Machine chip adopt VDC - CH3033A) |
Image system | 1.8V Low consumption ultra-high speed3Gbt/s FPGA processor |
Horizontal resolution | 1080P/1080i |
Lens | 26x optical lens, 16x electronic amplification |
Optical focus | F=2.9-122.4mm,F=1.6-3.5 |
Horizontal view angle | 2.9 degrees-122.4 degrees |
Object distance | 10-1000mm |
Minimum illumination | 0.05Lux/1.0Lux |
Gain | Automatic/manual can be set |
Focus | Automatic/manual can be set |
SNR | >50dB |
Shutter speed | 1/50to 1/10000 Automatic/manual can be set |
White balance | Automatic/manual/zoom trigger/outdoor/indoor/a key trigger |
DNR | High/medium/low |
Translation/pitching Angle | 360 degrees (translation), + 90, -30 degrees (pitch) |
Translation/hoisting speed | 0.1-180 degrees (translation), 0.1-120 degrees (pitch) |
Translation/hoisting speed | Automatic/manual can be set |
Translation/pitch direction | Can be arbitrary set manually |
Default location | 256 programmable position |
Language | English |

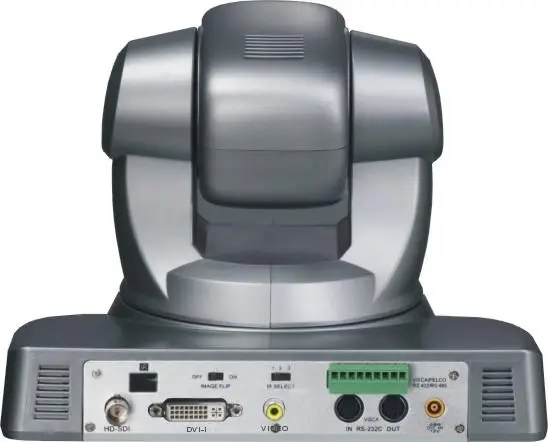

Video output | HD-SDI /DVI(VGA/Y.Pb.Pr/VBS) out put at the same time |
Camera control interface | RS-232C(VISCA protocol)/RS-422(VISCA protocol) PELCO:P/D |
High definition interface HD | HD-SDI digital non-coding |
High definition Format HD | 1080P/25,29.97,50,59.94,60;1080i/59.94,50;720p/59.94/50 |
Transmission distance | RG59:100m;RG11:200m |
Working temperature | 0°C~40°C |
Storage temperature | -20°C-60°C |
Power supply request | DC12V |
Power consumption | 12W |
Weight | 2.5kg |

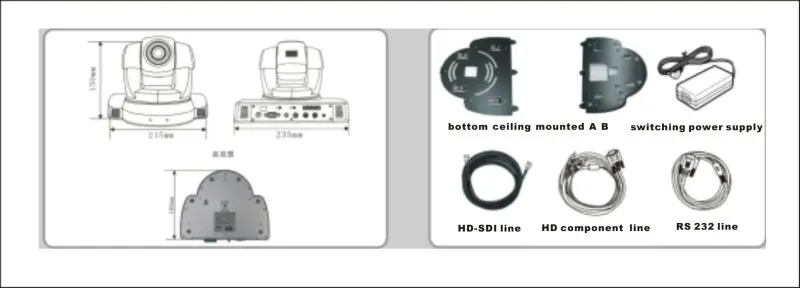

Accessories included
| AC adapter(1PCS),Infrared remote control(1PCS),AC adapter cable(1PCS),ceiling mounts(2PCS 1 SET), operating manual (1COPY) |

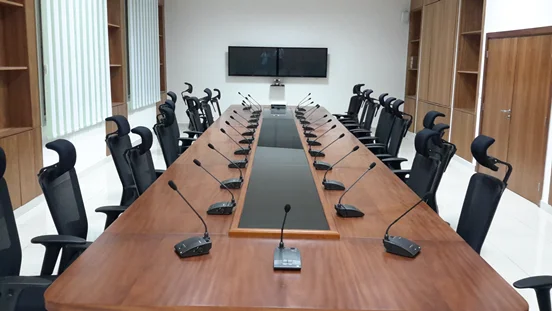

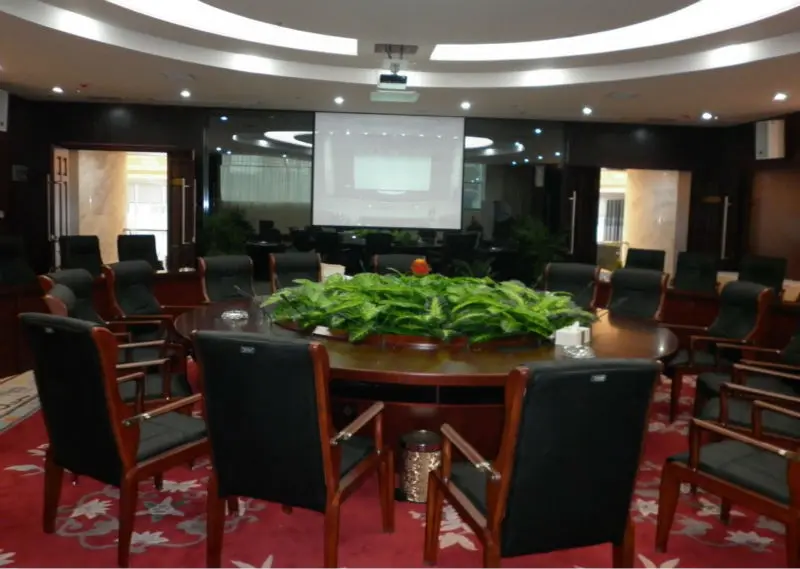

Project Case:
Packaging & Shipping
Price term | EWX price or FOB price |
Certificate | CE ,ROHS , TUV , ISO4043 |
Shipping method | By DHL ,UPS,TNT ,Fedex ,Almost all express shipping methods service if small order, and we can book space and get you the earliest date of delivery by sea if bulk order If there is any unhappy occations with the shipping, we will try our best to solve it with the shipping agent and ask for compensation. |
Payment terms | By T/T, Western Union , Paypal , Escrow Payment. |
Sample time | 3-5 working days |
Production time | 5 working day depend on the quantity |
packing | 1. each microphone in bubble bag, then in export carton, to save freight cost; 2. each microphone in bubble bag, then in inner box, then in export carton. |
Warranty | 36 MONTHS |
After sells service | If there is the problem with the product, firstly you need send the picture or the video to us, then let us make sure what’s problem about the product, if the problem can use the part to solve ,we will offer you the replacement for free Within 1 year. |
FAQ
1. Q: Are you Manufacturer or Trading company?
A: We are the manufacturer have more than 12 years experience
2.Q: Do you have any qualification certificate?
Yes, we have the CE and RoHS certificates, and letters patent of SINGDEN own design products, you can contact with sales to check the certificates.
3.Q: Can we visit your factory
A: yes, warm welcome to visit our factory anytime,Our address as below for your reference
Address:Wufansha industrial park,Nanhai district,Foshan,China
4.Q : What's your main products?
Conference system and simultaneous interpretation system
5.Q: How many years of warranty of your products
A: three years on system component parts and unlimited free technical support.
6. Q: If there is any problem about your products, should we have a refund or replacement.
A: Don’t worry about the quality of equipment, because SINGDEN do the complete inspection and test before delivery.
If there is really some problem about the product, contact with the sales, SINGDEN engineer team will help you to resolve your problem immediately by instruction; if the problem can not be resolved at your side, SINGDEN will send a new parts for replacement during warranty period, and you can change the parts with only screw driver, parts free, freight collect.
7.Q: What is your delivery time?
3-7 work days

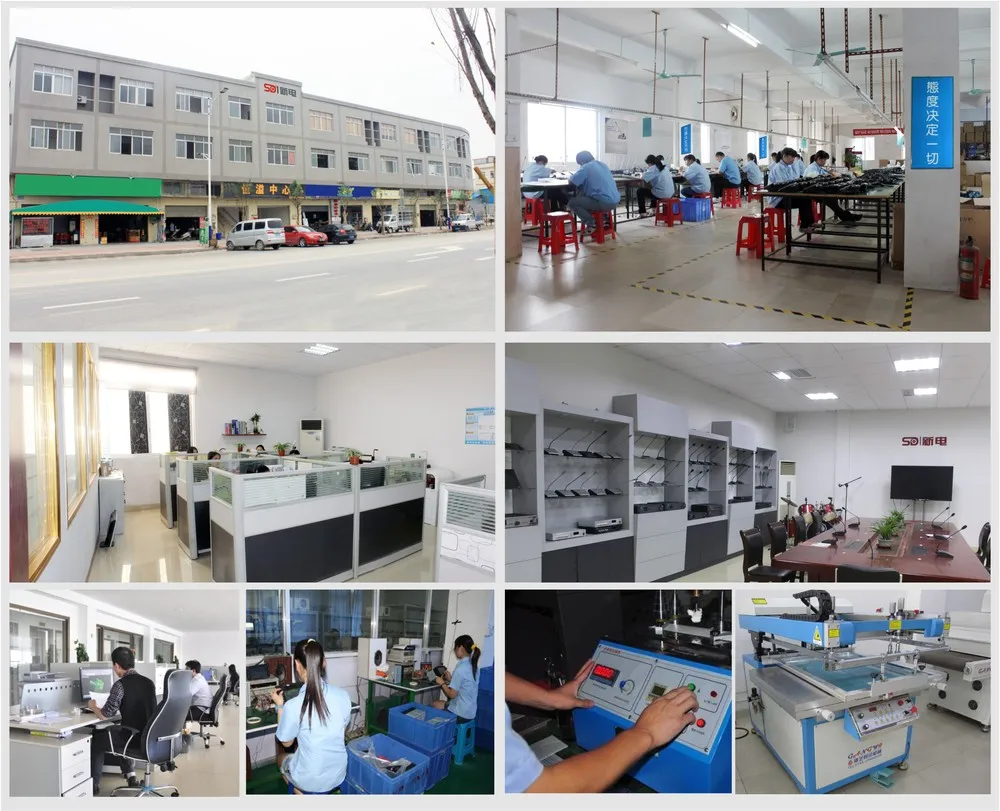

Company Information
