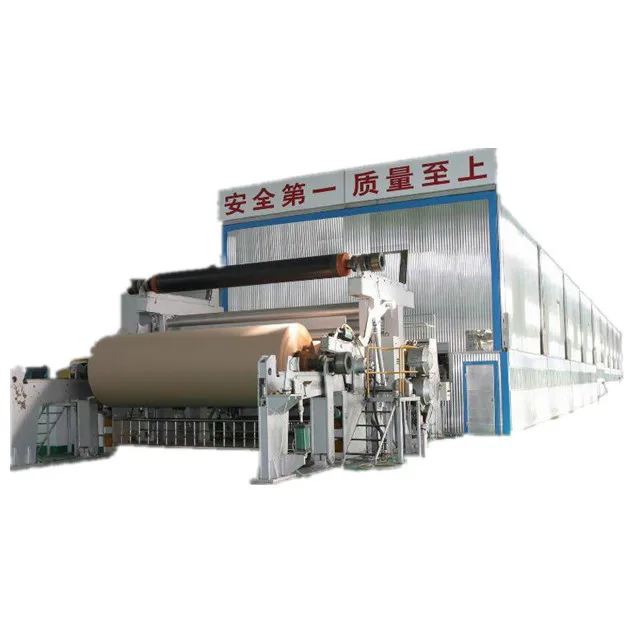

Kraft Paper Making Machine Price/fluting Paper Making Machine Mill Using Recycling Waste Paper
Product Description
I.Technical parameter
1. Raw material: waste paper
2. Output paper: kraft paper
3. Output paper weight:90-200 g/m2
4. Net paper width: 2880 mm
5. Cylinder mold width: 3350mm
6. Capacity: 50 T/D
7. Working speed: 70-150 m/min
8. Design speed:180m/min
9. Rail gauge:4000mm
10.Drive way: Alternating current frequency conversion adjustable speed ,section drive
II.The main structure
(1).Cylinder mold part:
Φ1500mm×3350mm×4000mm stainless steel cylinder mold 2 sets; Φ450mm×3350mm×4000mm couch roll 2 sets,roll body coated by rubber,rubber shore hardness is 38℃±2; Φ500mm×3350mm×4000mm return roll 1 set,roll body coated by rubber,rubber shore hardness is 86℃±2. Equipped with pneumatic pressure device.The pulp given to papermaking felt by pressure former which is made from stainless steel.
(2).Press part:
Arrangement: 1st press(upper roller is natural marble roll,bottom roller is rubber press roll)→2nd press(upper roller is natural marble roll and bottom roller is rubber press roll)
Spec:
1st press: 1 set of Φ800mm×3350mm×4000mm natural marble roll;1 set of Φ750mm×3350mm×4000mm rubber press roll,coated by rubber,rubber shore hardness 96℃±2.
2nd press: 1 set of Φ800mm×3350mm×4000mm natural marble roll;1 set of Φ750mm×3350mm×4000mm rubber press roll,coated by rubber,rubber shore hardness 96℃±2;
Loaded mode: the loaded mode of each press nip is pneumatic pressure,equipped with pressure air station and controlling system.
(3).Dryer part:
Φ1500mm×3350mm×4000mm alloy dryer cylinder 18 sets, the first and the second dryer are chrome plated;Arrangement:12dryer+sizing machine+6dryer.Equipped with dry wire device and 18 sets of scraper blades and 2 group of semi-closed exhaust hood.
(4).Sizing part:
Φ750mm×3350mm×4000mm size roll 2 sets.rubber shore hardness 98℃±2,it is the nitrile rubber.
(5).Calendering part:
2880mm type 2 rolls calender machine 1 set.Calender roll size:Φ575mm×3350mm×4000mm
(6).Winding part:
2880mm model Horizontal pneumatic winding machine 1 set, reeler cylinder :Φ1100mmx3350mm×4000mm.
(7).Rewinding part:
2880mm model Upper feeding Frame type rewinding machine 1 set.
Process of flowsheet:
Finished product:
Packaging & Shipping
Our Services
We can integrate with a very deep experience on the Turn-Key basis.
1. Customized projects and complete production lines design according to customers’ needs.
2. Modification of existing machines with solutions to satisfy customer needs.
3. The machine can be supplied with the accessories using first class components.
4. We shall provide the drawing, foundation drawing and layout drawing after receiving the advance payment.
5. We have the professional installation team to provide erection/or erection supervision, commissioning, test-run and training for customer. The customer shall provide international flight ticket, local transportation vehicle, food, hotel accommodations and salary for our engineers.
6. Performance and Mechanical Guarantee shall be provided for 1 year from the successful commissioning
Company Information
Certifications
Our factory
Our clients
FAQ
Q: 1. What information do you need, if i need to get a quotation from you?
A: Output paper type; Capacity(tons/24hours); Output paper weight(gram/m2); Raw material
Q: 2. How long is guarantee period for paper making machine?
A: 12 months after formal operational
Q: 3. What is the delivery time if we make a order from you?
A: Usually, the delivery time for smaller machines is 30-45 days
After receiving deposit, but for bigger machines, it will be longer
To make sure the equipment quality.
Q: 4. What is your payment terms?
A: (1). T/T(telegraphic transfer)30% as deposit, and 70% balance paid before shipment.
(2). 30%T/T + 70%L/C at sight.
(3). 100%L/C at sight.
Q: 5. How is the quality of your equipment?
A: (1). We are manufacturer, specializing in producing all kinds of Pulping Machine & Paper
Machine & Environmental Protection equipment for more than 40 years, competitive
With good quality.
(2). We have a technician team of engineers and experts. They mainly research the advanced
Paper making technology, to make sure our machines' design are newest.
(3). The machines will be pre-installed at workshop before delivery.
(4). All of our machines has audited the certificate of ISO
Q: 6. Why your price is higher than other similar supplier?
A: Different quality, different price. Our price is matched with our high quality. Compared with to her suppliers based on the same quality, our price is lower. But anyway, to show our sincerity, we will give you some discount.
Q: 7. Can we visit your factory and the running machine has installed in China?
A: Welcome to visit our factory. You can check our production ability, processing ability, check out facilities and running paper production line. What is more, you can discuss with engineers
Directly, and learn the machines well.
