electric cutting machine for notebook



Description of electric cutting machine
1. Double Hydraulic with strong power system design: Taiwan motor with strong power, Taiwan hydraulic components for ensure quality.
2. Inclined blade cutting patented technology: Any paper can be cut easily with inclined blade design.
3. Patented technology of oscillating oil cylinder: Oil cylinder swing design makes balance cutting power.
4. Adjustable gap of blade carrier patented technology: ± 0.3mm cutting precision, long service time.
5. Pushing paper with double guide rod & double lead screw paper-push ensuring the precision of pushing.
6. Pushing paper platform without slot design: Improve the strength of the pushing paper platform; prevent debris into the transmission parts which can extend the service life of the machine.
7. Patent technology of program adjust for blade depth: the depth accurate can be adjusted in program within 0.5mm.
8. External change knife switch function: Makes blade replacement convenient and efficient.
9. Blade lock design for knife support: add the blade lock device to guard against the blade slip which is according to the safety standard.
10. Outer adjustment for pressing pressure: Easy operation, outer adjustment for pressing pressure.
11. Swing arm design for knife support. Solve the problem that the roller slot that is easy to wear and tear, increase the utility time.
12. Mechanical pedal for pressing paper: The device is easy and safety for aligning the paper which corresponds the CE standards.
13. The paper pusher platform can be folded. And side table can be chose.



Technical data of electric cutting machine

Model	XH670R	XH720R
Max. cutting size	670*670mm	720*720mm
Min. cutting size	30*30mm	30*30mm
Cutting thickness	80mm	80mm
Cutting precision	± 0.3mm	± 0.3mm
Pressing paper mode	Hydraulic +foot pedal	Hydraulic +foot pedal
Cutting paper mode	Hydraulic +foot pedal	Hydraulic +foot pedal
Pushing page mode	Numerical-control	Hydraulic +foot pedal

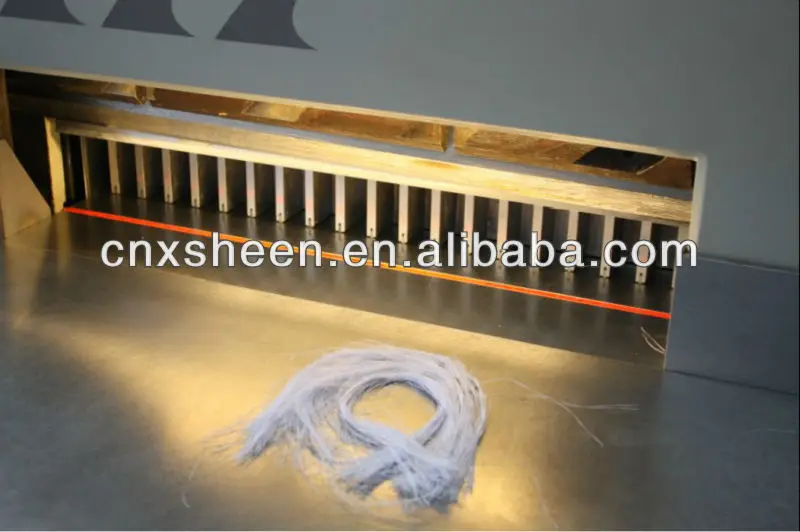

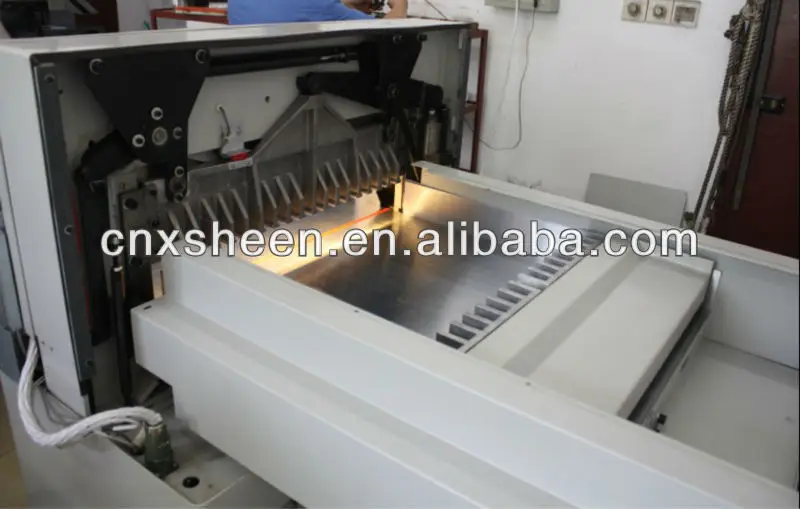

Machine images
