Air Blower For Swimming Pool
Product Overviews
| EC DC Gas Blower Sizes | 108, 118, 120, 130, 148, 150,175 series (or Customized) |
AC Combustion Fan Sizes | 85, 97, 108, 120 series (or Customized) |
AC DC EC Centrifugal Blower Sizes | 85mm~150mm (or Customized) |
Voltage | AC Input: 210V,220V,230V,380V,400V DC Input: 12V,24V,48V EC input: 210V,220V,230V,380V,400V (or Customized) |
Power | Up to 2300W (or Customized) |
Speed | Up to 3300RPM (or Customized) |
Air Flow | Up to 7000m3/h (or Customized) |
Speed control | Speed controller (AC) or PWM/0-10V Input (DC EC) |
DATASHEET DOWNLOAD
Product Description
Electrical Parameters | |
Motor | Brushless external rotor motor |
Insulation Class | Class "B" |
Speed Control | PWM Input |
Type of protection | IP20 |
Operation Mode | S1 |
EMC | EN 55011 and EN50082-2 |
Mechanical Parameters | |
Impeller Dimension | Φ148mm |
Material of Impeller | PA66+GF30 anti-static & fire resistant plastic |
| Other Parameters | |
| Approval | CE, CCC, ErP2015 and Rosh compliance |
| Warrent | 18 months after delivery |
Specification | |||||||||
Item Code: G-RG148 | |||||||||
Rated | Frequency | Rated | Input | Speed | Air Flow | Air Flow | Static Pressure | Noise | Net Weight (Kg) |
230V | 50/60 | ≤0.95 | 135 | 5600 | 110 | 187 | 3200 | 71 | 1.90 |

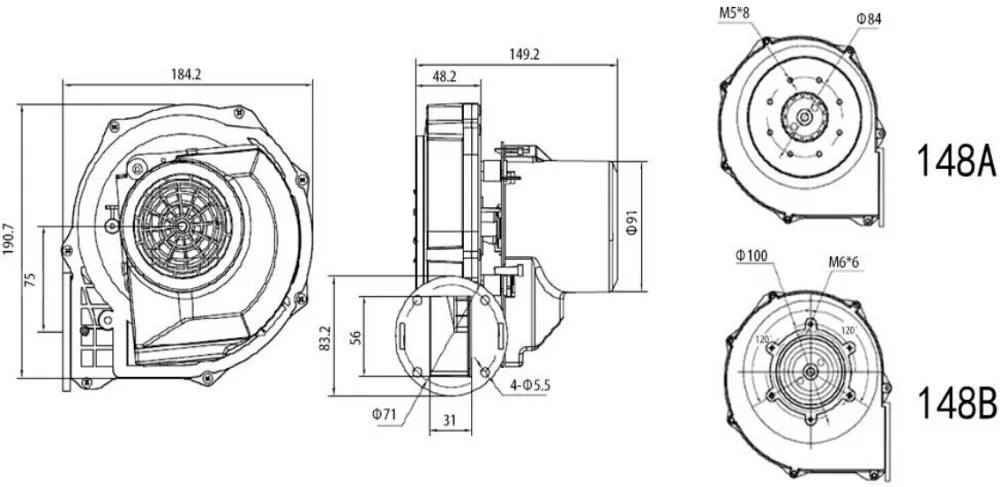

Outline Drawing | |||||||||
|

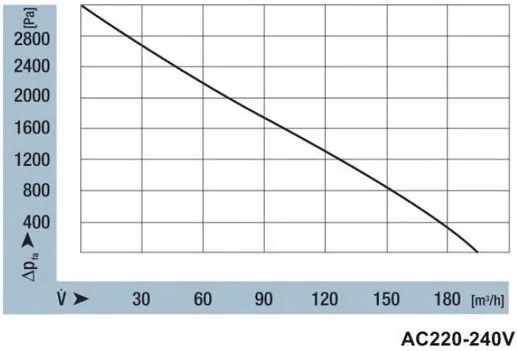

| Characteristic Curves | Wire Diagran | |
 | Cable Color | Function |
| Brown | L | |
| Blue | N | |
| Yellow/Green | PE | |
| Red | +10V output | |
| Yellow | 0-10VDC / PWM | |
| Blue | GND | |
| White | Tach output | |
Application
Customized Solutions
Customized Fan and Blower Solutions GP Motor specialize in design, custom and manufacture electric fans, including Centrifugal Fans, Centrifugal Blowers, Axial Fans, Inline Duct Fans, Cross Flow Fans, Gas Blowers, Fan Motors and Fan Components. All of them can be fully and easily customized (see some of the many customization options listed below). We committed to offer high quality, high performance, cost effective options to meet customers specific demands. Choosing to customize one of the fans in our Product Categories now! |
